- ITEM:Single mode, Simplex, 9/125, LC/APC fiber optic pigtail
- Application:Telecommunication
- Material:PVC, LSZH
- Certification:ISO9001
- Connector:LC/APC
- Warranty:3 Years
- Length:1m, 2m, 3m…Customized
- Wavelength:1310nm/1490nm/1550nm
- No. of Fiber:1.
-
- Supply Ability
- 500000 Piece/Pieces per Month
-
- Packaging Details
Plastic/ Carton/Customized
-
- Port
Wuhan/Shanghai/shenzhen
- Lead time:Quantity(pieces)1 – 1500>1500Lead time (days)20To be negotiated

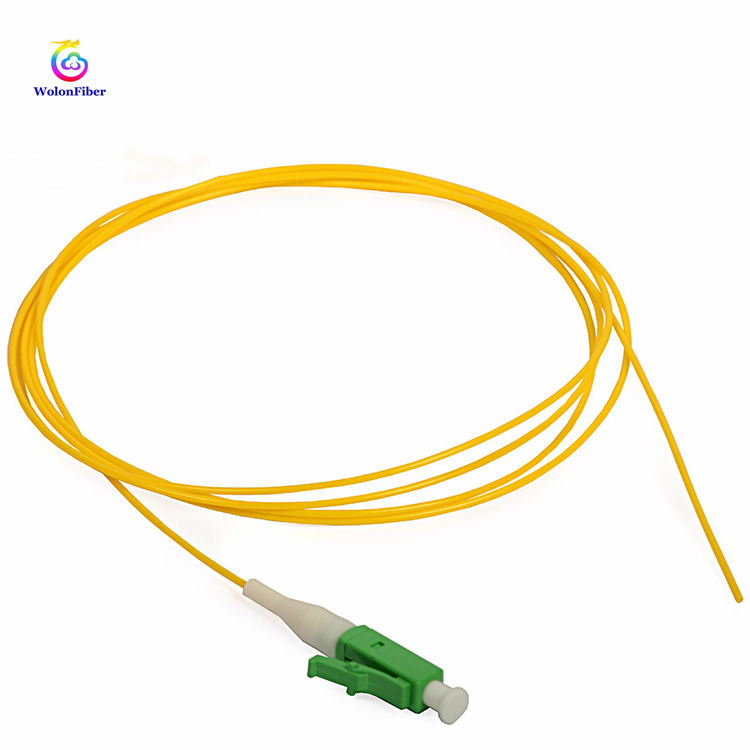

Wholesale cheap price waterproof 0.9 Singlemode LC/APC fiber optic pigtail
Product Description
| Parametor | Unit | Value | |||
| Connector Type | FC/UPC,FC/APC,SC/UPC,LC/UPC,LC/APC,ST/PC,MPO | ||||
| Fiber Type | Multi-Mode | Single Mode | |||
| Insertion Loss | dB | Max.≤0.2 | Max.≤0.3 | ||
| Return Loss(Typ.) | dB | ≥36(no APC connector) | /PC | /UPC | /APC |
| ≥45 | ≥50 | ≥60 | |||
| Repeatability | dB | ≤0.1 | |||
| Interchangeability | dB | ≤0.2 | |||
| Connection Durability | times | ≥1000 | |||
| Operating/Storage Temperature | ℃ | -40~+80 |
