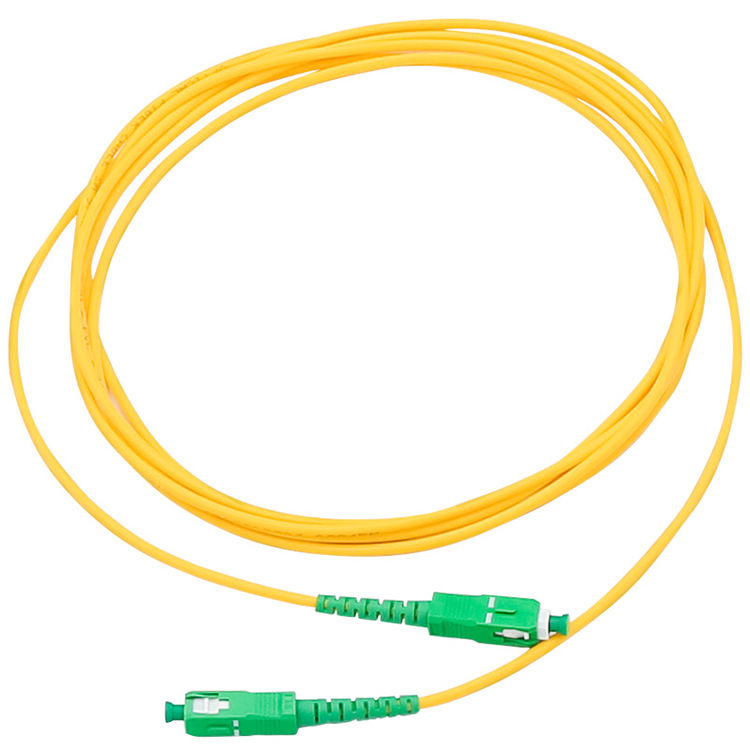

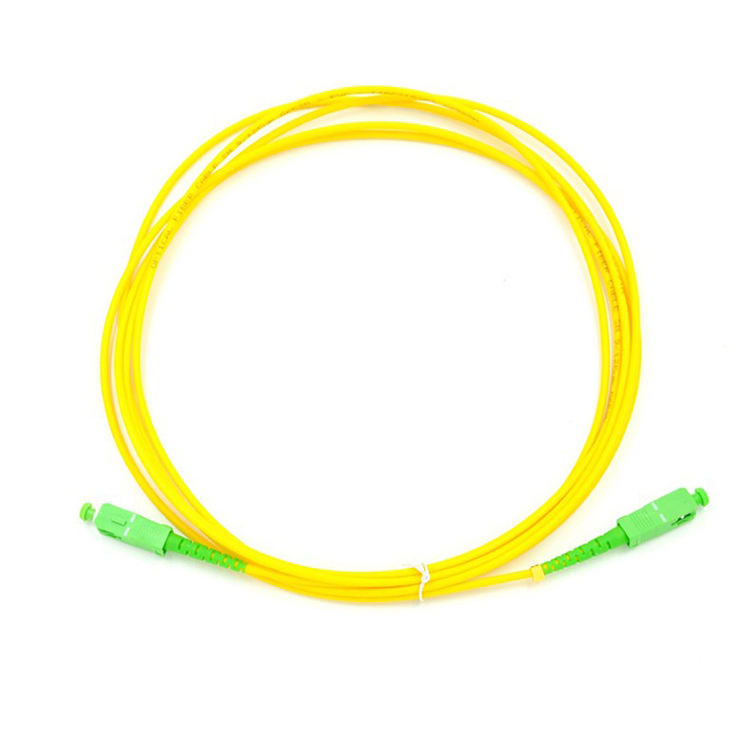

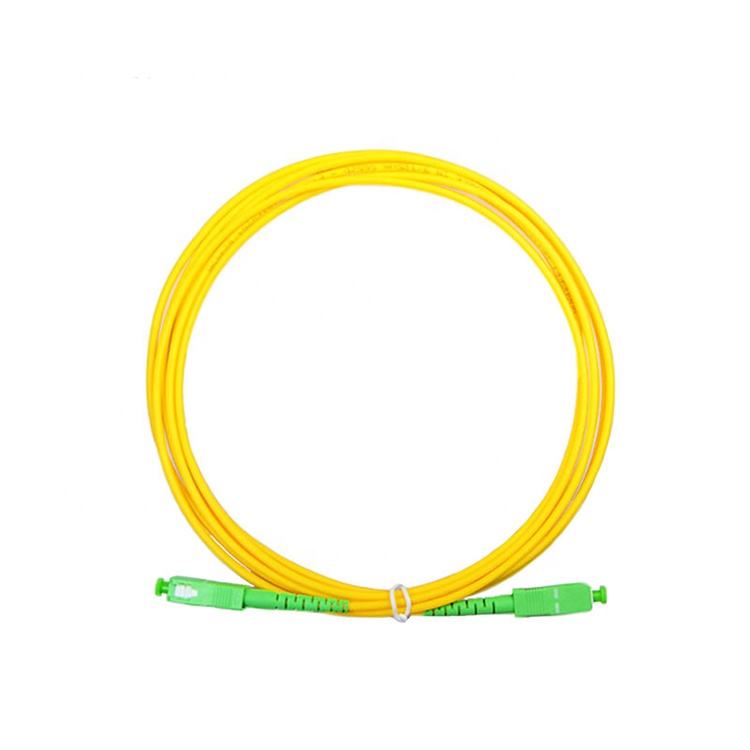

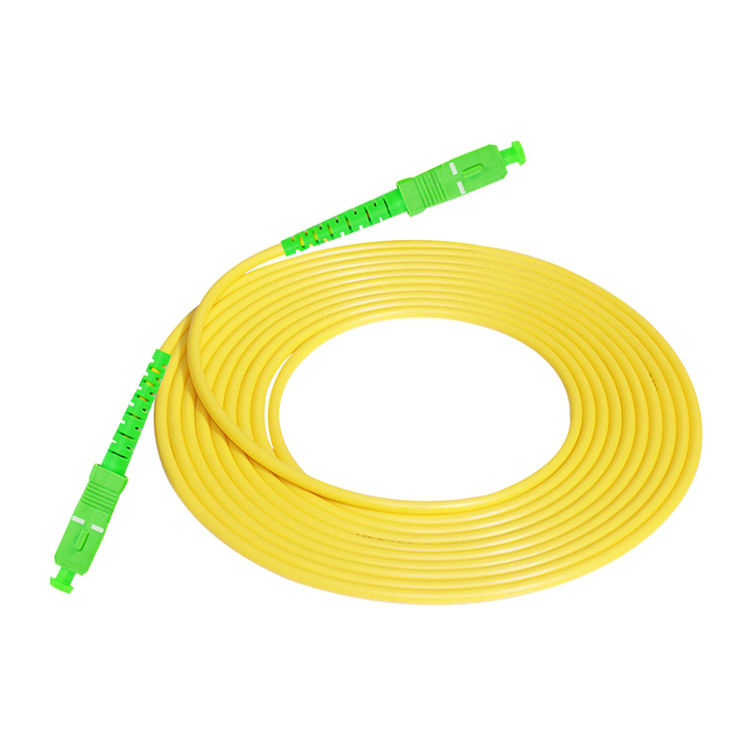

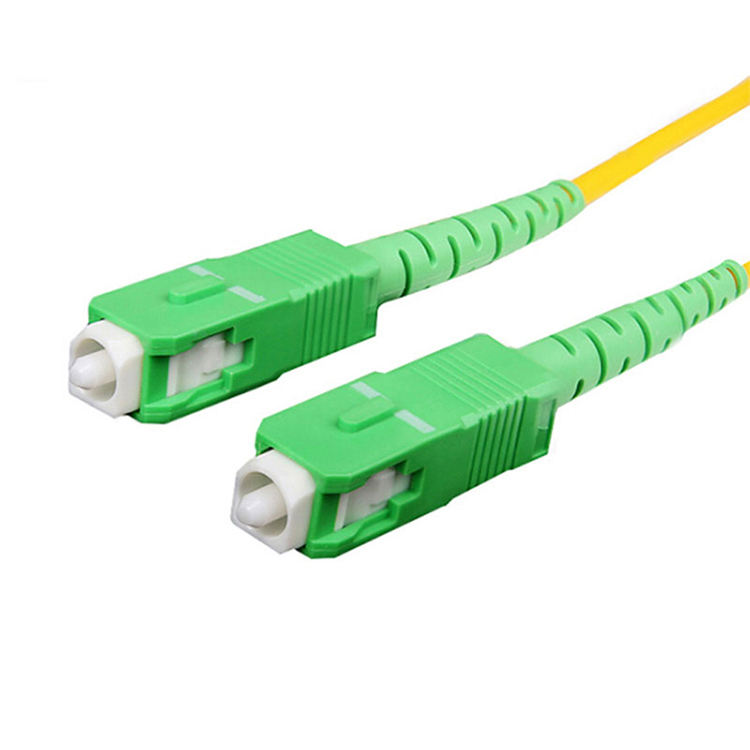

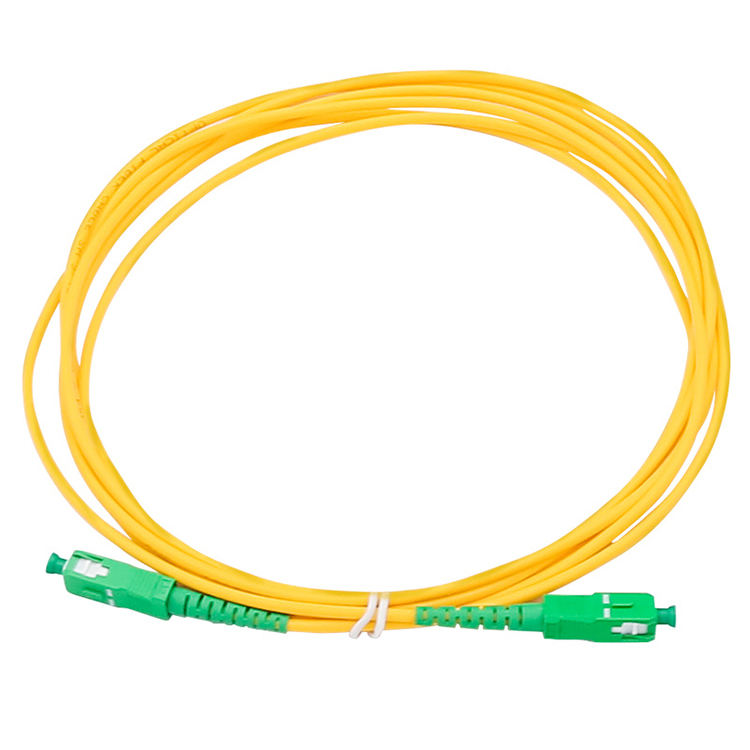

Best Quality China Manufacturer Optic Patch Cord 1M 2M 3M 5M SC patch cord factory price
Optical patch Cord and pigtail is the basic parts for optical transmission. They are consist of fiber optic cable and terminated connector. Wolon has strong capacity and experience to support any large demand.
Features
Low Insertion Loss, High Return Loss
Good Repeatability and Interchangeability
Applications
Long-haul, Metro and Access System
Fiber CATV and Fiber Network System
Specifications:
|
Parameter |
Unit |
Value |
|||
|
Connector Type |
FC/UPC,FC/APC,SC/UPC,SC/APC,LC/UPC,LC/APC,ST/PC,MPO |
||||
|
Fiber Type |
Multi-Mode |
Single Mode |
|||
|
Insertion Loss |
dB |
Typ.≤0.1 Max.≤0.2 |
Typ.≤0.1 Max.≤0.3 |
||
|
Return Loss (Typ.) |
dB |
≥36 (no APC connector) |
/PC |
/UPC |
/APC |
|
|
|
|
≥45 |
≥50 |
≥55 |
|
Repeatability |
dB |
≤0.1 |
|||
|
Interchangeability |
dB |
≤0.2 |
|||
|
Connection Durability |
times |
≥1000 |
|||
|
Operating/Storage Temperature |
°C |
-40~+80 |
