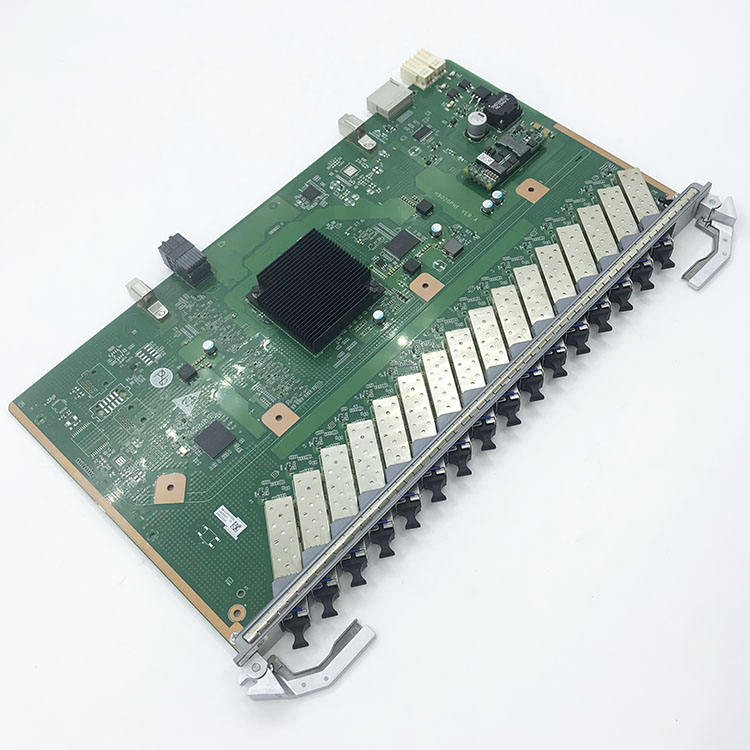

- Model Number:GPHF
- Type:OLT
- Place of Origin:Guangdong
- Brand Name:Huawei
- Use:Multiple applications
- Warranty Time:1 year
- Network:None
- Apply to:MA5600 MA5608T MA5680T MA5683T
-
- Supply Ability
- 2500 Piece/Pieces per Week
-
- Packaging Details
Cartons
-
- Port
Shenzhen
- Picture Example:
- Lead time:Quantity(pieces)1 – 5000>5000Lead time (days)15To be negotiated
Specification
|
Brand
|
Huawei
|
|
Model
|
GPHF
|
|
GPON Port
|
16-GPON Port
|
|
Type
|
C+ Module : One-fiber bi-directional optical module, class C+
|
|
Operating Wavelength
|
Tx: 1490 nm, Rx: 1310 nm
|
|
Encapsulation Type
|
SFP
|
|
Port Rate
|
Tx: 2.49 Gbit/s, Rx: 1.24 Gbit/s
|
|
Minimun Output Optical Power
|
C+ Module : 3.00 dBm
|
|
Maximum Output Optical Power
|
C+ Module : 7.00 dBm
|
|
Maximum Receiver Sensitivity
|
C+ Module : -32.00 dBm
|
|
Optical Connector Type
|
SC/PC
|
|
Optical Fiber Type
|
Single-mode
|
|
Reach
|
20.00 km
|
|
Overload Optical Power
|
C+ Module : -12.0 dBm
|
|
Extinction Ratio
|
8.2 dB
|
|
Dimensions (W x D x H)
|
23.30 mm * 257.90 mm * 399.20 mm
|
|
Power Consumption and Maximum Frame Size
|
|
|
Power Consumption
|
Static: 25W; Maximum:50W
|
|
Maximum Frame Size
|
2004 bytes
|
|
9216 bytes (jumbo frame enabled)
|
|
|
Operating temperature
|
-40°C to +65°C
|
