SKU 1600701006308 Categories ,

  • Warranty Time:1year
  • Network:Wireless Lan, bluetooth, Wired LAN, ONVIF, None, None, SDK, TCP, Ip, POE, GPRS, wifi, 4g, GSM, 3G, Wiegand

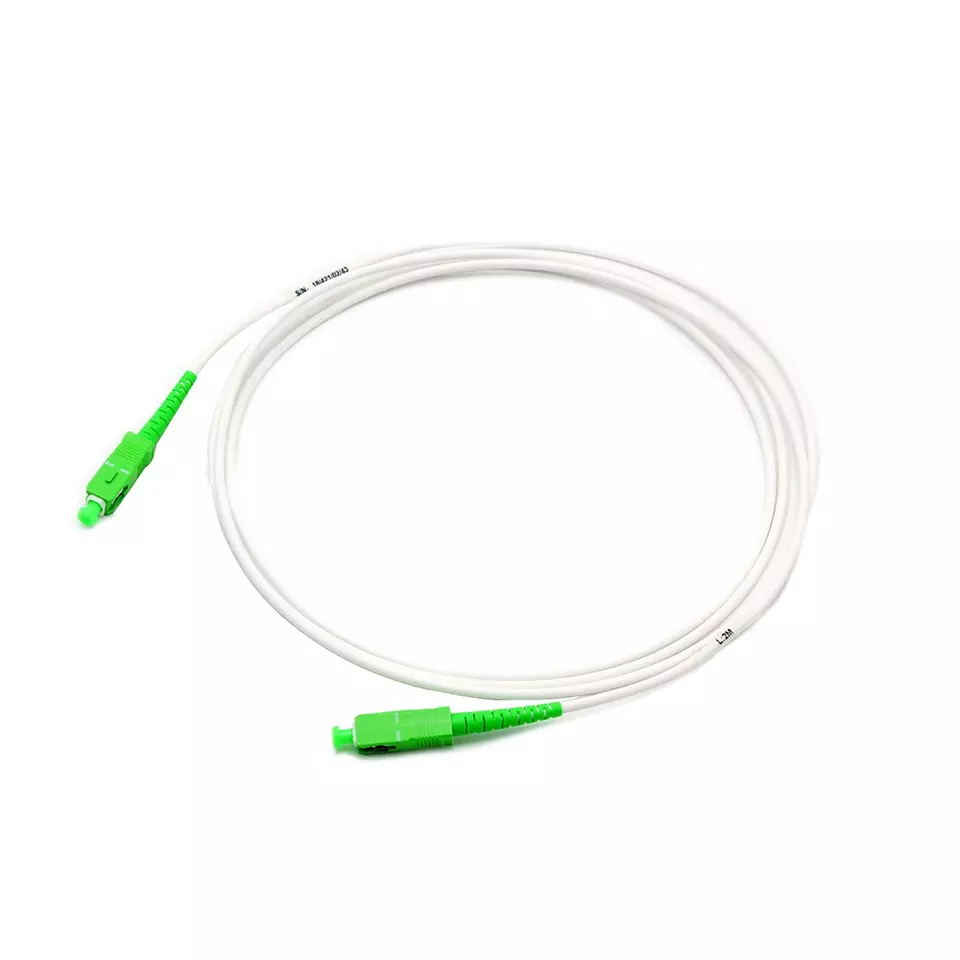

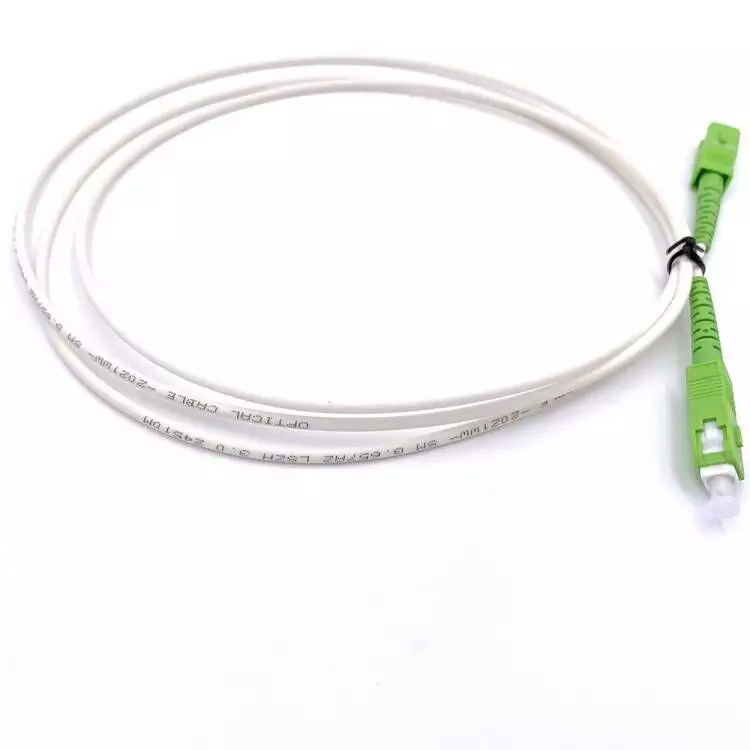

  • Product Name:SC APC Simplex White Fiber Optic Patch Cord
  • Application:FTTH FTTB FTTX Network
  • Fiber Type:Multi Mode
  • Connector Type:SC FC ST LC UPC APC
  • Material:PVC, LSZH
  • Wavelength:1310/1550nm
  • Insertion loss:IL<0.3db
  • Return Loss:50dB
  • Length:0.5m/1m/2m/5m/customized
  • Certification:ISO9001:2018
  • Supply Ability
    100000 Piece/Pieces per Month
  • Packaging Details

    Plastic/ Carton/Customized for Hot sale 50/125um dumplex amp lc lc om3 fiber optic patch cord

  • Port


  • Picture Example:
  • Lead time:Quantity(pieces)1 – 1500>1500Lead time (days)7To be negotiated
Product Description
Parameter Unit Value
Fiber Type   Multi-Mode Single Mode
Insertion Loss dB Max.≤0.2 Max.≤0.3
Return Loss(Typ.) dB ≥36(no APC connector) /PC /UPC /APC
≥45 ≥50 ≥60

Test Wavelength

nm 850/1310nm 1310/1550nm
Repeatability dB ≤0.1
Interchangeability dB ≤0.2
Connection Durability times ≥1000
Operating/Storage Temperature    -40~+80


     Cable description

  • Fiber brand: YOFC, FIBERHOME
  • Cord type:Simplex ,Duplex
  • Cable jacket:PVC, OFNR, LSZH, OFNP
  • Cable diameter:0.9mm,2.0mm,3.0mm
  • Length:3m or customized


  • Low insertion loss and return loss
  • Ferrule end surface pre-domed
  • Excellent mechanical endurance
  • Excellent environmental stability
  • Good in repeatability



SA SA SM SX Fiber Optic Patch Cord
