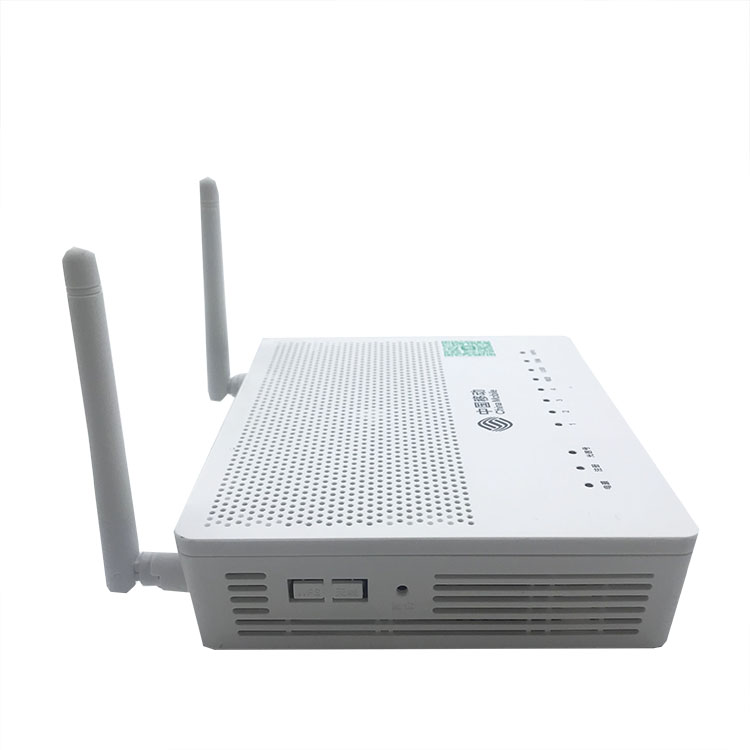

H1S-3 overview:
H1S-3 is a high-quality network gateway, which is an IoT optical network terminal customized by Huawei for China Mobile. It supports many L3 functions to create a smart home network. And it provides a high-quality broadband connection to the Internet through a GPON optical interface, while maintaining the stable operation of services such as VoIP and IPTV.
H1S-3 terminal has a Wi-Fi wireless network interface, which will allow you to share the connection more easily with other devices without using additional cables.
H1S-3 is equipped with the following ports:
4 x Ethernet port, of which 1 supports Gigabit Ethernet, used to connect wired devices, providing a stable and efficient connection,
1 x POTS port allows you to connect a phone without the need to split additional cable,
1 x USB will allow you to connect devices such as storage media to share files on the network.
Model Number:H1S-3
- Type:ONU
- Place of Origin:Guangdong
- Brand Name:Huawei
- Use:FTTX
- Network:Wired LAN, POE, 4g
- Supply Ability2500 Piece/Pieces per Week
- Packaging Detailscarton Package
- PortShenzhen
- Lead time:Quantity(pieces)1 – 5000>5000Lead time (days)15To be negotiated
Product name:
|
H1S-3
|
Ports-num:
|
1GE+3FE+1POTS+1USB
|
Place of origin:
|
Guangdong ; China
|
WIFI:
|
2.4G
|
PPPOE:
|
support
|
OMCI:
|
support
|
Optical Port:
|
SC/APC SC/UPC
|
Pilot Lamp
|
Status
|
Description
|
||
WIFI
|
On
|
The WIFI interface is up.
|
||
Blink
|
The WIFI interface is sending or/and receiving data (ACT).
|
|||
Off
|
The WIFI interface is down.
|
|||
WPS
|
Blink
|
The WIFI interface is securely establishing a connection.
|
||
Off
|
The WIFI interface does not establish a secure connection.
|
|||
PWR
|
On
|
The device is powered up.
|
||
Off
|
The device is powered down.
|
|||
LOS
|
Blink
|
No light signal or low signal
|
||
Off
|
The device has received optical signal.
|
|||
LAN1~LAN4
|
On
|
Port (LANx) is connected properly (LINK).
|
||
Blink
|
Port (LANx) is sending or/and receiving data (ACT).
|
|||
Off
|
Port (LANx) connection exception or not connected.
|
* Typical Solution:FTTH(Fiber To The Home)
* Typical Business:INTERNET,IPTV,WIFI ,VOIP etc
