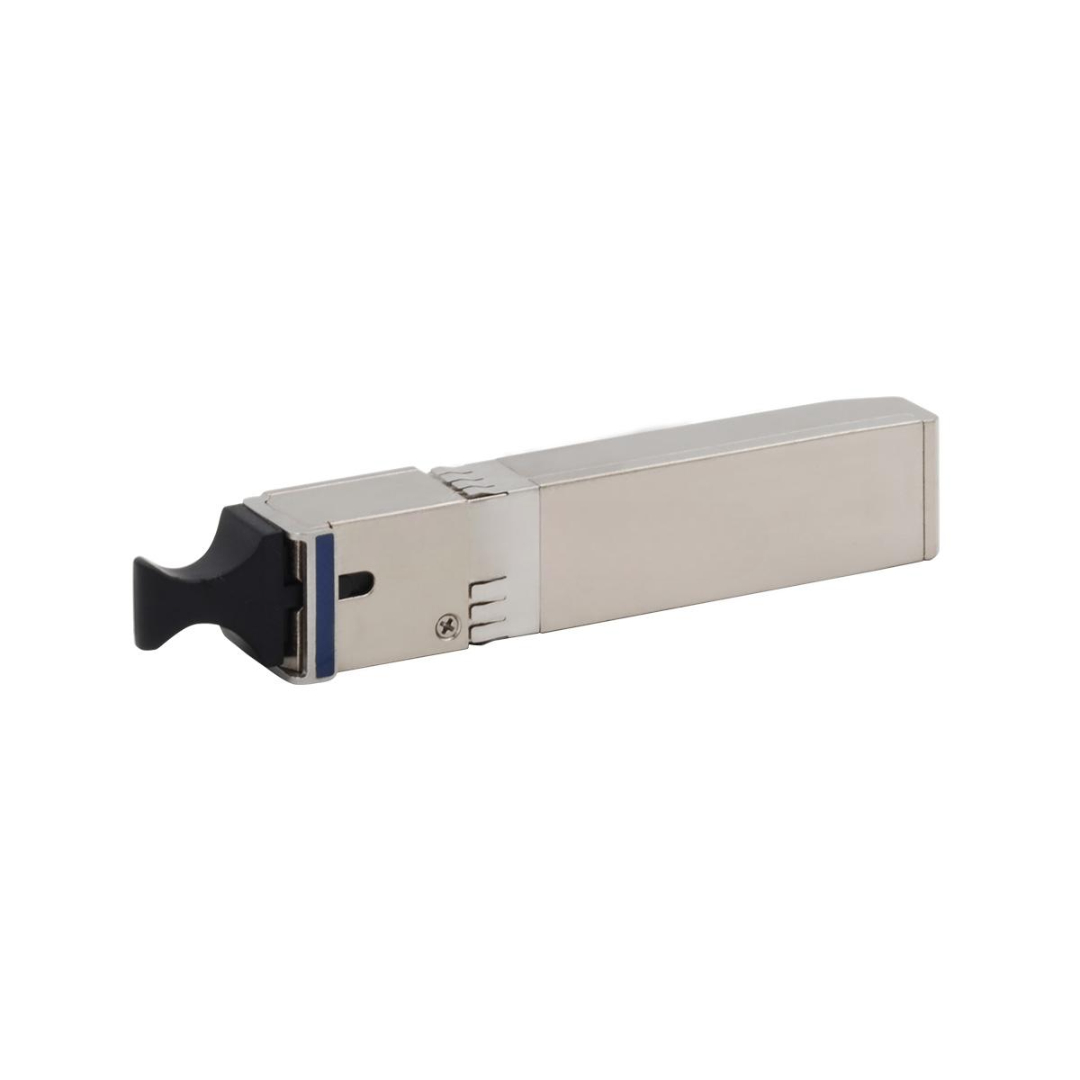

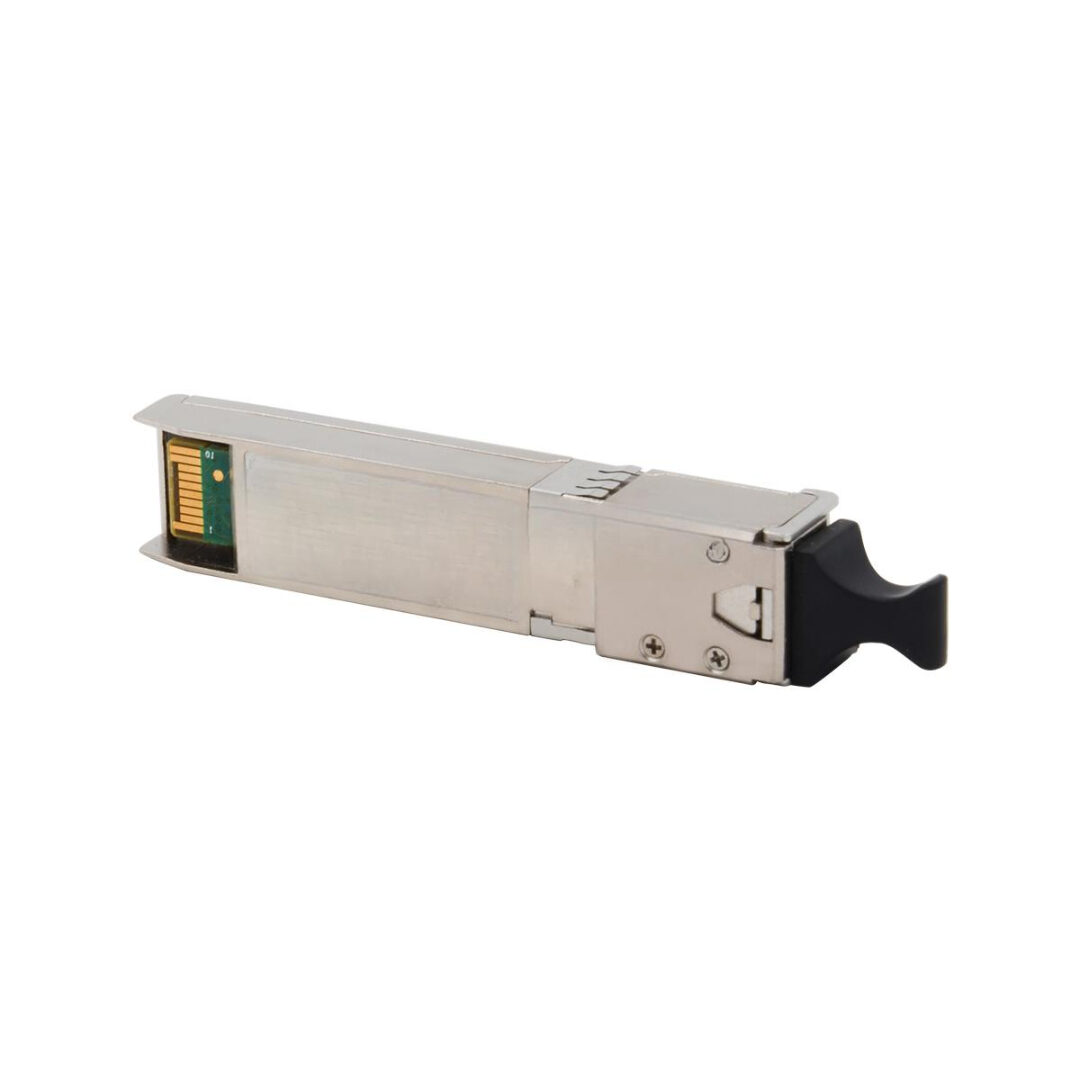

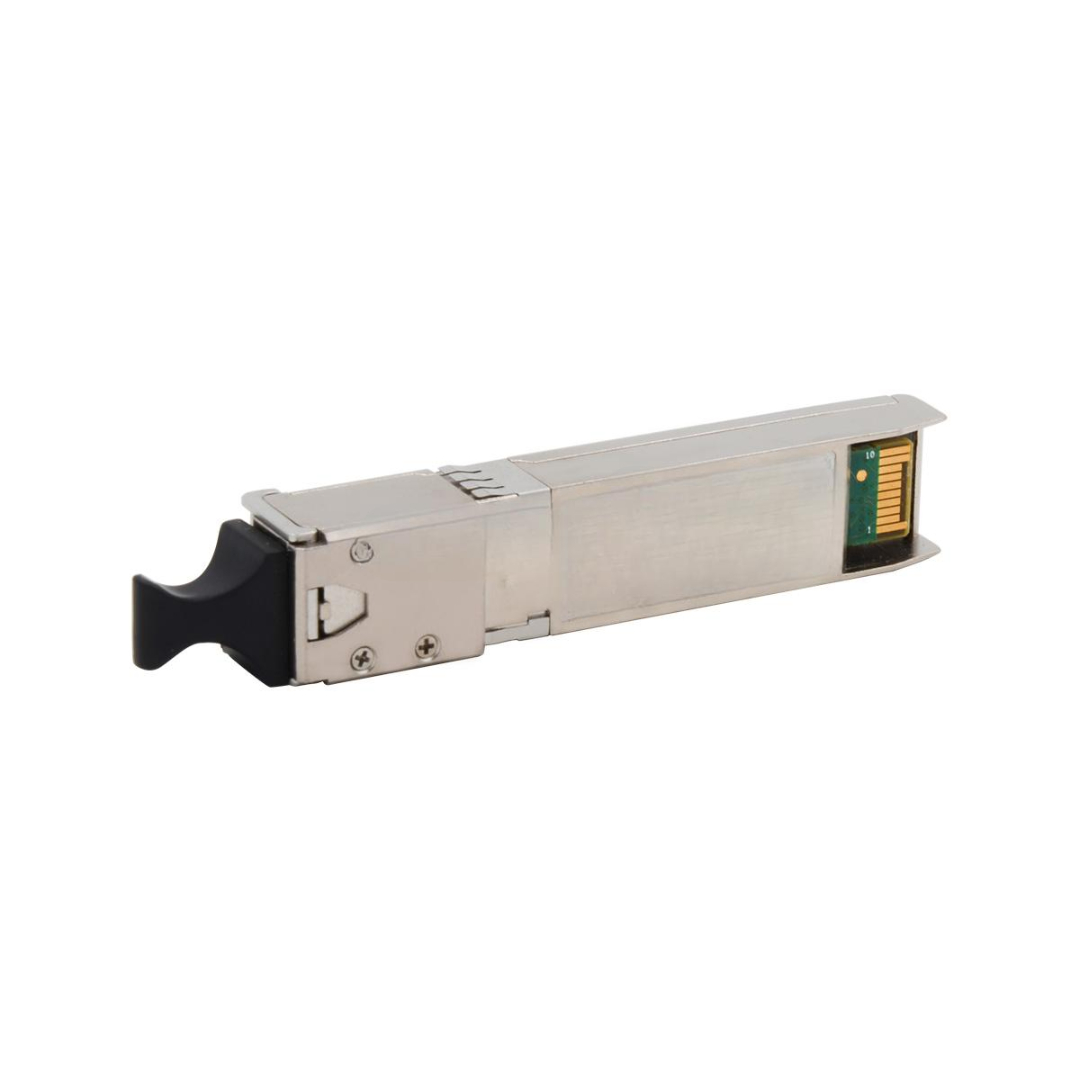

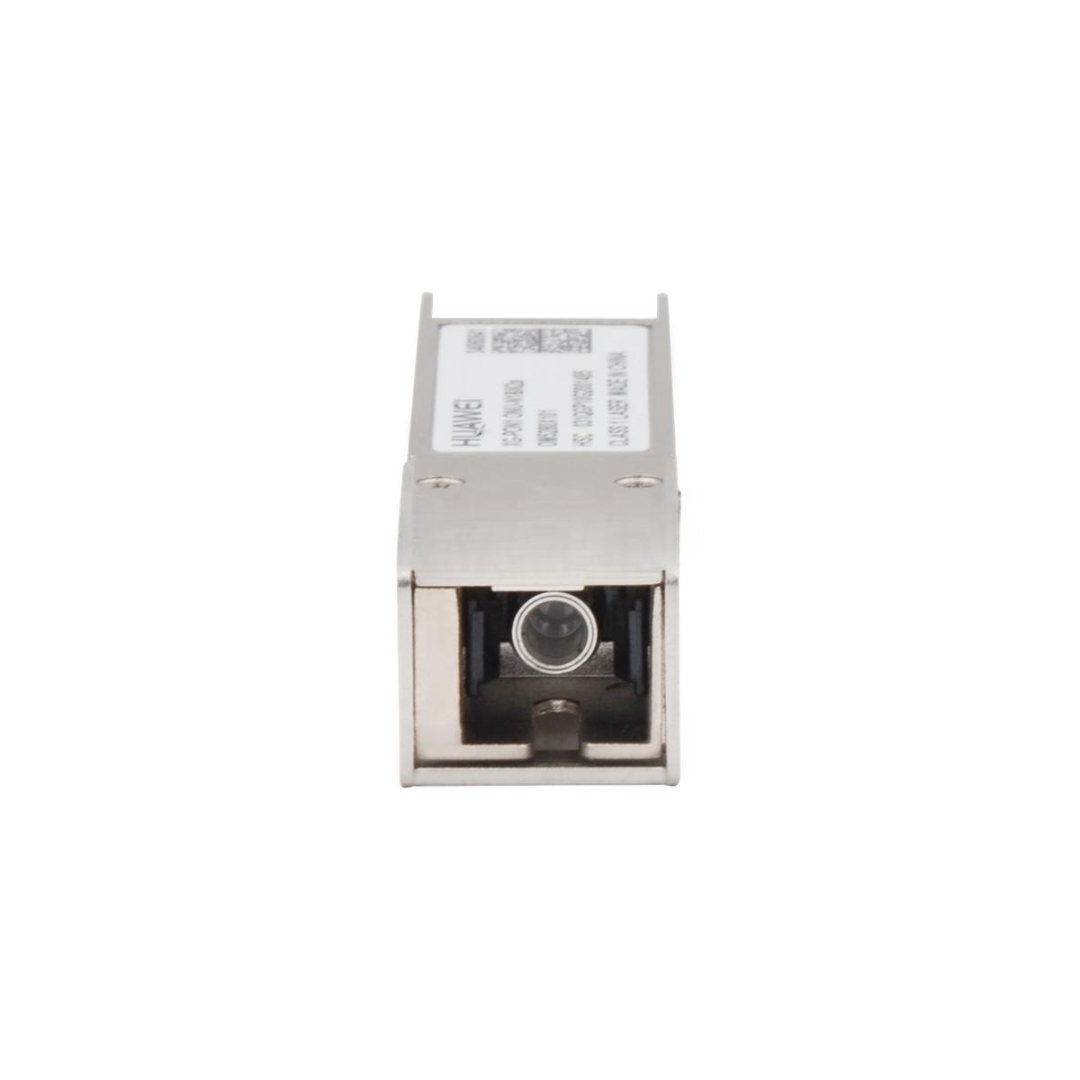

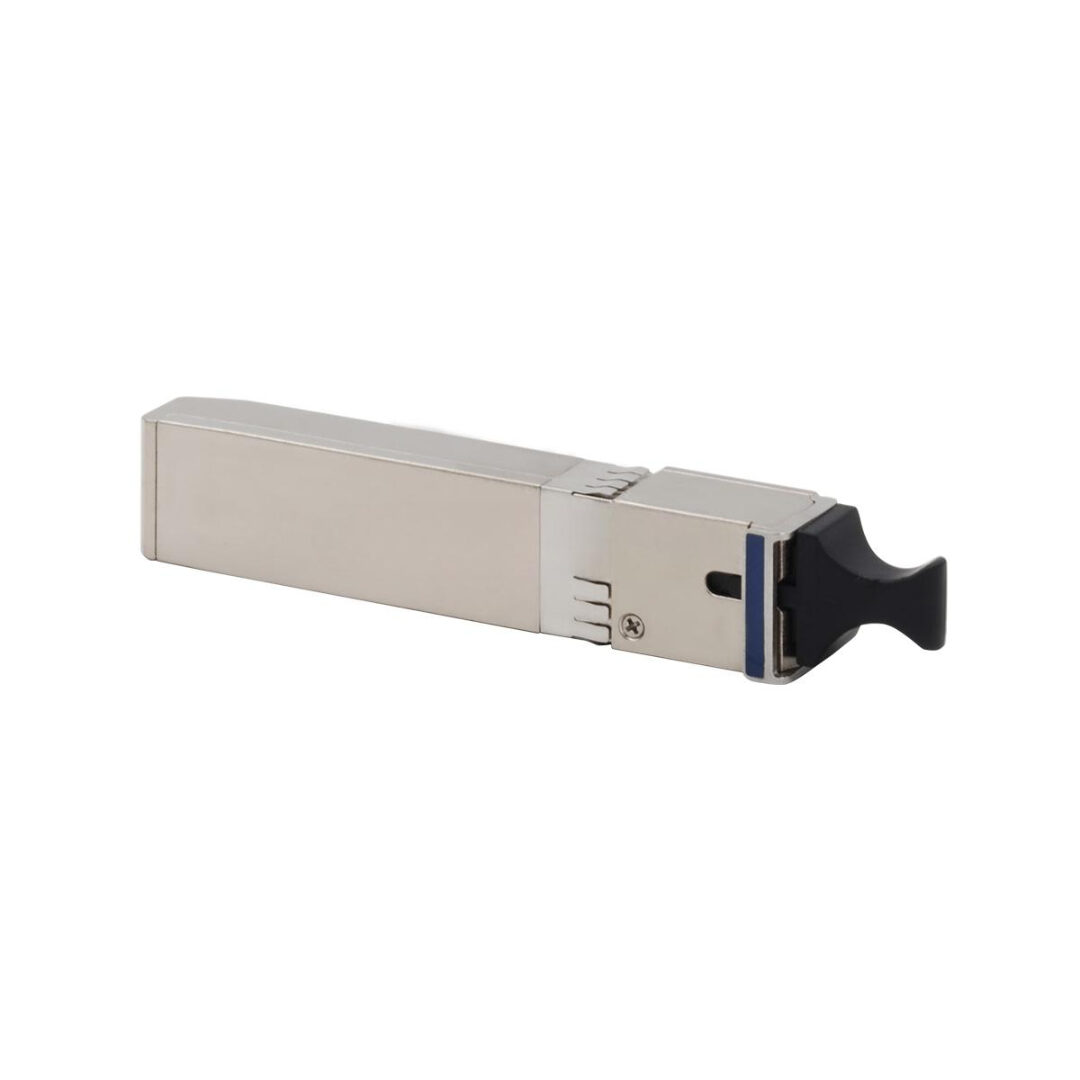

XG-PON ONU SFP+ HSC Huawei Brand New Optical Transceiver
The XGPON ONU SFP+ HSC Huawei is a brand new pluggable optical transceiver module designed for XG-PON (10-Gigabit Passive Optical Network) applications. This SFP+ transceiver enables ONU (Optical Network Unit) functionality over a 10G PON access network and is fully compliant with ITU-T G.987.2 and G.9807.1 (XG-PON and XG-PON/XGS-PON coexistence) standards.
Featuring a SC/UPC simplex connector, hot-swappable design, and low power consumption, it is ideal for integration into routers, switches, or industrial gateways requiring XG-PON ONU capabilities without dedicated hardware. This compact and high-performance module is used in FTTH/FTTB deployments for ultra-broadband access.
Key Features
Model: XG-PON ONU SFP+ HSC
Condition: 100% Brand New, Original Huawei
Form Factor: SFP+
Functionality: ONU (Optical Network Unit) for XG-PON
Data Rate: 10.0 Gbps downstream / 2.5 Gbps upstream
Compliance: ITU-T G.987.2, G.9807.1
Wavelength: TX: 1270 nm / RX: 1577 nm
Connector Type: SC/UPC Simplex
Fiber Type: Single-mode Fiber (SMF)
Reach: Up to 20 km typical (with optical budget ≥29 dB)
Host Interface: SFI (SFP+ electrical interface)
Hot-swappable: Yes — plug-and-play operation
DDM/DOM Support: Yes (Digital Diagnostics Monitoring)
Encryption Support: AES-128 downstream encryption
Activation Mode: Serial Number or LOID
Technical Specifications
| Specification | Details |
|---|---|
| Model | XG-PON ONU SFP+ HSC |
| Form Factor | SFP+ Optical Transceiver |
| Interface Function | ONU for 10G PON access |
| Downstream Rate | 9.953 Gbps (RX) |
| Upstream Rate | 2.488 Gbps (TX) |
| Wavelength TX / RX | TX: 1270 nm / RX: 1577 nm |
| Connector Type | SC/UPC (Simplex) |
| Transmission Distance | Up to 20 km (with ≥29 dB optical budget) |
| Fiber Mode | Single-mode fiber (SMF) |
| Standard Compliance | ITU-T G.987.2, G.9807.1, SFF-8472 |
| Host Interface | SFI (SFP+ 10Gbps electrical interface) |
| DDM/DOM | Supported |
| Encryption | AES-128 Downstream Encryption |
| Activation Mode | LOID and/or Serial Number |
| Power Supply | 3.3V |
| Power Consumption | ≤2.5W (typical) |
| Operating Temperature | 0°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Compatibility | Huawei OLTs and XG-PON-compliant third-party devices |
| Warranty | 1–3 Years Manufacturer Warranty |
XGPON ONU SFP+ HSC Huawei Applications
- FTTH / FTTB Deployments — Used as a pluggable ONU for home or building broadband access
- Enterprise Internet Access — High-speed, symmetric broadband for offices via passive fiber
- Edge Routers & Gateways — Embedded into routers or firewall appliances to provide fiber WAN
- Industrial Smart Devices — Integrated into gateways for smart grid, utility, or IoT backhaul
- MDUs & Campuses — Centralized ONU access with modular scalability
Customization & OEM Options
Private Labeling — Customize transceiver body and labels with your branding
LOID/SN Pre-Programming — Set activation parameters at factory per deployment region
SFP Cages & Adapter Kits — Bundled integration kits for non-native SFP+ chassis
Industrial Temp Version — Optional models for -40°C to +85°C operation
Test Certificates — Serialized testing reports and interoperability checklists
Custom Firmware — Adaptation for specific NMS or provisioning environments
XGPON ONU SFP+ HSC Huawei Wholesale & Global Supply
Bulk Availability — Large inventory for ISPs, integrators, and OEM builds
Huawei OEM Source — 100% original modules with full traceability
Fast Global Shipping — Export-compliant packaging and international delivery
Secure Packaging — ESD-safe boxes and foam packing for high-volume orders
Certification Documents — CE, RoHS, and ITU-T compliance documentation available
Integration Support — Assistance with NMS, firmware, and OLT provisioning
Why Choose XGPON ONU SFP+ HSC Huawei
- Compact ONU Solution — Eliminates the need for external ONU devices
- Standard Compliance — Fully interoperable with XG-PON OLTs from Huawei and others
- High-Speed, Passive Fiber Access — Delivers true gigabit broadband
- Low Power & Heat — Suitable for embedded or sealed environments
- Deployment Flexibility — Easily fits into existing SFP+ ports for fiber access
- Huawei Proven Quality — Stable, long-life components for carrier-grade reliability
Contact Us for Datasheets, Pricing & OEM Bulk Orders
Ready to upgrade your broadband deployment with the Huawei XG-PON ONU SFP+ HSC? Contact us today for competitive pricing, technical datasheets, custom branding options, and wholesale supply support.
Plug into the Future of Broadband — Huawei XG-PON SFP+ ONU, the Smart Choice for High-Speed Fiber Access.
