- Model Number:GM219-S
- Type:ONU
- Place of Origin:Guangdong, China
- Brand Name:HUAWEI
- Use:FTTH
- Warranty Time:1 year
- Network:Wired LAN, wifi
-
- Supply Ability
- 10000 Piece/Pieces per Month
-
- Packaging Details
Retail Carton
- Picture Example:
- Lead time:Quantity(pieces)1 – 200201 – 1000>1000Lead time (days)1215To be negotiated

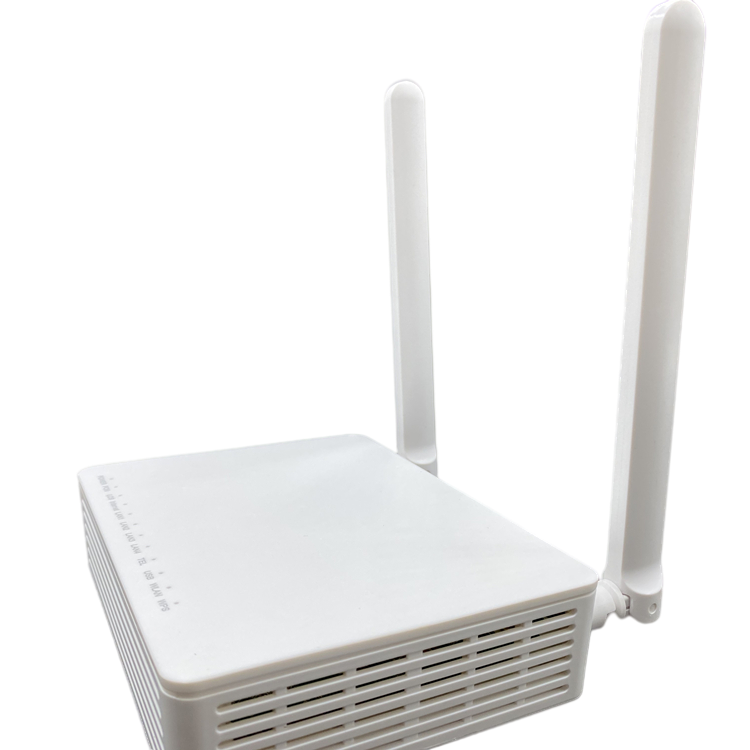

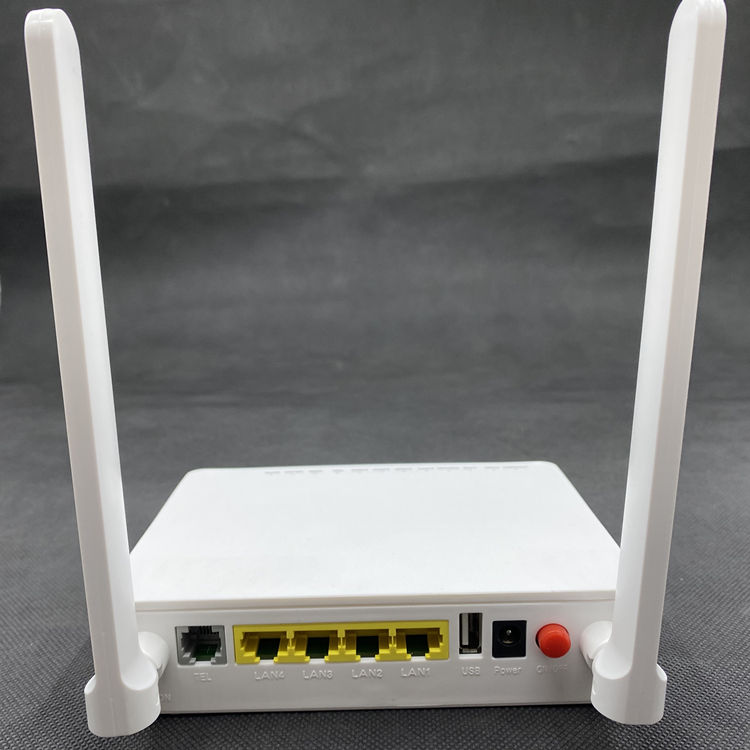

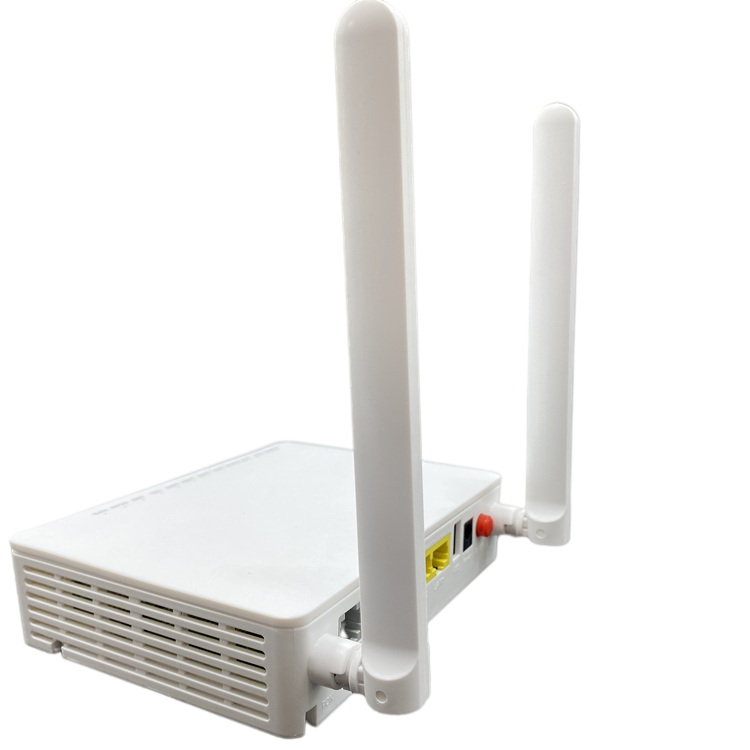

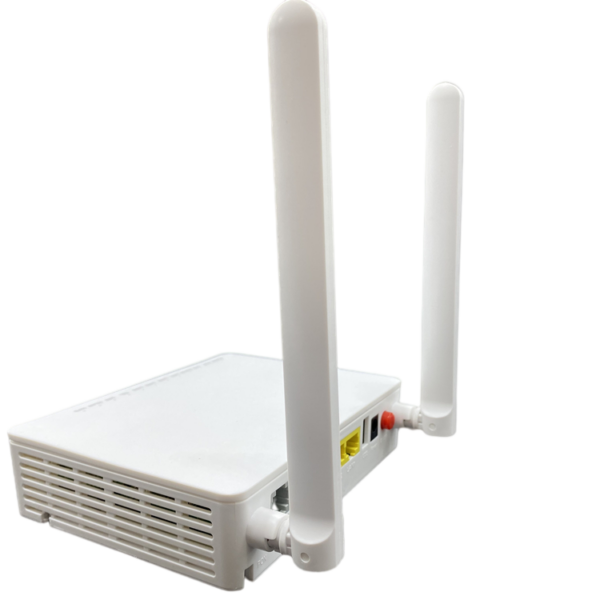

The GM219-S xpon onu is a high-end home gateway in FTTH solution. By using the GPON/EPON technology, ultra-broadband access is provided for home and SOHO users. The GM219-S provides 5 POT ports, 1GE+3FE+1TEL auto-adapting Ethernet ports.
The GM219-S features high-performance forwarding capabilities to ensure excellent experience Internet services.
Specifications
Support GPON mode and EPON mode
* Support Route mode for PPPoE/IPoE/Static IP and Bridgemode
* Support IPv4 and IPv6 Dualmode
* Support 2.4G WIFI and 2*2MIMO
* Support SIP Proctol for VoipService
* Support LAN IP and DHCP Serverconfiguration
* Support Port Mapping andLoop-Detect
* Support Firewall function and ACLfunction
* Support IGMP Snooping/Proxy multicastfeature
* Support TR069 remote configuration andmaintenance
* Specialized design for system breakdown prevention to maintain stablesystem
|
Technical items
|
Descriptions
|
|
Model
|
XPON GM219-S
|
|
Out Port contains
|
1GE+3FE+1TEL+1USB+WiFi
|
|
WIFI signal
|
2.4G WiFi
|
|
Wireless gain
|
3dbl
|
|
USB
|
USB2.0
|
|
LAN
|
1*10/100/1000Mbps adaptive Ethernet ports, full/half duplex, RJ45 interface
|
|
TEL
|
H248/Sip Voice protocol
|
|
PPPOE
|
support
|
|
Firmware
|
English
|
|
Dimension/weight
|
280mm*170mm*45mm/210g
|
|
Fiber port
|
1 GPON/EPON/XPON interface, ingle-fiber, Downstream rate 2.5Gbps, Upstream rate 1.25Gbps
|
|
Wavelength
|
Tx 1310nm, Rx 1490nm
|
|
Fiber interface
|
SC/FC-UPC/APC Dual mode/Singal mode
|
|
RX sensitivity
|
>-28dBm (1490nm)
|
|
DC power
|
12V 1.0A, external AC-DC power adapter
|
|
Button
|
Reset, power,WPS,Wireless
|
|
Operation
|
Working temperature: -5- +55℃ working humidity:10-90%(non-condensation)
|
|
Storage
|
Storage temperature: -30℃- +60℃ storage humidity: 10-90%(non-condensation)
|
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
