Product Description
This XPON GPON supports both ONT and EPON technologies, making it a flexible fiber access terminal for use with a wide range of OLT platforms. Integrated with WiFi6 (802.11ax) and AX1800 dual-band wireless, it supports 2.4GHz and 5GHz bands, offering speeds up to 1800 Mbps.

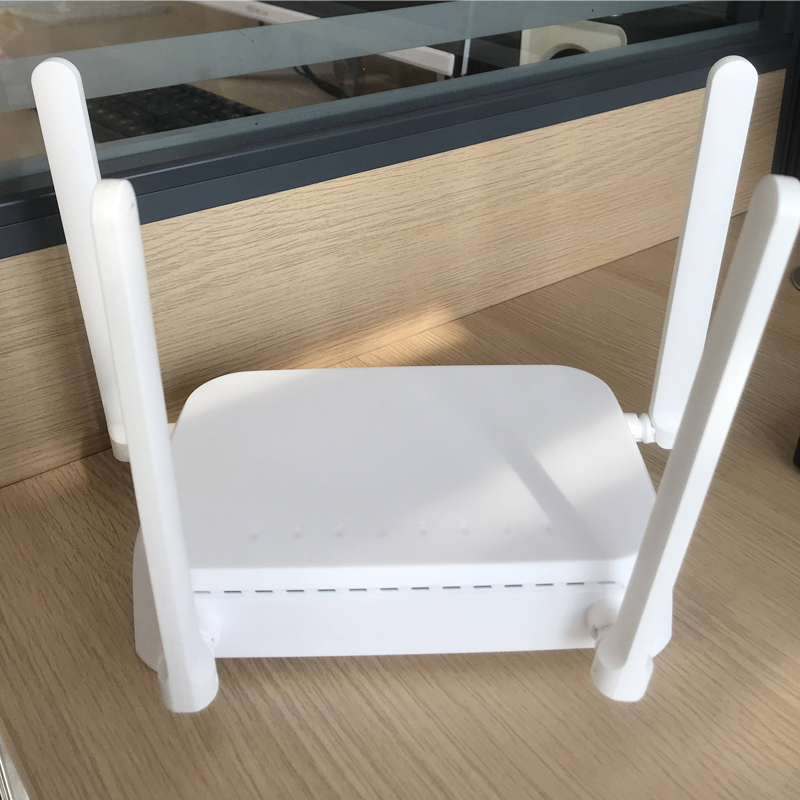

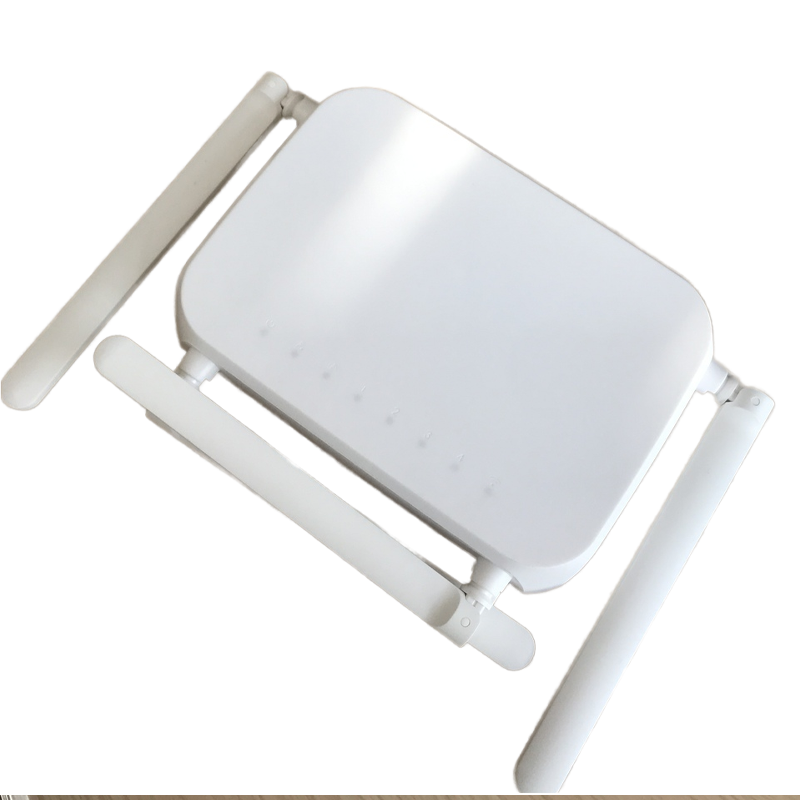

Equipped with 4 Gigabit Ethernet LAN ports and 4 high-gain external antennas, this ONT delivers high-speed fiber internet with broad wireless coverage. Ideal for FTTH and FTTx deployments, it meets the bandwidth needs of smart homes, small offices, IPTV streaming, and gaming applications.
Key Features: XPON GPON ANTENNAS
-
Dual-mode XPON (GPON & EPON auto-detect)
-
4 × Gigabit Ethernet LAN ports
-
WiFi6 AX1800 dual-band (2.4GHz + 5GHz)
-
4 × external high-gain antennas
-
Wireless speeds: 2.4GHz up to 600 Mbps, 5GHz up to 1200 Mbps
-
Supports OFDMA, MU-MIMO, Beamforming
-
WPA3 wireless security
-
IPv4/IPv6 dual-stack support
-
TR-069, Web GUI, and OMCI management
-
Ideal for triple-play: Internet, IPTV, VoIP (with optional model)
General Specifications: XPON GPON ANTENNAS
| Feature | Description |
|---|---|
| Device Type | XPON ONT (GPON/EPON compatible) |
| Uplink Port | 1 × SC/APC (single-mode fiber) |
| LAN Ports | 4 × GE RJ45 |
| Wireless Standard | IEEE 802.11ax (WiFi6) |
| WiFi Bands | 2.4GHz and 5GHz dual-band |
| WiFi Speed (AX1800) | 2.4GHz: 600 Mbps, 5GHz: 1200 Mbps |
| Antennas | 4 × External 5dBi antennas |
| XPON Mode | GPON / EPON (auto-adaptive) |
| Fiber Standard | ITU-T G.984.x / IEEE 802.3ah |
| Management | Web UI, TR-069, OMCI |
Technical Specifications
| Parameter | 2.4GHz Band | 5GHz Band |
|---|---|---|
| Frequency Range | 2.400 – 2.4835 GHz | 5.150 – 5.825 GHz |
| Max WiFi Speed | Up to 600 Mbps | Up to 1200 Mbps |
| MIMO Support | 2×2 MIMO | 2×2 MIMO |
| Channel Bandwidth | 20/40 MHz | 20/40/80 MHz |
| Modulation | OFDMA, QAM up to 1024 | OFDMA, QAM up to 1024 |
Electrical Characteristics: XPON GPON ANTENNAS
-
Power Input: 12V DC / 1.5A
-
Power Consumption: < 15W
-
Surge Protection: 4kV on all ports
-
Power Adapter Included
Performance and Compliance
-
Compliant with ITU-T G.984.2/3/4 (GPON)
-
Compliant with IEEE 802.3ah (EPON)
-
Compatible with most XPON OLTs (Huawei, ZTE, FiberHome)
-
IGMP Snooping and Proxy for IPTV
-
QoS, VLAN tagging, NAT, firewall
-
IPv6 and IPv4 dual stack
-
Secure remote management via TR-069
Environmental Specifications
| Parameter | Min | Max | Unit |
|---|---|---|---|
| Operating Temperature | 0 | 40 | °C |
| Storage Temperature | -40 | 70 | °C |
| Operating Humidity | 5 | 95 | % RH |
| Cooling | Passive (fanless) |
Physical Characteristics
-
Dimensions: 210 × 130 × 35 mm
-
Weight: < 500 grams
-
Material: ABS plastic housing
-
Color: White
-
Mounting: Desktop or wall mount
-
LED Indicators: Power, LOS, PON, Internet, WiFi, LAN
Certifications and Safety
-
CE – Electromagnetic compliance
-
FCC – US radio frequency compliance
-
RoHS – Environmental compliance
-
WiFi6 Certified – IEEE 802.11ax standard
-
IEC 60825-1 – Laser eye safety (Class 1)
