- Model Number:xpon ONU
- Type:ONU
- Place of Origin:China
- Brand Name:OEM
- Use:FTTX
- Warranty Time:1 year
- Keywords:xpon ONU
-
- Supply Ability
- 500 Piece/Pieces per Week
-
- Packaging Details
carton Package
-
- Port
Shenzhen
- Picture Example:
- Lead time:Quantity(pieces)1 – 1000>1000Lead time (days)15To be negotiated
Product Description
|
Technical Item
|
Details
|
|
PON interface
|
1 G/EPON port(EPON PX20+ and GPON Class B+)
Upstream: 1310nm; Downstream: 1490nm SC/APC connector Receiving sensitivity: ≤-27dBm Transmitting optical power: 0~+4dBm Transmission distance: 20KM |
|

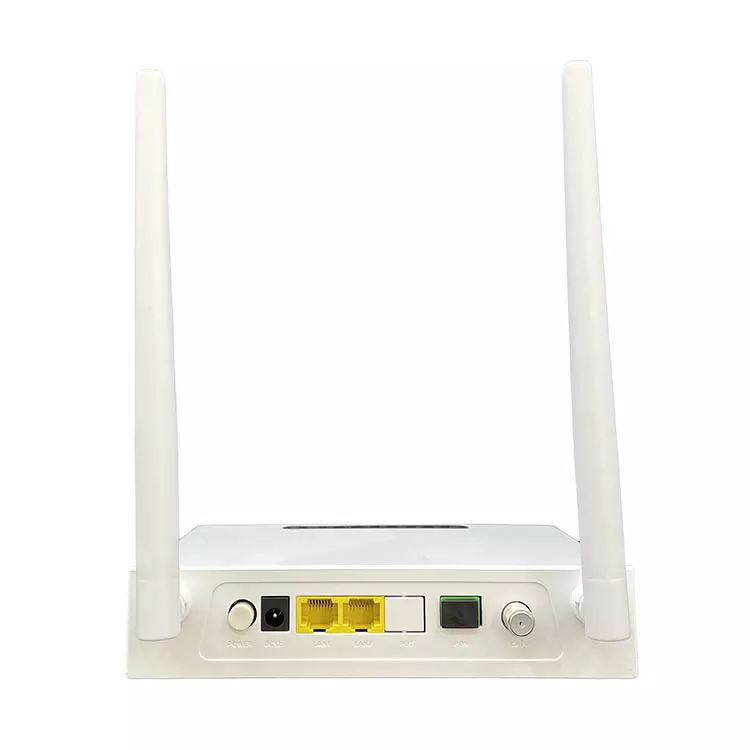

LAN interface
|
1×10/100/1000Mbps and 1×10/100Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector
|
|
WIFI Interface
|
Compliant with IEEE802.11b/g/n
Operating frequency: 2.400-2.4835GHz support MIMO, rate up to 300Mbps 2T2R,2 external antenna 5dBi Support: Multiple SSID Channel:13 Modulation type: DSSS,CCK and OFDM Encoding scheme: BPSK,QPSK,16QAM and 64QAM |
|
CATV Interface
|
RF, optical power : +2~-18dBm
Optical reflection loss: ≥45dB Optical receiving wavelength: 1550±10nm RF frequency range: 47~1000MHz, RF output impedance: 75Ω RF output level: ≥ 82dBuV(-7dBm optical input) AGC range: +2~-7dBm/-4~-13dBm/-5~-14dBm MER: ≥32dB(-14dBm optical input), >35(-10dBm) |
|

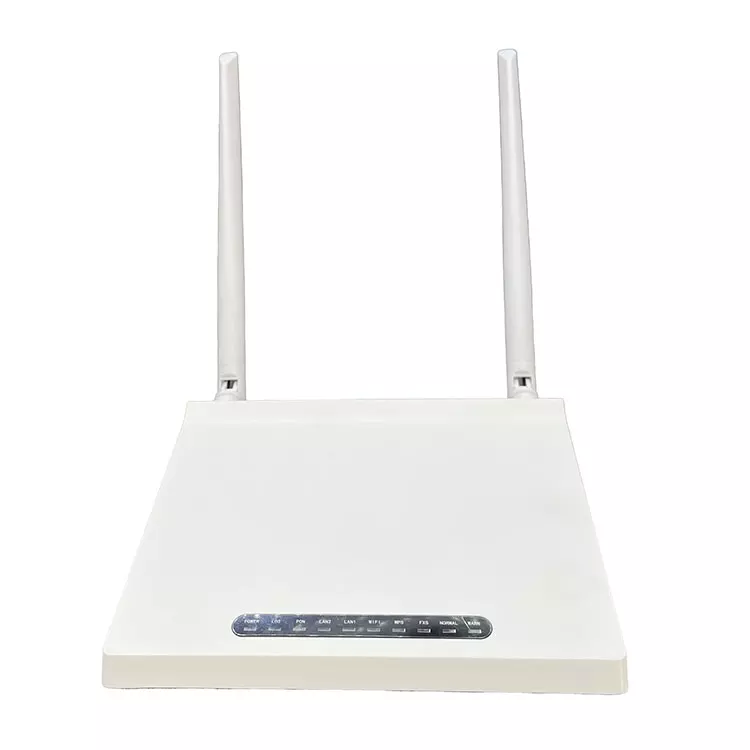

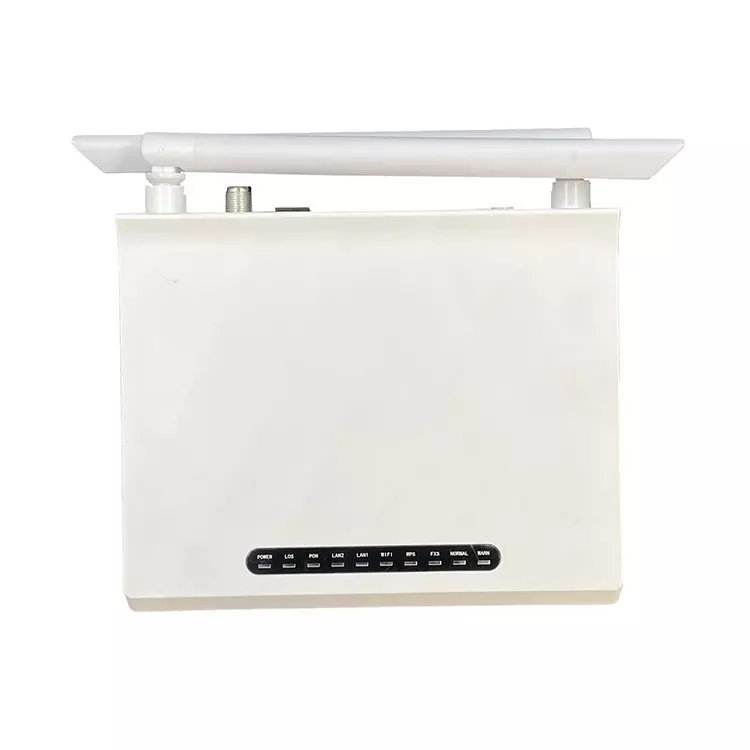

LED
|
9 LED, For Status of WIFI,WPS,PWR,LOS,PON,LAN1~LAN2, WORN, NORMAL(CATV)
|
|
Push-Button
|
4, for Function of Power on/off, Reset, WPS, WIFI
|
|
Operating condition
|
Temperature : 0℃~+50℃
Humidity :10%~90%(non-condensing) |
|
Storing Condition
|
Temperature : -40℃~+60℃
Humidity :10%~90%(non-condensing) |
|
Power supply
|
DC 12V/1A
|
|
Power Consumption
|
<6W
|
|
Net Weight
|
<0.4kg
|
Overview
l 1G1F+WIFI+CATV is designed as HGU (Home Gateway Unit) in deferent FTTH solutions; the carrier-class FTTH application provides data service access.
l 1G1F+WIFI+CATV is based on mature and stable, cost-effective XPON technology. It can switch automatically with EPON and GPON mode when it access to the EPON OLT or GPON OLT.
l 1G1F+WIFI+CATV adopts high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of the module of China Telecom EPON CTC3.0.
l 1G1F+WIFI+CATV is compliant with IEEE802.11n STD, adopts with 2×2 MIMO, the highest rate up to 300Mbps.
l 1G1F+WIFI+CATV is fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah.
l 1G1F+WIFI+CATV is designed by Realtek chipset 9602C.
Feature
l Supports Dual Mode (can access GPON/EPON OLT).
l Supports GPON G.984/G.988 standards
l Support CATV interface for Video Service and remote control by Major OLT
l Support 802.11n WIFI (2×2 MIMO) function
l Support NAT, Firewall function.
l Support Flow & Storm Control , Loop Detection, Port Forwarding and Loop-Detect
l Support port mode of VLAN configuration
l Support LAN IP and DHCP Server configuration
l Support TR069 Remote Configuration and maintenance
l Support Route PPPoE/IPoE/DHCP/Static IP and Bridge mixed mode
l Support IPv4/IPv6 dual stack
l Support IGMP transparent/snooping/proxy
l In compliant with IEEE802.3ah standard
l Compatible with popular OLT (HW, ZTE, FiberHome…)
l 1G1F+WIFI+CATV is designed as HGU (Home Gateway Unit) in deferent FTTH solutions; the carrier-class FTTH application provides data service access.
l 1G1F+WIFI+CATV is based on mature and stable, cost-effective XPON technology. It can switch automatically with EPON and GPON mode when it access to the EPON OLT or GPON OLT.
l 1G1F+WIFI+CATV adopts high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of the module of China Telecom EPON CTC3.0.
l 1G1F+WIFI+CATV is compliant with IEEE802.11n STD, adopts with 2×2 MIMO, the highest rate up to 300Mbps.
l 1G1F+WIFI+CATV is fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah.
l 1G1F+WIFI+CATV is designed by Realtek chipset 9602C.
Feature
l Supports Dual Mode (can access GPON/EPON OLT).
l Supports GPON G.984/G.988 standards
l Support CATV interface for Video Service and remote control by Major OLT
l Support 802.11n WIFI (2×2 MIMO) function
l Support NAT, Firewall function.
l Support Flow & Storm Control , Loop Detection, Port Forwarding and Loop-Detect
l Support port mode of VLAN configuration
l Support LAN IP and DHCP Server configuration
l Support TR069 Remote Configuration and maintenance
l Support Route PPPoE/IPoE/DHCP/Static IP and Bridge mixed mode
l Support IPv4/IPv6 dual stack
l Support IGMP transparent/snooping/proxy
l In compliant with IEEE802.3ah standard
l Compatible with popular OLT (HW, ZTE, FiberHome…)
