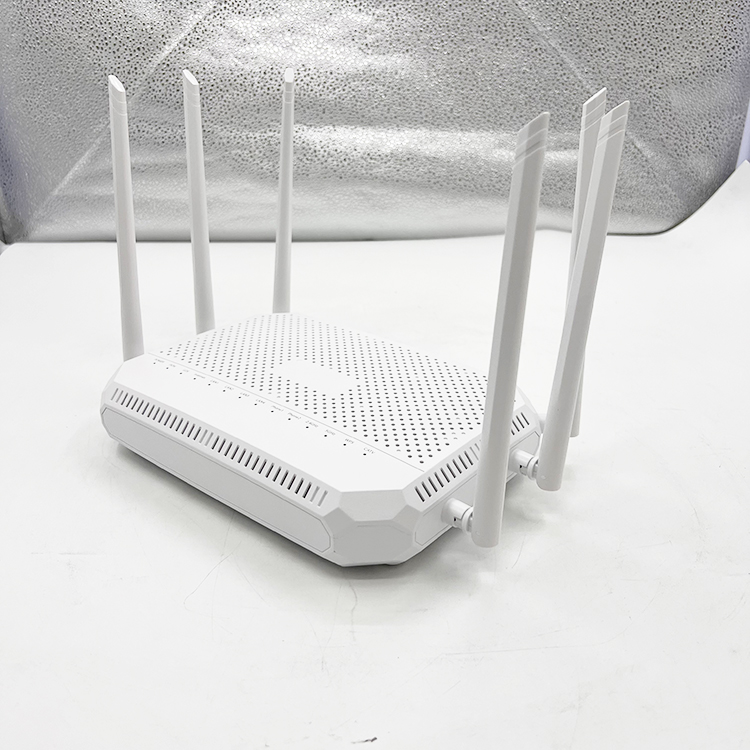

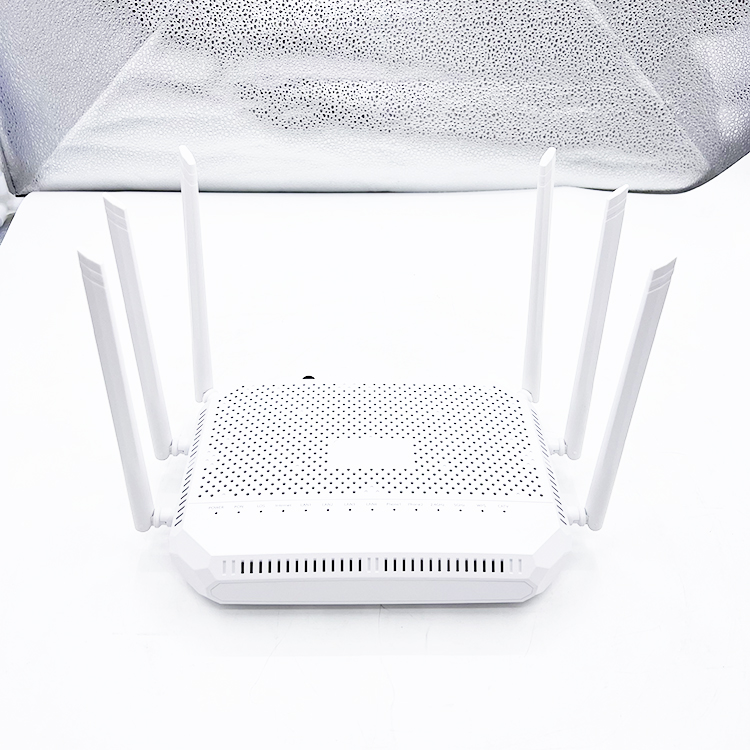

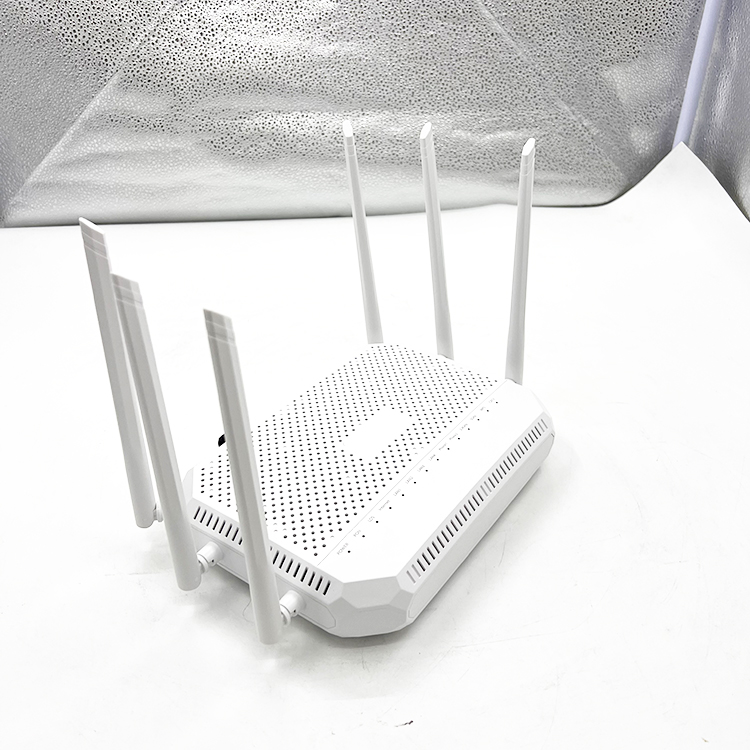

ZC-521T XPON ONT 4GE+2VoIP+2.4G&5G AC2100 WIFI+CATV+WDM+AGC ONU

Model Number:ZC-521T
Type:ONU, ONU
Place of Origin:China
Brand Name:OEM
Use:ftt
Warranty Time:1 year
Product name:ZC-521T
Color:White
Material:Plastic
Ports:4GE+2POTS+2.4G&5G WIFI+1CATV
Warranty:1 Year / 12 Months
Keywords:GPON EPON XPON ONT
Connector:APC
Brand:Accept OEM
Package:Carton Box
Supply Ability

5000 Piece/Pieces per Week
Packaging Details

Cartons
Port

Shenzhen
Picture Example:
Lead time:Quantity(pieces)1 – 1000>1000Lead time (days)15To be negotiated

Product Description

PON interface（NNI）：1 x PON interface+WDM+AGC
Optical port	GPON/EPON mode adaptive ITU-T G.984 GPON standards，Support for backward compatibility with IEEE 802.3ah EPON Single mode fiber
Optical connector	SC/APC
Receiving Sensitivity	-27dBm ,CATV Optical Receiver（1550nm）：-8dBm
Overload optical power	-8 dBm, CATV Optical Receiver（1550nm）：+2dBm
Transmitting Optical Power	0.5~5dBm
Transmit rate	GPON:2.488Gbps downstream; 1.244Gbps upstream EPON:1.25Gbps downstream；1.25Gbps upstream
Wavelength	Receiving（DOWN）:1490nm；Transmitting（UP）:1310nm Third party wavelength（CATV Optical Receiver）:1550nm
Authentication	SN /Password/LOID/ LOID+Password authentication;MAC authentication
AGC	-8~+2dBm

ZC-521T is dual-mode（XPON）ONT designed for delivery of telephone services, IP-based data services,
Voice(VoIP) services,IPTV video services, and CATV video services to single-family home and small office/home
office (SOHO) users. ZC-521T supports automatic switching between GPON and EPON modes, offers 4 Gigabit
Ethernet ports, 2 FXS ports, Wireless 11n 2.4GHz (2×2) and 11ac 5GHz (4×4) dual band concurrent, 1 CATV
port. ZC-521T is designed for indoor installation and can be desktop or wall-mounted. A single optical fiber
carries upstream and downstream traffic over the PON between the OLT and the ONT. ZC-521T is fully
provisioned and managed from the OLT using PLOAM/OMCI and TR069
