- Model Number:GTGH
- Type:olt Interface Card
- Place of Origin:Guangdong, China
- Brand Name:ZTE
- Use:FTTX
-
- Supply Ability
- 50 Piece/Pieces per Week
-
- Packaging Details
Wooden Package
-
- Port
Shenzhen
- Picture Example:
- Lead time:Quantity(pieces)1 – 100>100Lead time (days)15To be negotiated
Overview

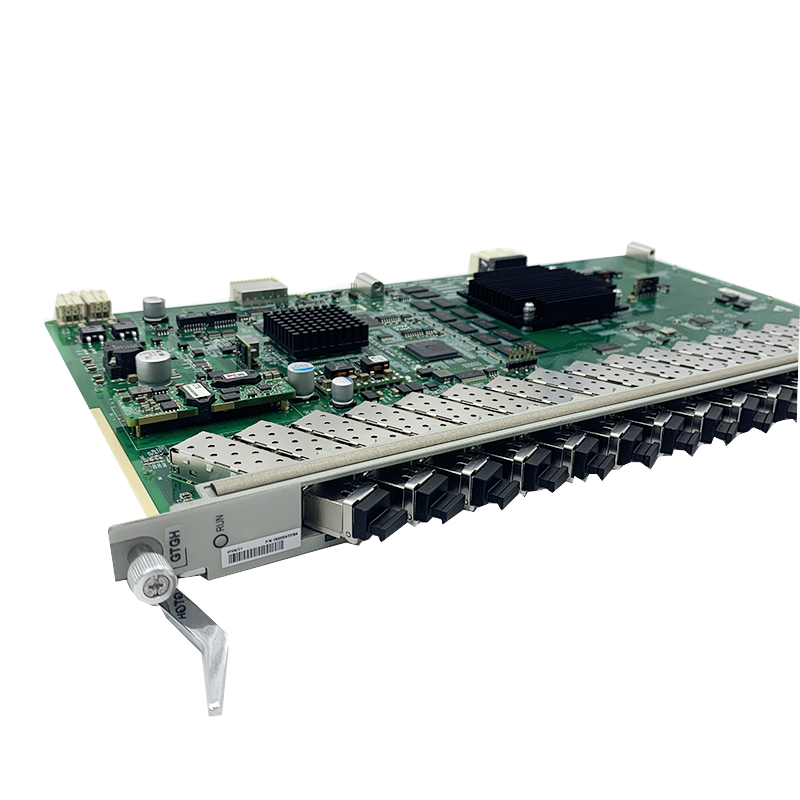

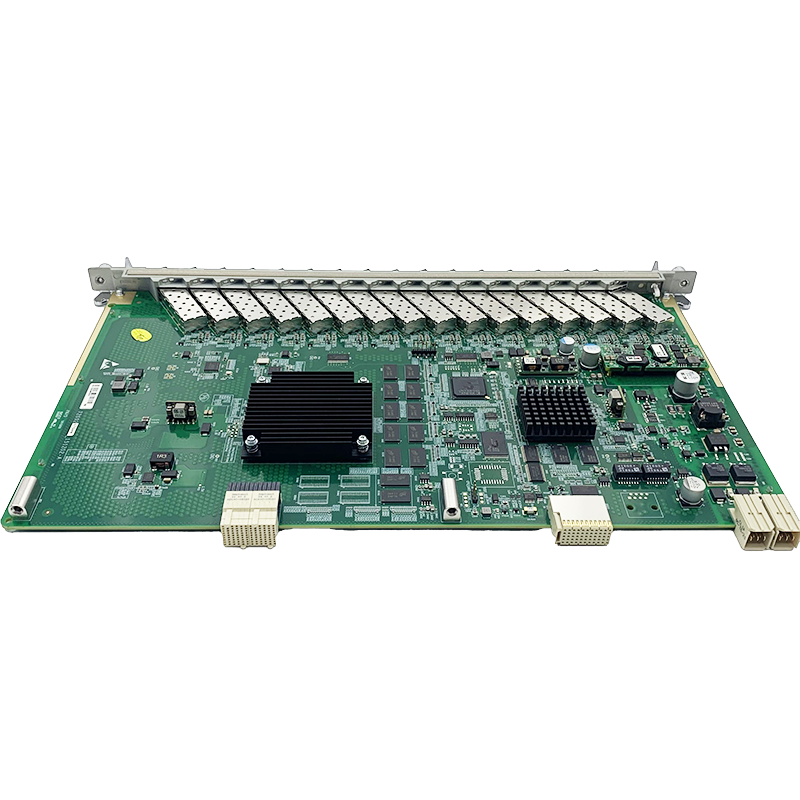

ZTE GTGH Service Board is ZTE ZXA10 C300/C320 16-port GPON OLT interface board offering GPON service access
Specifications
| Brand | ZTE |
| Model | GTGH |
| GPON Port | 16-GPON Port |
| Type | C++ Module: Single Fiber Bidirectional Optical Module, Class C++ |
| Operating Wavelength | Tx: 1490 nm, Rx: 1310 nm |
| Encapsulation Type | SFP |
| Port Rate | Tx: 2.488 Gbit/s, Rx: 1.244 Gbit/s |
| Minimun Output Optical Power | C++ Module : 4.50 dBm |
| Maximum Output Optical Power | C++ Module : 8.00 dBm |
| Maximum Receiver Sensitivity | C++ Module : -30 dBm @10E-10 |
| -32 dBm @10E-10 | |
| Optical Connector Type | SC/PC |
| Optical Fiber Type | Single-mode |
| Reach | 20.00 km |
| Overload Optical Power | C++ Module : -12.0 dBm |
| Extinction Ratio | 8.2 dB |
| Dimensions (W x D x H) | 510 mm x 370 mm x 70 mm |
Features
- High Density:
– 16 GPON ports per card, up to 1:128 split ratio - GPON Function:
– Support ONU power saving management defined in G.987.3
– 1024 T-CONTs per PON port, 4096 GEM ports per PON port - High TM Performance:
– Support H-QOS
– 1024 queues and 356 schedulers per PON port
– Support color-sensitive RED and WRED discard algorithm - Clock / Time Function:
– Receive 1PPS+TOD signals and send them to the ONU through a PON channel - Low Power Consumption:
– Newly developed lower power GPON MAC chip
– Reduce 30% power consumption on industry average
