- Model Number:ZTE GTGH
- Type:GTGH
- Place of Origin:Zhejiang, China
- Brand Name:Original Brand
- Use:FTTH Network
- Warranty Time:1year, 1year
- Network:Wired LAN, None
- Product name:ZTE GTGH
- Model:GTGH
- Brand:ZTE Original
- Keywords:16 Port Gpon Board
-
- Supply Ability
- 1000 Piece/Pieces per Week
-
- Packaging Details
The cartons
-
- Port
Zhejiang Ningbo
- Picture Example:
- Lead time:Quantity(pieces)1 – 7>7Lead time (days)7To be negotiated

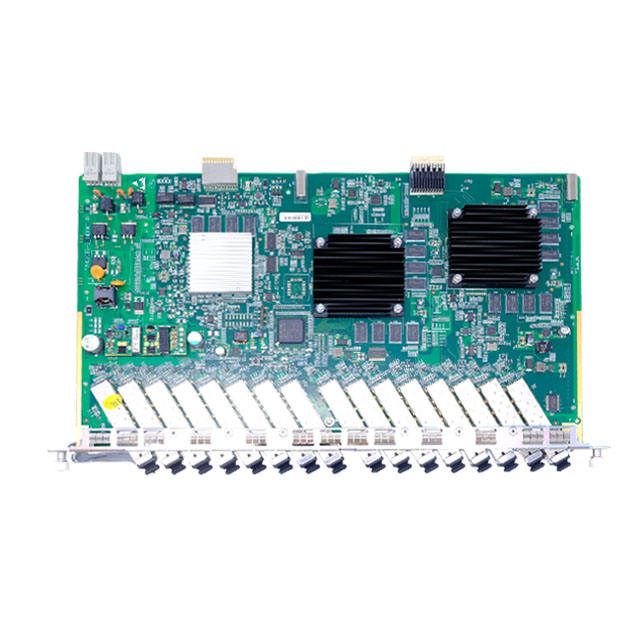

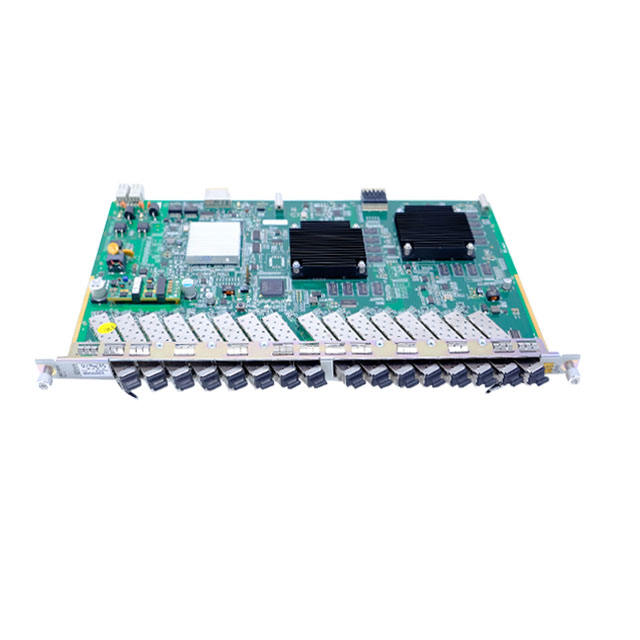

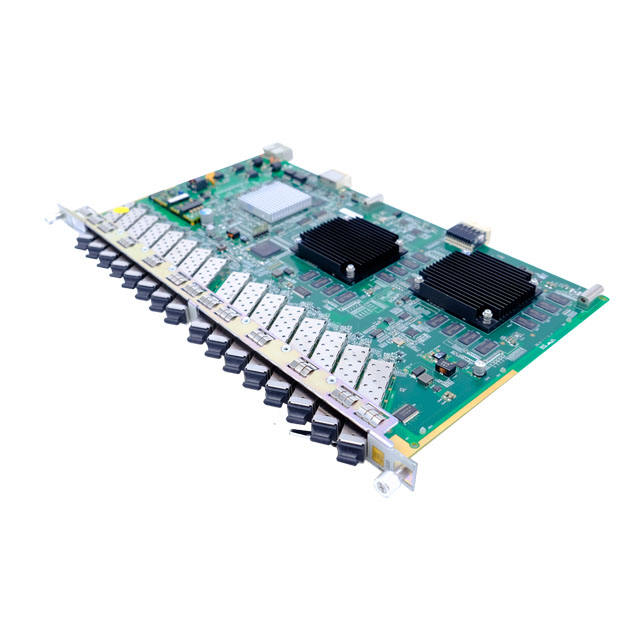

KunDa ZTE GTGH
Product Description
• High Density:
– 16 GPON ports per card, up to 1:128 split ratio
• GPON Function:
– Support ONU power saving management defined in G.987.3
– 1024 T-CONTs per PON port, 4096 GEM ports per PON port
• High TM Performance:
– Support H-QOS
– 1024 queues and 356 schedulers per PON port
– Support color-sensitive RED and WRED discard algorithm
Product specification
|
Product type
|
ZTE GTGH
|
|
GPON Port
|
16-GPON Port
|
|
Operating Wavelength
|
Tx: 1490 nm, Rx: 1310 nm
|
|
Encapsulation Type
|
SFP
|
|
Port Rate
|
Tx: 2.488 Gbit/s, Rx: 1.244 Gbit/s
|
|
Optical Connector Type
|
SC/PC
|
|
Optical Fiber Type
|
Single-mode
|
|
Reach
|
20km
|
|
Dimensions (W x D x H)
|
22.86 mm x 237.00 mm x 395.40 mm
|

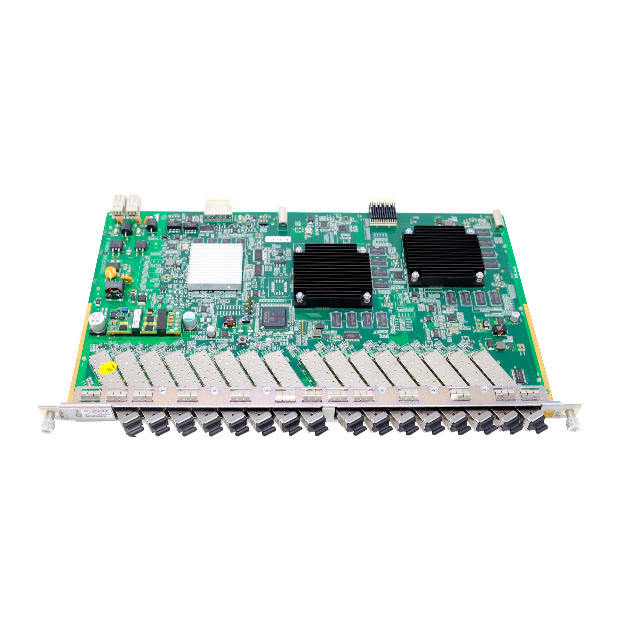

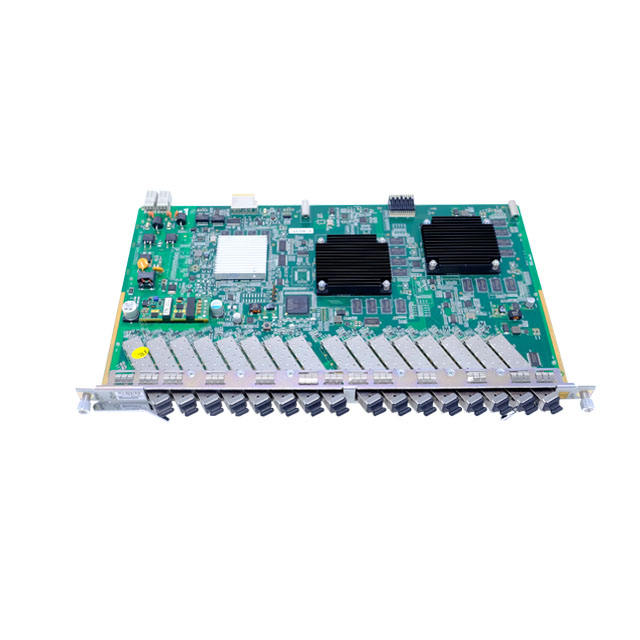

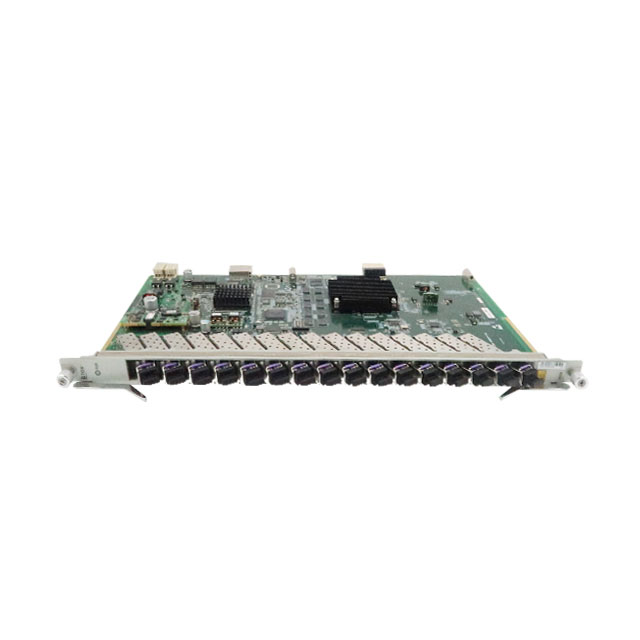

Details Images
Packing&Shipping
