- Model Number:EFTH
- Type:OLT
- Place of Origin:Guangdong
- Brand Name:ZTE
- Use:FTTX
- Warranty Time:1 year
- Network:None
-
- Supply Ability
- 500 Piece/Pieces per Week
-
- Packaging Details
carton Package
-
- Port
Shenzhen
- Lead time:Quantity(pieces)1 – 1000>1000Lead time (days)15To be negotiated

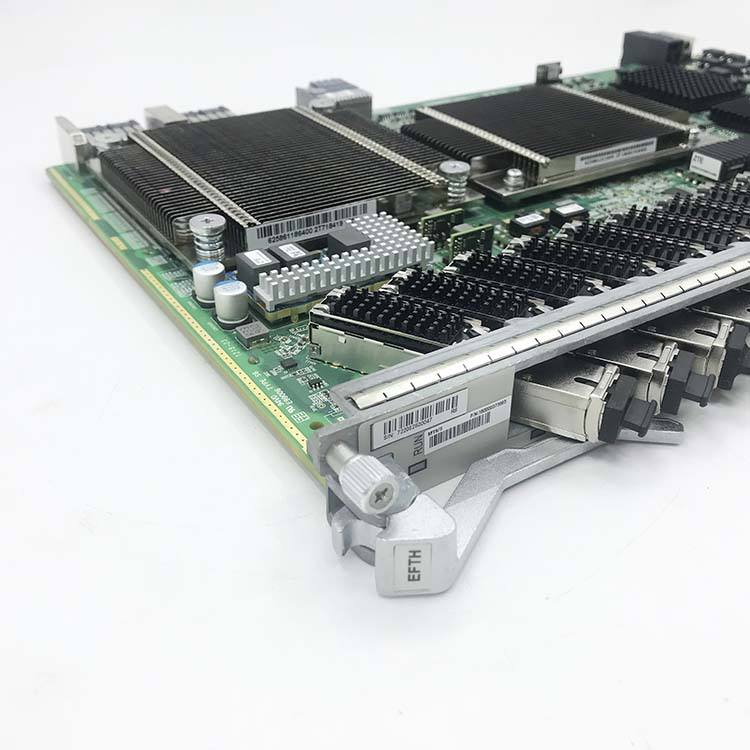

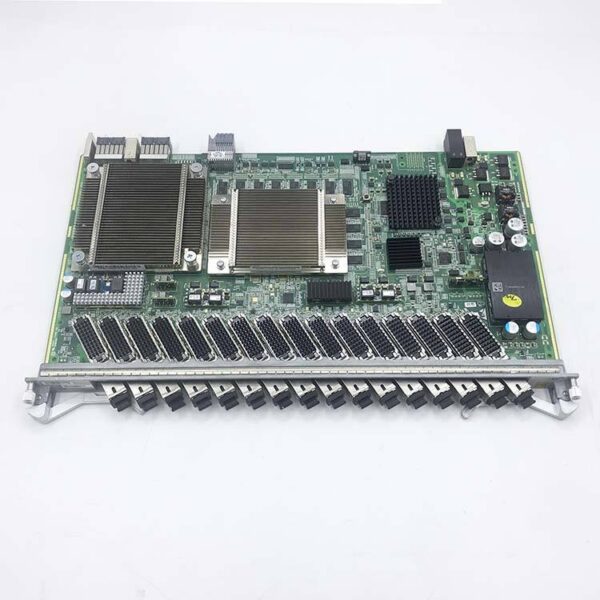

ZTE 16-port 10G EPON interface board with PR30 symmetric module
Apply to ZTE ZXA10 C600 C650 C680
Maximum split ratio: 1:128
Transmission distance: 20km
GE Output optical power: 3.0~7.0 dBm
10G Output optical power: 2.0~5.0 dBm
| Specification | |
| Service ports | |
| EPON Port | 16-port 10G EPON |
| EPON SFP Module Specification | |
| Type | PR30 Module : Single Fiber Bidirectional Optical Module, Class PR30 Symmetric |
| Operating Wavelength | Tx: 1577nm, 1490nm; Rx: 1270nm, 1310nm |
| Encapsulation Type | SFP |
| Port Rate | Tx: 10.3125Gbit/s; 10.3125Gbit/s; Rx: 1.25Gbit/s, 1.25Gbit/s |
| Minimun Output Optical Power | 10G: 2dBm; GE: 3dBm |
| Maximum Output Optical Power | 10G: 5dBm; GE: 7dBm |
| Maximum Receiver Sensitivity | 10G: -28dBm; GE: -29.78dBm |
| Optical Connector Type | SC |
| Optical Fiber Type | Single-mode |
| Reach | 20.00 km |
| Overload Optical Power | 10G: -6dBm; GE: -9dBm |
| Extinction Ratio | 10G: 6dB; GE: 9dB |
| Device Specifications | |
| Weight | 1.74kg |
| Dimensions (H x W x D) | 393.1 mm × 23.9 mm × 214 mm |
