zte f670L 4ge ports Dual frequency ac wifi 5G remote access ONU router for epon gpon xpon olt

SKU: 1600448538690 Categories: ,
  • Model Number:ZTE F670L
  • Type:ONU
  • Place of Origin:Zhejiang, China
  • Brand Name:ZTE
  • Use:FTTH
  • Warranty Time:1 year
  • Network:Wireless Lan, wifi, 4g
  • model:F670L
  • brand name:ZTE
  • Subscriber interface:4GE+1pots+1USB+WIFI 2.4G &5G
  • Laser wavelength:Tx 1310nm Rx 1490nm
  • Optical interface:SC/UPC connector
  • Power supply:DC 12V/1.5A
  • Dimensions:245 mm *215 mm *40 mm
  • Weight:240 g
  • Supply Ability
    100 Piece/Pieces per Month
  • Packaging Details


  • Port


  • Picture Example:
  • Lead time:Quantity(pieces)1 – 1>1Lead time (days)7To be negotiated
Product Description

ZTE ZXHN F670L GPON 4GE+1pots+1USB+WIFI 2.4G &5G English firmware.

ZTE ZXHN F670L FTTH is a dual band Gigabit Premium triple-play GPON gateway. It comes with 1GE&3FE LAN ports, one phone port and next generation multi-stream Wi-Fi, operating simultaneously in 2.4GHz 2×2 over 802.11n and 5GHz 2×2 over 802.11ac. Based on customer requirements, the maximum 5dBi gain antennas can enhance the Wi-Fi coverage area and improve the performance.
Product Paramenters
PON interface
1G/EPON port (EPON PX20 and GPON class B )
Optical transmit power
0 ~ 4dBm
Transmission distance
Laser wavelength
Tx 1310nm
Rx 1490nm
Optical interface
SC/UPC connector
LAN interface
1 x 10/100/1000 Mbps
3 x 10/100 Mbit/s auto-adapter Internet interface.
245 mm × 215 mm × 40 mm
240 g

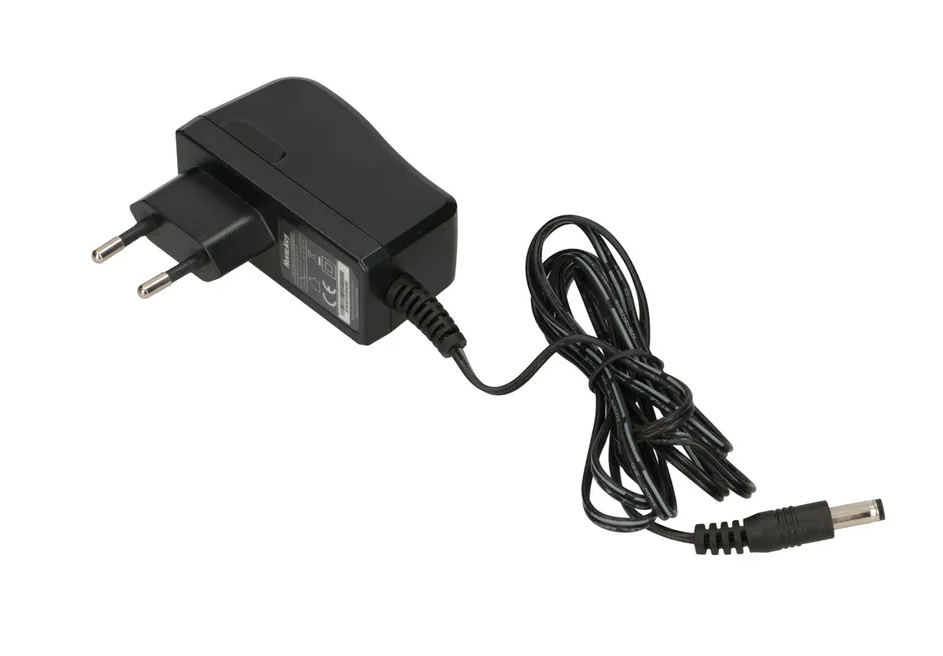

Power supply
DC 12V/1.5A

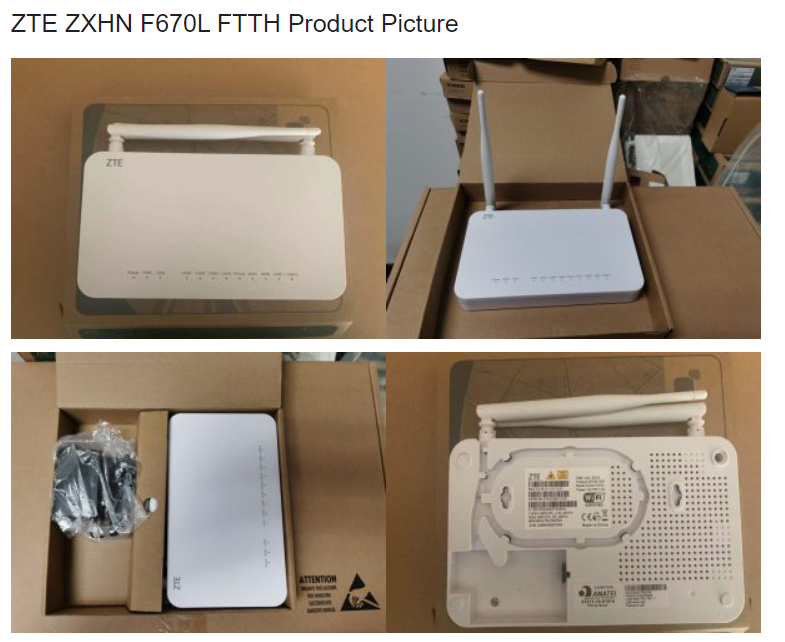

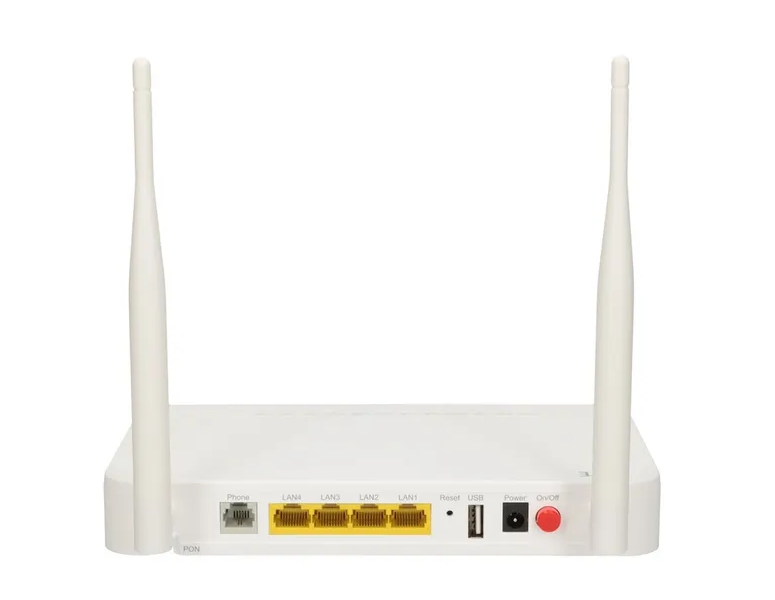

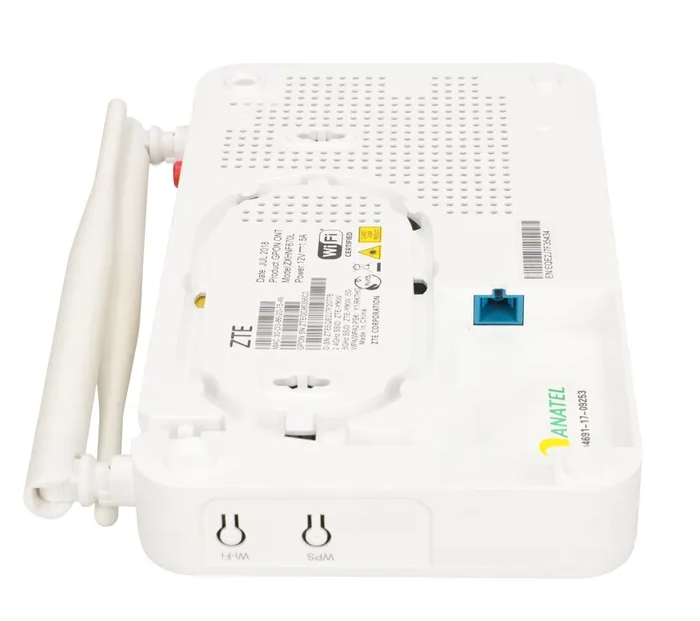

Details Images
