ZTE F680 Overview:
The ZTE F680 is a dual-band AC2100 GPON gateway with four Gigabit Ethernet LAN ports and two RJ11 phone ports. MU-MIMO and Beamforming enable dramatic improvements in wireless performance. Superior Wi-Fi performance allows customers to better surf the Internet, watch movies and play online games. With GPON technology, ultra-broadband access is provided for home and SOHO users.
Product Description:
- Model Number:F680
- Type: ONU
- Place of Origin: GUA
- Brand Name :ZTE
- Use: FTTH
- Warranty Time:1 year
- Network: Wired LAN, wifi, 4g
- Supply Ability1000 Piece/Pieces per Week
- Packaging DetailsCartons
- PortShenzhen
- Lead time:Quantity(pieces)1 – 2000>2000Lead time (days)15To be negotiated
Specification:
|
Brand
|
ZTE
|
|
Model
|
ZTE ZXHN F680
|
|
User Ports
|
4GE + 2TEL+USB +WIFI 2.4G/5.0G
|
|
Application
|
FTTH FTTB FTTX Network
|
|
GPON Interface
|
1x, SC/APC, 2,448 Gbit/s downstream 1,244 Gbit/s upstream
|
|
Operation Modes
|
Bridge, Router, AP
|
|
Wavelength for downstream
|
1480 nm – 1500 nm
|
|
Wavelength for upstream
|
1290 nm – 1330 nm
|
|
Sensitivity
|
-28 dBm
|
|
Power Consumption
|
7 W
|
|
Dimensions
|
220 mm x 34 mm x 187 mm
|
|
Working temperature and humidity
|
0°C – 40°C, 5% – 95%
|
|
Power
|
12 V DC
|
|
GPON features
|
8x T-CONT, 32 GEM portů
|
|
Support
|
VLAN (802.1Q, 802.1P, 802.1ad), Multicast, QoS, DHCP Server/Client, NAT, IPv6 Dual Stack
|
|
Management
|
Local (WEB), OMCI, TR069
|

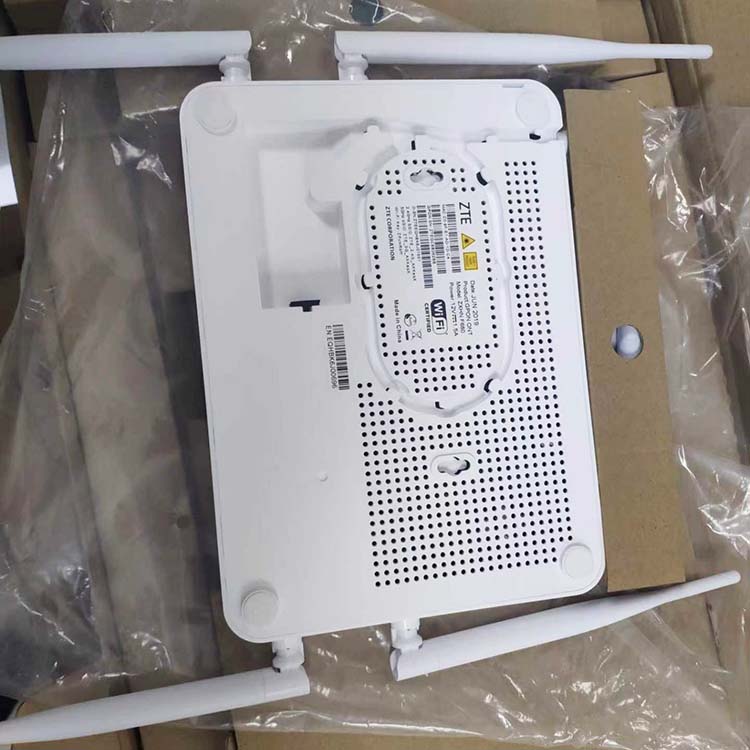

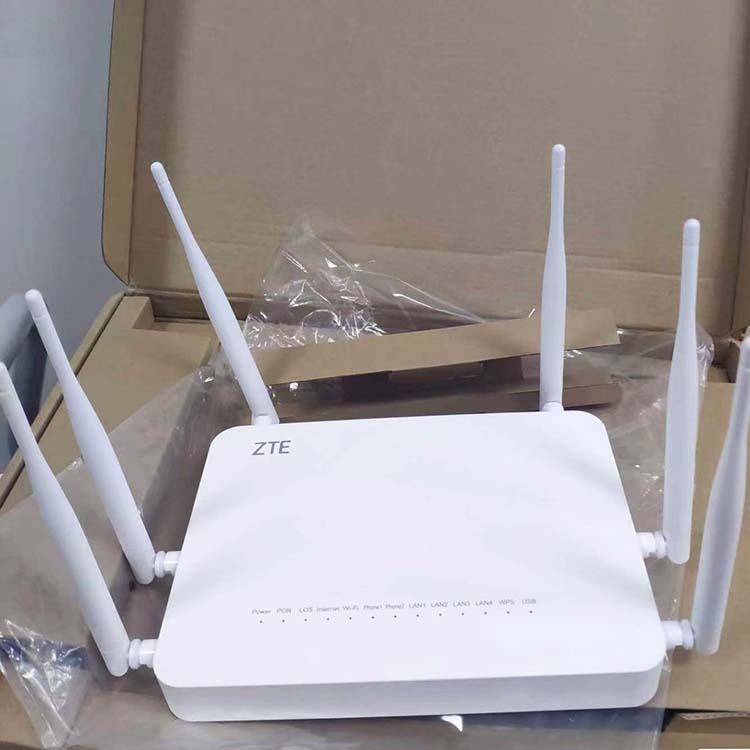

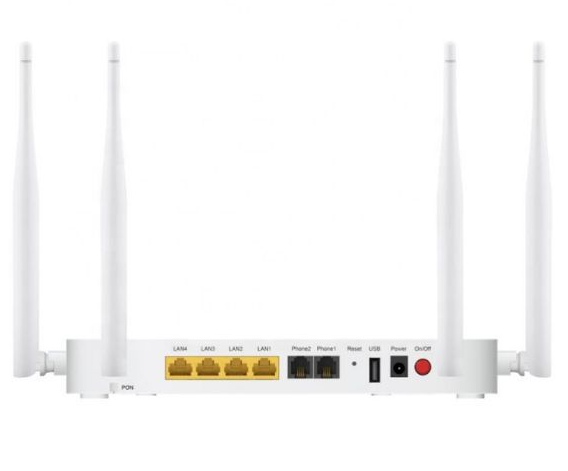

- Picture Example:
