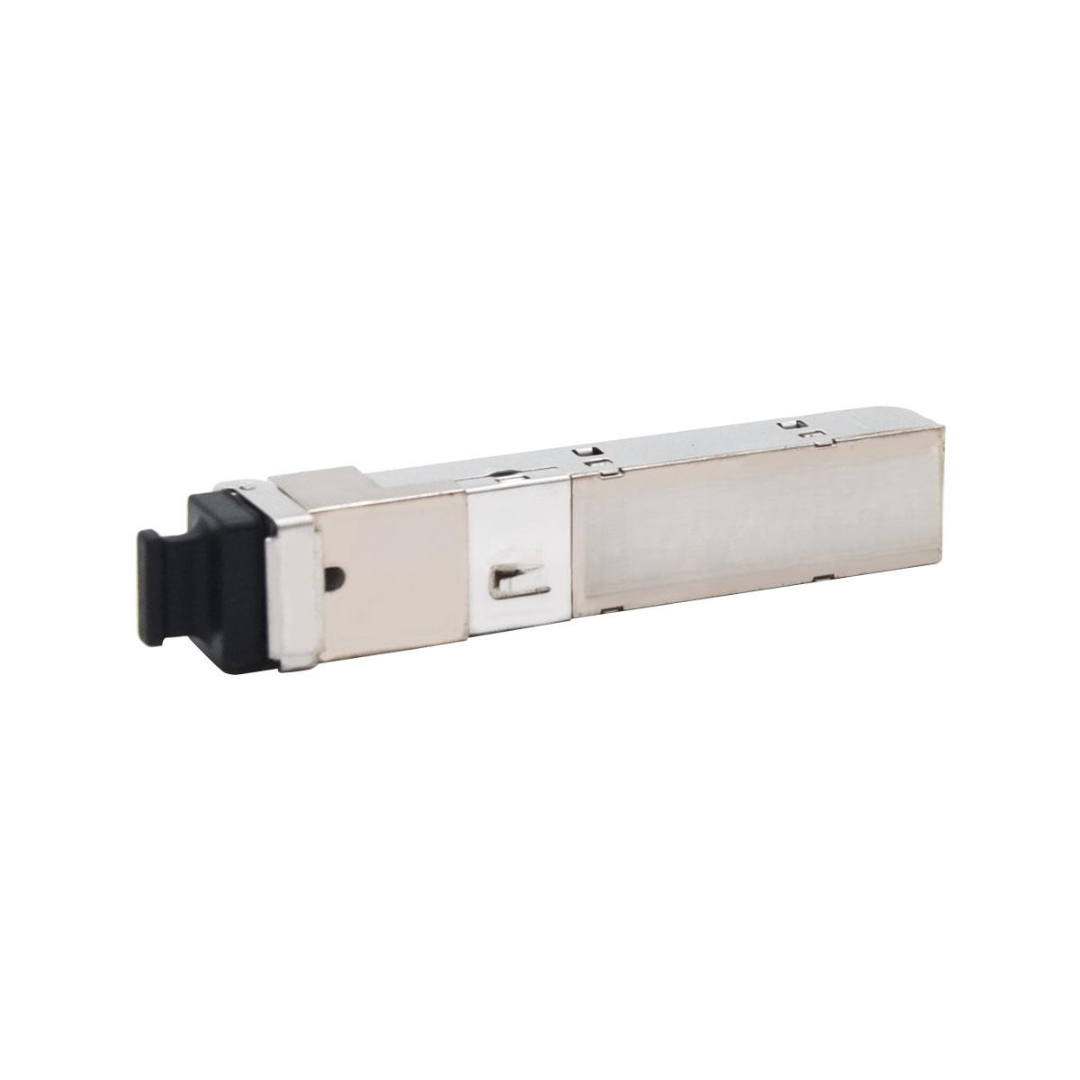

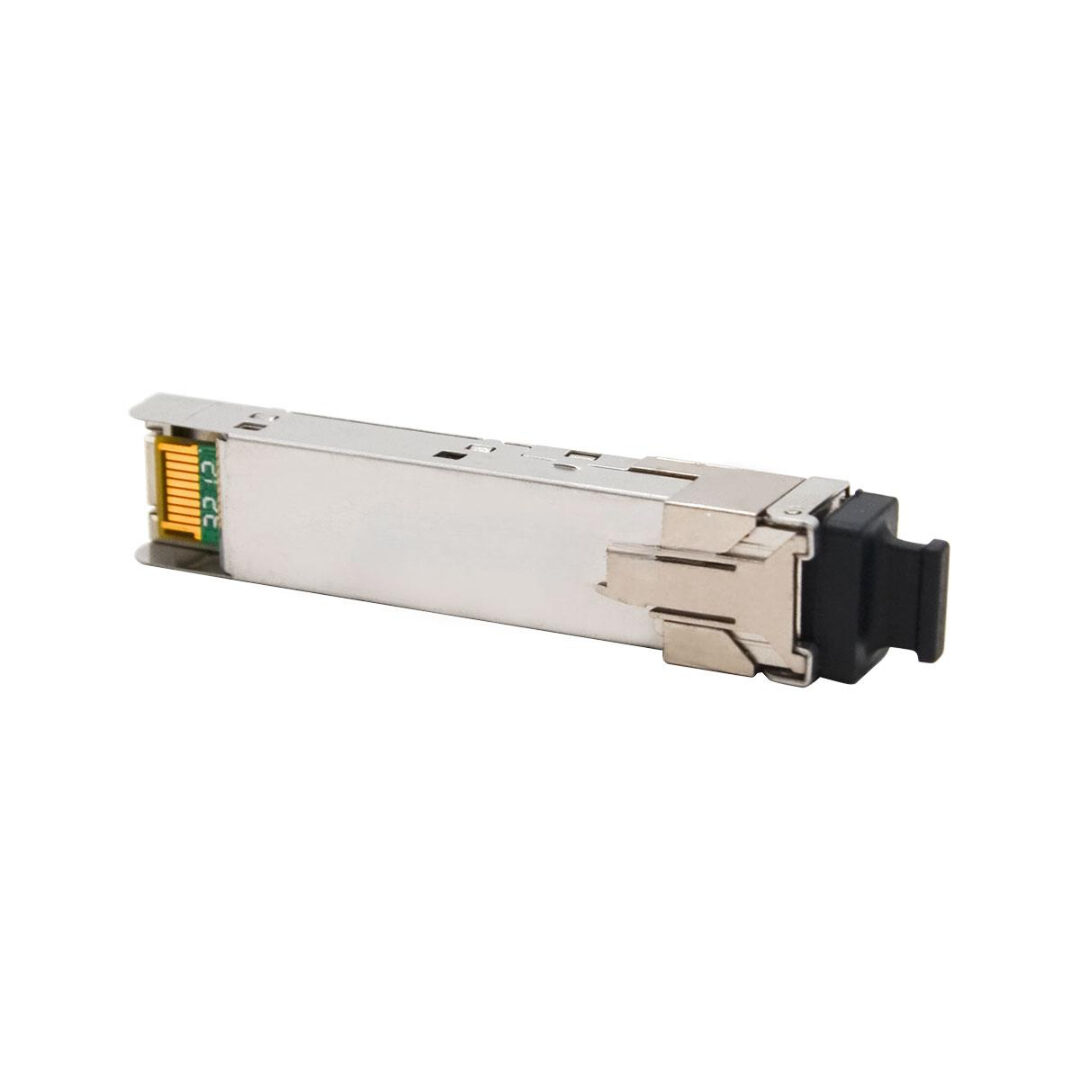

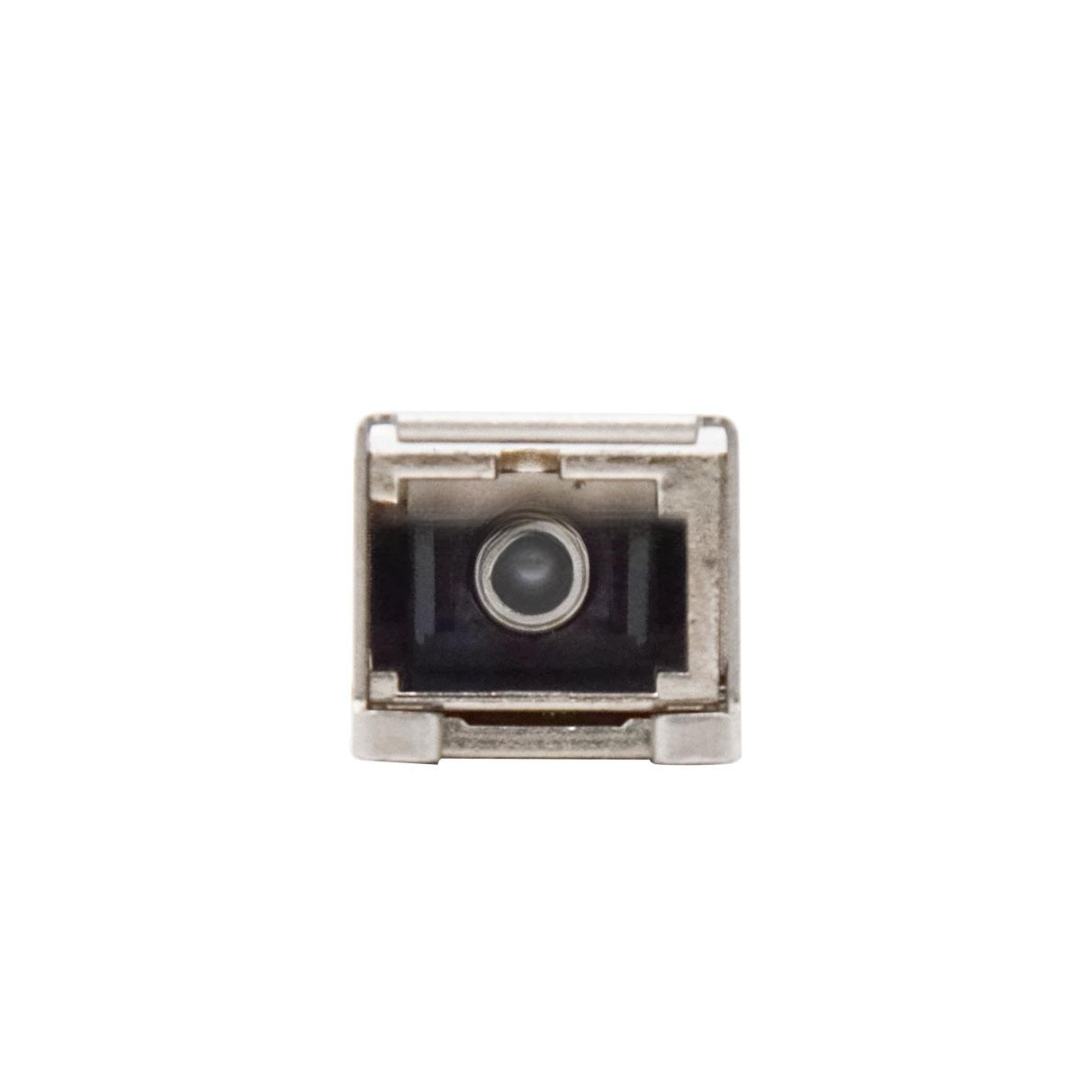

ZTE GPON OLT Class C+ Brand New SFP Optical Transceiver
The ZTE GPON OLT Class C+ Brand SFP is a high-performance small form-factor pluggable (SFP) optical transceiver module designed for Gigabit Passive Optical Network (GPON) deployments. Engineered for ZTE OLT platforms such as the ZXA10 C300/C320 series, this module provides upstream and downstream GPON transmission with extended reach and high reliability. With Class C+ optical power levels, it supports up to 60 km transmission distance, making it ideal for wide-coverage FTTx networks in metro and rural environments.
Key Features
Model: ZTE GPON OLT Class C+ SFP
Condition: 100% Brand New, Original ZTE
Transmission Type: GPON (G.984.x standard compliant)
Optical Class: Class C+ (High Power)
Reach: Up to 60 km
Connector Interface: SC/UPC simplex
Wavelengths: 1490nm (downstream), 1310nm (upstream)
TX Power: +3 to +7 dBm
RX Sensitivity: -32 dBm typical
Data Rate: 2.5 Gbps downstream / 1.25 Gbps upstream
Hot-Pluggable: Yes, SFP standard slot compatible
Laser Type: DFB (Tx) / APD (Rx)
Digital Diagnostics Monitoring (DDM): Supported
Application: Designed for ZTE OLT slots on GPON line cards
Technical Specifications
| Specification | Details |
|---|---|
| Form Factor | SFP Optical Transceiver |
| Optical Standard | ITU-T G.984.2 GPON |
| Optical Class | Class C+ |
| Connector Type | SC/UPC Simplex |
| Wavelength | Tx: 1490nm / Rx: 1310nm |
| Transmission Distance | Up to 60 km |
| TX Power Range | +3 to +7 dBm |
| RX Sensitivity | -32 dBm |
| Data Rate | 2.5Gbps Down / 1.25Gbps Up |
| Power Supply | +3.3V |
| DDM Support | Yes |
| Compatible Equipment | ZTE ZXA10 C300 / C320 OLTs |
| Operating Temperature | -10°C to +85°C (industrial grade) |
| Storage Temperature | -40°C to +85°C |
| Hot-Swappable | Yes |
| Regulatory Compliance | RoHS, CE, FCC |
| Warranty | 1–3 Years Manufacturer Warranty |
ZTE GPON OLT Class C+ Brand Applications
-
FTTH / FTTx Deployments – Backbone GPON connectivity for residential and business broadband
-
Metro & Rural Networks – High-power optical link for long-distance coverage
-
Triple-Play Service Delivery – Supports voice, video (IPTV), and high-speed internet
-
Telecom Operator Networks – Reliable and scalable OLT transceiver for PON access
-
Campus & Enterprise Access – Centralized optical distribution in corporate networks
Customization & OEM Options
Private Labeling – Branding with your logo, part number, or package design
Performance Binning – Tailored TX power/RX sensitivity for specific link budgets
Pre-Tested Integration – Pre-validation with ZTE OLT systems and software versions
Temperature-Hardened Models – Conformal coating and wider thermal range on request
Customized EEPROM Settings – DDM, thresholds, and ID data per customer specs
Serial Number Programming – Custom serial, vendor name, and diagnostics
ZTE GPON OLT Class C+ Brand SFP Wholesale & Global Distribution
Bulk Inventory – High availability for service provider rollouts
OEM Direct Supply – 100% new, sealed ZTE factory modules
Fast Logistics – Air/sea delivery with global customs documentation
Anti-Static Packaging – Optical-safe casing for secure handling
Flexible Quantities – MOQ-friendly for trials, pilots, or mass deployment
Technical Support – Pre/post-sale configuration assistance & datasheets
Why Choose ZTE GPON OLT Class C+ Brand SFP Transceiver
-
Long Reach Capability – Up to 60 km transmission range for extended networks
-
Carrier-Grade Design – Designed for 24/7 operation in OLT environments
-
High TX Power / Low RX Sensitivity – Ideal for lossy and long PON topologies
-
Hot-Pluggable & Easy to Maintain – Reduce downtime and simplify operations
-
ZTE OEM Quality – Fully compatible with ZTE GPON systems
Contact Us Today for Pricing, Datasheet & Bulk Orders
Enhance your GPON OLT platform with the ZTE Class C+ SFP Transceiver — trusted by global ISPs and integrators for high-performance and long-distance fiber access.
Message us now for detailed specifications, wholesale pricing, and global supply options!
