| Product name | ZTE GPON ONU |
| Color | White |
| Warranty | 1 Year |
| Net Weight | 127g |
| Power | 12V – 0.5A |
| Ports |
1GE |
| Model | ZXA10 F601
|

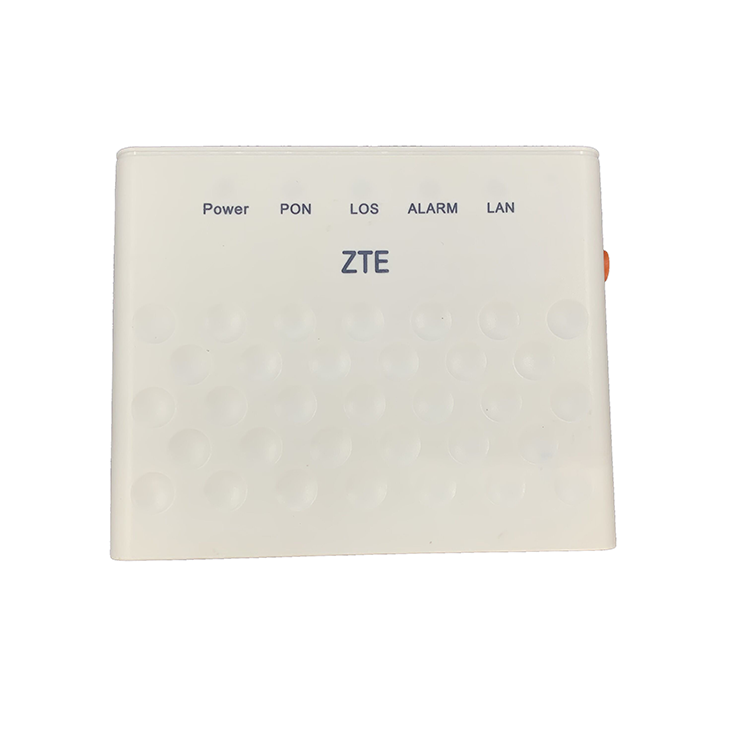

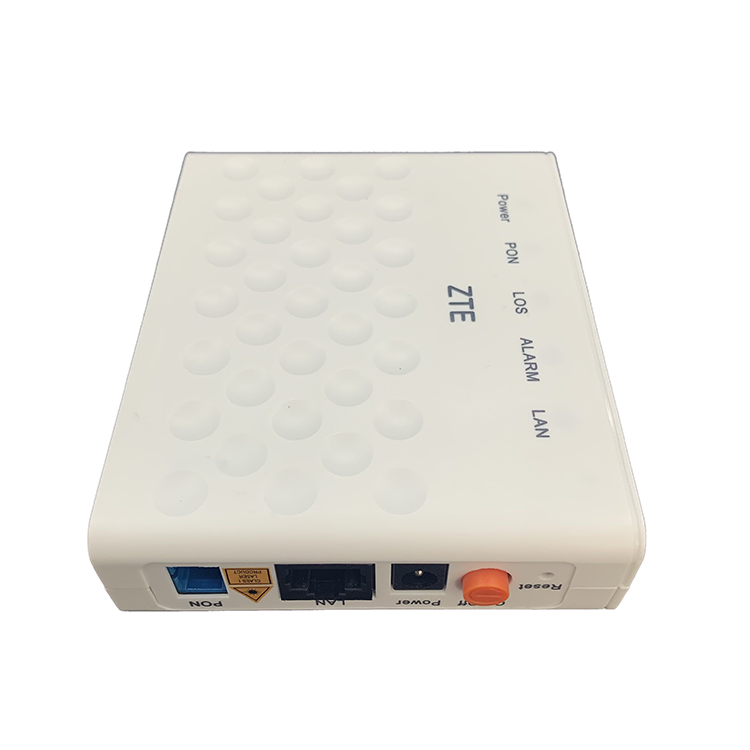

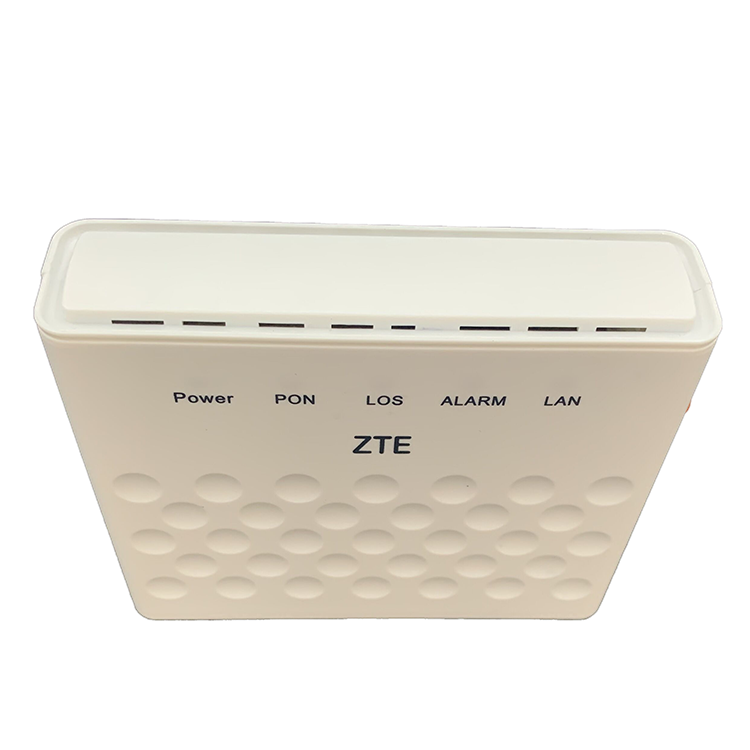

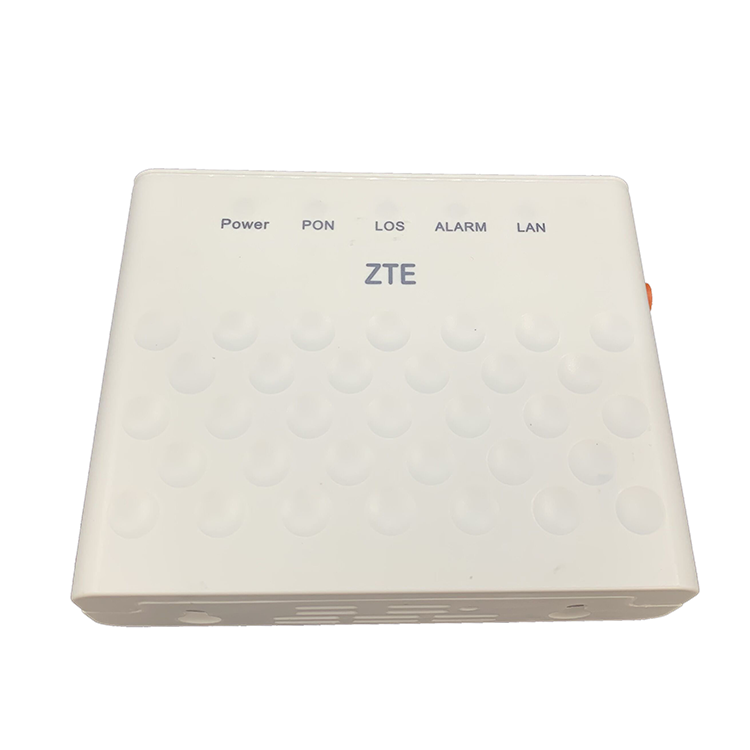

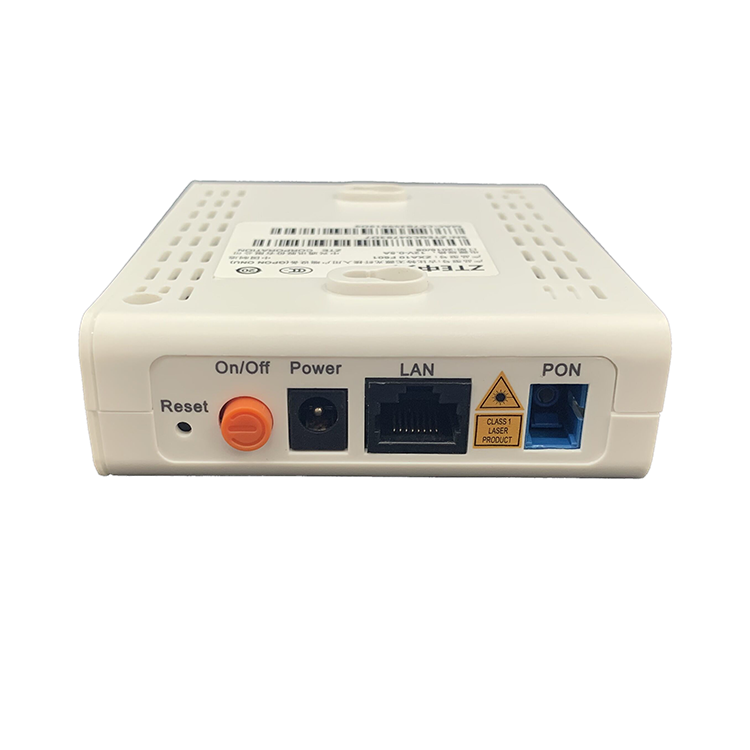

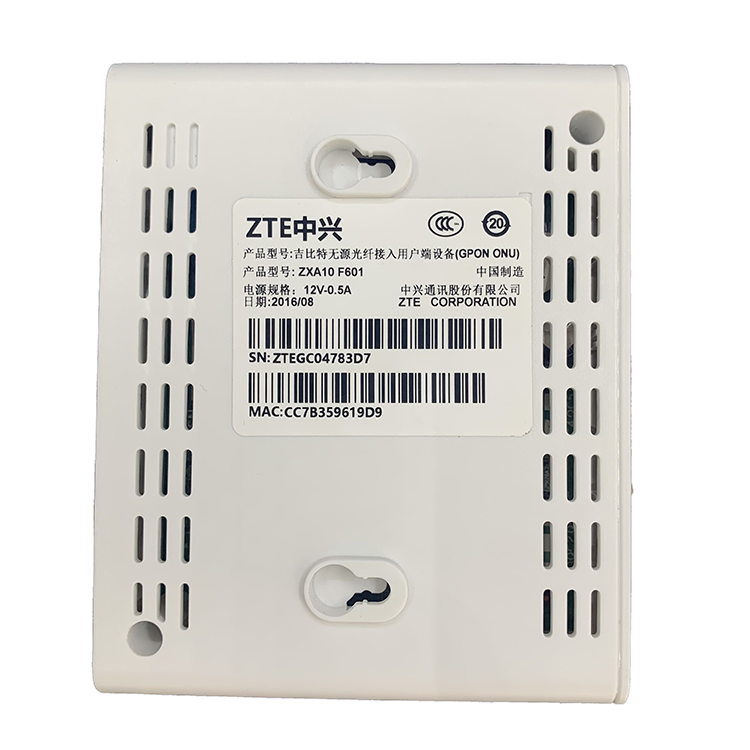

ZTE ZXHN F601 Overview
ZTE F601 FTTH is a GPON Optical Network Terminal designed for FTTH. It provides high-performance forwarding capabilities to ensure excellent experience with Internet and HD video services. It has a small, smart appearance and green, energy-saving advantage. ZTE GPON ONT Series of ONTs for FTTX deployment scenarios cover various user interfaces: FE, GE, POTS, RF, Wi-Fi, USB and suitable for digital home networks. They are supporting the latest Wi-Fi 802.11n technology for higher bandwidth access. Easy OAM saves OPEX – support TR069, zero-touch and batch configuration. All EDGE Technologies provided ZTE GPON ONT has Multiple certifications – CE, FCC, RoHS, CoC, Wi-Fi.
ZTE ZXHN F601 Specifications
| Brand | ZTE |
| Model | F601 |
| Optical port | 1 x GPON interface (SC/PC or SC/APC) |
| Transmit rate | 2.488Gbps downstream; 1.244Gbps upstream |
| User-Network Interface | 1 x10/100/1000Base-T |
| Wavelength | Receiving: 1480~1500 nm Transmitting: 1290~1330 nm |
| Receiving Sensitivity | -28dBm |
| Transmitting Optical Power | 0.5~5dBm |
| Power consumption | <6W |
| Dimensions | 110mm(W) x 90mm(H) x 53mm(D) |
| Working temperature: | 0oC ~ 40oC |
| Working humidity | 5% ~ 95% |
| Weight | 190g |
| Power supply | 12V DC |
ZTE ZXHN F601 Features
- Supported service: Internet, IPTV
- GPON: 8 T-CONTs, 32 GEM Ports
- VLAN: 802.1Q, 802.1P, 802.1ad
- MAC address table: 256
- Multicast: IGMP v1/v2 Snooping
- Multicast group per user port: 256
- QoS: service flow classification based on physical port, Ethernet type; ingress rate limit; egress shaping
- Management: local web management, OMCI
All the ZTE ONU/ONT:
| PON | Model | Ports |
| GPON | F601 V6.0 | 1GE |
| GPON | F612 V6.0 | 1GE+1FE+TEL |
| GPON | F660 V5.2 | 4GE+1TEL+1USB+WIFI |
| GPON | F660 V8.0 | 1GE+3FE+1USB+1TEL+WIFI |
| GPON | F660 V6.0 | 1GE+3FE+1USB+TEL+WIFI |
| GPON | F660W | 1GE+3FE+1USB+2TEL+WIFI |
| GPON | F600 V5.0 | 1GE+3FE |
| GPON | F600G | 4GE |
| GPON | F620 | 1GE+3FE+2TEL |
| GPON | F668 | 4GE+2TEL+CATV |
| XGPON | F220 | 10GE+4GE |
| XGPON | F2866 | 10GE+4GE |
| XGPON | F2355V | 10GE+4GE |
| XGPON | F1866 | 10GE+4GE |
| XGPON | F1426 | 10GE+4GE |
| EPON | F412 V6.0 | 1GE+1FE+1TEL |
| EPON | F400 | 1GE+3FE |
| EPON | F400G | 4GE |
| EPON | F420 | 1GE+3FE+2TEL |
| EPON | F460 V6.0 | 1GE+3FE+TEL+WIFI |
| EPON | F401 | 1GE |
| EPON | F450 | 1GE+3FE+1TEL+1USB+WIFI |
| EPON | F407 | 1GE+1FE+1TEL |
All the HUAWEI ONU/ONT:
| PON | Model | Ports |
| GPON | MA5671 | 4GE |
| GPON | HS8546V5 | 4GE+1TEL+1USB+WIFI |
| GPON | HS8546V | 4GE+2USB+1TEL |
| GPON | HS8145V | 4GE+1TEL+1USB+WIFI |
| GPON | HS8145C | 1GE+3FE+1TEL+1USB+WIFI |
| GPON | HG8321R | 1GE+1FE |
| GPON | HS8346R5 | 4GE+1TEL+1USB+WIFI |
| GPON | HS8546 | 1GE+3FE+1TE+1USB+WIFI |
| GPON | HS8545M | 1GE+3FE+1TE+1USB+WIFI |
| GPON | HG8541M | 1GE+3FE+1TEL |
| GPON | HG8342M | 1GE+3FE+2TEL |
| GPON | HG8120C | 1GE+1FE+1TEL |
| GPON | HG8110H | 1GE |
| GPON | HG8310 | 1GE |
| GPON | HG8010C | 1GE |
| XGPON | HN8245Q | 10G GE |
| XGPON | HN8240 | 10G GE |
| XGPON | HN8205 | 10G GE |
| XGPON | HN8055Q | 10G GE |
| XGPON | V854 | 10G GE |
| XGPON | V864 | 10G GE |
| XGPON | HN8255 | 10G GE |
| XGPON | HN8346V5 | 10G GE |
All the China Mobile Logo OEM ONU/ONT:
| PON | Model | Ports |
| GPON | China Mobile F623 | 1GE+3FE+WIFI |
| GPON | China Mobile F633 | 1GE+3FE |
| GPON | China Mobile H2-3 | 1GE+3FE+1TEL+1USB+WIFI |
| GPON | China Mobile H2-3S | 1GE+3FE+1TEL+1USB+WIFI |
| GPON | China Mobile GM220S | 1GE+3FE+1TEL+1USB+WIFI |
| GPON | China Mobile F673AV9 | 4GE+1TEL+1USB+WIFI |
| GPON | China Mobile F663NV3A | 1GE+3FE+1TEL+1USB+WIFI |
| GPON | China Mobile H1S-2 | 1GE+3FE+1TEL+1USB+WIFI |
| GPON | China Mobile H1S-3 | 1GE+3FE+1TEL+1USB+WIFI |
| GPON | China Mobile GM219S | 1GE+3FE+1TEL+1USB+WIFI |
| GPON | China Mobile GM3101 | 1GE+3FE+1TEL+1USB+WIFI |
| GPON | China Mobile GM3202 | 1GE+3FE+1TEL+1USB+WIFI |
| GPON | China Mobile 140W-ME | 4GE+1TEL+2USB+WIFI |
| GPON | China Mobile PT924G | 4GE+1TEL+2USB+WIFI |
| GPON | China Mobile GM620 | 4GE+1TEL+1USB+WIFI |
| GPON |
CHINA TELECOM F650A |
1GE+3FE+1TEL+1USB+WIFI |
