- Model Number:GTGO
- Type:OLT
- Place of Origin:Zhejiang, China
- Brand Name:ZTE, ZTE
- Use:FTTH Network
- Warranty Time:FTTH Network
- Network:wifi, 4g
- Product name:ZTE GTGO B+ new version K Gpon Service Board with 8 pcs B+ SFP Modules
- Operating Wavelength:Tx: 1490 nm, Rx: 1310 nm
- Optical Fiber Type:SC/PC
- Keywords:8 Port Gpon Board
- Encapsulation Type:SFP
- Dimensions:22.86 mm x 237.00 mm x 395.40 mm
- Port Rate:Tx: 2.488 Gbit/s, Rx: 1.244 Gbit/s
- Supply Ability10000 Piece/Pieces per Day
- Packaging DetailsCarton
- PortNING BO/ SHANG HAI
- Picture Example:
- Lead time:Quantity(pieces)1 – 5>5Lead time (days)7To be negotiated

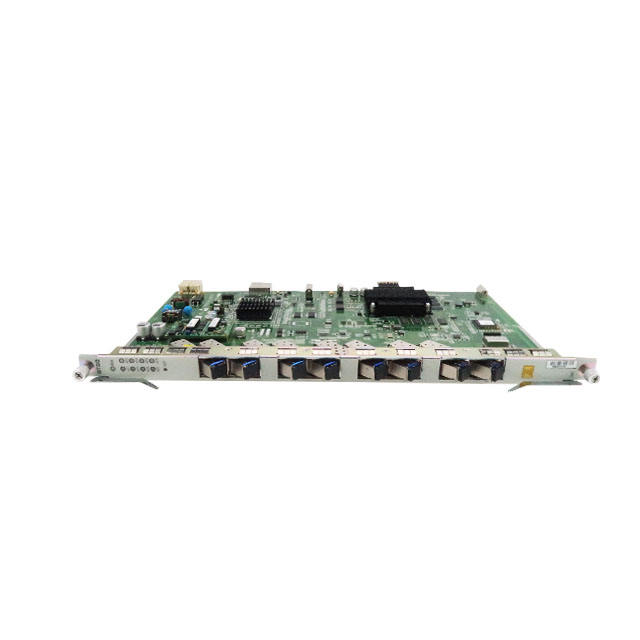

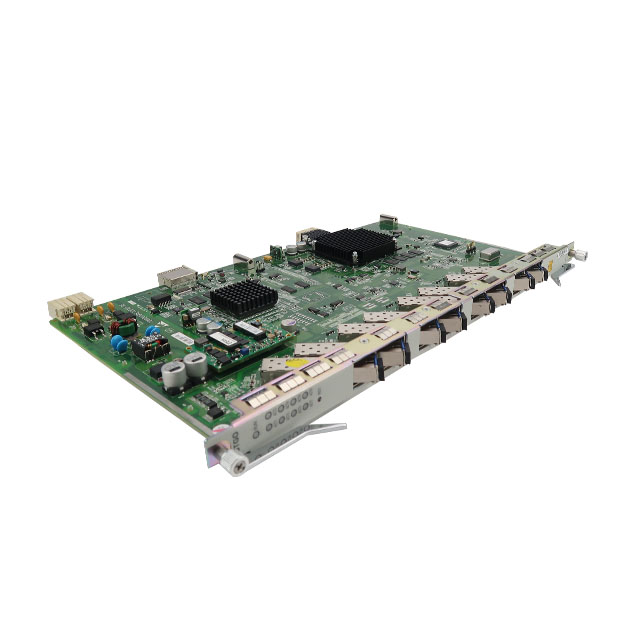

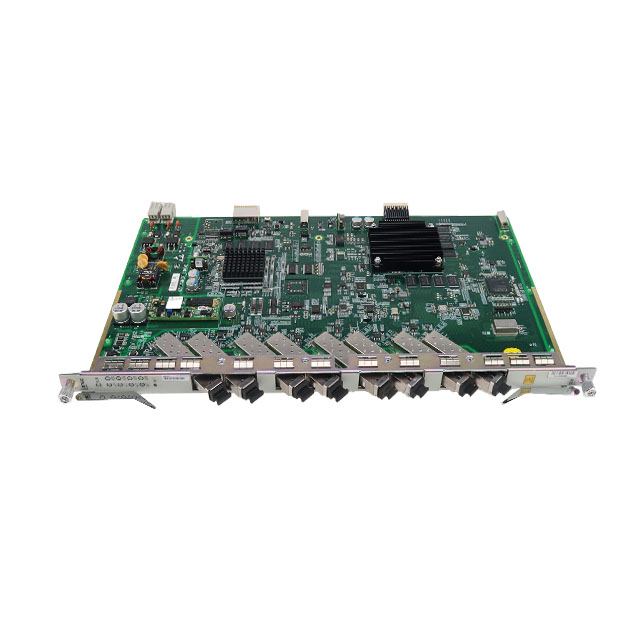

ZTE GTGO B+ new version K Gpon Service Board with 8 pcs B+ SFP Modules support 1024 users hot sale
Product Description
Product Description
• High Density:
– 16 GPON ports per card, up to 1:128 split ratio
• GPON Function:
– Support ONU power saving management defined in G.987.3
– 1024 T-CONTs per PON port, 4096 GEM ports per PON port
• High TM Performance:
– Support H-QOS
– 1024 queues and 356 schedulers per PON port
– Support color-sensitive RED and WRED discard algorithm
– 16 GPON ports per card, up to 1:128 split ratio
• GPON Function:
– Support ONU power saving management defined in G.987.3
– 1024 T-CONTs per PON port, 4096 GEM ports per PON port
• High TM Performance:
– Support H-QOS
– 1024 queues and 356 schedulers per PON port
– Support color-sensitive RED and WRED discard algorithm
Specification
|
Model Number
|
GTGO
|
|
Type
|
FTTx Solutions
|
|
Brand Name
|
ZTE
|
|
Use
|
ZTE C300/C320 series OLT
|
|
Warranty Time
|
1 year
|
|
Name
|
Control Board/Interface card
|
|
Condition
|
Original and Brand New
|
|
Tranmission Wavelength Receiving
|
1,490 nm
|
|
Link distance
|
0 ~ 20km max
|
|
Line terminal
|
2.488Gbps downstream and 1.244Gbps upstream
|
|
GPON interface
|
SC/APC
|
|
Packing
|
Carton Box
|
|
MQQ
|
1 piece
|
Details Images
Product packaging
