- Model Number:F660
- Type:ONU
- Place of Origin:Zhejiang, China
- Brand Name:ZTE
- Use:FTTH
- Warranty Time:1 year
- Network:Wireless Lan, wifi, 4g
- model:F660 V8
- brand name:ZTE
- Optical port:1 x GPON interface
- Transmission Distance:20KM
- Transmit rate:2.488Gbps downstream; 1.244Gbps upstream
- Dimensions:220mm(W) x 44mm(H) x 160mm(D)
- Weight:380G
- Power supply:12V DC
- Supply Ability100 Piece/Pieces per Month
- Packaging Details1pcs/ctn
- PortShanghai/Ningbo
- Picture Example:
- Lead time:Quantity(pieces)1 – 1>1Lead time (days)7To be negotiated
Product Description
ZTE F660 V8.0 is a GPON Optical Network Terminal designed for HGU (Home Gateway Unit) used in FTTH scenario, which supports L3 function to help subscriber construct intelligent home network.ZTE F660 provides an GPON interface to connect OLT with an ODN. It offers a new choice for operators to deliver FTTH access.
Product Paramenters
|
Model
|
ZTE F660V8.0
|
|
Optical port
|
1 x GPON interface
|
|
Transmission speed
|
– download: 2.488 Gb/s
– upload: 1.244 Gb/s |
|
Transmission distance
|
20 km
|
|
User network interface
|
1*10/100/1000 Base-T, half/full duplex, auto MDI/MDIX, auto negotiation
3 x 10/100 Base-T, half/full duplex, auto MDI/MDIX, auto negotiation 1 x POTS interface 1 x Wi-Fi interface: IEEE 802.11b/g/n 2.4 GHz 2 x Wi-Fi antennas 1 x USB 2.0 host interface |
|
Weight
|
380G
|
|
Dimensions
|
220mm(W) x 44mm(H) x 160mm(D)
|
|
Power supply
|
12V DC
|

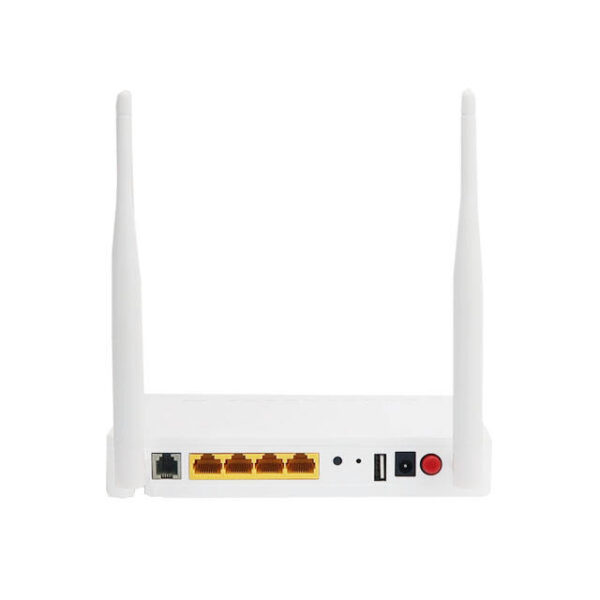

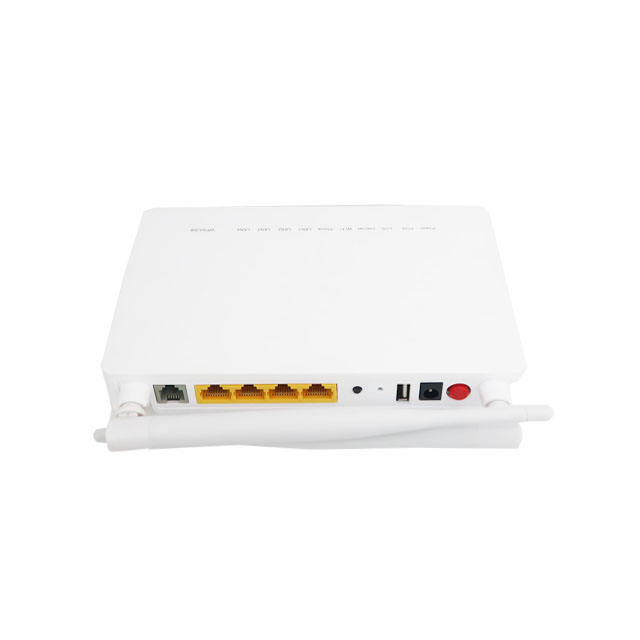

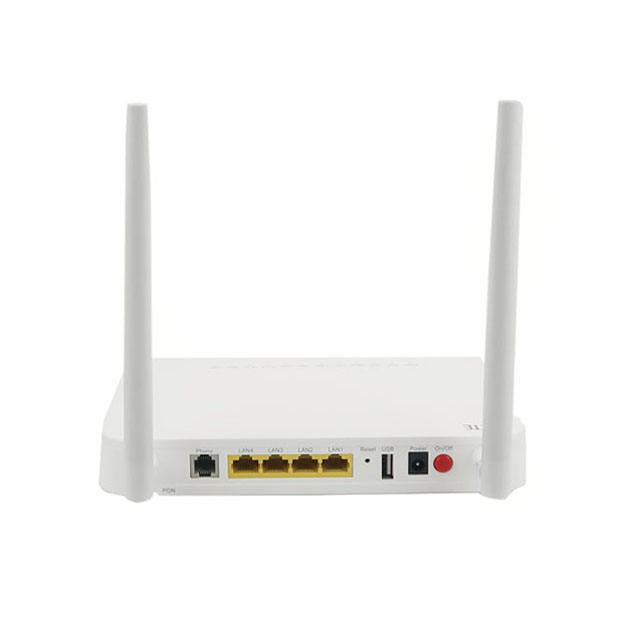

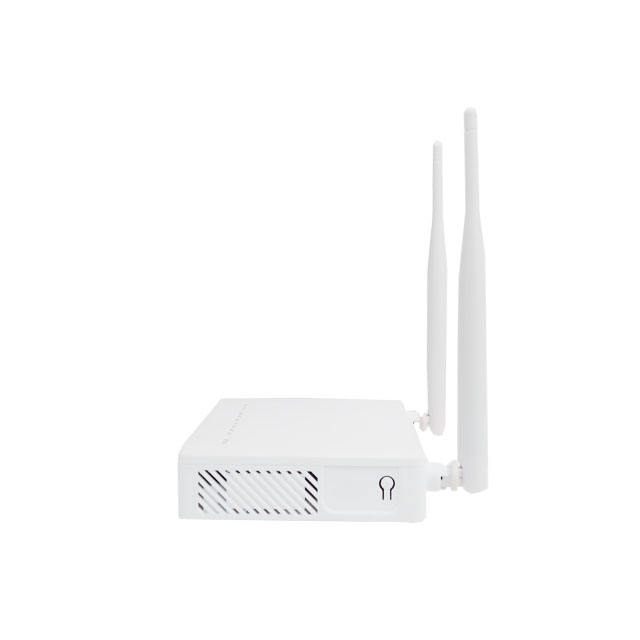

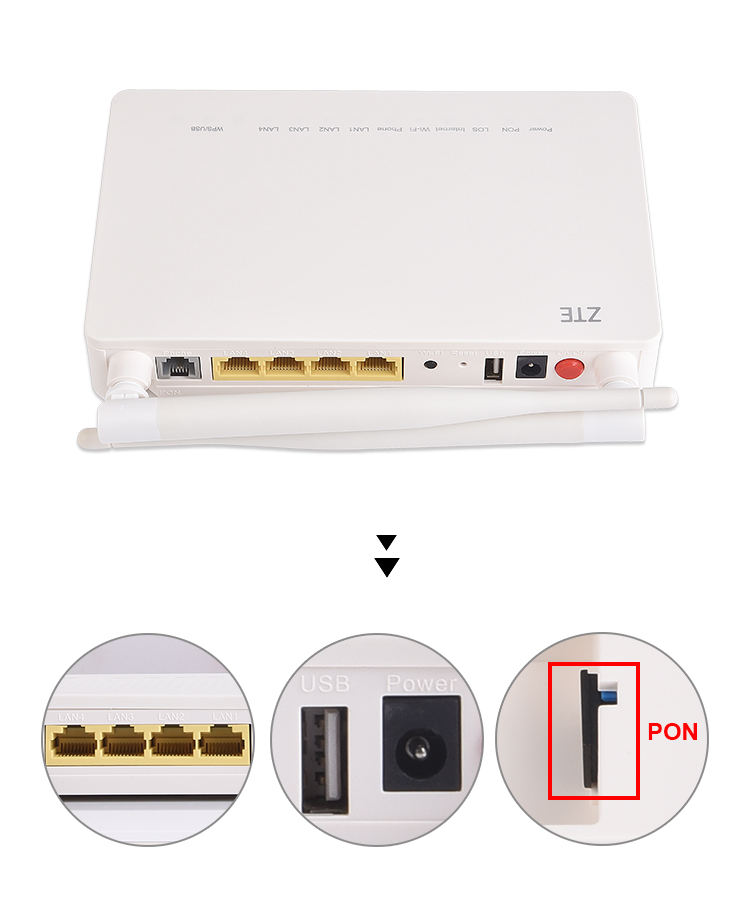

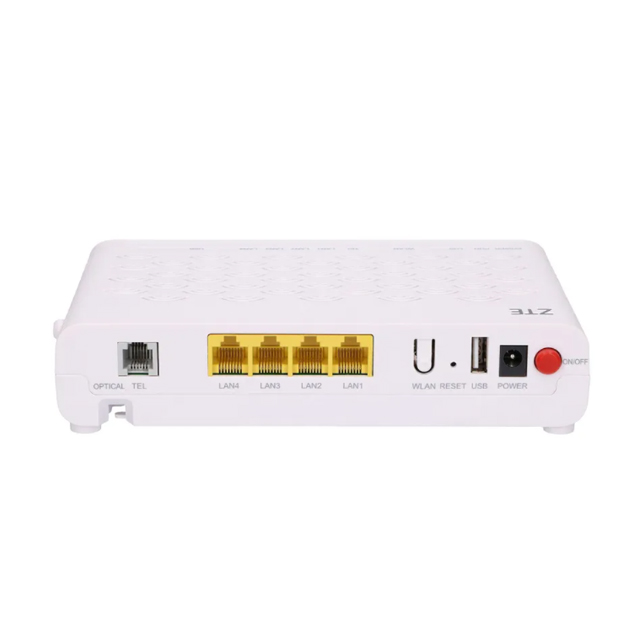

Details Images

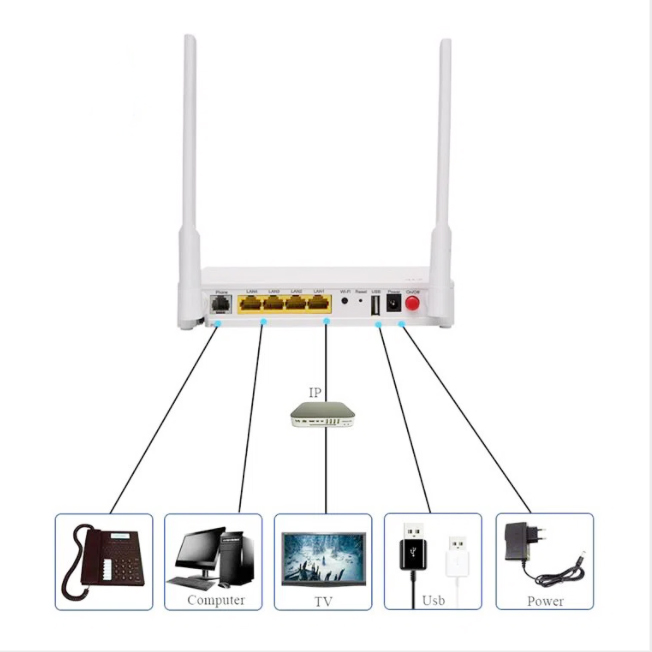

Application
