ZTE SFP+ 10G EPON OLT PR30 Module Optic Transceiver Module

Model Number:10G EPON OLT PR30
Type:Fiber Optic Production Machine
Place of Origin:GUA
Brand Name:ZTE
Warranty Time:1 year
Network:None
Supply Ability

1000 Piece/Pieces per Week
Packaging Details

carton Package
Port

Shenzhen
Lead time:Quantity(pieces)1 – 2000>2000Lead time (days)15To be negotiated

Overview

ZTE’s 10GEPON-OLT-PR30 module is designed for next generation Passive Optical Network (PON) application, 10.3125Gbps downstream and 10.3125Gbps upstream.

It is compliant with ZTE C600 C620 C650 EFTO EFTH EFTLstandard. The 10GEPON ONU transceiver is provided with SC receptacle connector. The module consists 1270nm un-cool DFB laser, InGaAs APD PIN, Preamplifier and WDM filter in a high-integrated optical sub-assembly, and it receives up to 10.3125Gbps of continuous data at 1577nm, and transmits 10.3125Gbps of burst-mode data at 1270nm.

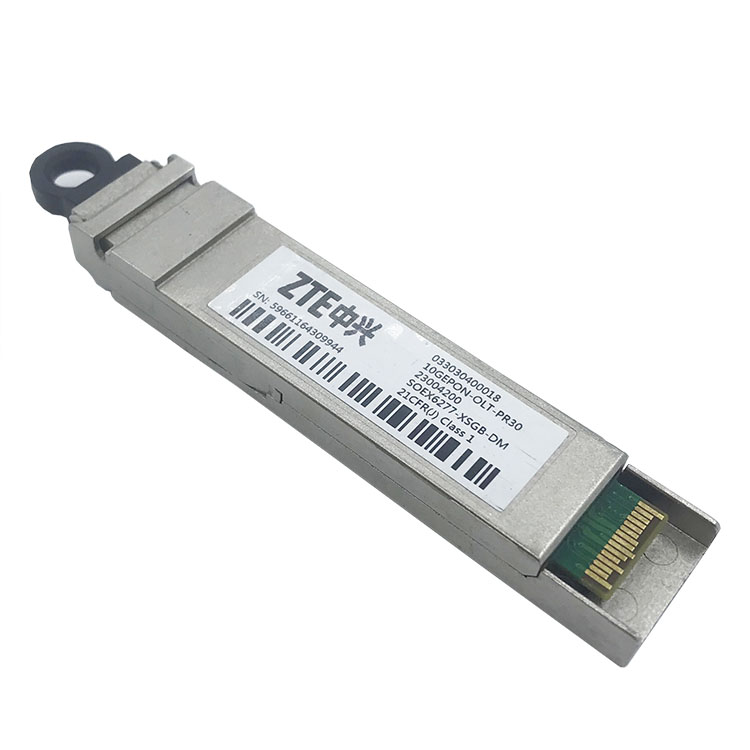

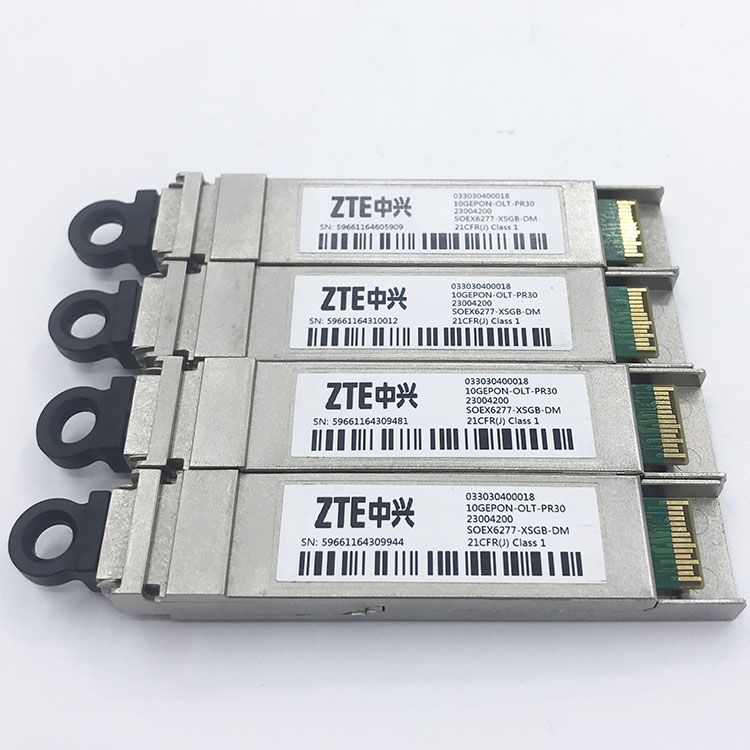

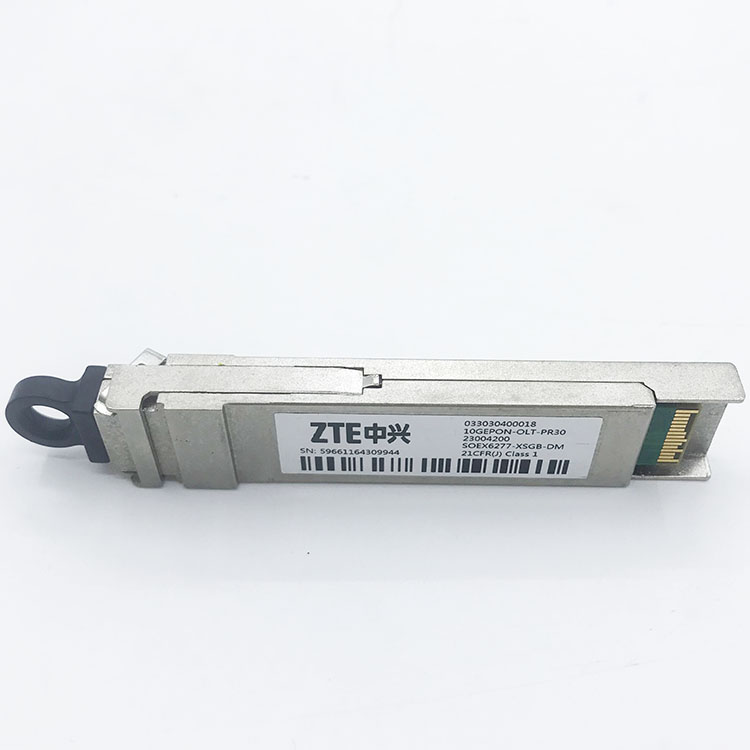

Product Pictures
