SKU 1600609600772 Categories ,
  • Model Number:SCXL
  • Type:OLT
  • Place of Origin:GUA
  • Brand Name:huawei
  • Use:FTTX
  • Warranty Time:1 year
  • Network:None
  • Supply Ability
    1000 Piece/Pieces per Week
  • Packaging Details

    cartons

  • Port

    Shenzhen

  • Picture Example:
  • Lead time:Quantity(pieces)1 – 2000>2000Lead time (days)15To be negotiated
Specification
Control and switching cards
SCTM – Suitable for XGPON1, supports 16 port GPON cards, higher switching power, 4x 10GE uplink interface, 2x management interface
SCXN – Supports 16 port GPON cards, 4x GE uplink interface, 2x management interface
SCXM– supports 480 Gbps switching capacity and 32 K MAC address table.

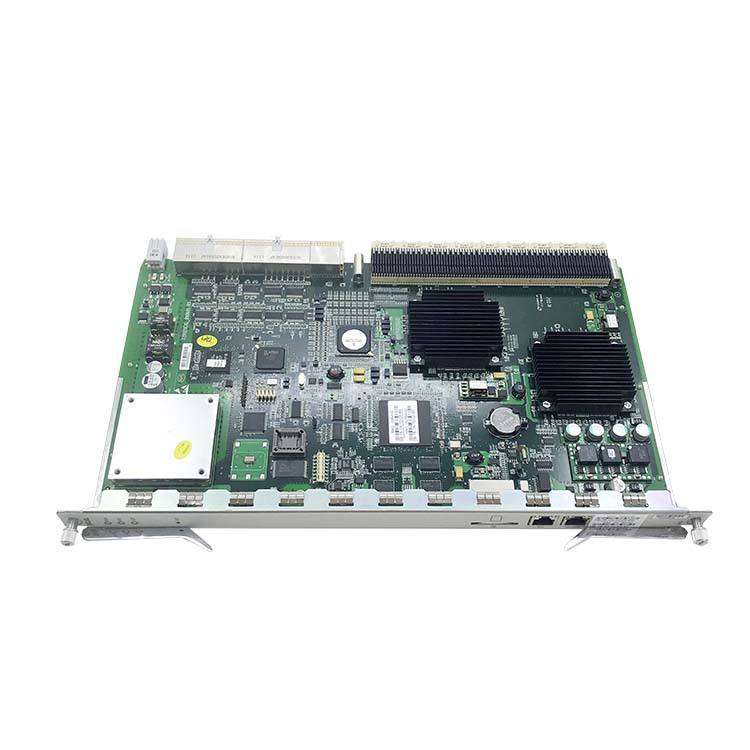

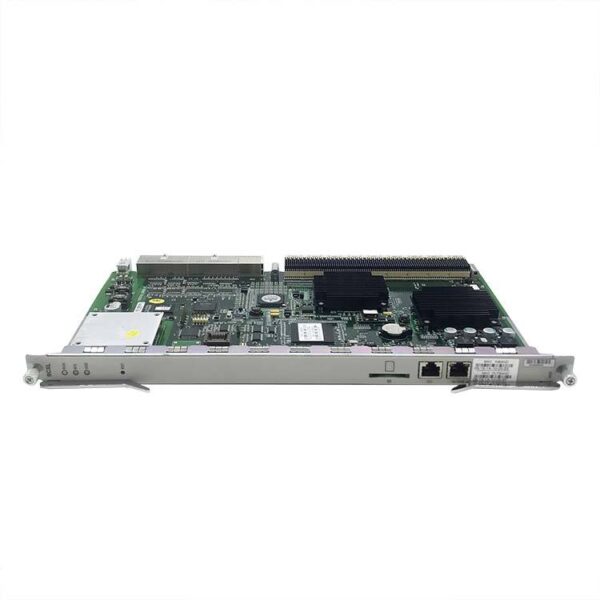

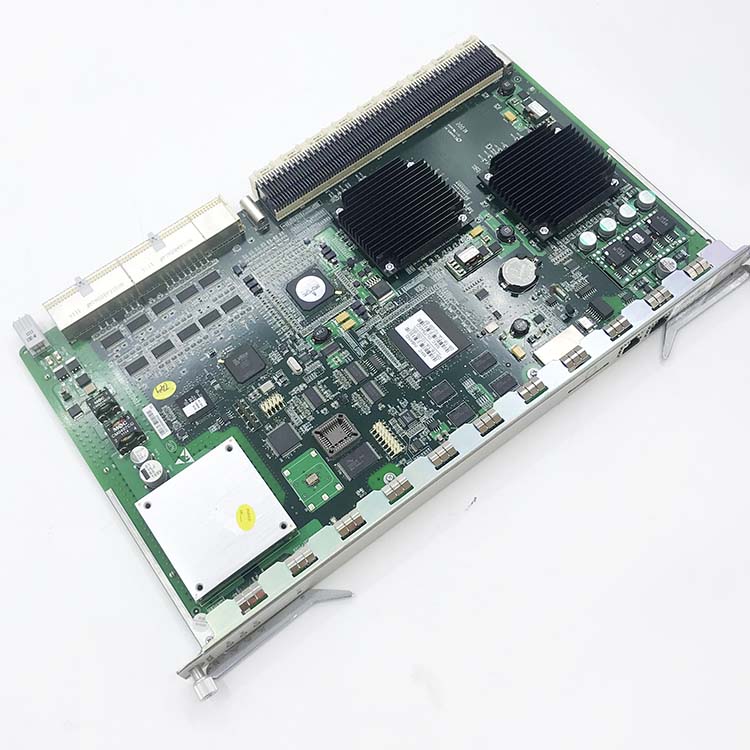

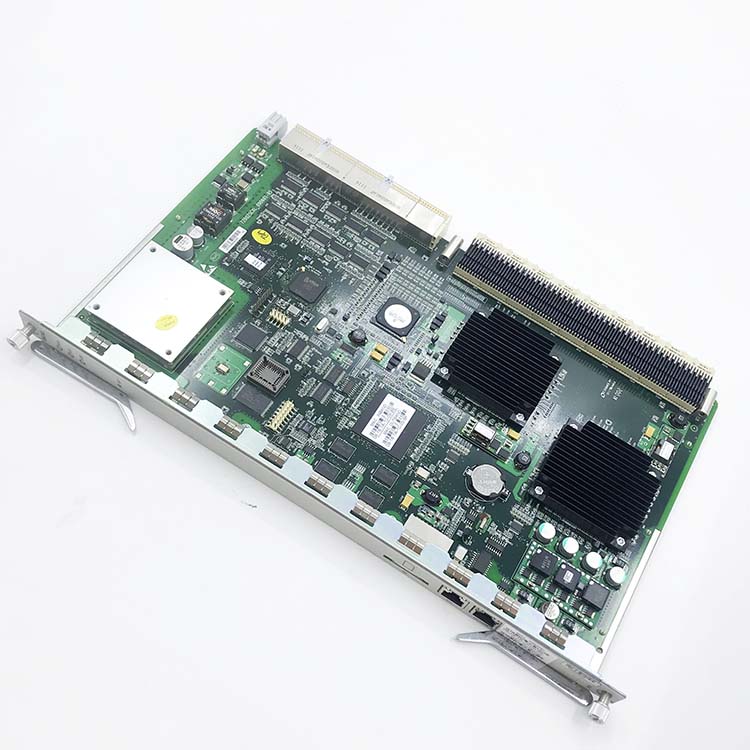

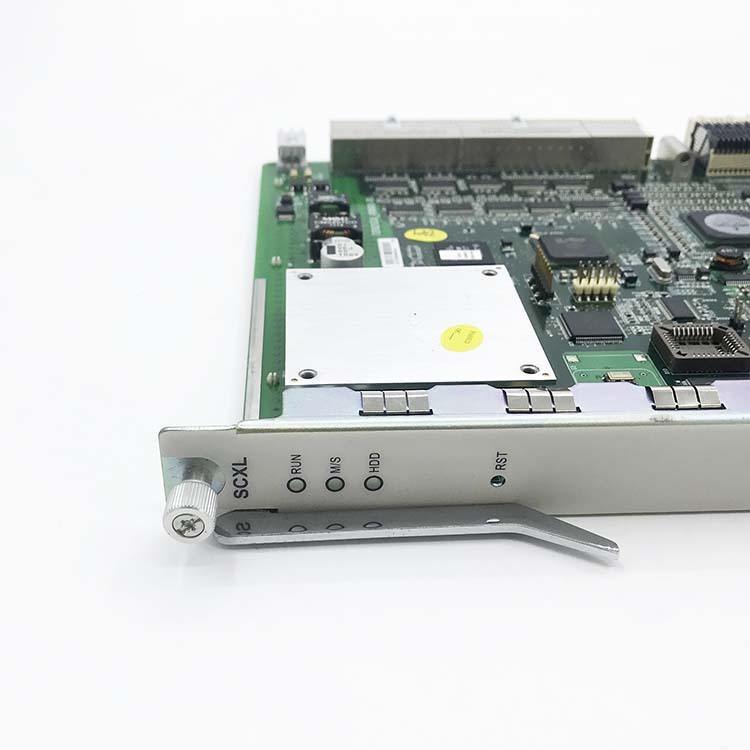

SCXL – No uplink interfaces, 2x management interface
GPON cards
GTXO – 4/8 XGPON1 ports, split ratio up to 1:256
GTGO – 8 GPON ports, split ratio up to 1:256
GTGH – 16 GPON ports, split ratio up to 1:128
FTGK – 48 P2P ports (WDM) or 24 GE ports (separated fibres for uplink/downlink)
Uplink cards
GUFQ – 4x SFP (GE)
GUSQ – 2x SFP (GE), 2x RJ45 (GE)
XUTQ – 4x SFP (10GE)
HUTQ – 4x SFP (2x10GE, 2xGE)
HUVQ – 4x SFP (2x10GE/GE, 2xGE/FE)
Power consumption
SCXL (without uplink interfaces): 90 W
SCXM (with uplink interfaces): 70 W
SCXN (without uplink interfaces): 62 W
Dimensions
395.5 mm × 25 mm × 225 mm (Height × Width × Depth)
Weight
SCXL: 1.14 kg
SCXM: 1.132 kg
SCXN: 1.132 kg
GE1–GE4/XG1–XG4
GE/10GE optical interface, for uplink
SD
SD socket, for importing/exporting data
CLI
RS-232 port, for local debugging
10/100M
RJ45 interface, for out-of-band network management
DIAG
RJ45 interface, for mirroring service traffic
