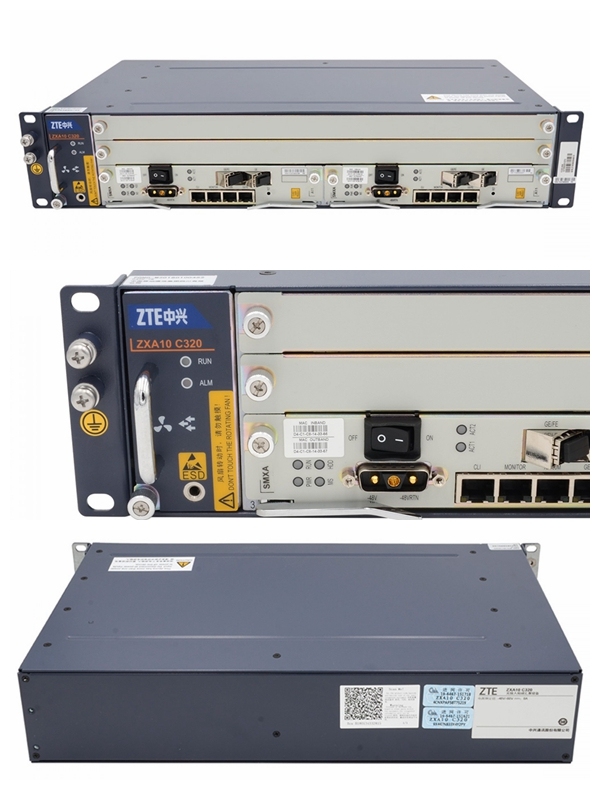

ZTE ZXA10 C320 Chassis with 2xSMXA GE Main Control Board with DC power port integrated

Model Number:C300
Type:OLT
Place of Origin:Guangdong, China
Brand Name:HONGKING
HS Code:8517622100
Use:FTTH
No. of Fiber:144
Supply Ability500 Piece/Pieces per Week
Packaging DetailsCARTON BOX
PortSHENZHEN
Picture Example:
Lead time:Quantity(pieces)1 – 5>5Lead time (days)5To be negotiated

ZXA10 C320 Dual GE DC

ZTE ZXA10 C320 Chassis with 2xSMXA (UCDC1) DC

Description:

ZTE ZXA10 C320 Chassis with 2xSMXA (UCDC1 pinch card embedded) GE Main Control Board with DC power port integrated

Overview

ZTE ZXA10 C320 19-inch Chassis equipped with 2xSMXA (UCDC1 pinch card embedded, DC power port)
Comes with 2PCS DC power cables, 1PCS earth cable
ZXA10 C320 Chassis with 2xSMXA (UCDC1) equipped
2 service slots

Configuration
Main Control Board		SMXA: 2
Pinch Card		UCDC1: 2 Provide total 4 GE uplink ports
GPON Ports		0
Service Slots Remain		2
Power Supply Mode(W)		DC power supply: -48V+/-20%, -60V+/-20%
Device Specifications
Dimensions (mm)		86.1(H) × 482.6 (W) × 270 (D)
Weight(kg)		4.5

Key Features
Unified platform for GPON,XG-PON1 and P2P
Small size andcompact design, flexible network and fast deployment
2U frame with 2 service slots, compatible with ZXA10 C300 line cards
Abundant service support capability: IPTV, VoIP, HSI, VPN, mobile backhaul, etc
Higher security assurance: ONT authentication, user ID identification, port isolation, address binding, packet filtering, and
broadcast packet suppression.
High reliability: key parts redundancy; support Type B and Type C protection for PON downlink and LACP/ UAPS/STP/ERPS for uplink
Service differentiation: Comprehensive QoS mechanisms for voice, video and high speed Internet services.
Support DC input redundancy
Support AC power supply
Support 1:1 protection for PON interfaces
Support 1:1 protection for SW (core card) card
Support 1588V2 and Synchronous Ethernet
Support embedded OTDR in SFP
System Architecture

Capacity
GPON up to 32 ports
Uplink interfaces up to 4 *GE (Optical )+2*GE(Electronic) or 2*10GE(Optical )+2*GE(Optical ) +2*GE(Electronic)
Chassis Configuration (19″)
Total 5 slots
2 slots for universal line cards
2 slots for switch& control cards
1 slot for fan module
Subscriber Card Density
GPON card: 8/16 ports per card
XG-PON1 card: 8 ports per card
P2Pcard: 24/48 ports per card

Uplink interface card
1*10GE optical port ( Configurable 1*GE optical port)
1*GE optical port
1*10 M/100 M/1000 M electrical Ethernet port
Common interfaces
1*environment detecting interface
1*management interface
1*maintenance serial interface

PON Features
GPON compliant with ITU G.984.x
P2P compliant with ITU G.985/G.986
XG-PON1 compliant with ITUG.987.x andG.988
Support 1:128 optical split ratio for xPON
Support OLS (Optical Laser Supervising )
Max logical reach: 60km
Max physical reach: 20km
Max link difference: 20km
High-efficient DBA: NSR-DBA,SR-DBA
Synchronous Ethernet
GPON Transceiver power: Class B+ or class C+
XG PON1 Transceiver power: Class N1 and N2a TypeB and type C optical uplink protection
Support FEC
Support AES128
Support SCB
GPON MCM(Multi-Copy Multicast)
Support 1550nm for third party CATV broadcasting
L2/L3 Features
4K VLAN
1:1/N:1 VLAN
