ZTE ZXHN F660 Overview:
ZTE ZXHN F660 V6.0 FTTH is GPON optical terminal unit with 1GE + 3FE + 2POTS + WIFI + 1USB ports This model is designed for the FTTH scenario. It supports the L3 function to help the subscriber build a smart home network.
It provides subscribers with convenient services, including voice, video (IPTV) and high-speed Internet accessZXA10 C320 is new-generation compact OLT, only 2U high, saving installation space; high line card density: industry-leading 16-port GPON/EPON and 48-channel P2P board capability, single-frame can provide 32 G/EPON ports and 96 channels P2P GE port; ZTE C320 supports GPON/EPON/P2P/10G EPON/XG-PON1 with the same platform access, and will also support TWDM-PON technology; unified bearer voice, high-speed Internet access, IPTV, traditional TDM and mobile backhaul services.
Integrated access; adopts large-scale OLT hardware and software architecture, supports architecture evolution, is compatible with ZXA10 C300 service boards, and saves board costs.
ZTE ZXHN F660 Specifications:
| Brand | ZTE |
| Model | F660V6.0 |
| Optical port | 1 x GPON interface (SC/APC) |
| Transmission Distance | 0-20KM |
| Transmit rate | 2.488Gbps downstream; 1.244Gbps upstream |
| User-Network Interface | 4 x 10/100/1000Base-T |
| 1 x Wi-Fi interface | |
| 1 x USB host interface | |
| 2 x POTS interfaces | |
| Wavelength | Receiving: 1480~1500 nm Transmitting: 1290~1330 nm |
| Receiving Sensitivity | -28dBm |
| Transmitting Optical Power | 0.5~5dBm |
| Power consumption | <10W |
| Dimensions | 220mm(W) x 44mm(H) x 160mm(D) |
| Working temperature: | 0oC ~ 40oC |
| Working humidity | 5% ~ 95% |
| Weight | 380G |
| Power supply | 12V DC |
ZTE ZXHN F660 Features:
- Supported service: VoIP, Internet, IPTV
- GPON: 8 T-CONTs, 32 GEM Ports
- VLAN: 802.1Q, 802.1P, 802.1ad
- MAC address table: 1K
- L3 function: DHCP server/Client, DNS Client, NAT
- IPv6: Dual Stack, DS-Lite
- VoIP: SIP/H.248, G.711/G.722/G.729, T.30/T.38
- Wi-Fi: 4 SSIDs, 2×2 MIMO, WPS
- Wi-Fi authentication: Shared key, 128-bit WEP, WPA-PSK, WPA2-PSK, WPA-PSK + WPA2-PSK, WPA2-Enterprise
- Multicast: IGMP v1/v2/ Snooping/Proxy, MLD v1 Snooping
- Multicast group per user port: 256
- QoS: service flow classification based on a physical port, MAC address, VLAN ID, VLAN priority level, IP address; SP/WRR/SP+WRR
- Management: local web management, OMCI, TR069
- Management: local web management, OMCI
- USB: DLNA DMS, USB backup, 3G/LTE dongle
- Model Number: ZTE ZXHN F660 V6.0
- Type: ONU
- Place of Origin: Guangdong, China
- Brand Name: ZTE
- Use: FTTH
- Warranty Time:1 year
- Network: Wired LAN, wifi
- Supply Ability2000 Piece/Pieces per Week
- Packaging Detailscartons
- PortShenzhen
- Lead time: Quantity(pieces)1 – 4000>4000Lead time (days)15To be negotiated

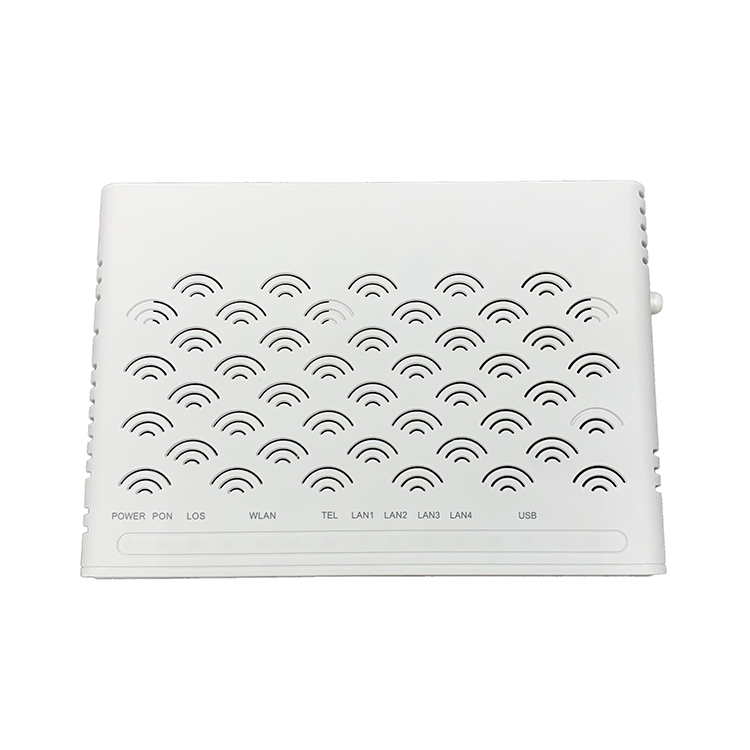

Picture Example:
