SKU 1600447050485 Categories ,
  • Model Number:C300
  • Type:OLT
  • Place of Origin:Zhejiang, China
  • Brand Name:ZTE
  • Use:FTTH
  • Warranty Time:1 year
  • Network:Wireless Lan, wifi, 4g
  • model:C300
  • brand name:ZTE
  • Dimensions:10U (443.7 *482.6 *70 mm)
  • Management interfaces:CLI, SSH, SNMP, telnet
  • Switching capacity:800 Gb / s
  • Power supply:48V DC
  • service board:ETGO GTGO ETGH GTGH
  • Fiber port:8~240 ports
  • warranty:1 year
  • Supply Ability100 Piece/Pieces per Month
  • Packaging Details1pcs/ctn
  • PortShanghai/Ningbo
  • Picture Example:
  • Lead time:Quantity(pieces)1 – 1>1Lead time (days)7To be negotiated
Product Description

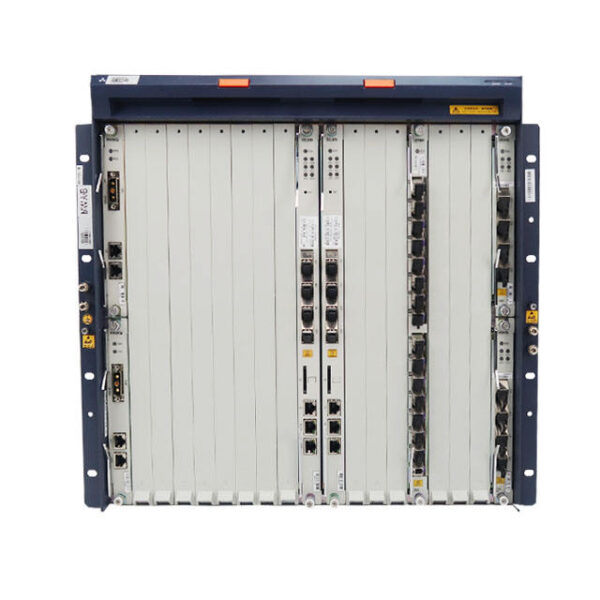

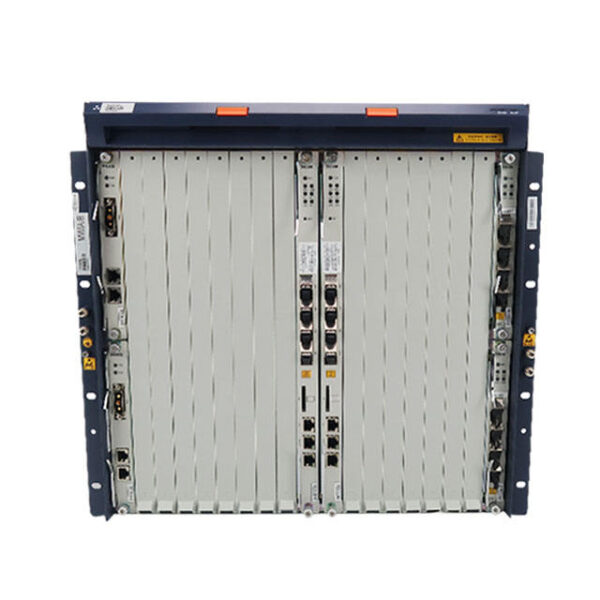

As an OLT system, the ZTE C300 offers a lot of space for expansion cards, allowing you to build a fast network based on fiber optic cables and GPON / EPON technologies . The device guarantees high performance, which is ideal for “triple-play” applications- VoIP , IPTV and CATV .
Model
ZTE C300
Mounting plate capability
5.76 Tb/s
Switching capacity
800 Gb/s
Number of slots for service cards
14 (GPON / P2P / XG-PON1)
Number of places for control cards
2
Number of slots for power cards
2
Number of Uplink card slots
2 (10 GE / GE / FE / E1 / T1)
Dimensions
10U (443.7 mm x 482.6 mm x 270 mm)
Power supply
48 V (DC)
Working conditions
Temperature: -25°C to 55°C
Humidity: 5%-95%
Details Images
Multiple configuration
Application
Packing&Shipping

Specification

19 inch (443.7 *482.6 *70 mm)
