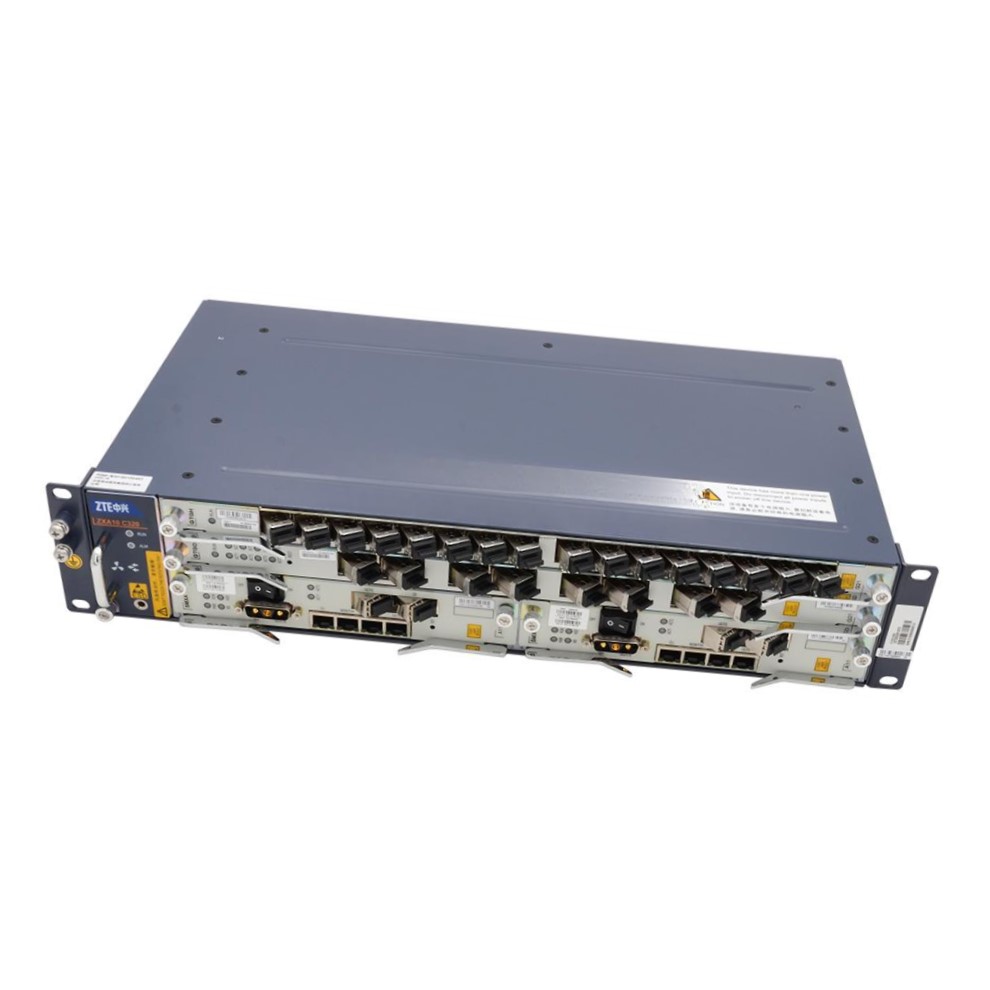

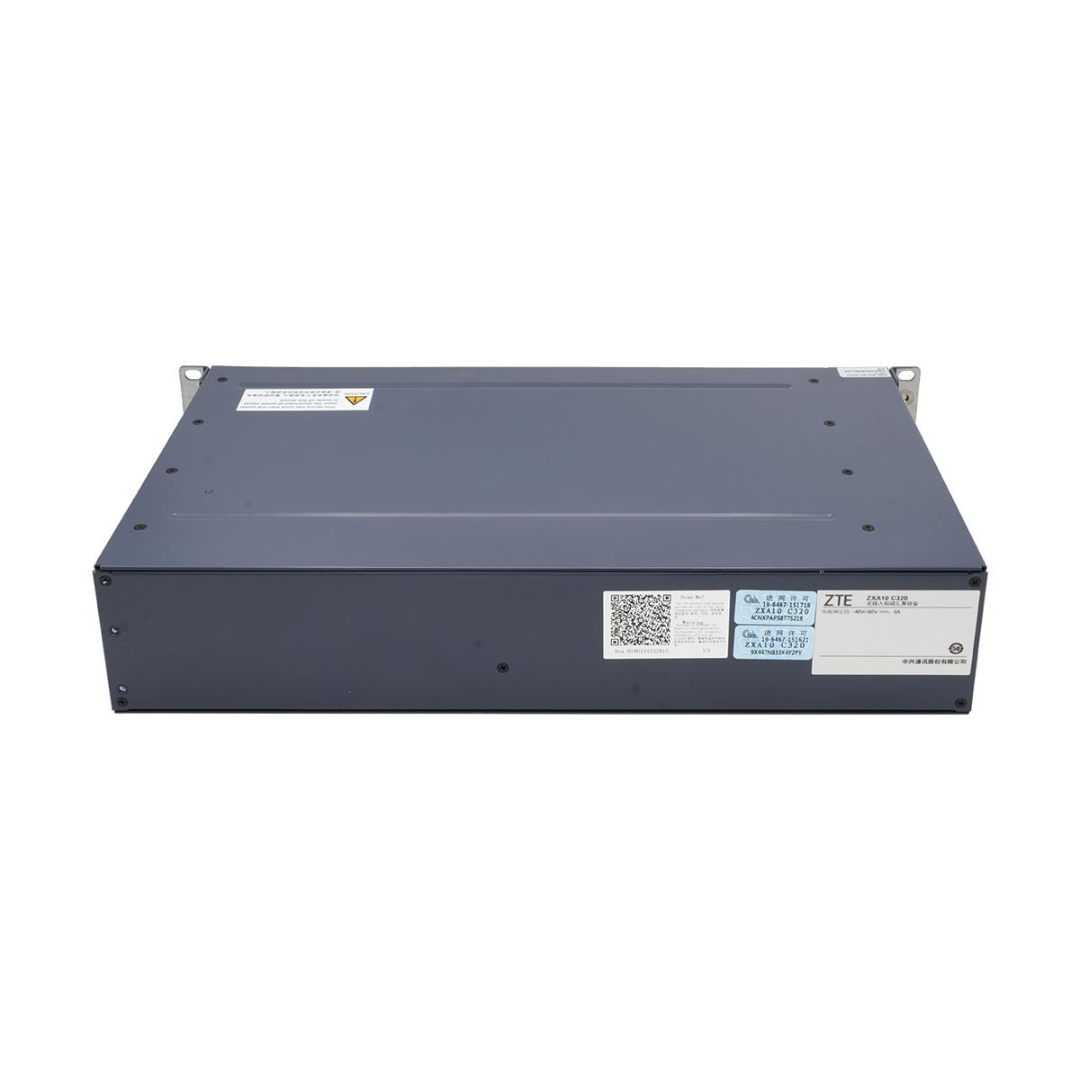

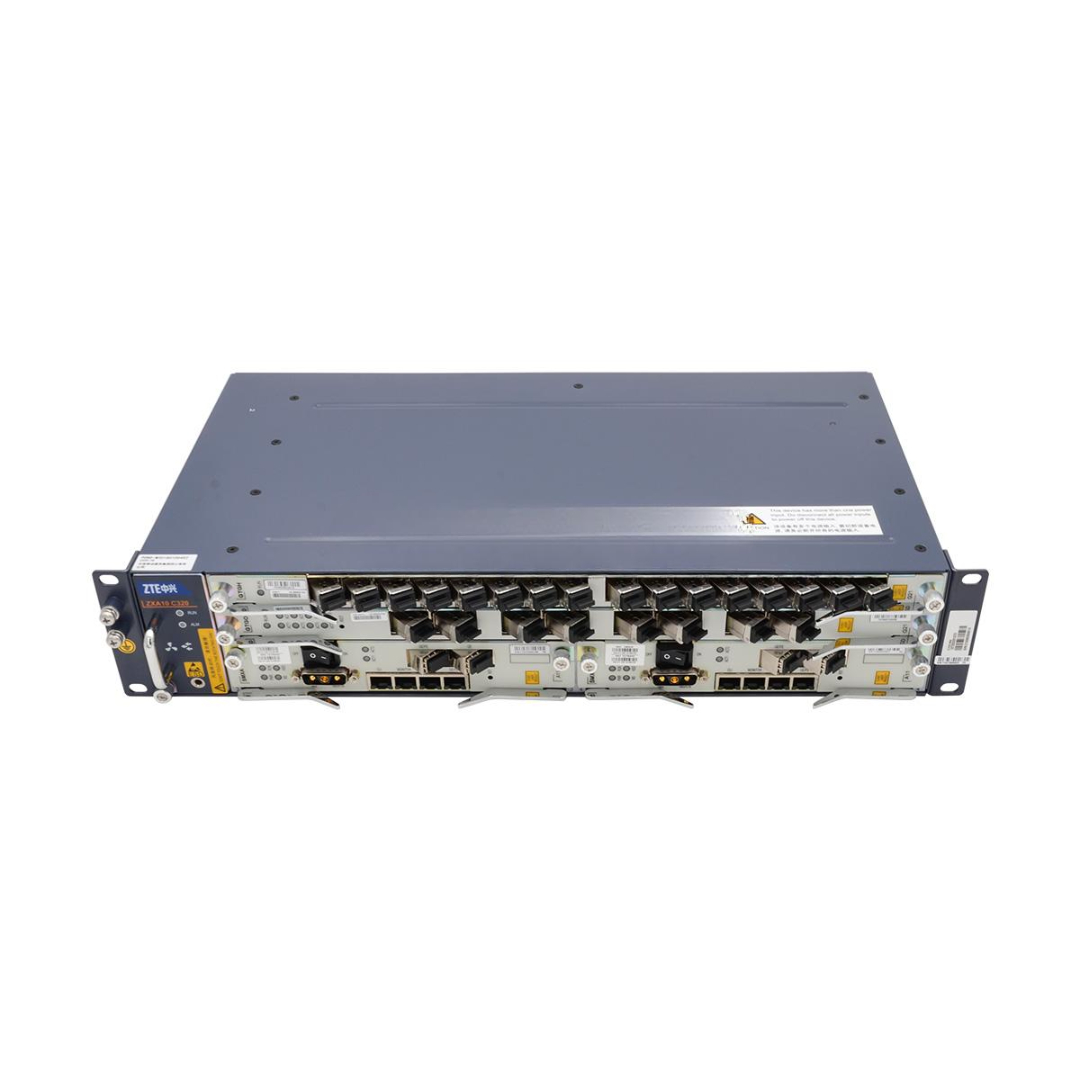

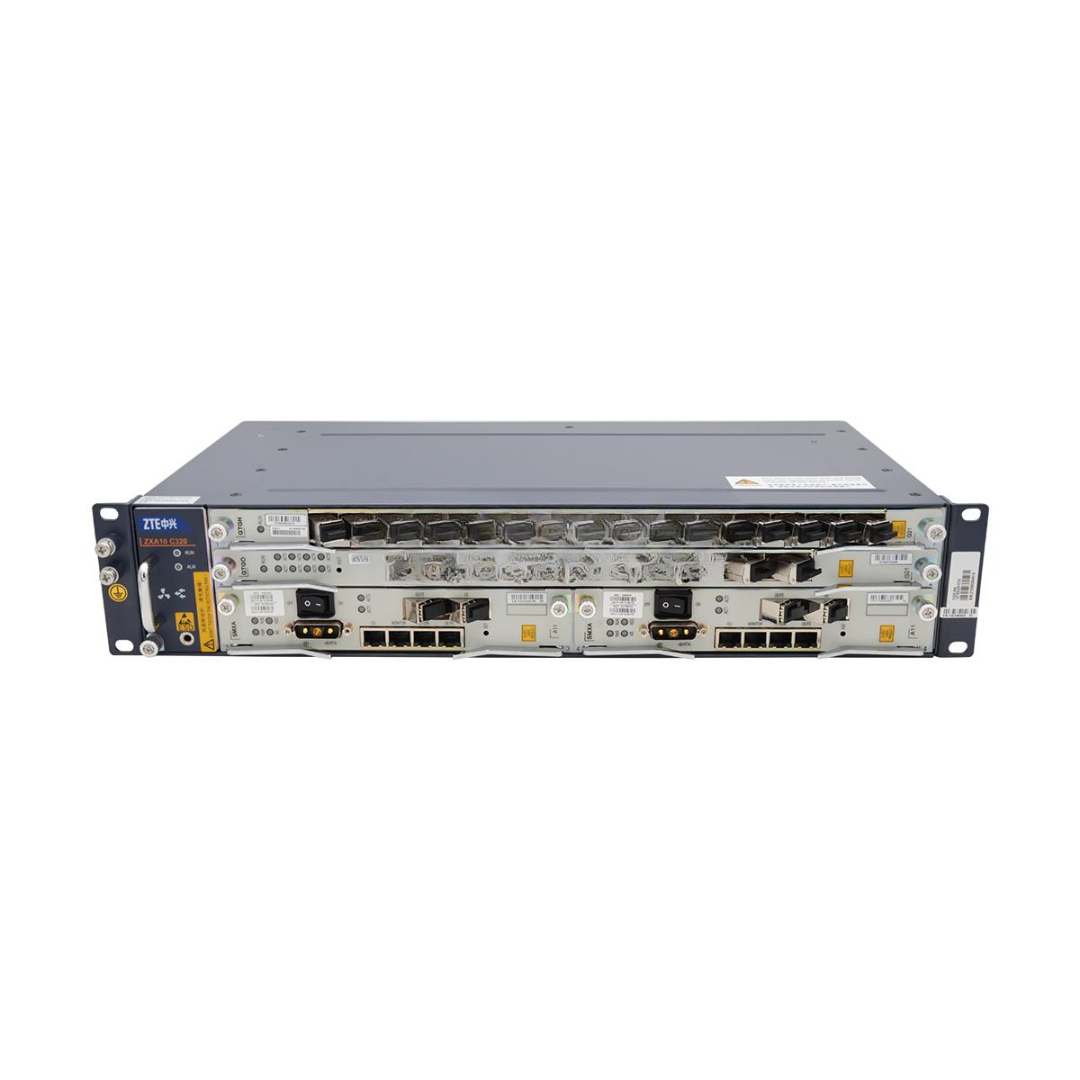

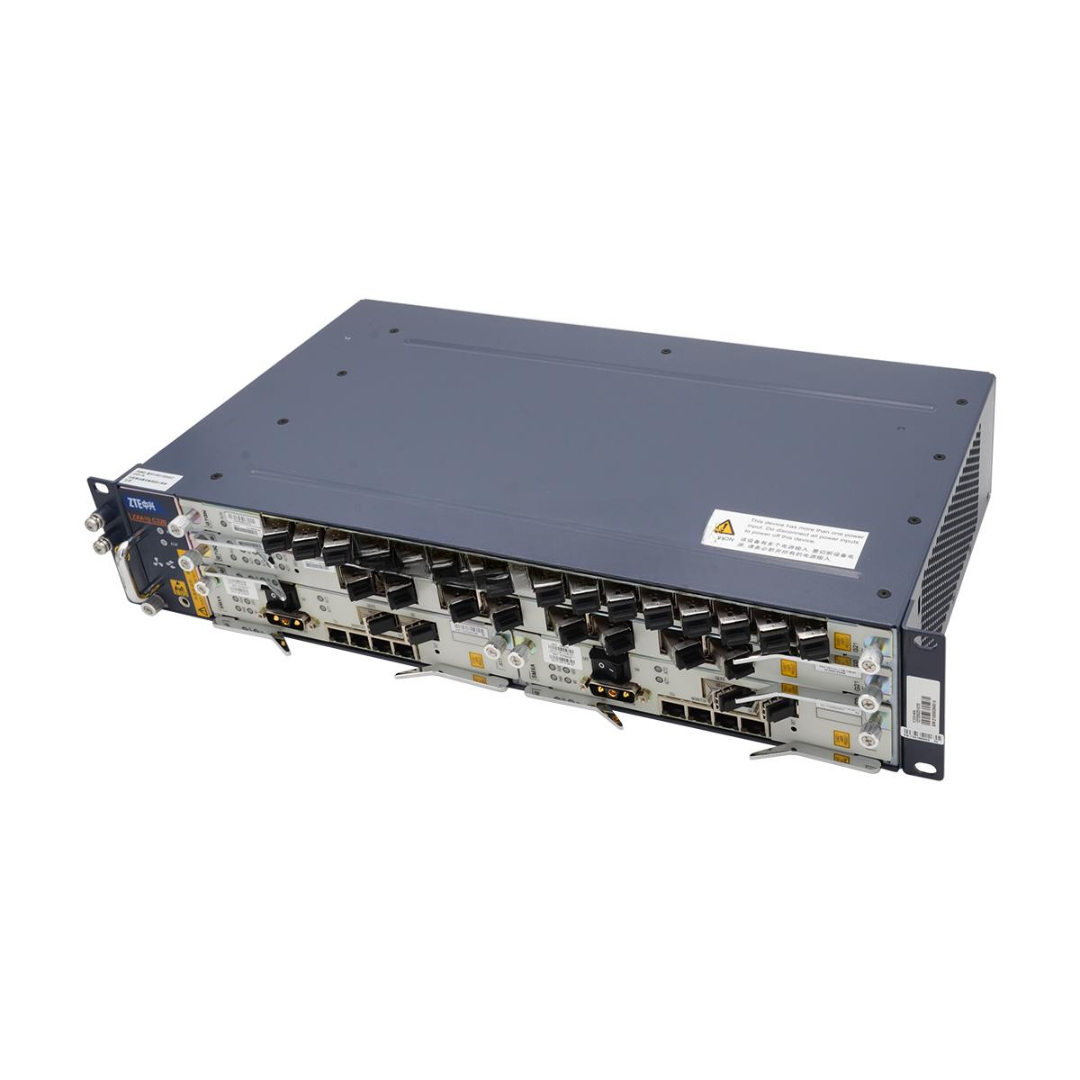

ZXA10 C320 Chassis Brand New with 2xSMXA Dual Control Board
The ZXA10 C320 Chassis with 2xSMXA Dual Control Board is a next-generation compact optical access platform from ZTE, engineered for GPON, EPON, and P2P access in FTTx deployments. This configuration includes the chassis and two SMXA control boards, offering dual control plane redundancy, high processing performance, and full support for carrier-grade broadband, voice, video, and enterprise access services.
Key Features
-
Model: ZXA10 C320
-
Included Boards: 2 × SMXA Dual Control Boards (for redundancy)
-
Platform Type: Compact OLT with modular architecture
-
Slot Configuration: Supports up to 2 control boards, 8 service slots, and 2 uplink slots
-
Deployment Modes: Ideal for CO, cabinet, or remote node deployments
-
Service Support: GPON, EPON, XG-PON, 10G-EPON, and P2P Ethernet
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Compact Optical Line Terminal (OLT) |
| Model | ZXA10 C320 |
| Chassis Capacity | 2 × Control boards, 8 × Service slots, 2 × Uplink slots |
| Control Boards Included | 2 × SMXA (Dual Main Control Boards) |
| Switching Capacity | 320 Gbps (depending on line card combination) |
| Backplane Bandwidth | 320 Gbps non-blocking |
| PON Support | GPON / EPON / XG-PON / 10G-EPON / Combo-PON |
| Uplink Support | GE/10GE uplinks via SFP/SFP+ |
| Power Supply Options | AC/DC Dual Power (modules sold separately) |
| Redundancy | Control board and power supply redundancy supported |
| Management | CLI, SNMP, Telnet, EMS (ZTE NMS), TR069 |
| Dimensions (W×D×H) | 442 × 230 × 88.1 mm (2U Standard Rack Mount) |
| Weight | Approx. 8–10 kg with control boards |
| Operating Temperature | -40°C to +65°C |
| Humidity | 5%–95% RH, non-condensing |
| Installation | 19” Rack-mountable |
| Warranty | 1–3 Years Manufacturer Warranty |
ZXA10 C320 Chassis with SMXA Applications
-
FTTH/FTTB Deployments – Cost-effective PON access for residential and enterprise
-
Compact Remote Nodes – Outdoor cabinet or rural broadband with full redundancy
-
Triple-Play Services – IPTV, VoIP, and broadband over a unified fiber platform
-
Mobile Backhaul – Aggregation of mobile base stations via GPON/XG-PON
-
Campus Networks – Centralized access for education, healthcare, and government
Customization & OEM Options
-
Pre-Installed Service Cards – Add GPON, XG-PON, or Combo cards based on project
-
Custom Software Configurations – VLANs, management IPs, alarms preloaded
-
Dual Power Modules – AC or DC power customization for NOC or field deployment
-
Labeling Options – OEM or branded casing available for ISPs and integrators
-
Outdoor Cabinet Kits – Field-ready chassis with fans, battery, and monitoring
ZXA10 C320 Chassis Wholesale & Global Supply
-
100% Original ZTE OEM Equipment – Verified with original packaging
-
Bulk Availability – Ideal for mass FTTx rollouts or infrastructure upgrades
-
Secure Packaging – Industrial shock-proof and anti-static box
-
Fast Delivery Worldwide – Stock ready for immediate shipping
-
Technical Assistance – Expert help for NMS integration and board mapping
Why Choose ZXA10 C320 Chassis with 2xSMXA Boards
-
Dual Control Redundancy – Ensures high availability for carrier-grade networks
-
Modular & Scalable – Grow your network with minimal footprint
-
Flexible PON Support – Supports mixed fiber technologies (GPON, XG-PON, 10G-EPON)
-
Carrier-Grade Reliability – Proven hardware across global deployments
-
Future-Proof Platform – Ready for NG-PON and higher-density PON cards
Request a Quote or Datasheet Today
Get your fiber access network powered with ZTE ZXA10 C320 with 2xSMXA Dual Control Boards — the compact and scalable solution trusted by global telecom operators for high-speed, high-reliability fiber access.
