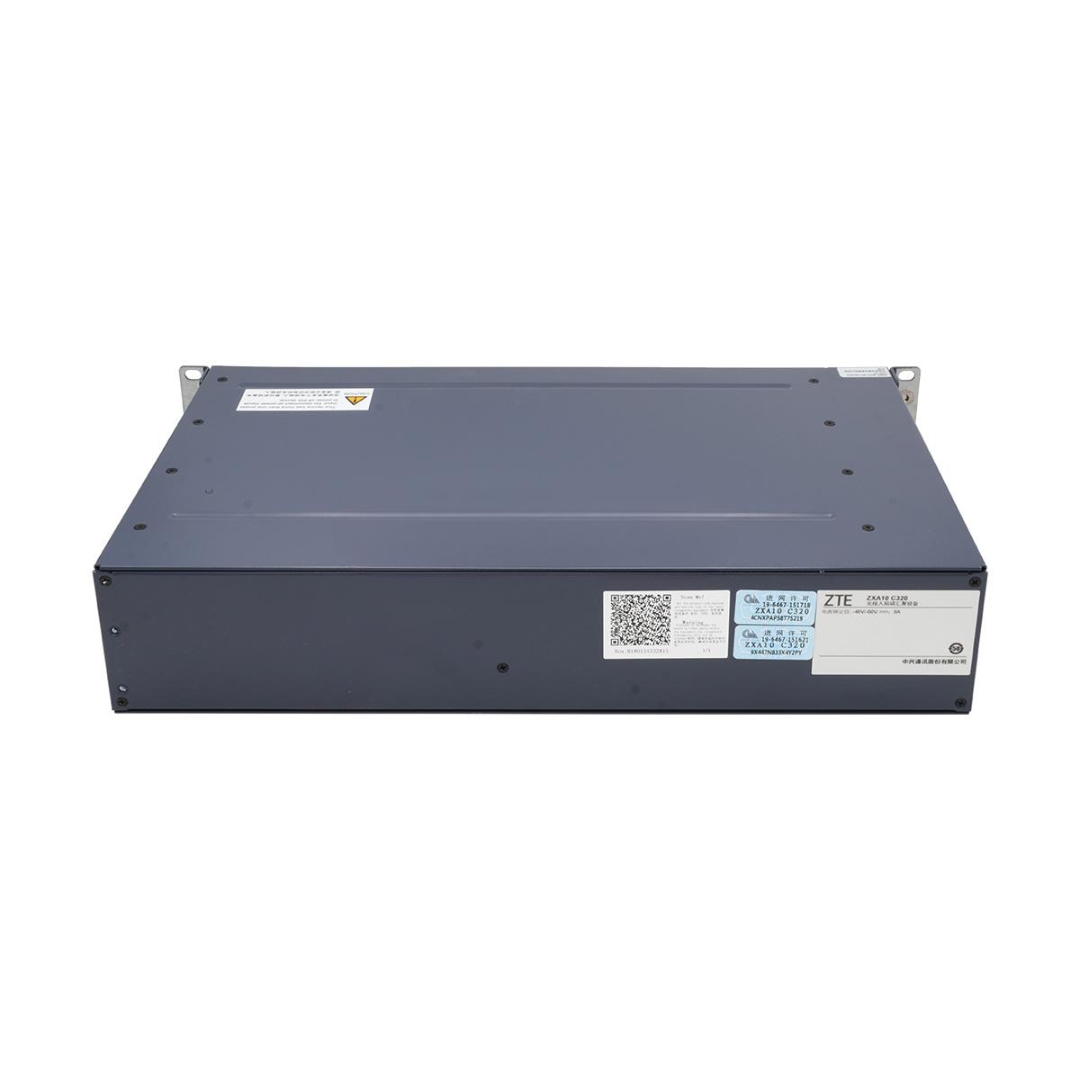

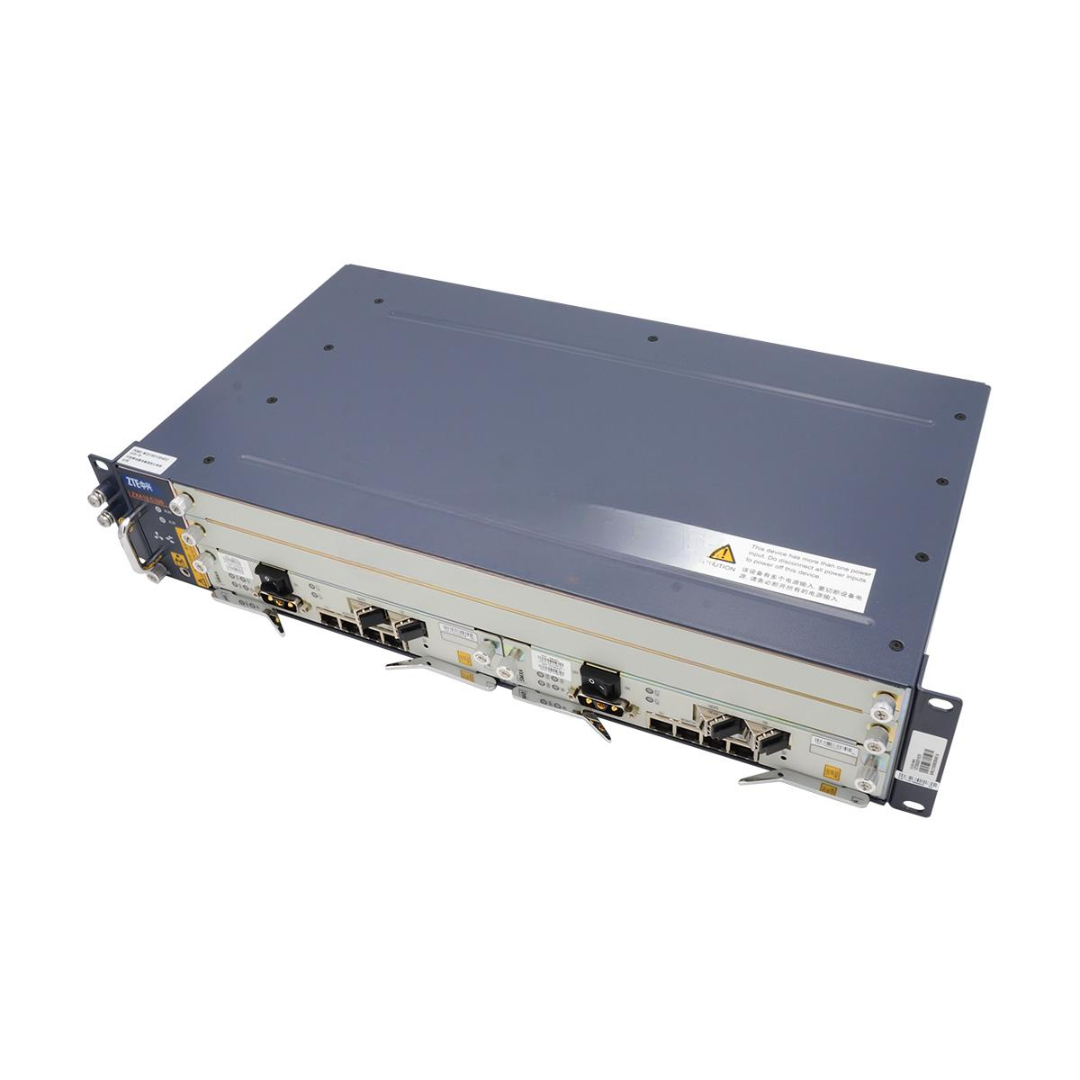

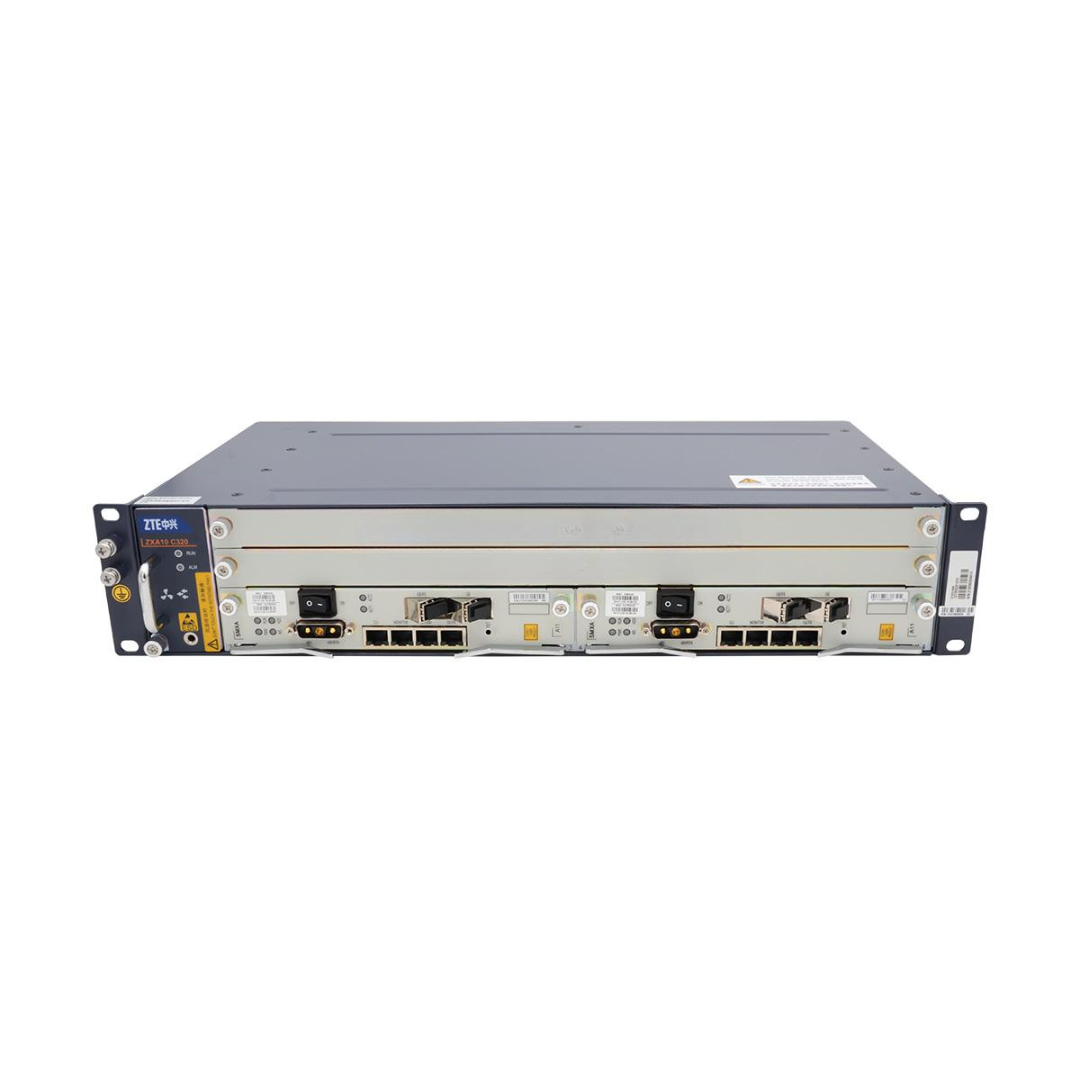

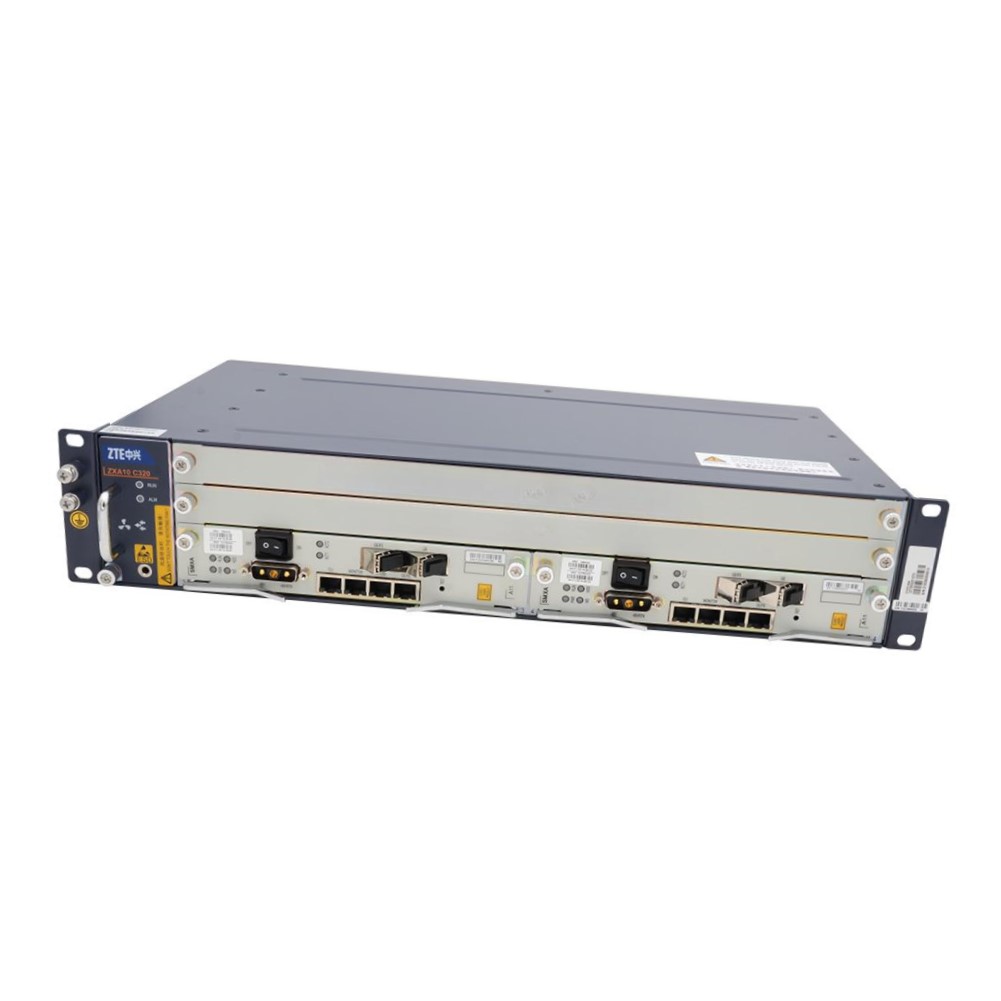

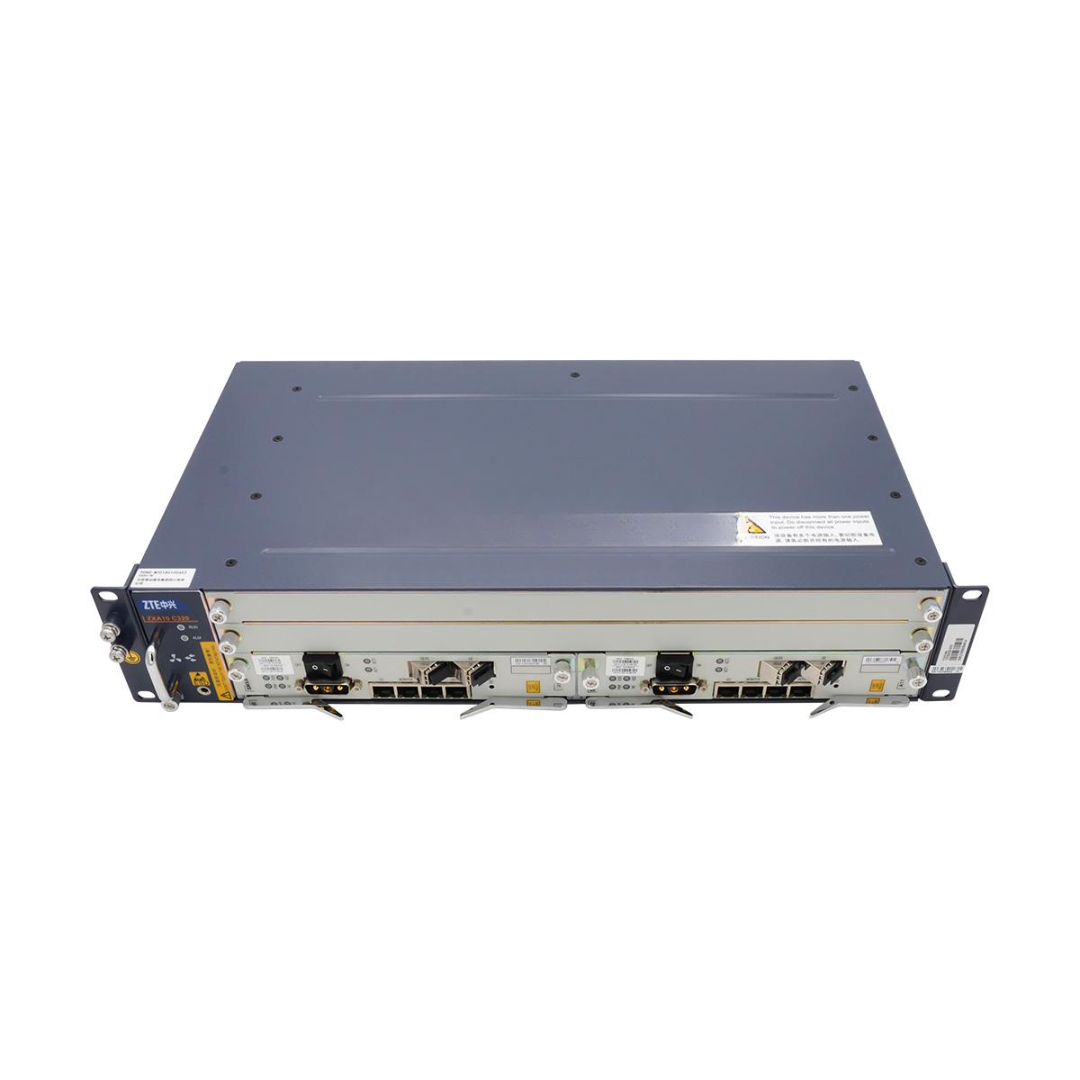

ZXA10 C320 Dual GE DC 16GPON C+ Chassis Brand New Control Board
The ZXA10 C320 Dual is a compact, carrier-grade optical line terminal (OLT) system from ZTE, configured with 16 GPON C+ ports, dual GE uplinks, and DC power support, making it ideal for high-density FTTx access networks. It includes a brand new control board for reliable service management and seamless integration into broadband infrastructures.
Key Features
-
Model: ZXA10 C320 Dual GE DC with 16GPON C+
-
Included Components:
-
1 × C320 Compact Chassis
-
1 × Main Control Board (SMXA or equivalent)
-
1 × 16-Port GPON C+ Line Card
-
Dual GE Uplink Interfaces
-
DC Power Input Support
-
-
PON Interface: 16 × GPON ports with Class C+ optical transceivers
-
Power Supply: DC power module installed (48VDC)
-
Chassis Type: 2U, 19-inch standard rack-mount
Technical Specifications
| Specification | Details |
|---|---|
| Platform | ZXA10 C320 |
| Chassis Size | 2U, compact rack-mountable |
| GPON Ports | 16 × GPON Class C+ (2.488 Gbps downstream / 1.244 Gbps upstream) |
| Uplink Interfaces | 2 × GE (Gigabit Ethernet, SFP slots) |
| Control Board | 1 × Main Control Board (supports CLI, SNMP, EMS) |
| Power Input | -48V DC (dual power input optional) |
| Switching Capacity | Up to 320 Gbps (system-wide) |
| Optical Modules | GPON SFP Class C+ (reach up to 20 km, 128 splits) |
| Service Support | Internet, IPTV, VoIP, VLAN, QoS, multicast, etc. |
| Operating Temperature | -40°C to +65°C |
| Relative Humidity | 5%–95% RH (non-condensing) |
| Management Interface | Web, CLI, SNMP, EMS (ZTE NMS), TR069 |
| Standard Compliance | ITU-T G.984, G.988 |
| Warranty | 1–3 Years Manufacturer Warranty |
ZXA10 C320 Dual Applications
-
FTTH/FTTB Access Networks — High-density broadband deployment for residential and business customers
-
Triple-Play Services — Supports IPTV, Internet, and VoIP over a unified platform
-
Enterprise Broadband — Fiber-to-office with advanced QoS and VLAN management
-
Mobile Backhaul — Aggregation of small cells and base stations
-
Smart Cities & Public WiFi — Fiber backbone for IoT and wireless mesh backhaul
Customization & OEM Options
-
Line Card Options — 8/16-port GPON, XG-PON, 10G-EPON, or Combo-PON available
-
Uplink Flexibility — Upgradeable to 10GE or combo uplink modules
-
Pre-Configured Settings — VLANs, PON profiles, and alarms preset upon request
-
Brand Labeling — OEM logo and part number customization for ISP branding
-
Power Options — AC power module available as an alternative to DC
ZXA10 C320 Dual Wholesale & Global Supply Options
-
100% Original ZTE Equipment — Brand new, factory-sealed with valid serial numbers
-
Bulk Order Ready — Ideal for telecom operators, integrators, and ISPs
-
Secure Packaging — Anti-static foam box with shock-resistant protection
-
Fast Global Delivery — In-stock units ready for international shipping
-
Integration Support — Remote setup guidance and configuration templates available
ZXA10 C320 Dual Why Choose
-
Compact & Scalable — Supports large PON deployments in a small 2U chassis
-
Dual GE Uplinks — Redundant and flexible core connectivity
-
Class C+ Optical Power — Extended reach and higher split ratio for rural or metro access
-
Carrier-Class Reliability — Built for continuous operation in harsh conditions
-
Cost-Effective GPON Solution — Ideal for small to mid-sized ISPs expanding fiber access
Contact Us for Pricing & Bulk Orders
Deploy next-generation GPON services with the ZTE ZXA10 C320 Dual GE DC 16GPON C+ Chassis — a powerful, compact, and cost-efficient fiber access solution trusted by telecom providers worldwide.
