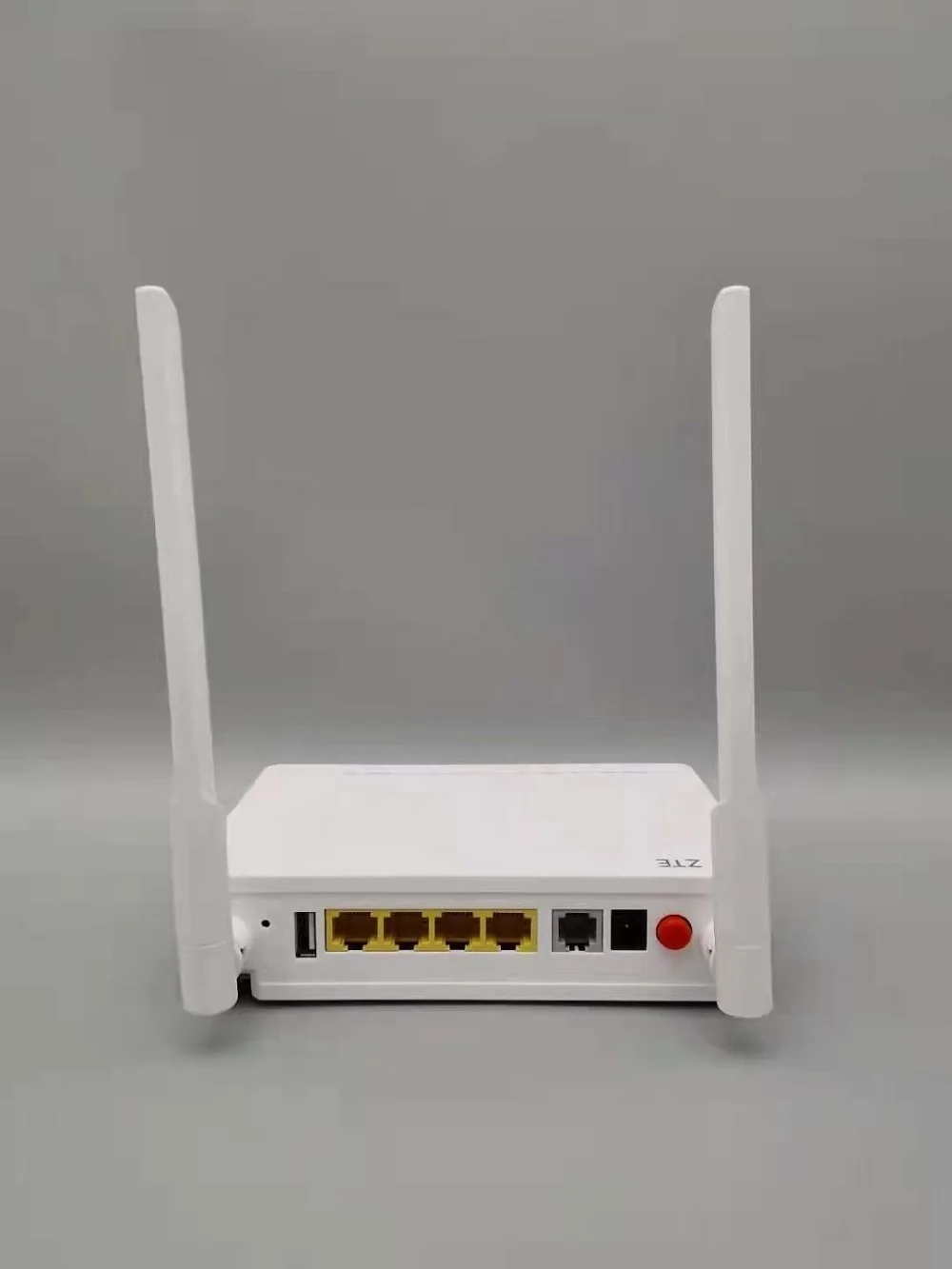

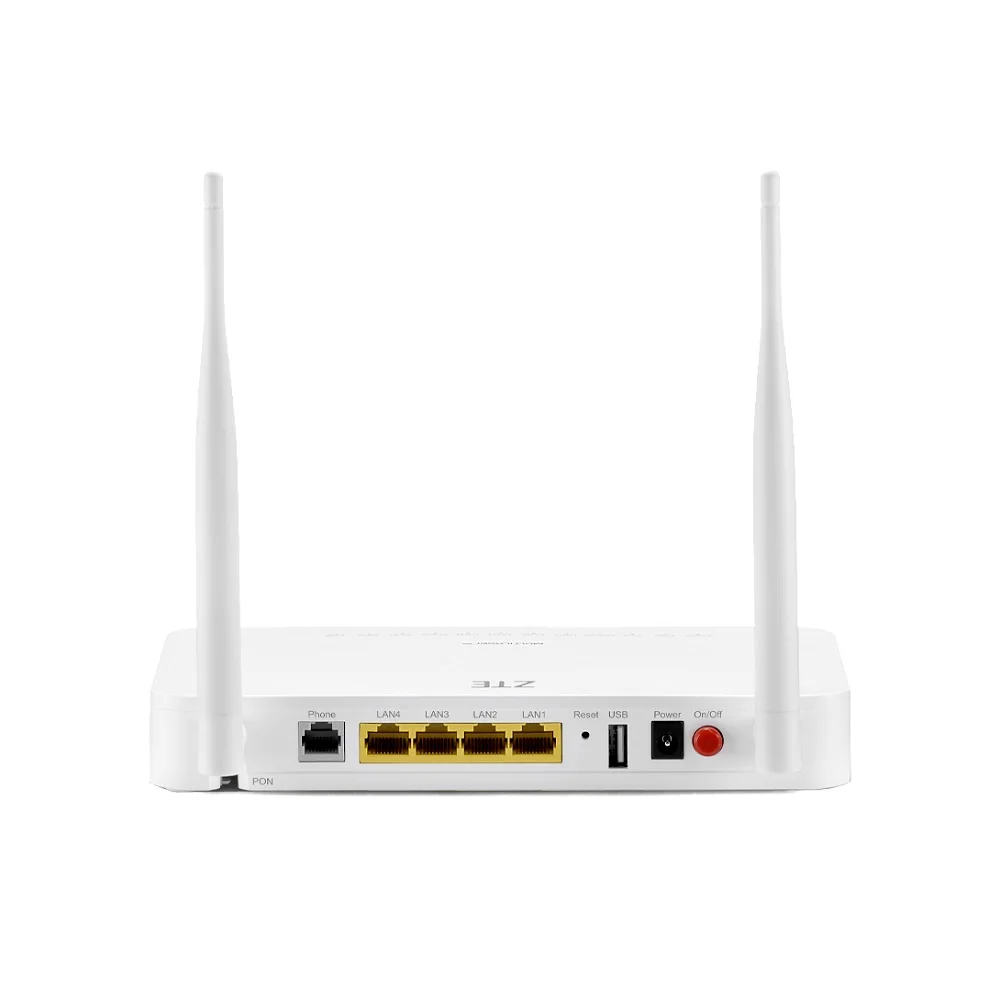

The ZXHN F670 is an ITU-T G.984 and ITU-T G.988 compliant optical network terminal (ONT) that is designed for high-end home users. It is well suited to fiber to the home (FTTH) scenarios and supports desktop mounting. At the network side, it supports 2.488 Gbps downlink and 1.244 Gbps uplink. At the user side, it provides four GE ports, two POTS ports, one USB 2.0 port, and Wi-Fi 802.11n 2×2 2.4GHz & 802.11ac 3×3 5GHz concurrent. By using the ZXHN F670, the home users can access data, video and voice services, and enjoy high-speed internet connection.

* Supported service: VoIP, Internet, IPTV
•GPON: 8 T-CONTs, 32 GEM Ports
•VLAN: 802.1Q, 802.1P, 802.1ad
•MAC address table: 1k
•L3 function: DHCP server/Client, DNS Client, NAT
•IPv6: Dual Stack, DS-Lite
•VoIP: SIP/H.248, G.711/G.722, T.30/T.38
•Wi-Fi: 4 SSIDs, 2×2 MIMO 2.4G, 3×3 MIMO 5G , WPS
•Wi-Fi authentication: Shared key, 128-bit WEP, WPA-PSK, WPA2-PSK, WPA-PSK + WPA2-PSK
•Multicast: IGMP v1/v2/V3 Snooping/Proxy, MLD v1 Snooping
•Multicast group: 64
•QoS: service flow classification based on physical port, MAC address, VLAN ID, VLAN priority level, IP address; SP/WRR/SP+WRR
•Management: local web management, OMCI, TR069
•USB: DLNA DMS, USB backup
