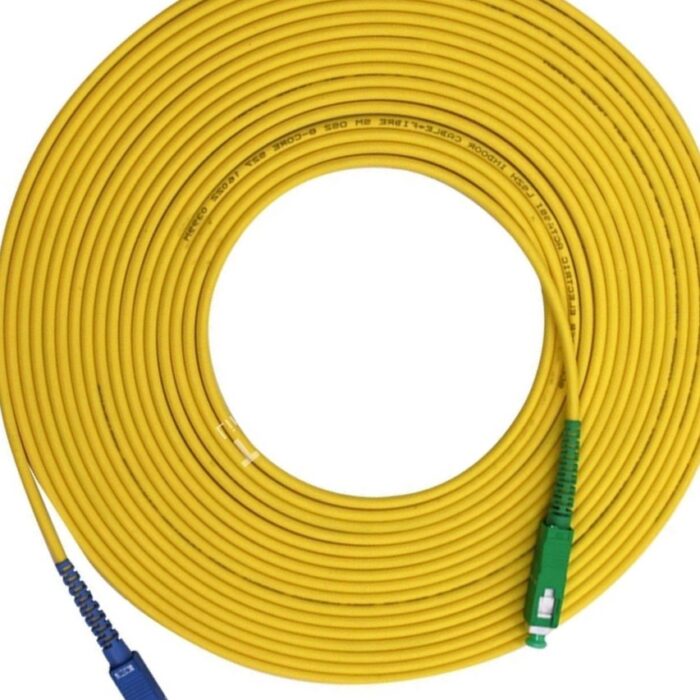

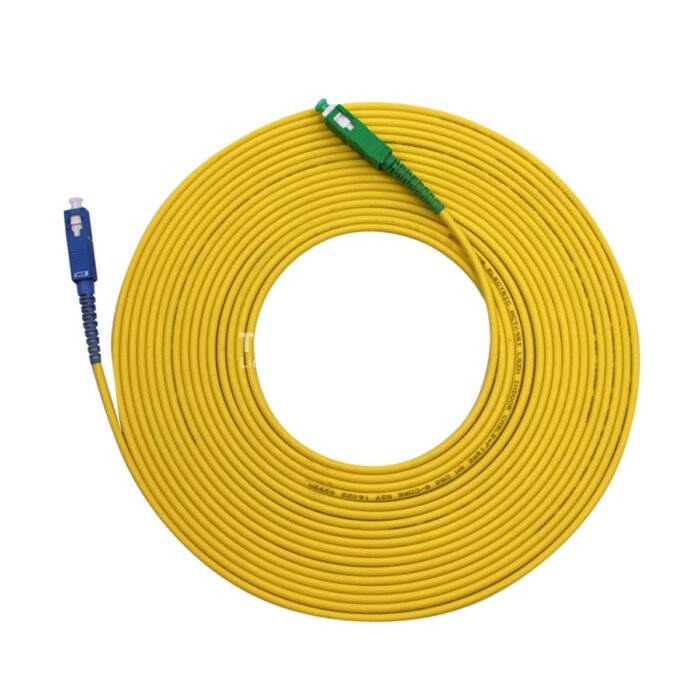

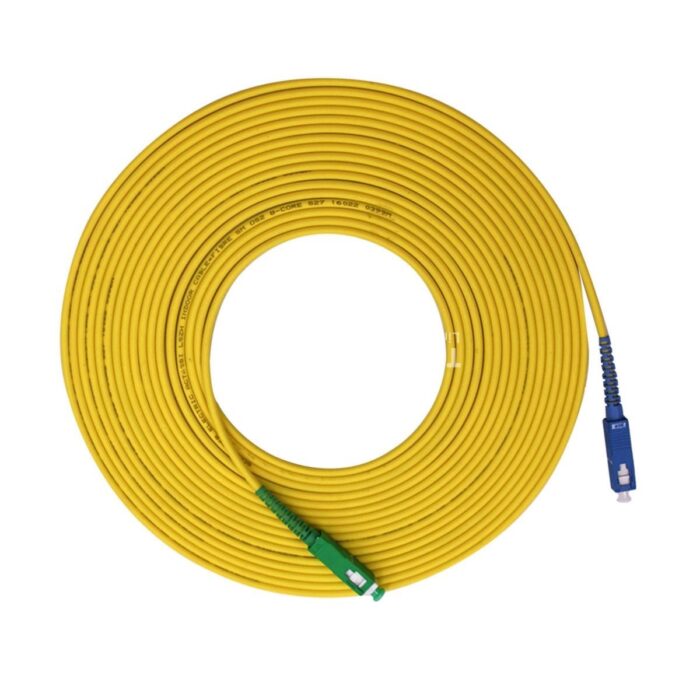

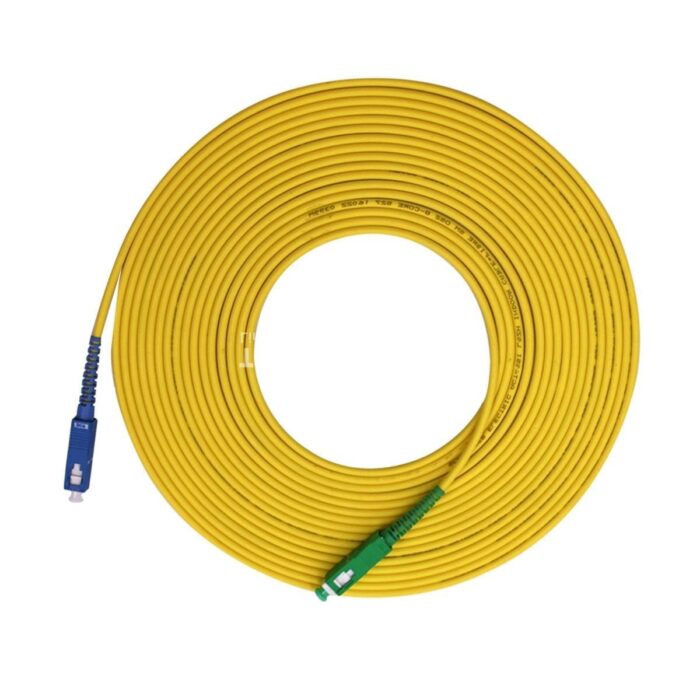

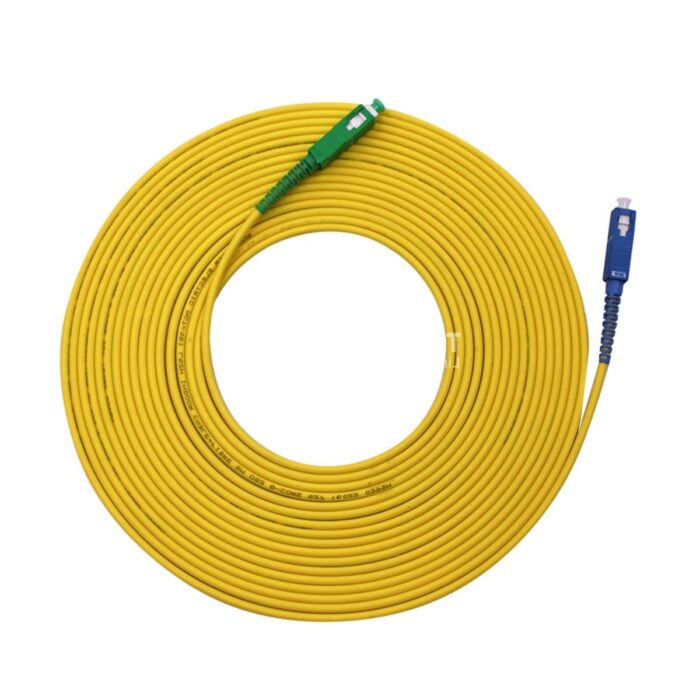

1.5M Fiber Patch Cord Branded SC/APC/APC Single Mode Cord | Branded 2mm Jumper Cable for High-Precision Connections
Product Overview
The 1.5M Fiber Patch Cord Branded SC/APC/APC Single Mode Cord is a high-performance optical jumper cable designed for short-distance, low-loss signal transmission in singlemode (OS2) fiber optic networks. Featuring angled polish (APC) connectors on both ends and a 2.0mm LSZH jacket, this branded patch cord delivers superior return loss, excellent signal integrity, and fire-safe indoor installation compatibility.
Ideal for use in FTTH, CATV, ODF patching, central offices, and telecom/data networks, this plug-and-play patch cord ensures stable connections between active equipment and fiber panels.
Key Features of 1.5M Fiber Patch Cord
-
✅ Length: 1.5 meters
-
✅ Connector Type: SC/APC to SC/APC (Angled Green Connectors)
-
✅ Fiber Type: Singlemode OS2 (9/125μm)
-
✅ Cable Diameter: 2.0mm – Flexible, slim, and space-efficient
-
✅ Jacket Material: LSZH (Low Smoke Zero Halogen) – Flame-retardant
-
✅ Polish Type: APC (8° Angled Physical Contact for reduced back reflection)
-
✅ Status: Brand New – Branded and factory tested
1.5M Fiber Patch Cord Technical Specifications
| Parameter | Details |
|---|---|
| Fiber Mode | Singlemode (OS2 – 9/125μm) |
| Connector Type | SC/APC to SC/APC |
| Polish Angle | 8° (APC – Angled) |
| Insertion Loss | ≤ 0.3dB (typical) |
| Return Loss | ≥ 60dB (APC) |
| Cable Outer Diameter | 2.0mm |
| Jacket Material | LSZH – Low smoke, halogen-free |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Durability | ≥ 1000 mating cycles |
| Compliance | CE, RoHS, IEC 61754, Telcordia GR-326 |
1.5M Fiber Patch Cord Applications
-
🌐 FTTH / FTTx Indoor Fiber Connections
-
📡 CATV, GPON/EPON Equipment to ODF Patching
-
☁️ Data Center SC/APC Interconnects
-
🧪 Test Equipment, Optical Monitoring Links
-
🏢 Telecom Central Offices & Enterprise Networking
Customization Options
Fully customizable for telecom, OEM, and enterprise-level projects:
-
🔧 Other Lengths Available: 0.5M to 100M+
-
🔧 Connector Options: SC/UPC, LC/APC, FC/APC, hybrid types
-
🔧 Cable Types: Simplex, duplex, armored, bend-insensitive
-
🔧 Branding Options: Custom logo on jacket or connector boots
-
🔧 Packaging Formats: Labeled poly bags, installer kits, or bulk reels
-
🔧 Color Options: Yellow (default), custom RAL on request
Need armored protection or pre-terminated bundles? We’ve got you covered.
Wholesale & Bulk Supply Support
Perfect for ISPs, network integrators, fiber equipment distributors, and FTTH contractors:
-
📦 Volume-Based Discounts & Factory Pricing
-
📦 Low MOQ for Custom Branding
-
📦 OEM-Ready Packaging & Barcode Labels
-
📦 Rapid Dispatch with Global Export Logistics
-
📦 Documentation Provided: CE, RoHS, Test Report, Certificate of Origin
Why Choose Our 1.5M Fiber Patch Cord?
-
✔️ High Return Loss with Minimal Back Reflection
-
✔️ Short-Length Precision for Clean Rack Management
-
✔️ Fully Compatible with SC/APC Optical Interfaces
-
✔️ Tested for Performance, Durability, and Compliance
-
✔️ OEM-Ready with Scalable Wholesale Support
Order Now
Ensure reliable, high-precision fiber links with the 1.5M SC/APC to SC/APC Singlemode Patch Cord – your trusted choice for compact, branded, and low-loss fiber connections. Available with custom options, bulk pricing, and fast delivery.
