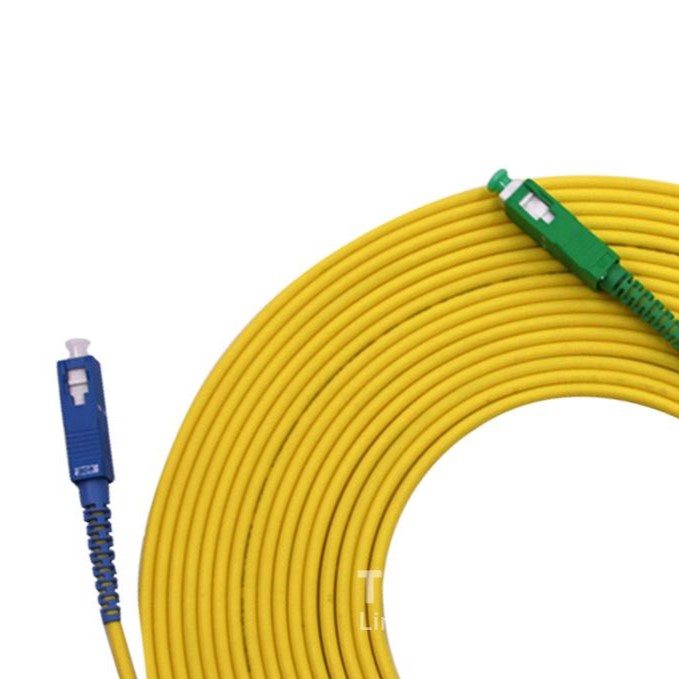

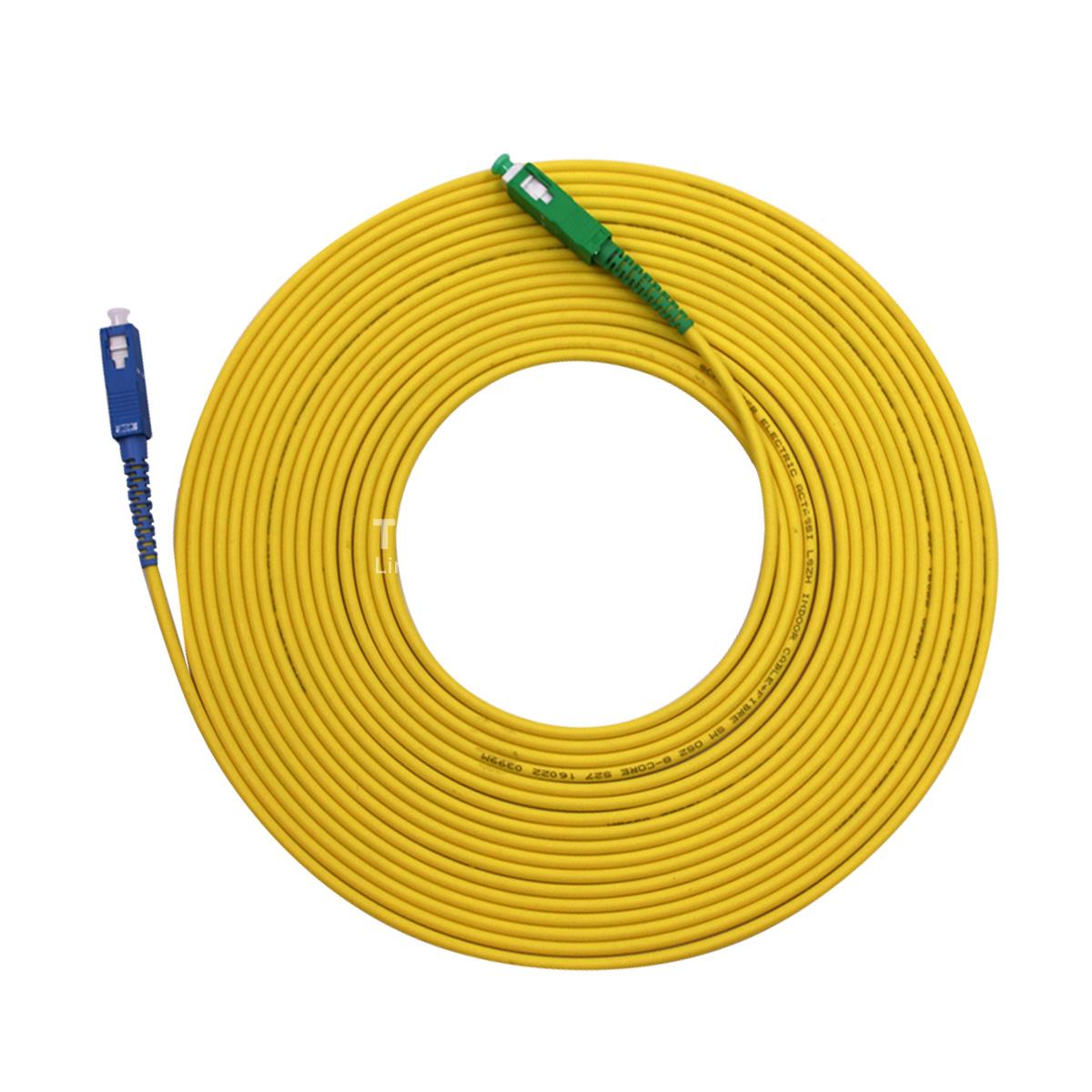

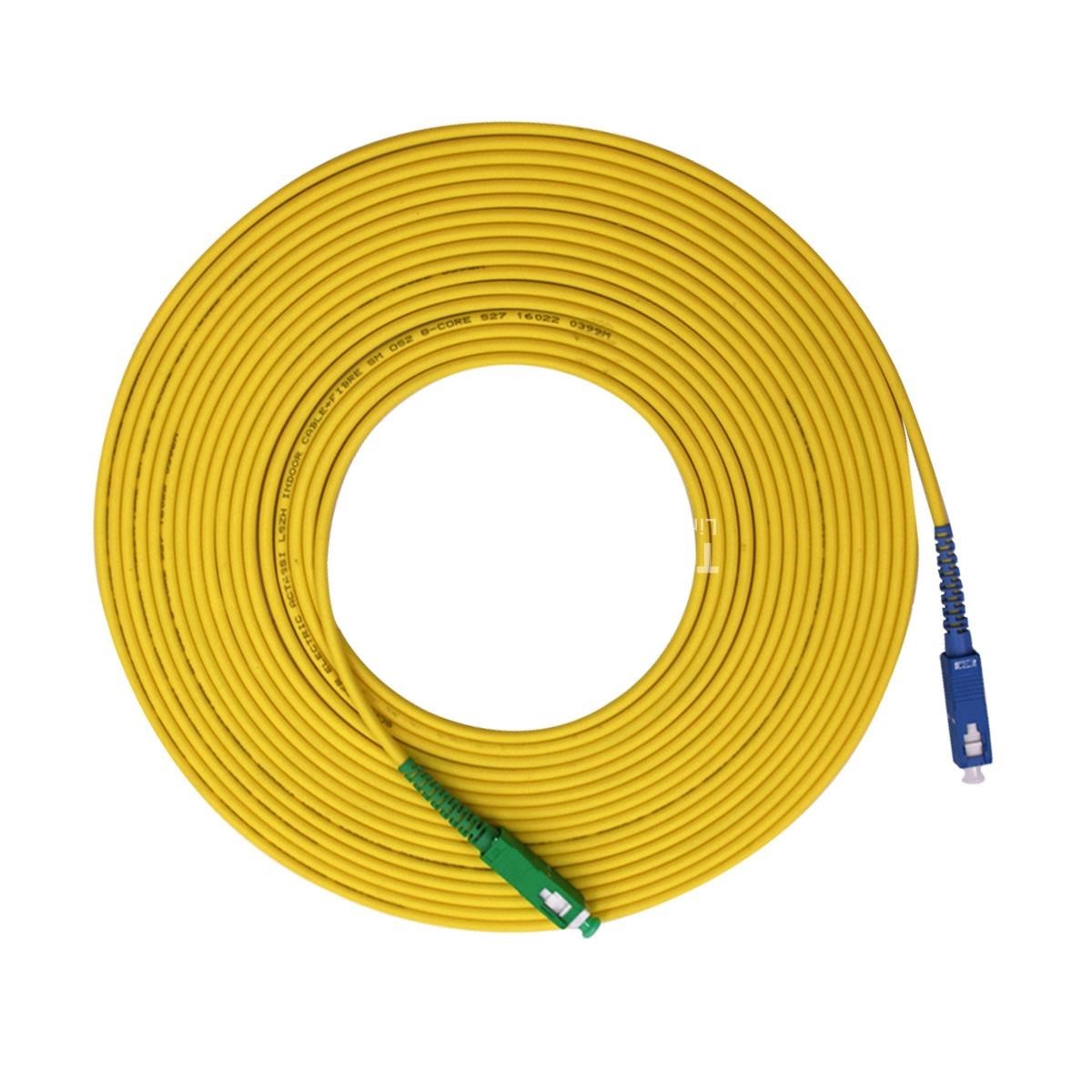

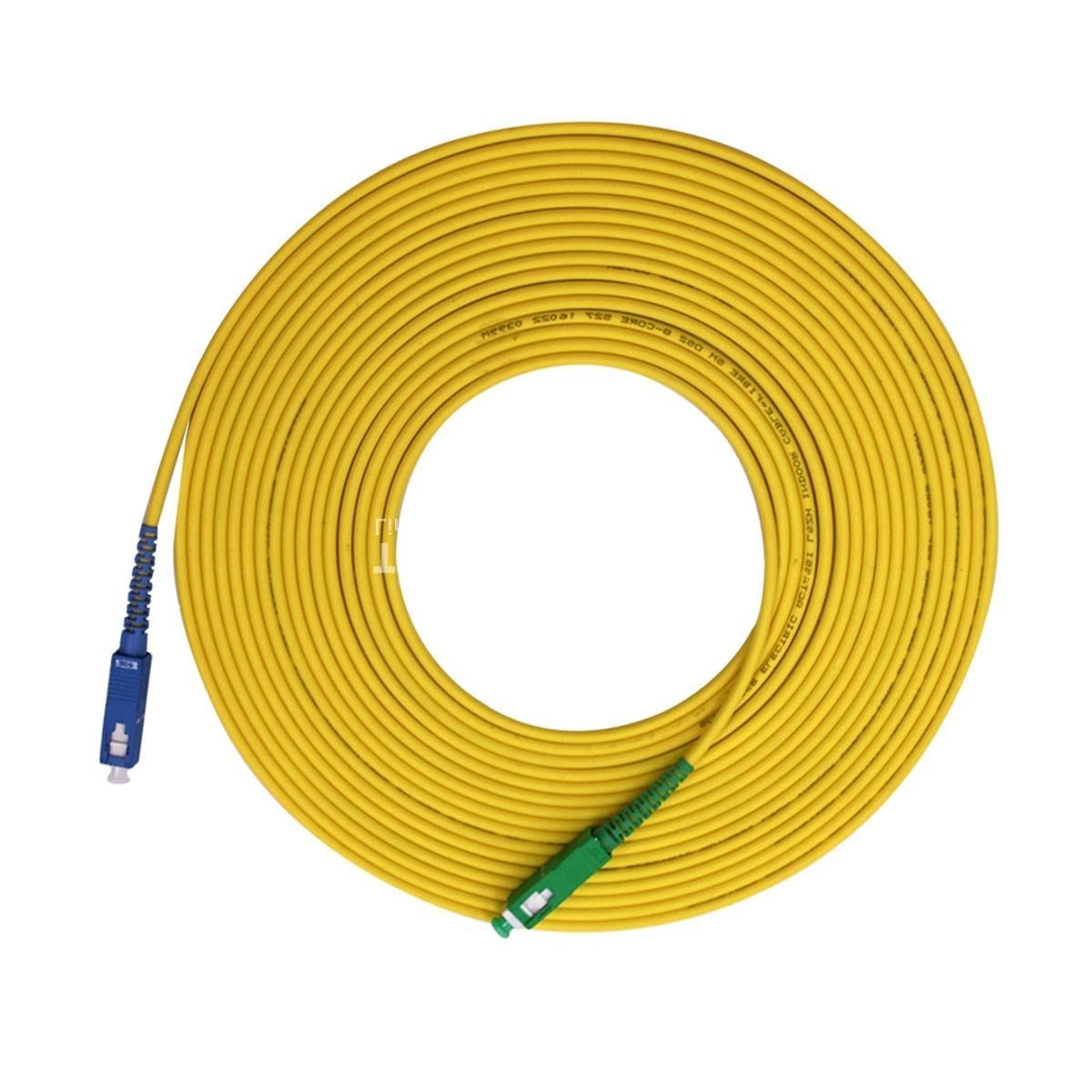

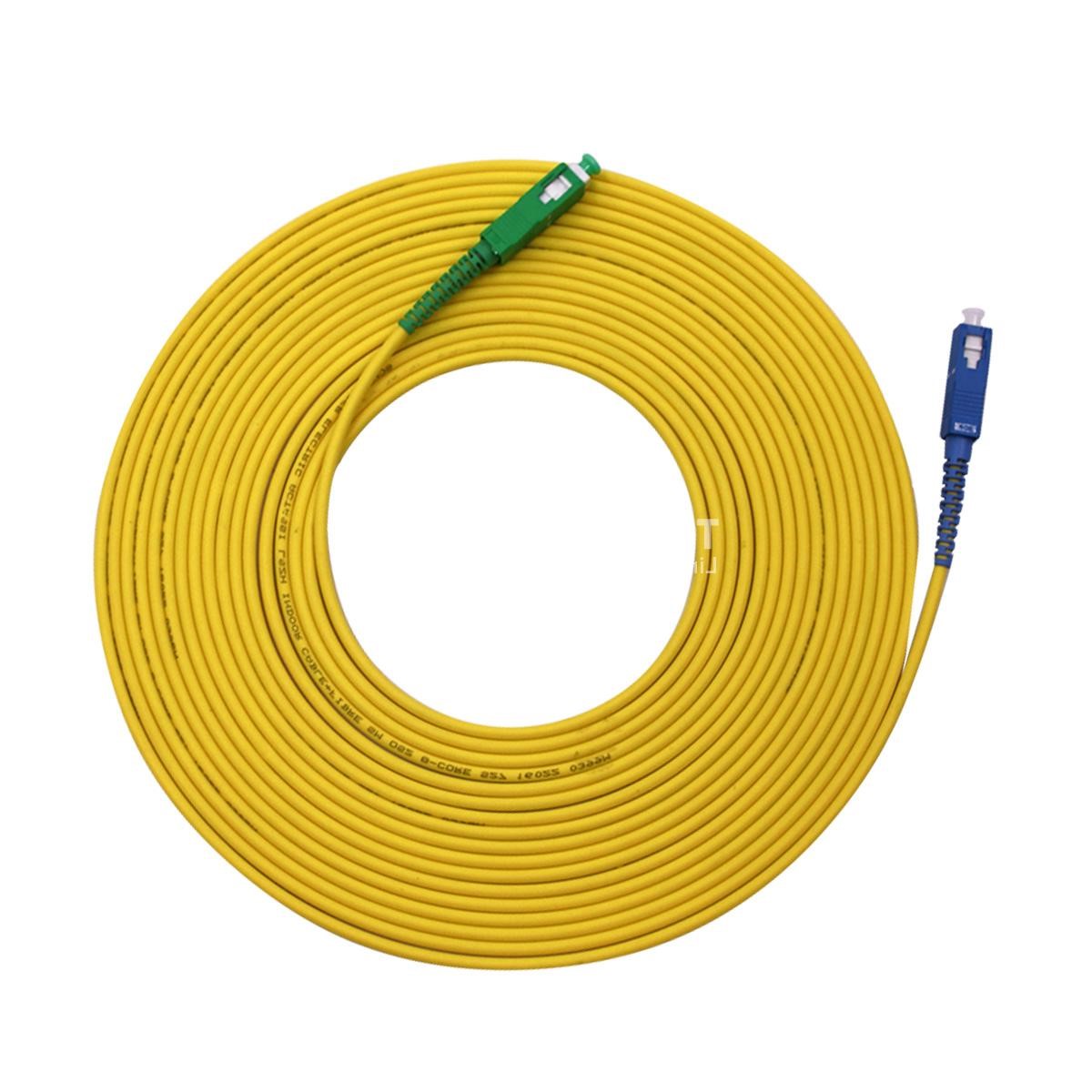

10M Fiber Patch Cord Branded 2mm SC/UPC/APC Single Mode Cord – Branded | 2.0mm LSZH Jacket for High-Performance Hybrid Connections
Product Overview
The 10M Fiber Patch Cord Branded 2mm SC/UPC/APC Single Mode Cord is a high-precision hybrid jumper cable designed to connect fiber optic devices with different polish types—flat-polished SC/UPC and angled-polished SC/APC—while maintaining exceptional signal clarity and return loss performance.
Manufactured using OS2 singlemode 9/125μm fiber and encased in a durable 2.0mm LSZH (Low Smoke Zero Halogen) jacket, this patch cord delivers low insertion loss, excellent stability, and high reliability for use in FTTH networks, CATV systems, data centers, and telecom infrastructure.
Key Features of 10M Fiber Patch Cord
-
✅ Length: 10 meters
-
✅ Connector A: SC/UPC (Blue – Flat Polish)
-
✅ Connector B: SC/APC (Green – Angled Polish, 8°)
-
✅ Fiber Type: Singlemode OS2 (9/125μm)
-
✅ Cable Diameter: 2.0mm – Lightweight, flexible for tight routing
-
✅ Jacket Material: LSZH – Flame-retardant, non-toxic, halogen-free
-
✅ Polish Type: UPC ↔ APC hybrid – enables mixed-interface connectivity
-
✅ Condition: Brand New – Branded, factory-polished, and insertion loss tested
10M Fiber Patch Cord Technical Specifications
| Parameter | Details |
|---|---|
| Fiber Type | OS2 Singlemode (9/125μm) |
| Connector Type | SC/UPC to SC/APC |
| Polish Configuration | Hybrid (Flat UPC to Angled APC) |
| Insertion Loss | ≤ 0.3dB (typical) |
| Return Loss (UPC/APC) | ≥ 50dB / ≥ 60dB |
| Cable Diameter | 2.0mm |
| Jacket Type | LSZH – Low smoke, halogen-free |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Mating Durability | ≥ 1000 cycles |
| Compliance Standards | CE, RoHS, Telcordia GR-326, IEC 61754 |
10M Fiber Patch Cord Applications
-
🌐 FTTH & FTTx Hybrid Port Connections
-
📡 OLT to ONT Jumper in Telecom Systems
-
☁️ Data Center Rack and Patch Panel Interconnects
-
🧪 Test Labs with Mixed Interface Equipment
-
📶 CATV and Optical Distribution Frame (ODF) Deployments
Customization Options
Custom configurations available to meet specific technical or branding needs:
-
🔧 Lengths: 0.5M to 100M+
-
🔧 Connector Types: SC/SC, LC/SC, LC/APC, FC/APC, ST – single or hybrid ends
-
🔧 Cable Types: Duplex, armored, bend-insensitive, outdoor-rated
-
🔧 Jacket Colors: Yellow (default), Aqua, Orange, or custom coded
-
🔧 Branding: OEM logo printing, barcode labeling, serialized jackets
-
🔧 Packaging: Individual zip bags, bulk trays, labeled installer kits
🔧 Technical Specifications – Connector Performance
| Connector Type | Return Loss (dB) | Insertion Loss (dB) | Repeatability (dB) | Reliability | Operating Temperature (°C) |
|---|---|---|---|---|---|
| PC (SM) | ≥50 | ≤0.3 | ≤0.1 | >1000 Plug cycles | -40 ~ +80 |
| UPC (SM) | – | – | – | – | – |
| APC (SM) | – | – | – | – | – |
Note: Only PC(SM) performance data is specified. Values for UPC(SM) and APC(SM) are not provided.
📦 Additional Information
| Attribute | Value |
|---|---|
| Weight | 0.0 kg (placeholder) |
| Dimensions | 0.0 × 0.0 × 0.0 cm |
| Connector Type | SC/UPC – SC/APC |
Wholesale & Bulk Supply Options
Trusted by telecom operators, system integrators, ISPs, and fiber distributors:
-
📦 Volume Discounts & Factory-Direct Pricing
-
📦 OEM Support with Low MOQs
-
📦 Fast Production & International Shipping
-
📦 Documentation Provided: CE, RoHS, Insertion Test Report, COO
-
📦 Private Labeling & Retail-Ready Packaging Options
Why Choose Our 10M Fiber Patch Cord?
-
✔️ Hybrid Polish Compatibility – Connect Flat to Angled Ports Easily
-
✔️ Excellent Return Loss for Signal Integrity & Safety
-
✔️ Durable LSZH Jacket – Safe for Indoor Routing
-
✔️ Tested and Certified for Telecom-Grade Reliability
-
✔️ Customizable for Large Projects or White-Label Branding
Order Now
The 10M SC/UPC to SC/APC Singlemode Patch Cord is your dependable solution for bridging polish-type interfaces in FTTH, data center, and telecom infrastructure. Now available with bulk pricing, OEM branding, and fast global delivery.
