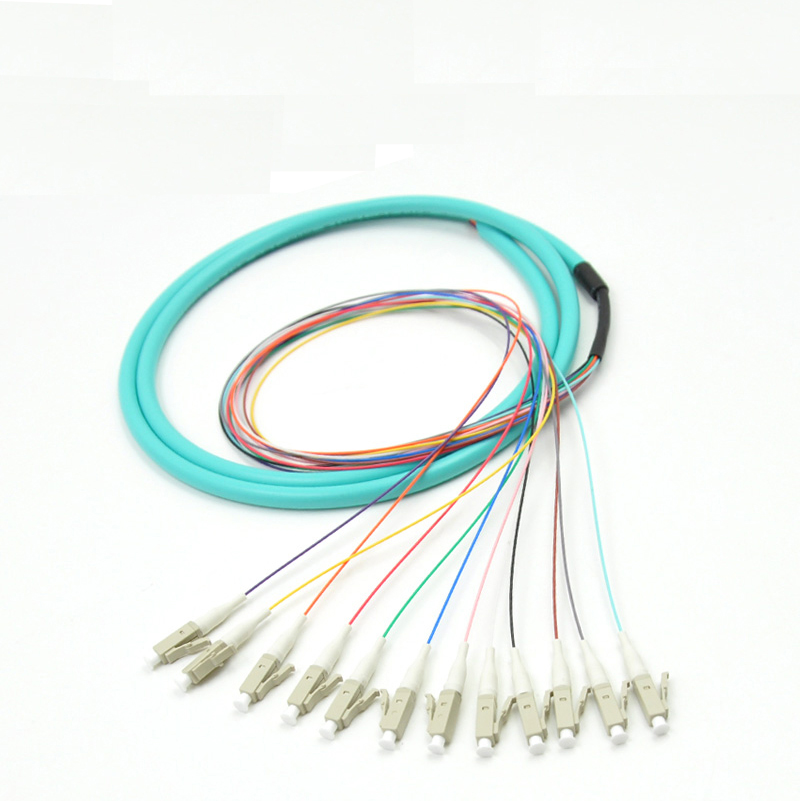

12 core LC UPC 0.9mm PVC Fiber Optic Multimode OM2 OM3 OM4 Pigtail 1m 1.5m

1.5m LC/UPC 9/125 0.9mm PVC Fiber Optic Multimode Pigtail

Product Description

Fiber Optic Pigtail is also called tail line, only one end has a connector, and the other end is a fiber optic cable core of the broken, through the welding and other fiber optic cable core connected, often appear in the fiber terminal box, for connecting fiber optic cable and fiber transceiver (Also used between couplers, jumpers, etc.).

Features

* Insert-pull, key-oriented coupling mechanism which allows high repeatable, low-loss connection * Simplex ,Duplex and Multi-core accessories for standard or customized structure.
* PC/UPC/APC polish
* Comply with Telcordia GR-326-CORE Specification
* The material of plastic plug comply with the request of UL94V-O And Standard of RoHS

Application

* Optical communication network
* Telecom network
* Ethernet network
* CATV network

Performance Index

Parameter	Unit	Value

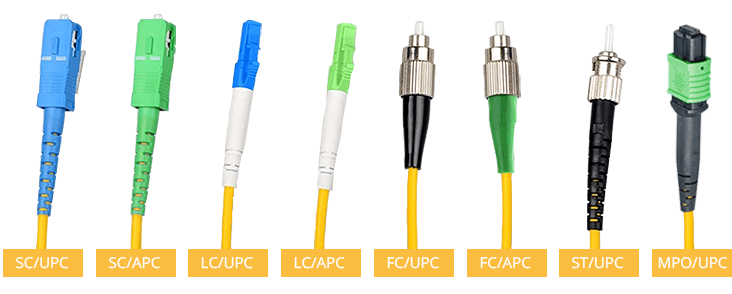

Connector Type		FC/UPC,FC/APC,SC/UPC,SC/APC,LC/UPC,LC/APC,ST/PC,MPO
Fiber Type		Multi-Mode	Single Mode
Insertion Loss	dB	Typ.≤0.1 Max.≤0.2	Typ.≤0.1 Max.≤0.3
Return Loss (Typ.)	dB	≥36 (no APC connector)	/PC	/UPC	/APC
		≥45	≥50	≥55
Repeatability	dB	≤0.1
Interchangeability	dB	≤0.2
Connection Durability	times	≥1000
Operating/Storage Temperature	°C	-40~+80
