Product Description

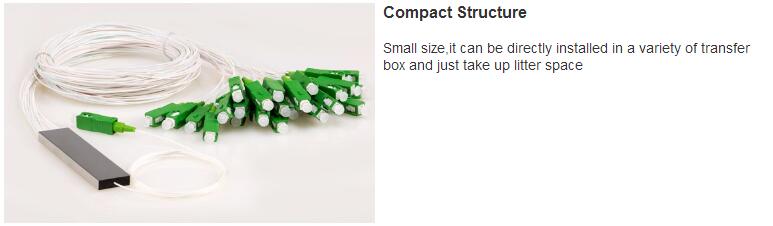

PLC (Planar Lightwave Circuit) Splitters are Single Mode Splitters with an even split ratio from one input fiber to multiple
output fibers. Available split counts are: 1×4, 1×8, 1×16, and 1×32. PLC Splitters are availble with 900µm loose tube singlemode fiber and terminated or unterminated as per your needs. Unconnectorized PLC splitters come with no connectors for easy splicing or connectorization. Connectorized PLC Splitters are available with your choice of Fiber Optic Connectors: LC/UPC, LC/APC, SC/UPC,SC/APC, FC/UPC, FC/APC, and ST/UPC.
Foclink also offers a variety of box and cassette type splitter modules and products. PLC Splitter Modules are available in the form of either plastic module cassette (an ABS box) with ruggedized fiber jackets of 2mm and up to 3mm, or LGX metal box for plug and play splitter applications.
output fibers. Available split counts are: 1×4, 1×8, 1×16, and 1×32. PLC Splitters are availble with 900µm loose tube singlemode fiber and terminated or unterminated as per your needs. Unconnectorized PLC splitters come with no connectors for easy splicing or connectorization. Connectorized PLC Splitters are available with your choice of Fiber Optic Connectors: LC/UPC, LC/APC, SC/UPC,SC/APC, FC/UPC, FC/APC, and ST/UPC.
Foclink also offers a variety of box and cassette type splitter modules and products. PLC Splitter Modules are available in the form of either plastic module cassette (an ABS box) with ruggedized fiber jackets of 2mm and up to 3mm, or LGX metal box for plug and play splitter applications.
Feature
1.Low Insertion Loss.
2.Low PDL.
3.High Return Loss.
4.Uniform Power Splitting.
5.Wide Operating Wavelength.
6.Wide Operating Temperature.
7.Good Environmental Stability.
8.High consistency

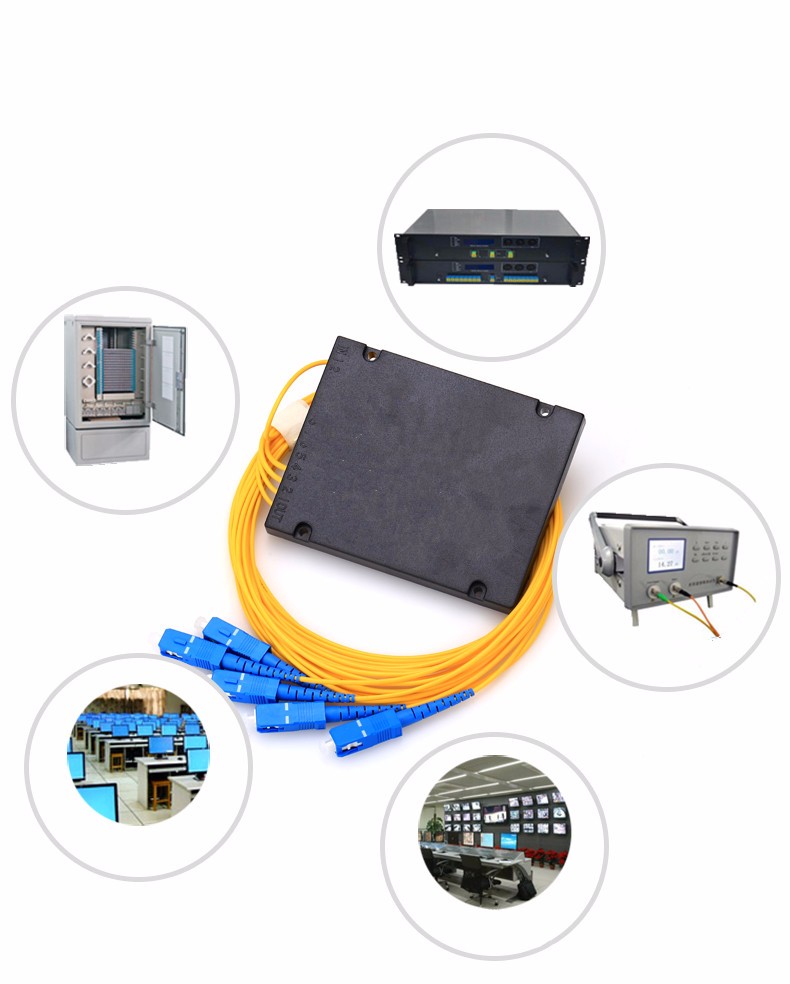

Application
1.Fiber Optic CATV
2.Fiber to home(FTTH)
3.Passive Optical Networks(PON)
4.Local Areal Networks(LAN)
5.Fiber communication systems
1.Low Insertion Loss.
2.Low PDL.
3.High Return Loss.
4.Uniform Power Splitting.
5.Wide Operating Wavelength.
6.Wide Operating Temperature.
7.Good Environmental Stability.
8.High consistency
Application
1.Fiber Optic CATV
2.Fiber to home(FTTH)
3.Passive Optical Networks(PON)
4.Local Areal Networks(LAN)
5.Fiber communication systems
Specification
|
1260nm-1650nm
|
||||||||
|
1 x 4
|
1 x 8
|
1×16
|
1×32
|
1X64
|
||||
|
≤7.3
|
≤10.6
|
≤13.8
|
≤16.5
|
≤21
|
||||
|
≤0.5
|
≤0.8
|
≤1.0
|
≤1.5
|
≤2.7
|
||||
|
≤0.2
|
≤0.2
|
≤0.2
|
≤0.2
|
≤0.3
|
||||
|
≥50
|
||||||||
|
≥55
|
||||||||
|
-40~85
|
||||||||
|
-40~85
|
||||||||
|
SMF-28
|
||||||||
|
Customer specified
|
||||||||

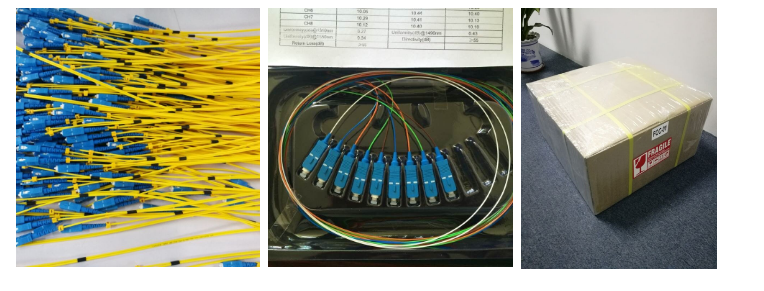

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
