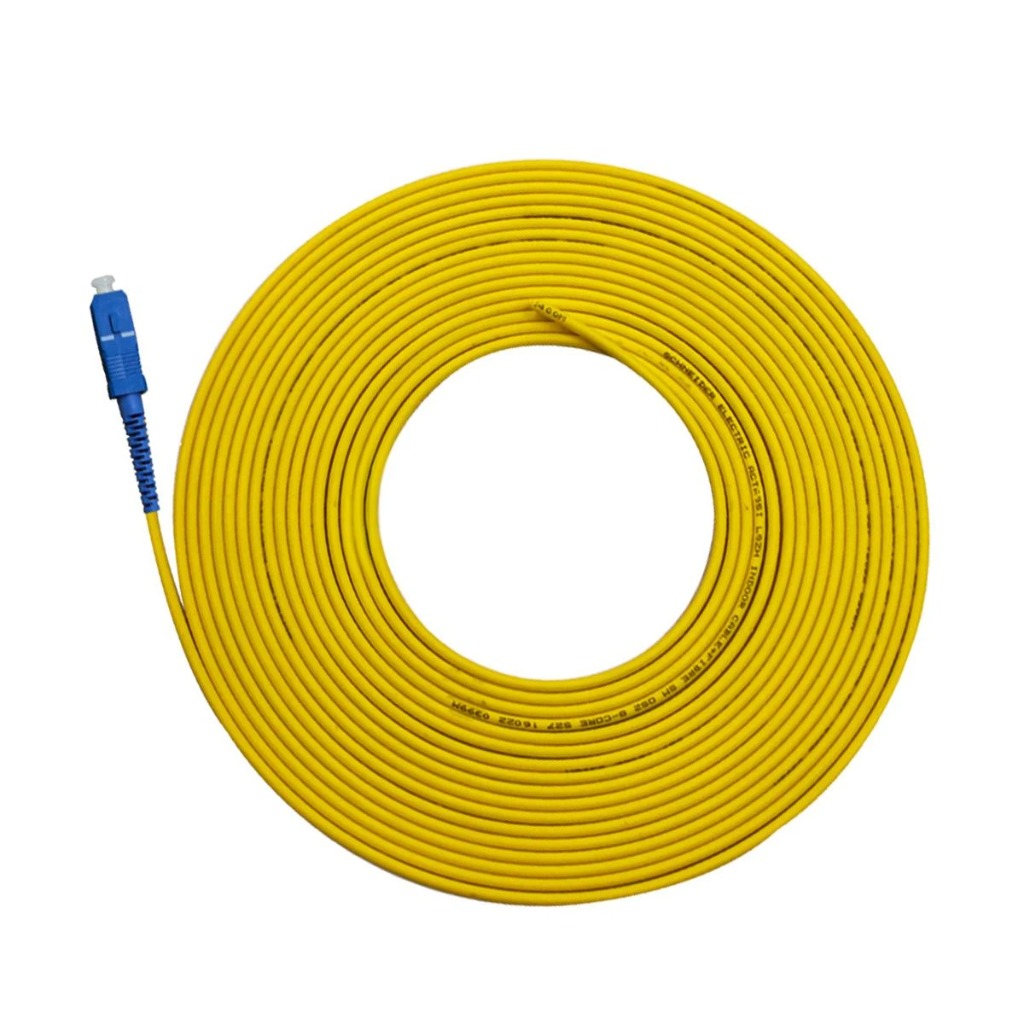

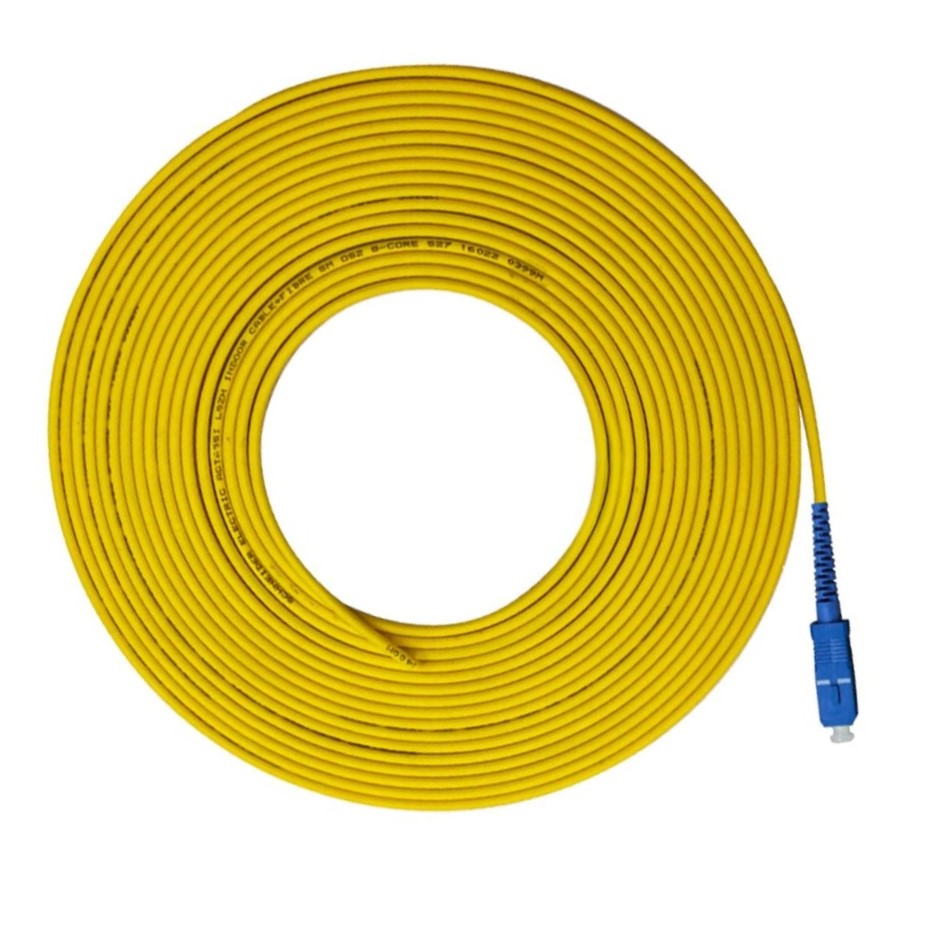

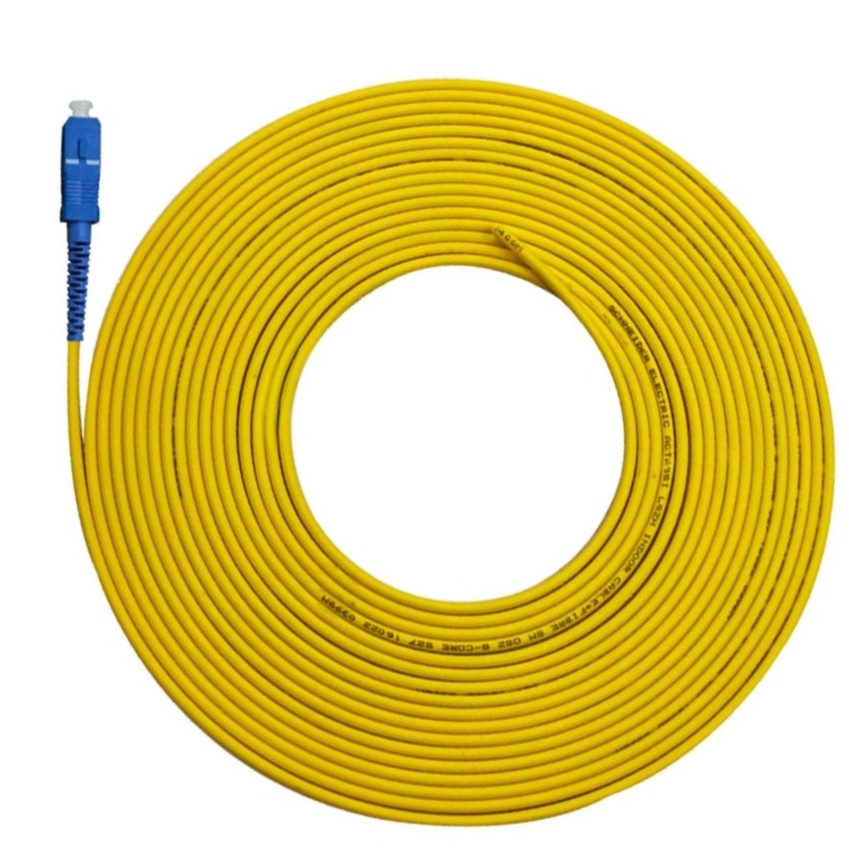

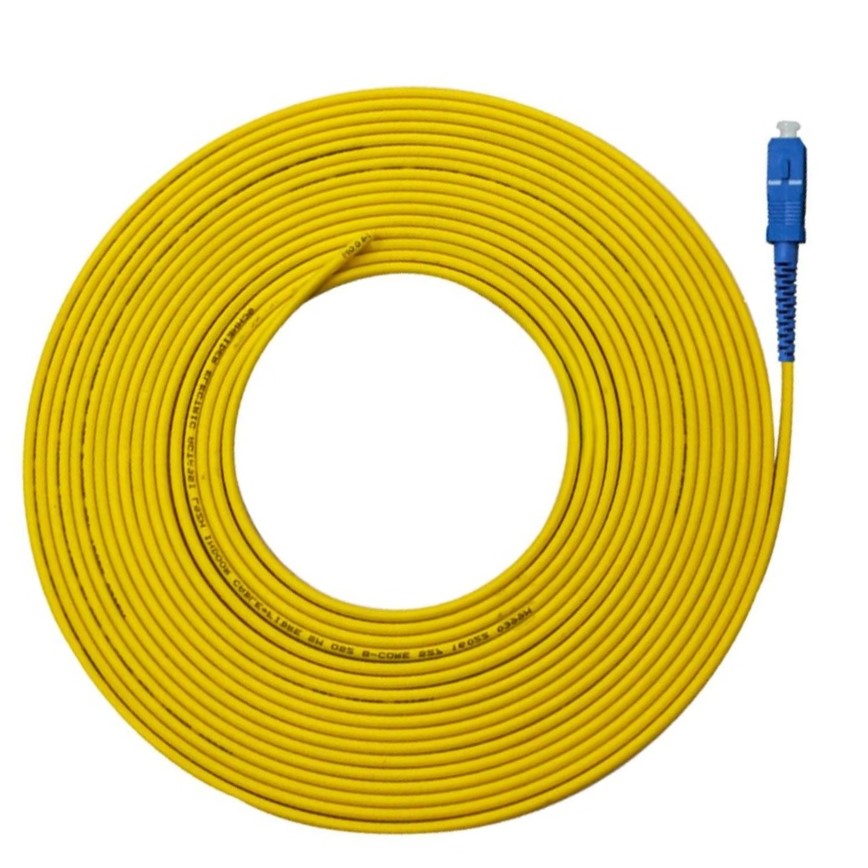

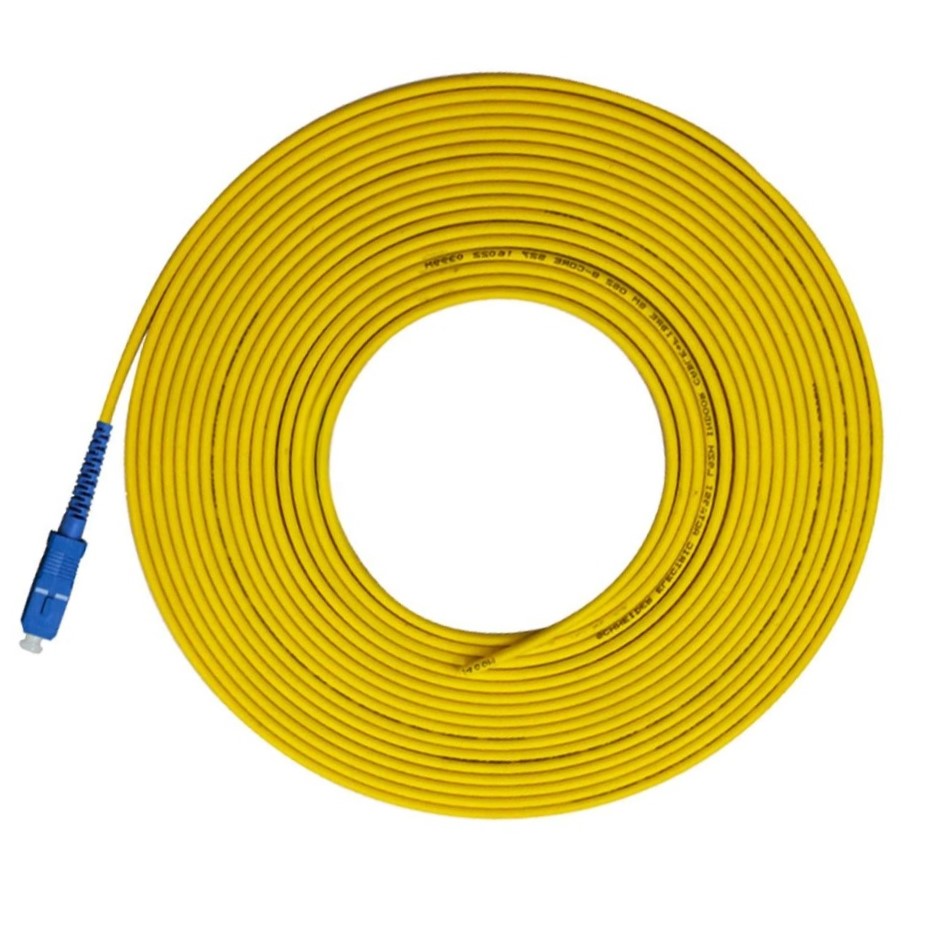

20M 2mm SC/UPC Brand New Single Mode Fiber Pigtail
The 20M 2mm SC/UPC Single Mode Fiber Pigtail is a high-quality, factory-terminated fiber pigtail designed for low-loss splicing, patching, and long-distance fiber link deployments in modern FTTx, data centers, telecom backbones, and enterprise networks.
Equipped with a precision SC/UPC connector, this pigtail ensures low insertion loss, high return loss, and excellent optical signal stability with minimal reflectance — a reliable solution for creating secure, low-loss point-to-point or point-to-multipoint fiber connections.
The extended 20-meter length provides ample flexibility for splicing in cross-connects, patch panels, or optical distribution frames, especially in larger sites or multi-rack data center environments.
Key Features
-
Length: 20 meters (custom lengths available)
-
Fiber Type: Single Mode (SM), standard G.652.D or G.657.A1
-
Connector: SC/UPC with high-grade ferrule and UPC polish
-
Cable Diameter: 2mm tight-buffered, flexible jacket
-
Insertion Loss: ≤0.3dB typical
-
Return Loss: ≥50dB (UPC)
-
Jacket Material: LSZH (Low Smoke Zero Halogen) or PVC available
-
Color: Standard yellow jacket for SM fiber (other colors on request)
-
Compliance: Meets IEC, Telcordia GR-326, and RoHS standards
Tech Specs
| Connector | Return Loss | Insertion Loss | Repeatability | Reliability | Operating Temperature |
|---|---|---|---|---|---|
| PC (SM) | ≥50 dB | ≤0.3 dB | ≤0.1 dB | >1000 Plug | –40 ~ +80 °C |
| UPC (SM) | ≥55 dB | ≤0.3 dB | ≤0.1 dB | >1000 Plug | –40 ~ +80 °C |
| APC (SM) | ≥60 dB | ≤0.3 dB | ≤0.1 dB | >1000 Plug | –40 ~ +80 °C |
20M 2mm SC/UPC Applications
The 20M 2mm SC/UPC Single Mode Fiber Pigtail is ideal for:
• FTTx (FTTH, FTTB, FTTC) fiber optic access networks
• Data center fiber patching and rack interconnections
• Telecom backbone or metro fiber splicing
• Optical Distribution Frames (ODFs) and termination boxes
• Broadband, CATV, and high-speed internet networks
• Campus or building-to-building fiber links
Customization & OEM Services
We offer flexible customization and OEM services for your 20M SC/UPC pigtails:
• Custom lengths: 0.5M to 100M+ to suit your installation needs
• Connector types: SC, LC, FC, ST, E2000 in UPC/APC polish
• Fiber options: SM (G.652.D, G.657.A1/A2) or MM (OM2/OM3/OM4)
• Jacket material: LSZH, PVC, Armored, or outdoor-rated
• Color coding: Customized jacket colors for clear fiber management
• Private labeling: Custom logo, barcode, or packaging for resellers
• Testing & reports: 100% insertion loss & return loss tested; detailed reports available
20M 2mm SC/UPC Wholesale & Bulk Orders
Perfect for installers, ISPs, data center operators, and system integrators:
• Factory-direct pricing with competitive volume discounts
• Consistent inventory and fast production to meet project deadlines
• Export-grade packaging to protect fiber ends during shipping
• Global shipping to your site with reliable logistics
• Dedicated account managers for large-scale rollouts
• Full technical support & warranty for worry-free installation
20M 2mm SC/UPC Why Choose Us
100% Brand New & Fully Tested — Ensures stable, high-quality performance
Flexible Customization — Tailored to your exact project requirements
Attractive Wholesale Pricing — Ideal for bulk fiber rollouts
Secure, Professional Packaging — Protects delicate connectors during transit
Expert Technical Support — From planning to splicing and final deployment
Contact Us for a Quote
Strengthen your fiber network with the 20M 2mm SC/UPC Brand New Single Mode Fiber Pigtail — the dependable choice for long-distance, low-loss splicing and secure connections.
