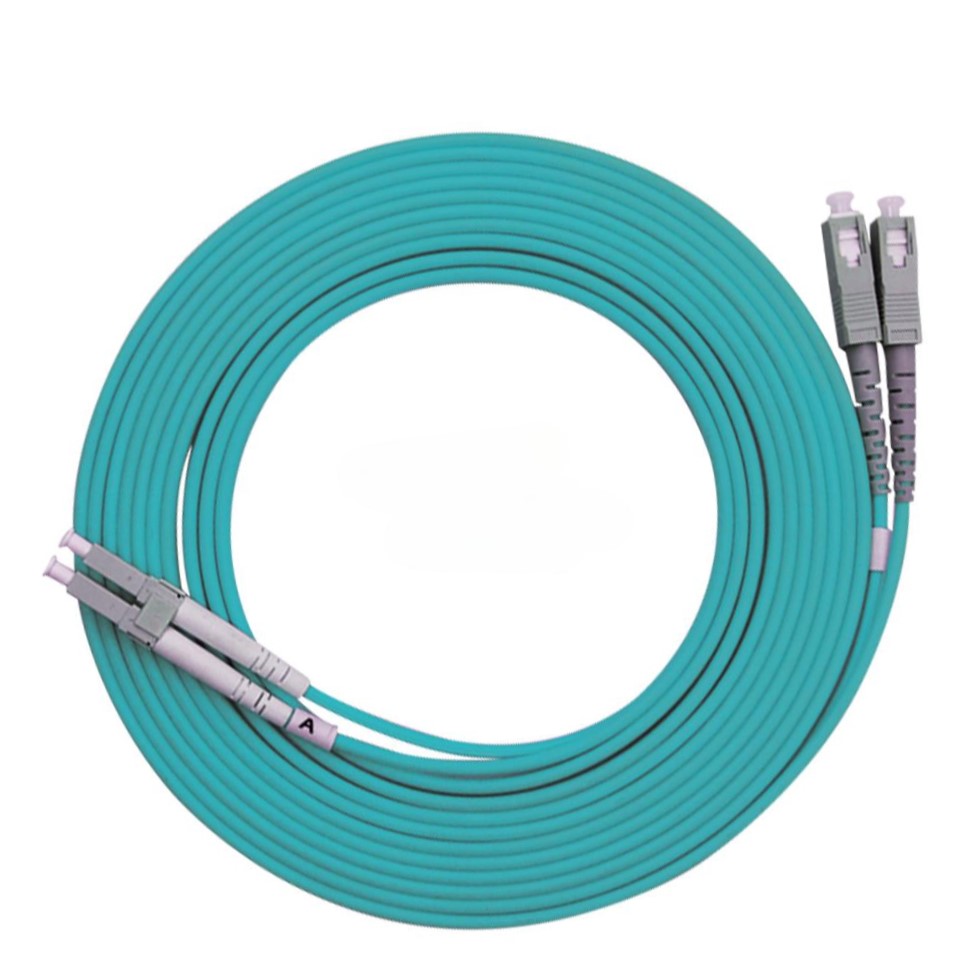

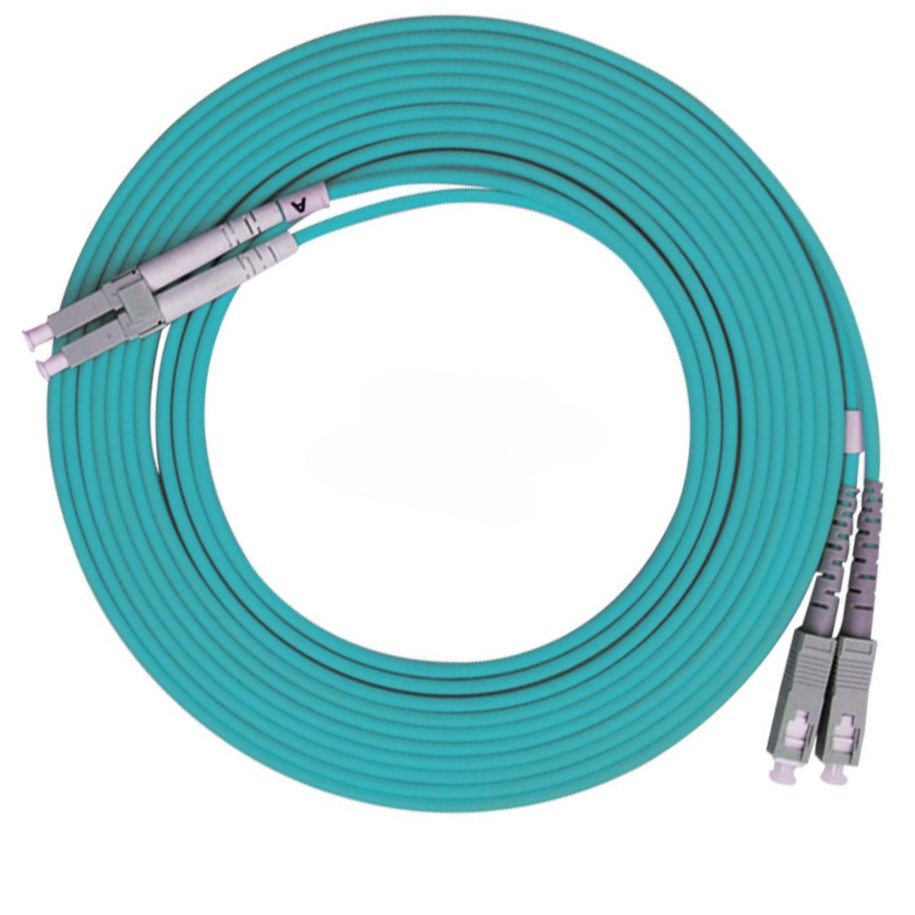

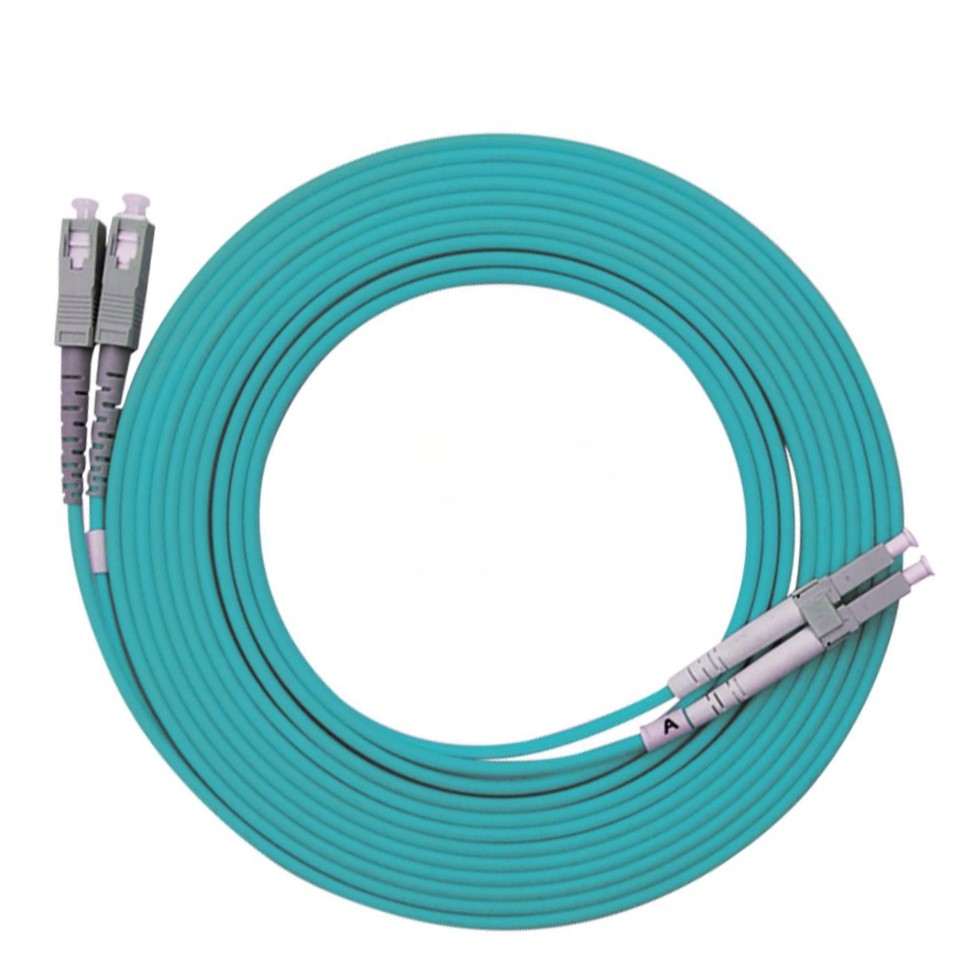

2M 2mm OM3 Duplex Brand New Multi-mode Fiber Patch Cord
The 2M 2mm OM3 Duplex Multi-mode Fiber Patch Cord is a high-performance optical cable designed for 10G/40G/100G Ethernet and high-speed data transmission over short to medium distances. Built with OM3 laser-optimized 50/125μm multimode fiber, this patch cord supports superior bandwidth and low insertion loss, making it ideal for modern data centers, SANs, and enterprise networking environments.
Equipped with duplex LC/SC connectors and a 2mm outer diameter, this lightweight yet durable patch cord ensures secure, high-density fiber connectivity in structured cabling systems.
Key Features
-
Model: 2M 2mm OM3 Duplex Multi-mode Patch Cord
-
Condition: 100% Brand New, Factory Tested
-
Length: 2 Meters (custom lengths available)
-
Fiber Type: OM3 50/125μm Multi-mode
-
Connector Type: SC/UPC to SC/UPC or LC/UPC to LC/UPC (customizable)
-
Outer Diameter: 2mm Low-smoke Zero Halogen (LSZH) Jacket
-
Color Jacket: Aqua (standard for OM3)
-
Transmission Standard: Optimized for 850nm VCSEL laser sources
-
Data Rate Support: 10G up to 300m, 40G/100G up to 100m
-
Polarity: A-B (duplex), Reversible Options Available
Technical Specifications
| Specification | Details |
|---|---|
| Cable Type | OM3 Laser-Optimized Multi-mode Fiber |
| Fiber Core/Cladding | 50/125μm |
| Cable Length | 2 Meters |
| Jacket Diameter | 2.0mm |
| Jacket Material | LSZH (Low Smoke Zero Halogen) |
| Connector Type | LC/UPC-LC/UPC or SC/UPC-SC/UPC |
| Insertion Loss | ≤ 0.3 dB (typical) |
| Return Loss | ≥ 35 dB |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Compliance | RoHS, ISO/IEC 11801, TIA/EIA 568-C.3, IEC-61754 |
2M 2mm OM3 Duplex Applications
-
Data Centers — Ideal for high-bandwidth interconnects between switches and servers
-
Enterprise Networks — Optimized fiber patching for LAN backbones and MDFs
-
Storage Area Networks (SANs) — High-speed connectivity for Fibre Channel and iSCSI
-
Telecom Rooms — Used in ODFs and fiber patch panels
-
Multimedia and Broadcasting — Reliable optical transmission in AV/data systems
Customization & OEM Options
-
Connector Types: SC/LC/ST/FC in UPC or APC polish
-
Cable Lengths: 0.5m to 100m or custom on request
-
Cable Diameter: 1.6mm, 2.0mm, or 3.0mm available
-
Jacket Colors: Aqua (OM3), custom jacket colors upon request
-
Branding: Private labeling with custom logos, barcodes, or part numbers
-
Packaging: Customizable packing with anti-static bags, labels, and QR codes
Wholesale & Global Supply Information
-
Factory Direct Supply — Brand new, 100% tested before shipment
-
Volume Discounts — Available for integrators, ISPs, and system builders
-
Safe Packaging — Individual zip bags with labeling, bundled in foam-protected boxes
-
Fast Shipping Worldwide — Global logistics support for bulk orders
-
Certifications Included — Inspection report, compliance certificates upon request
-
Technical Support — Assistance with fiber routing, patching, and polarity management
Why Choose the 2M 2mm OM3 Duplex
High Performance at 10G/40G/100G — Future-ready connectivity with minimal loss
Flexible & Durable Build — Slim 2mm jacket for dense routing environments
Laser-Optimized Fiber — OM3 supports long distances with VCSEL lasers
Standards-Compliant — Meets global cabling and safety standards
Customizable — Tailored to your infrastructure and branding needs
Contact Us Now for Bulk Pricing, Samples, and Datasheets
Upgrade your fiber network with our 2M 2mm OM3 Duplex Patch Cord — engineered for reliability, performance, and flexibility in modern optical environments.
