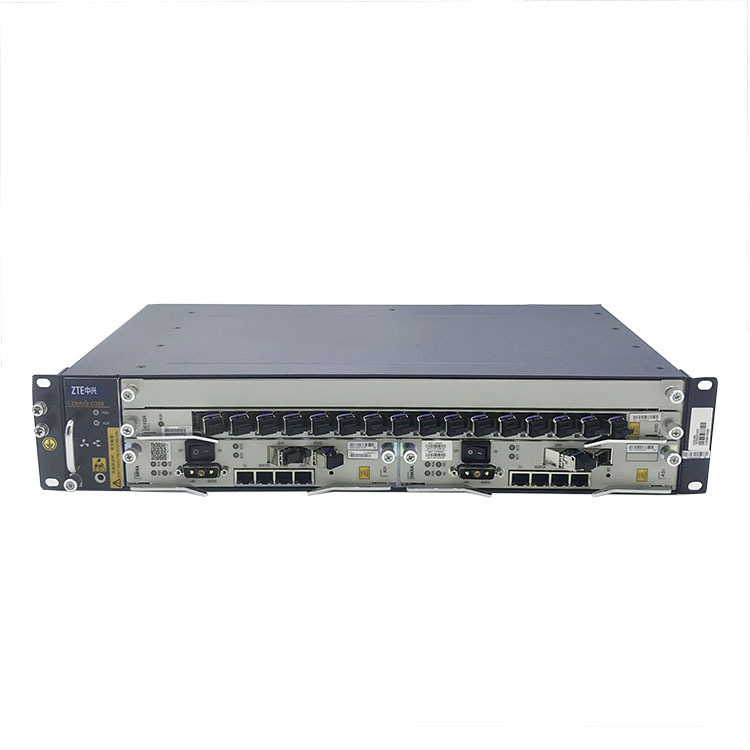

- Model Number:ZTE ZXA10 C320
- Type:OLT
- Place of Origin:Guangdong
- Brand Name:ZTE
- Use:FTTx
- Warranty Time:1 year
- Network:None
- Supply Ability500 Piece/Pieces per Week
- Packaging DetailsWooden Package
- PortShenzhen
- Picture Example:
- Lead time:Quantity(pieces)1 – 1000>1000Lead time (days)15To be negotiated
Specification
Brand
|
ZTE
|
Model
|
ZXA10 C320
|
Backplane capacity
|
420 Gbit/s
|
Switching capacity
|
84 Gbit/s
|
Number of service cards
|
2 (GPON/P2P/XG-PON1)
|
Number of combined control cards
|
2
|
Number of power supply cards
|
1
|
Number of uplink cards
|
1 (10GE/GE/FE/E1/T1)
|
Maximum number of GPON subscribers
|
4096
|
Management Interfaces
|
CLI, SSH, SNMP, telnet
|
Power
|
-48 V (DC), 230V (AC)
|
Working temperature and humidity
|
-25°C – +55°C, 5% – 95%
|
Split Ratio
|
up to 1:128
|
Range
|
20-60 km
|
Maximum attenuation
|
SFP B+ 28 dB, SFP C+ 32 dB
|
Dynamic Bandwidth Allocation
|
NSR-DBA, SR-DBA
|
Support
|
FEC, AES128, SCB, OLS
|
Dimensions
|
86.1 mm (height) x 482.6 mm (width) x 270 mm (depth)
|
Power Supply
|
Dual DC: 48V/60VAC: 100V~240V
|
Cabinet
|
Indoor: 2200mm x 600mm x 300mm standard cabinet Outdoor: EC90EB, EC70E
|
Main-Control Switching Card SMXA
|
Panel interfaces: 1*10GE/GE(optical)+1*GE/FE(Optical)+ 1*GE/FE(electrical) +1*serial port+ 1*management FE+ 1*environment
detecting port Ethernet uplink port: MAX. 2*10GE+4*GE or 6*GE |
Service Card (2 slots)
|
GTGO(8*GPON) /GTGH(16*GPON)/FTGK(48*P2P)/GTXO(8*XG-PON1)
|
GPON Board / EPON board for ZTE OLT C320
|
|
GTGO
|
8 ports GPON board with 8 B+ modules.
|
GTGO
|
8 ports GPON board with 8 C+ modules.
|
GTGO
|
8 ports GPON board with 8 C++ modules.
|
GTGH
|
16 ports GPON board with 16 B+ modules.
|
GTGH
|
16 ports GPON board with 16 C+ modules.
|
GTGH
|
16 ports GPON board with 16 C++ modules.
|
GTTO
|
8 ports 10G GPON board with 8 10G GPON modules
|
GTXO
|
8 ports 10G GPON board with 8 10G GPON modules
|
ETGO
|
8 ports EPON board with 8 modules.
|
ETGH
|
16 ports EPON board with 16 modules
|
ETTO
|
8 ports 10G EPON board with 8 10G EPON modules
|
