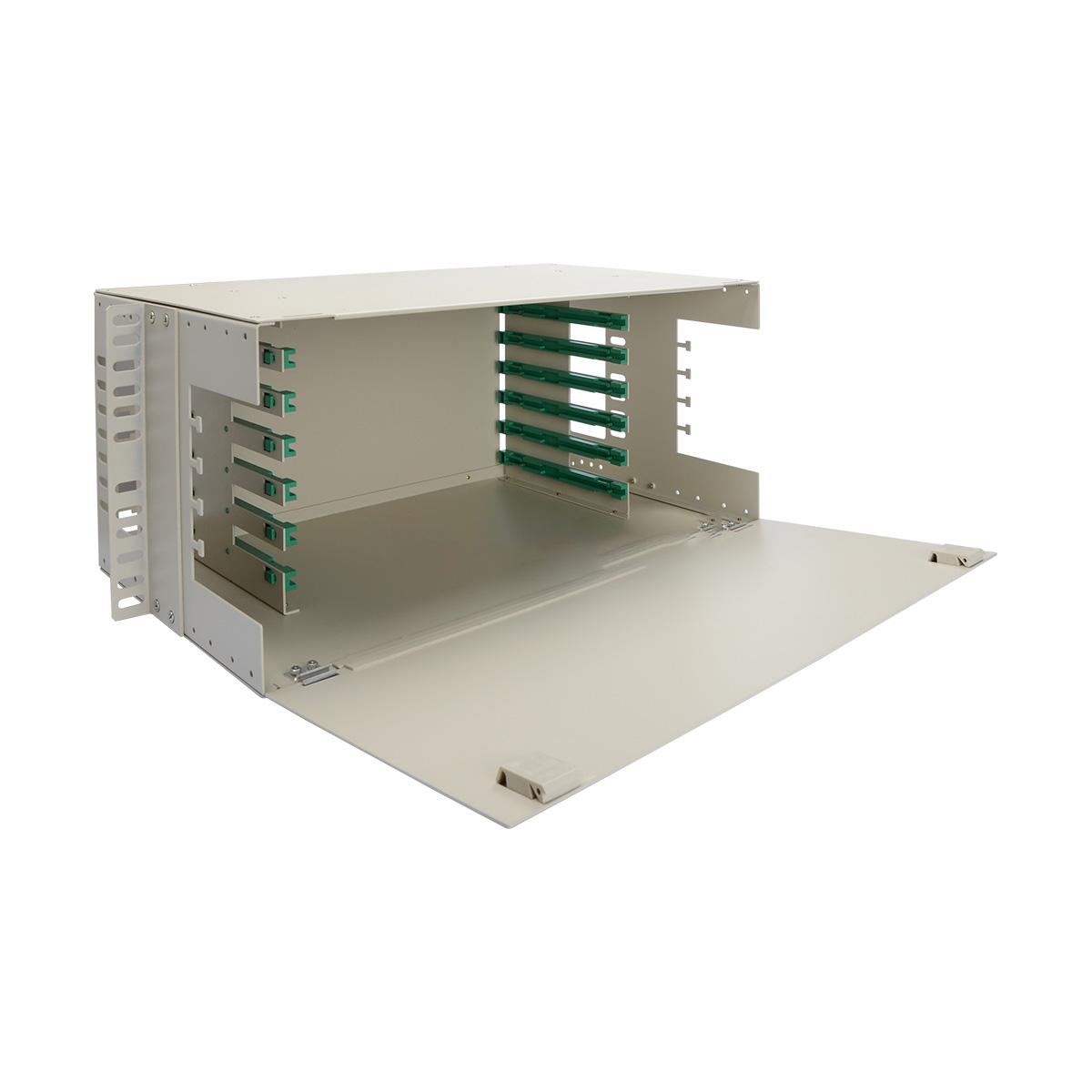

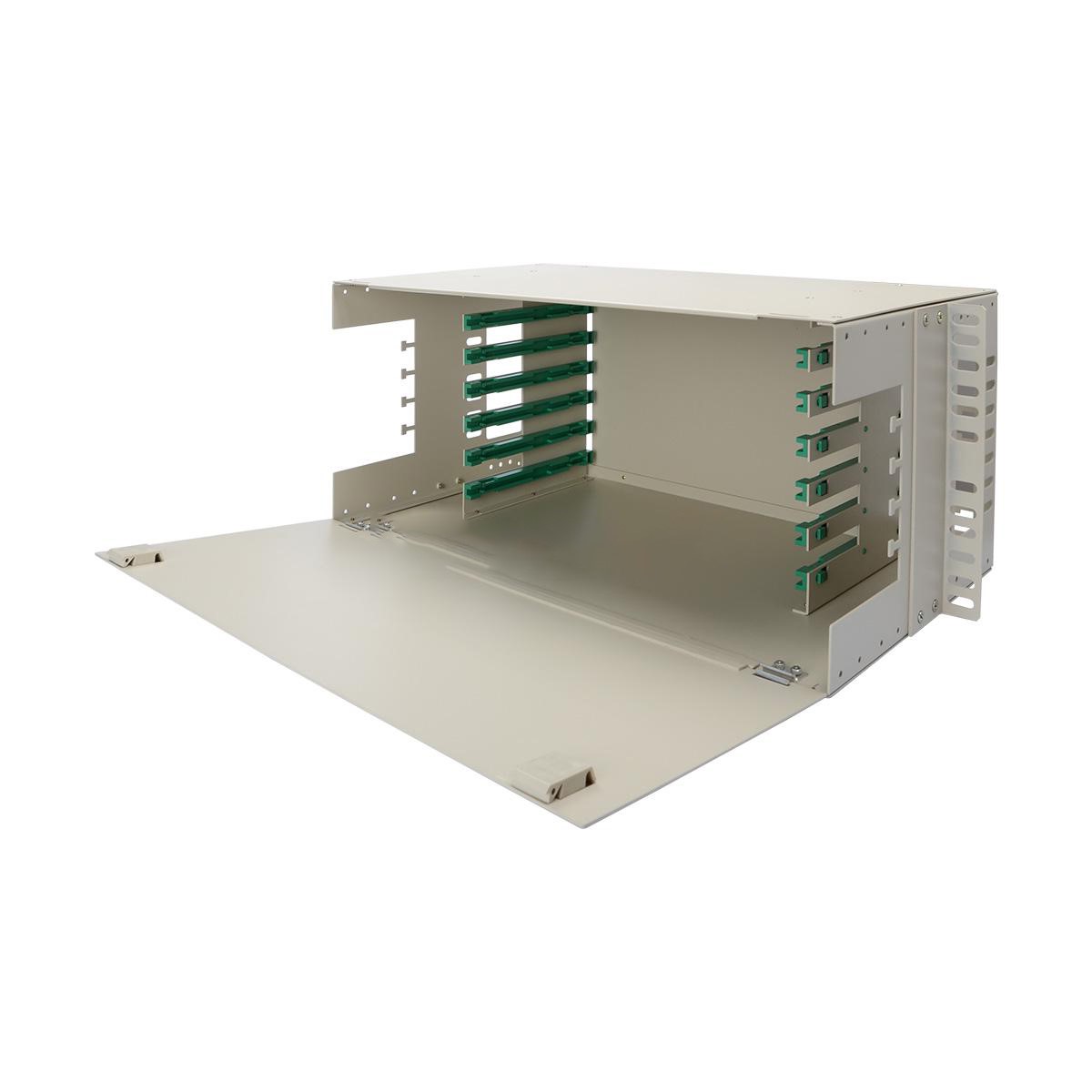

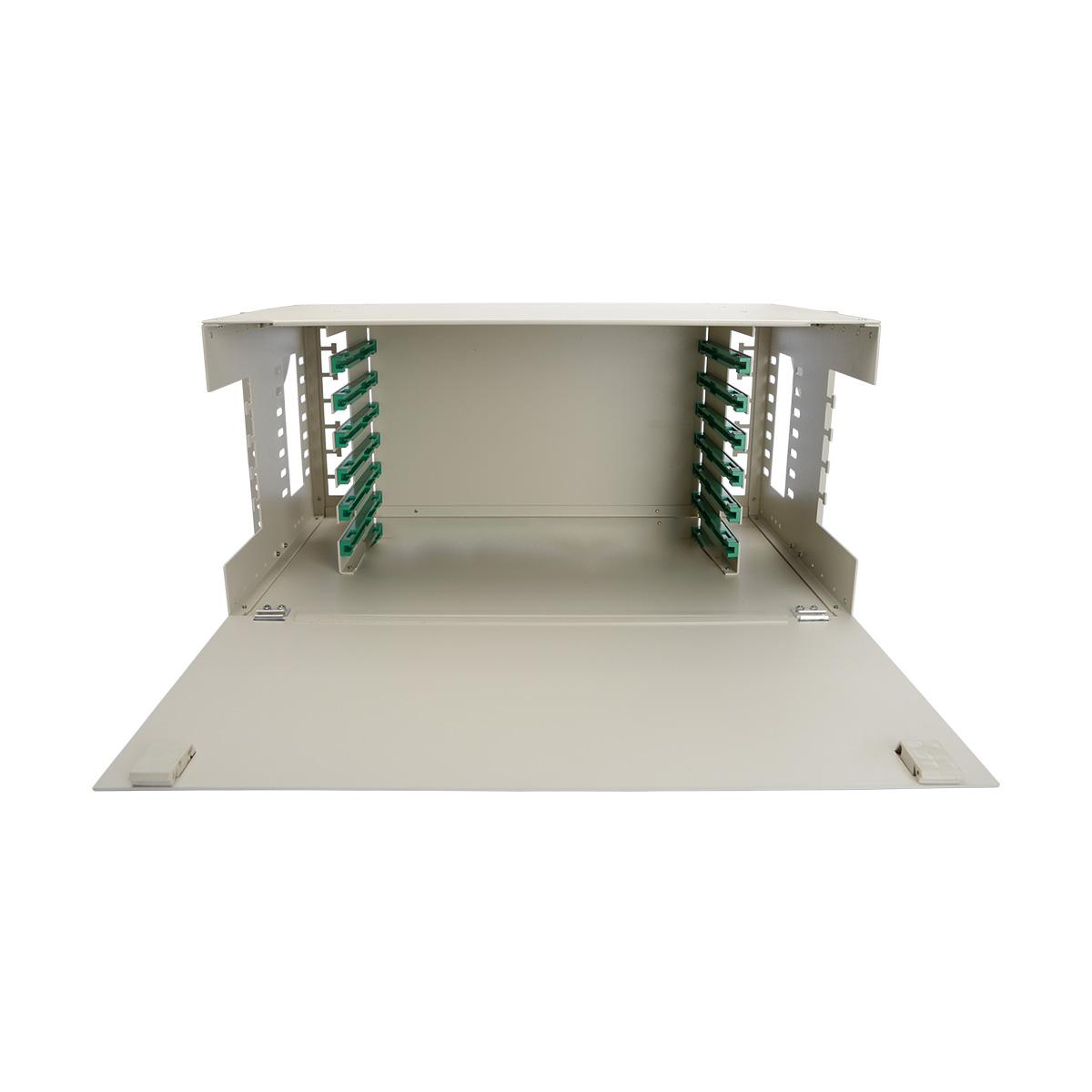

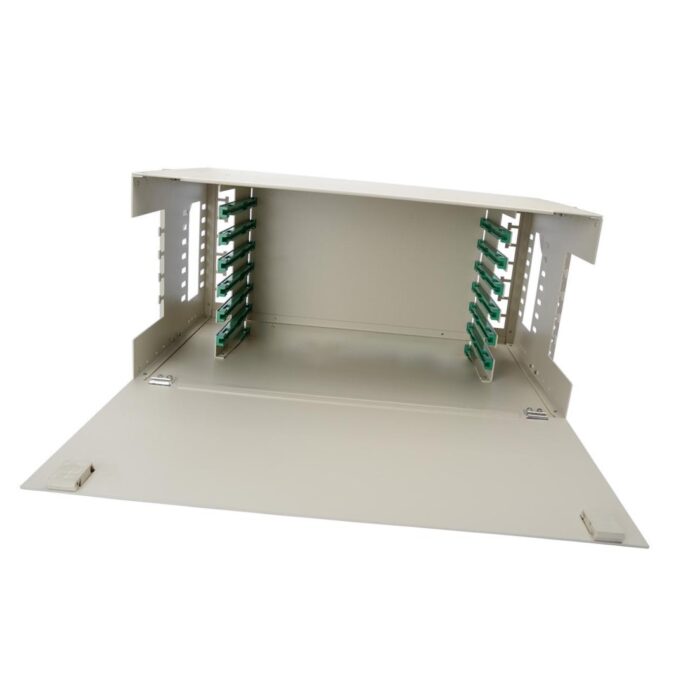

72-Fiber ODF Branded Rack Mount Distribution Empty Box
Product Overview
The 72-Fiber ODF Rack Mount Distribution Box is a high-density, rack-mounted fiber optic enclosure designed to support up to 72 fiber terminations in a 19-inch standard telecom or data rack. Supplied as an empty box, this unit allows full customization with adapter panels, splice trays, and cable routing accessories as per your network design.
Built with durable cold-rolled steel and finished with corrosion-resistant powder coating, this branded ODF is ideal for use in FTTH, FTTx, data centers, and telecom central offices, ensuring clean cable management and secure optical connections.
Key Features of 72-Fiber ODF
-
Model: 72-Core Fiber ODF – Empty Distribution Box
-
Rack Mountable: Standard 19-inch width, 2U–3U height (varies by config)
-
Capacity: Up to 72 fibers (36 SC duplex or 72 LC simplex adapters)
-
Material: Cold-rolled steel, powder-coated for durability
-
Color Options: Light gray or black (custom colors available)
-
Cable Entry Ports: Rear and side entry with cable glands or rubber grommets
-

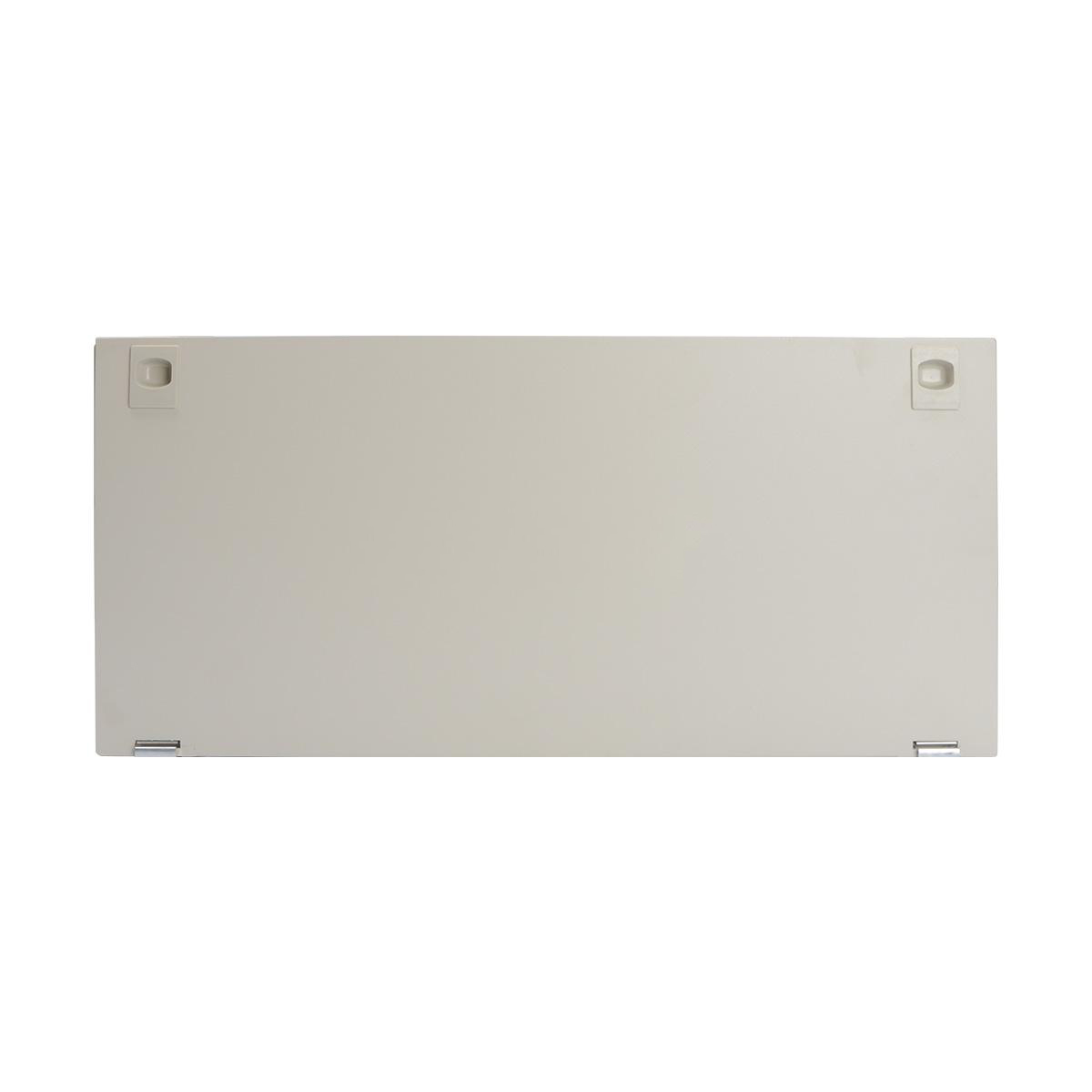

Door Style: Optional front door (transparent or lockable)
-
Mounting Style: Fixed tray or sliding drawer (optional)
72-Fiber ODF Technical Specifications
| Specification | Details |
|---|---|
| Adapter Capacity | 36 SC duplex / 72 LC simplex (max) |
| Compatibility | SC, LC, FC, ST (via adapter plates) |
| Enclosure Type | Rack Mount, 19” standard |
| Material | Cold-Rolled Steel |
| Surface Finish | Powder Coated – Anti-corrosion |
| Dimensions (Standard) | Approx. 430mm x 300mm x 88mm (varies) |
| Cable Entry | Rear & side (with protection sleeves) |
| Splice Tray Capacity | Up to 3 trays (24 fibers/tray) |
| Operating Temperature | -40°C to +60°C |
72-Fiber ODF Applications
-
FTTH/FTTX Fiber Distribution Systems
-
Data Center Fiber Termination Panels
-
Telecom Central Office Patch Fields
-
Enterprise LAN & Structured Cabling
-
Backbone and Access Fiber Infrastructure
Customization Options
We offer tailored configurations and OEM services to match your project needs:
-
Adapter Plate Options: SC, LC, FC, ST – Simplex/Duplex
-
Logo & Branding: Screen printing or laser engraving
-
Color Customization: RAL-matched finishes on request
-
Pre-Loaded Configuration: With pigtails, adapters, splice trays
-
Lockable or Transparent Front Panels
-
Sliding Drawer Option for easier maintenance access
Let us know your technical specifications or layout preference — we’ll build it to fit your network plan.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 72 Fiber ODF |
| Dimension (L × W × H) | 483 × 255 × 233 mm |
| Weight | 10 kg |
| Air Pressure | 70 KPa ~ 106 KPa |
| Relative Humidity | ≤ 95% (at +40°C) |
| Operating Temperature | -40°C ~ +60°C |
| Port Capacity | 72 Ports |
| Included Accessories | 1 unit 72 Fiber Distribution Box |
Additional Information
| Attribute | Value |
|---|---|
| Weight (Declared) | 0.0 kg (placeholder) |
| Dimensions (Declared) | 0.0 × 0.0 × 0.0 cm (placeholder) |
| Port Count | 72 |
Wholesale & Bulk Supply Support
We are trusted by system integrators, ISPs, and infrastructure providers globally:
-
Factory-Direct Pricing for Large Orders
-
Bulk Packaging or Installer Kits Available
-
Fast Turnaround for Custom Orders
-
Dedicated Support for Projects & Tenders
-
OEM/ODM Services for Distributors & Integrators
Ask us for a volume quote or send your project BOM today.
Why Choose Our 72-Fiber ODF Rack ?
-
Scalable Design for Growing Networks
-
Efficient Cable Management and Fiber Protection
-
Industry Standard Build – Compatible with All Leading Brands
-
Fully Customizable for Site-Specific Deployments
-
Durable, Reliable, and Easy to Install
