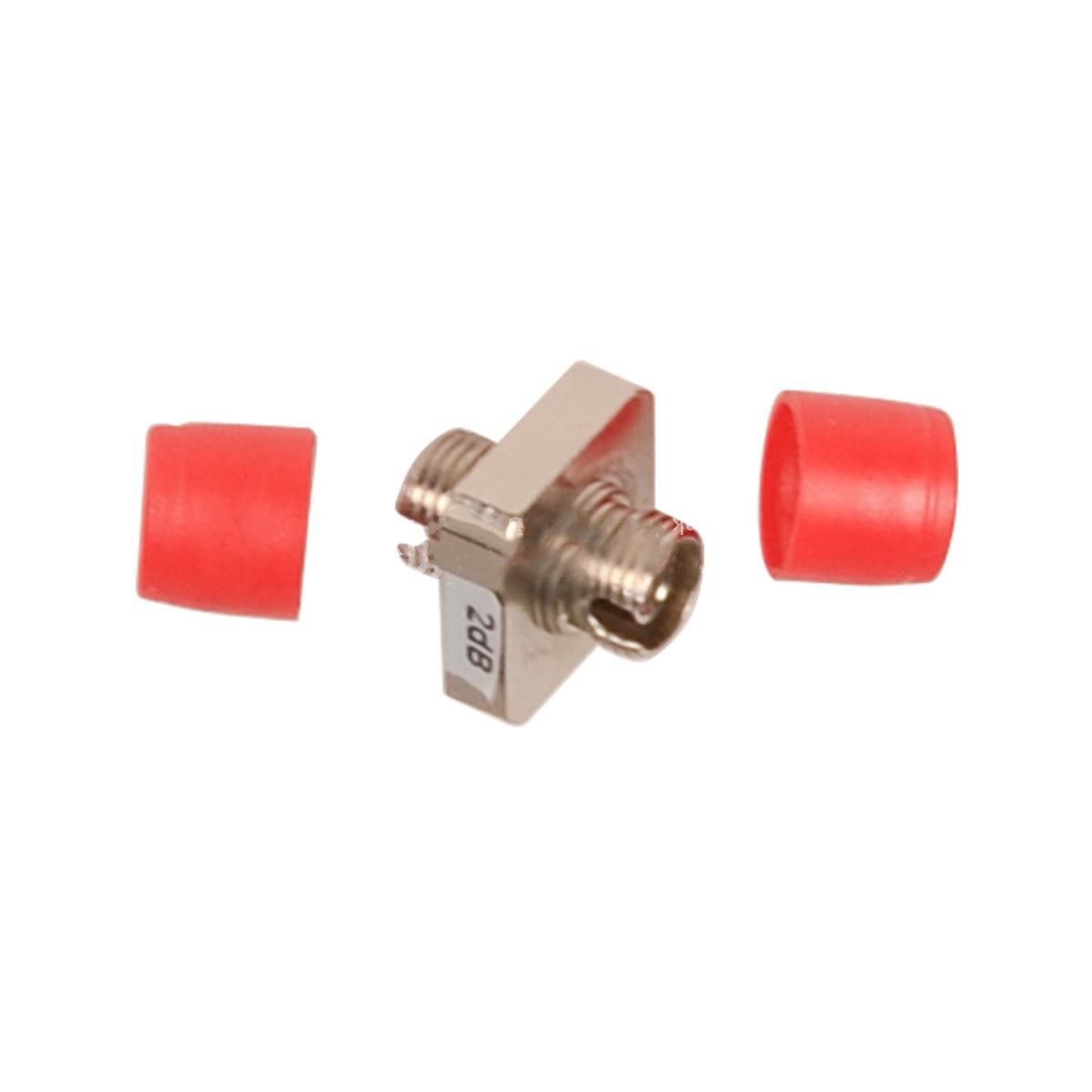

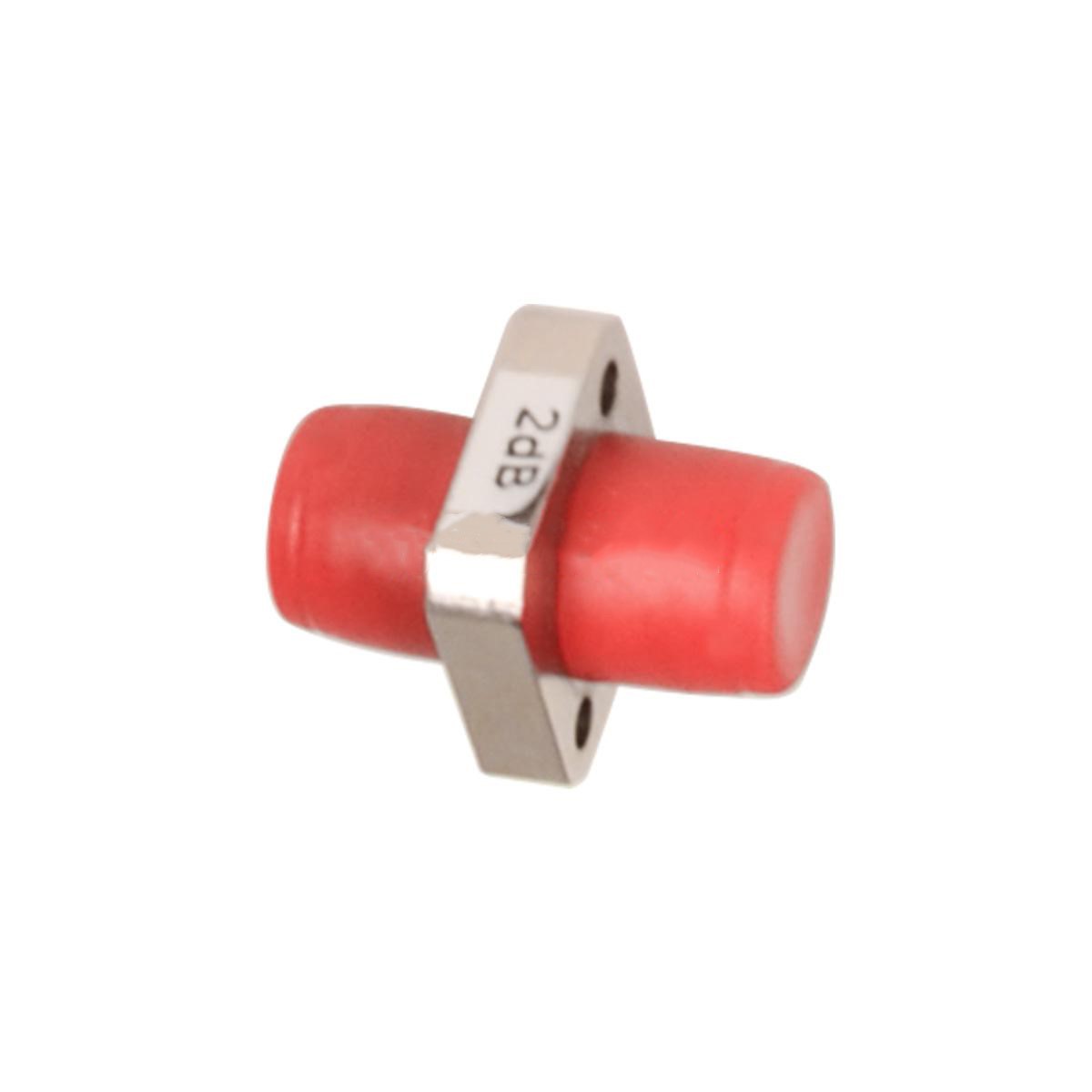

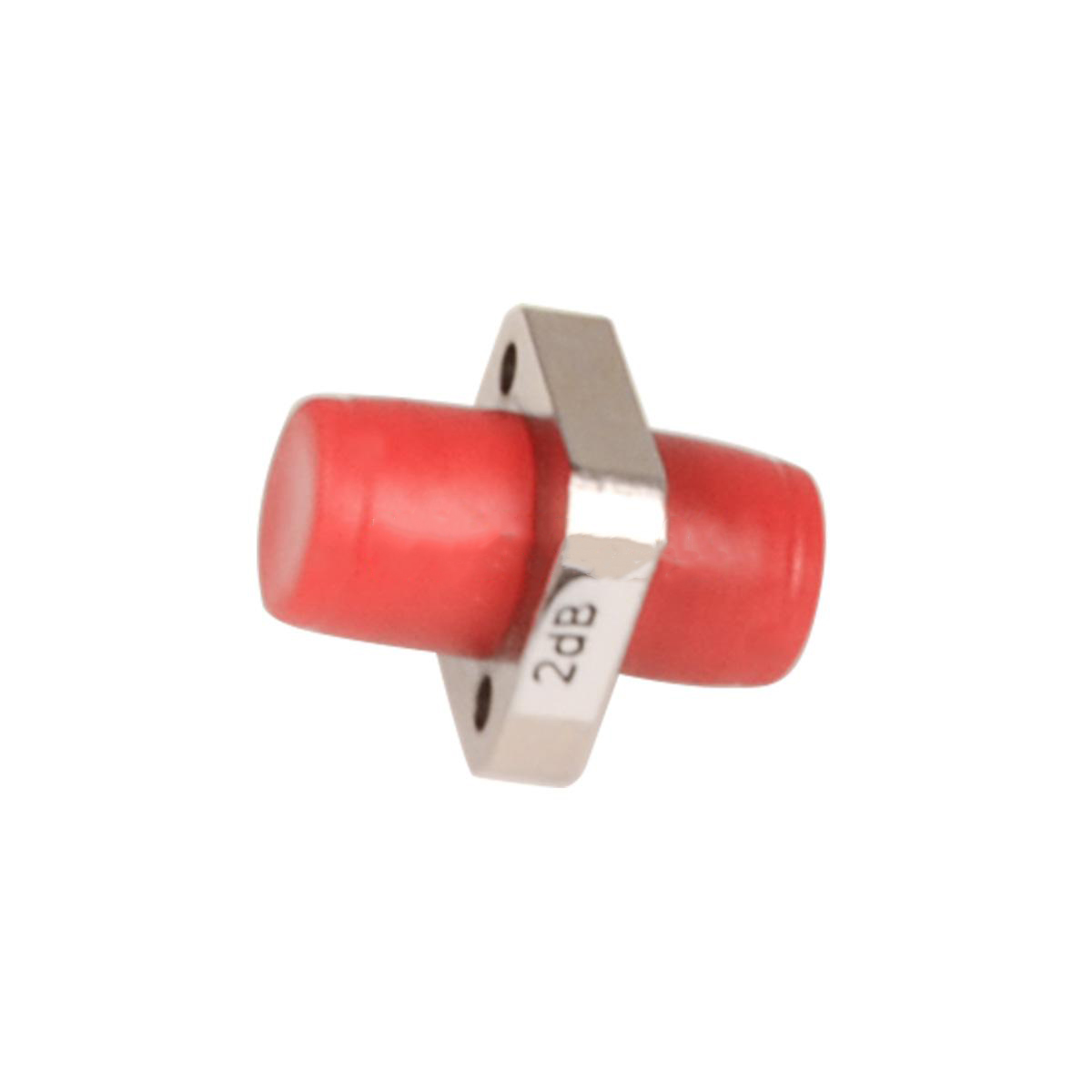

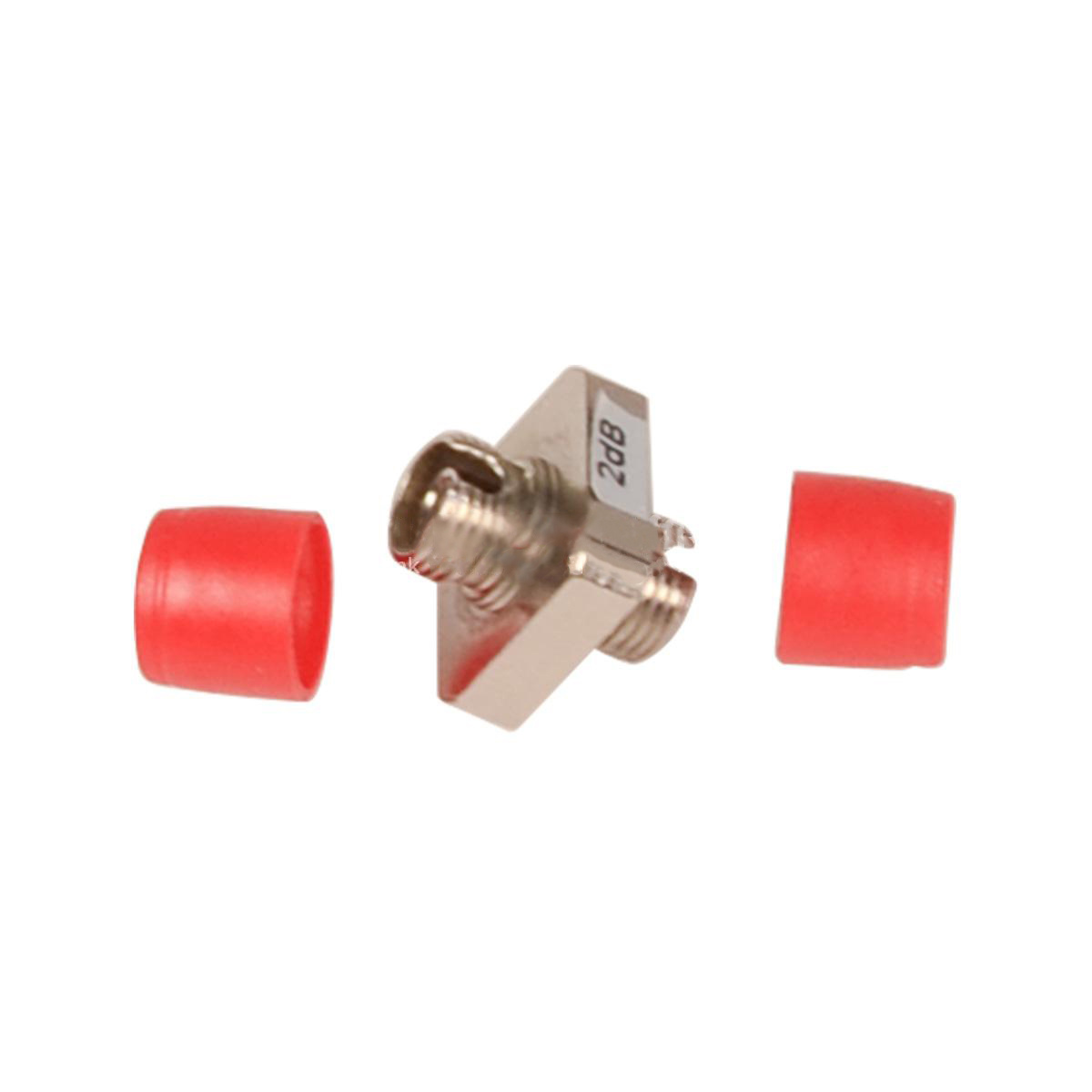

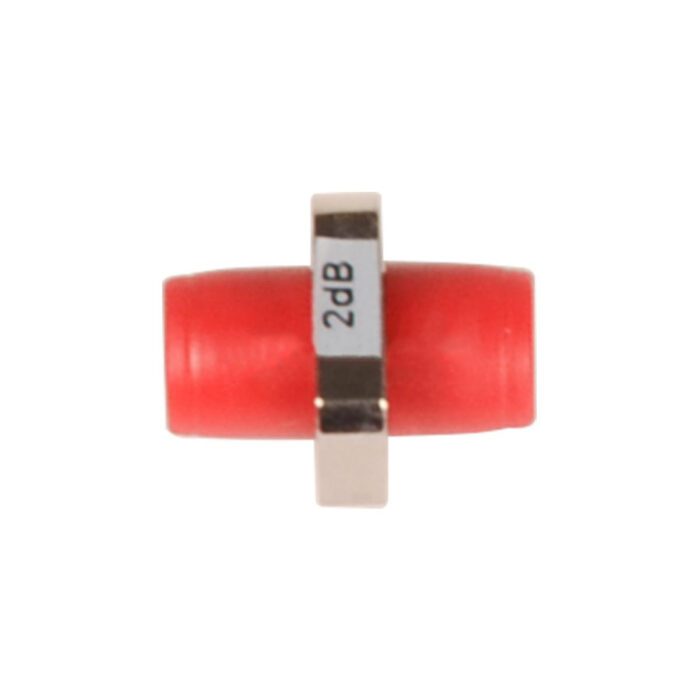

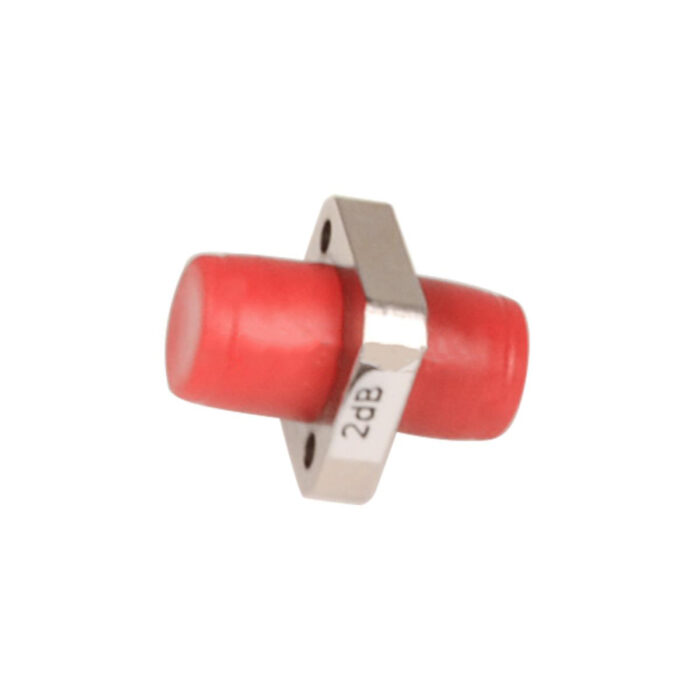

FC/UPC 2dB Fixed Fiber Optical Attenuator – Female-to-Female | Brand New
Product Overview
The FC/UPC 2dB Female Fixed Fiber Optical Attenuator is a precision-engineered passive device used to reduce optical signal power by a fixed value of 2 decibels (dB) without introducing distortion or signal degradation. Equipped with FC/UPC female-to-female connectors, this brand-new attenuator is designed for use in singlemode fiber optic networks, where controlled attenuation is needed for protecting receivers and optimizing signal strength.
This device is ideal for telecommunications networks, data centers, CATV systems, and lab testing environments, offering stable attenuation, low insertion loss, and high return loss to maintain performance integrity across a broad wavelength range.
Key Features of FC/UPC 2dB Female
-
✅ Attenuation Value: Fixed 2dB (±0.5dB tolerance)
-
✅ Connector Type: FC/UPC Female-to-Female
-
✅ Fiber Type: Singlemode (SM) 9/125µm
-
✅ Operating Wavelength: 1260nm to 1650nm
-
✅ Return Loss: ≥50dB (UPC Polish)
-
✅ Insertion Loss: ≤0.4dB
-
✅ Body Material: High-precision metal housing
-
✅ Condition: 100% Brand New, Factory-Sealed
FC/UPC 2dB Female Specifications
| Specification | Details |
|---|---|
| Attenuation Value | 2dB ± 0.5dB |
| Connector Interface | FC/UPC Female-to-Female |
| Fiber Compatibility | Singlemode 9/125µm |
| Polish Type | UPC (Ultra Physical Contact) |
| Operating Wavelength | 1260nm – 1650nm |
| Return Loss | ≥50dB |
| Insertion Loss | ≤0.4dB |
| Operating Temperature | -40°C to +85°C |
| Mating Durability | >1000 cycles |
FC/UPC 2dB Female Applications
-
Optical power management in telecom networks
-
Protection of sensitive optical receivers
-
Power balancing in DWDM/CWDM systems
-
CATV, FTTx, and enterprise backbone networks
-
Calibration and testing in labs and field environments
Customization Options
We offer full flexibility for OEM and network-specific customization:
-
Available Attenuation Levels: 1dB to 30dB
-
Connector Types: SC/UPC, SC/APC, LC/UPC, LC/APC, FC/APC
-
Logo Branding: Private label or laser-engraved marking
-
Color Coding: For different attenuation values or project IDs
-
Field Kits: Assortment kits (1–10dB) for network engineers or lab use
Let us know your deployment requirements or preferred packaging style — we customize to match your project or product line.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | FC/UPC 2dB Female-Female Fixed Fiber Optical Attenuator |
| Fiber Connector | FC/UPC |
| Connector Gender | Female-Female |
| Transfer Mode | Singlemode |
| Material | Ceramic |
| Operating Wavelength | 1200 nm – 1600 nm |
| Attenuation | 2 dB |
| Attenuation Accuracy | ±10% dB |
| Return Loss | > 20 dB |
| Interchangeability | ≤ 0.20 dB |
| Repeatability | ≤ 0.10 dB |
| Reliability | > 1000 plug cycles |
| Operating Temperature Range | -40°C ~ +80°C |
| Storage Temperature Range | -40°C ~ +85°C |
| Vibration | Amplitude: 1.52 mm Frequency: 10 Hz – 55 Hz |
Additional Information
| Attribute | Value |
|---|---|
| Weight | 0.0 kg (placeholder) |
| Dimensions | 0.0 × 0.0 × 0.0 cm (placeholder) |
| Connector Type | FC |
| Attenuation | 2 dB |
Wholesale & Bulk Supply Benefits
We provide professional-grade optical components for system integrators, telecom operators, resellers, and lab suppliers:
-
📦 Factory-Direct Pricing & Bulk Discounts
-
📦 Low MOQ for OEM Partners
-
📦 Fast Global Shipping with Full Export Support
-
📦 Custom Packaging, Barcoding & Labeling
-
📦 Reliable Lead Times & Dedicated Sales Support
Request a formal quote today for large-volume orders, tender submissions, or custom bundles.
Why Choose Our FC/UPC 2dB Female ?
-
✔️ Precision Attenuation with High Accuracy
-
✔️ Consistent Quality & Performance Across Wavelengths
-
✔️ Long-Term Durability for Harsh Environments
-
✔️ Tested to International Standards (CE, RoHS, ISO)
-
✔️ Trusted by Global Telecom & Network Brands
Order Now
Optimize your fiber network with the FC/UPC 2dB Fixed Optical Attenuator — an essential component for precise signal tuning, device protection, and high-efficiency fiber infrastructure. Now available for individual use, OEM branding, or wholesale supply.
