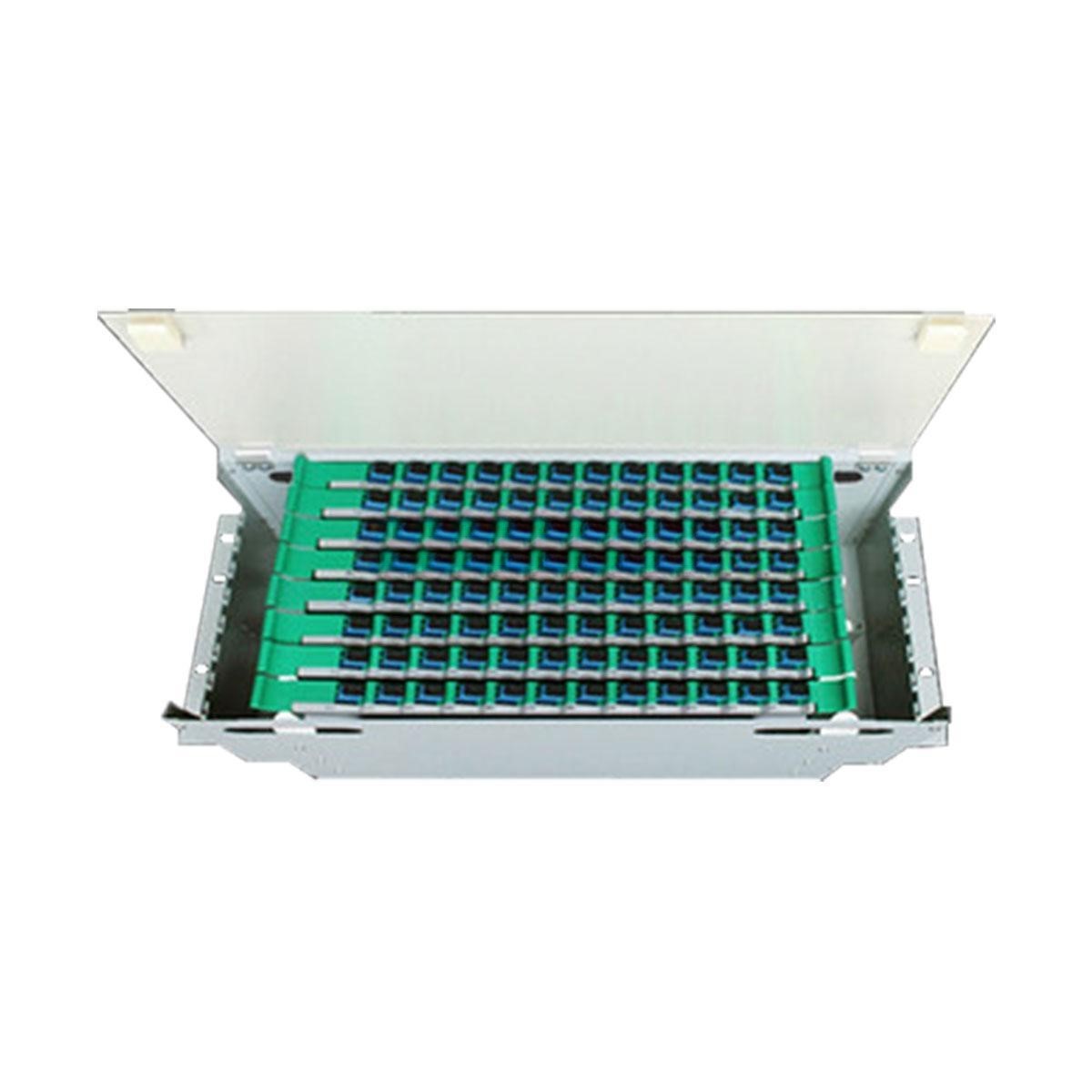

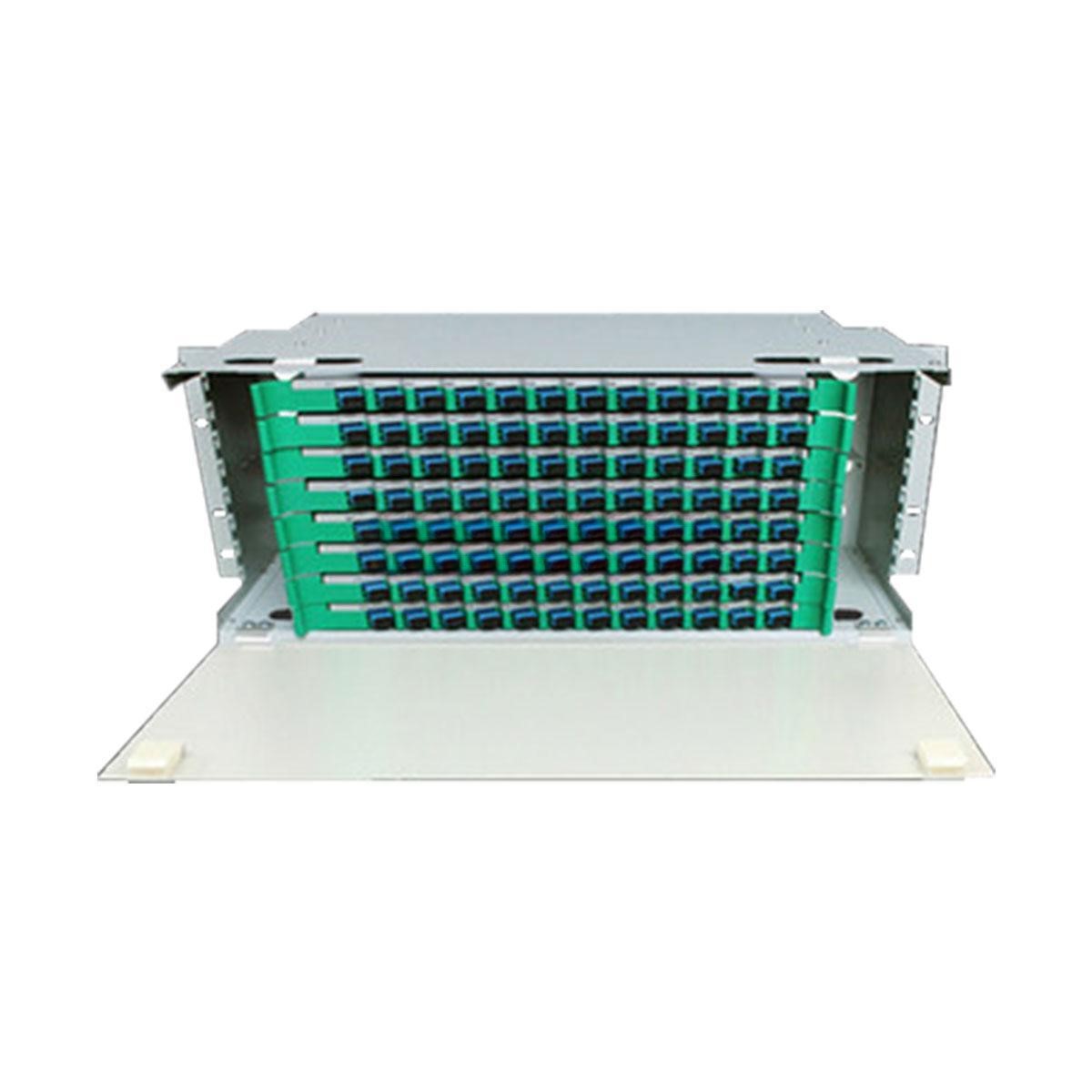

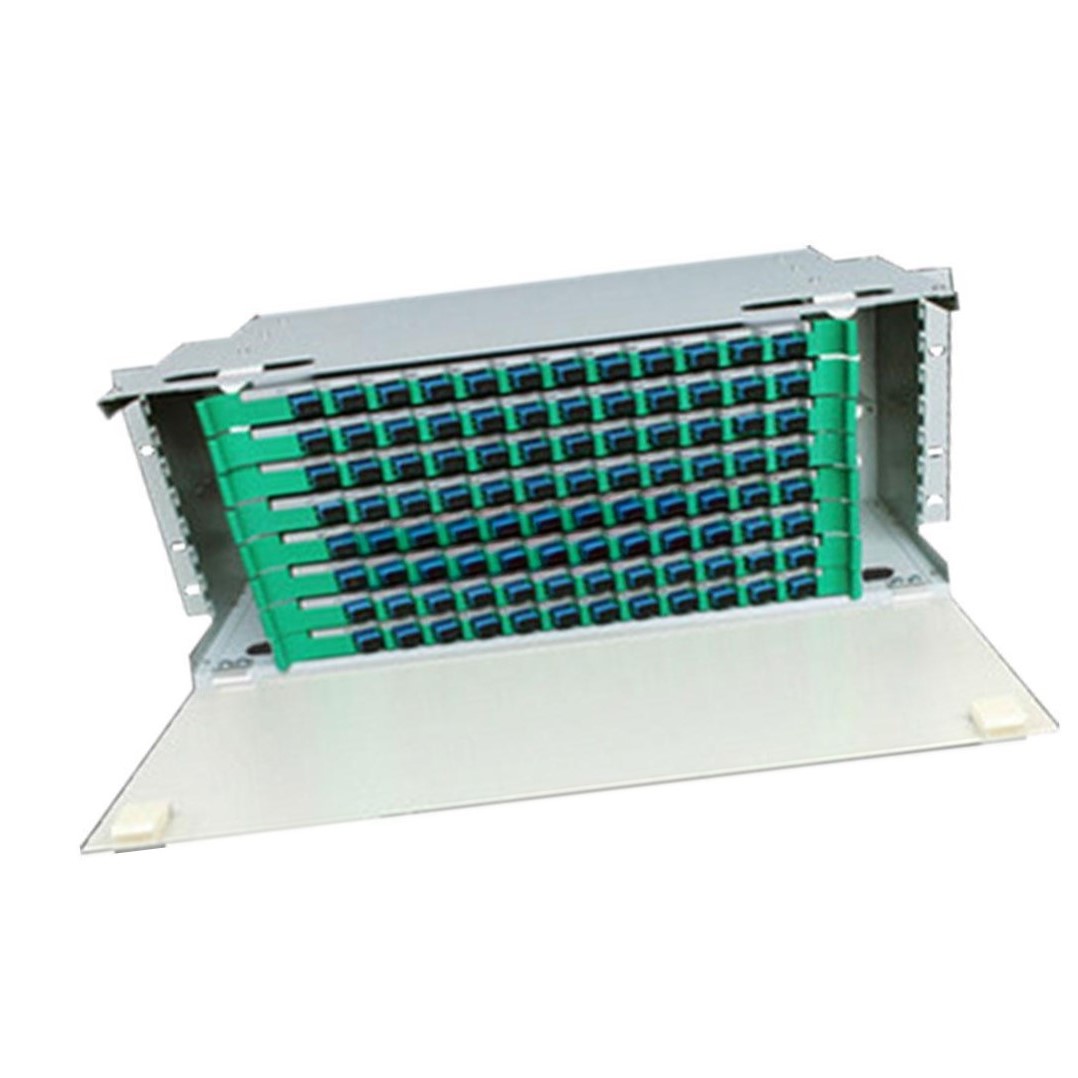

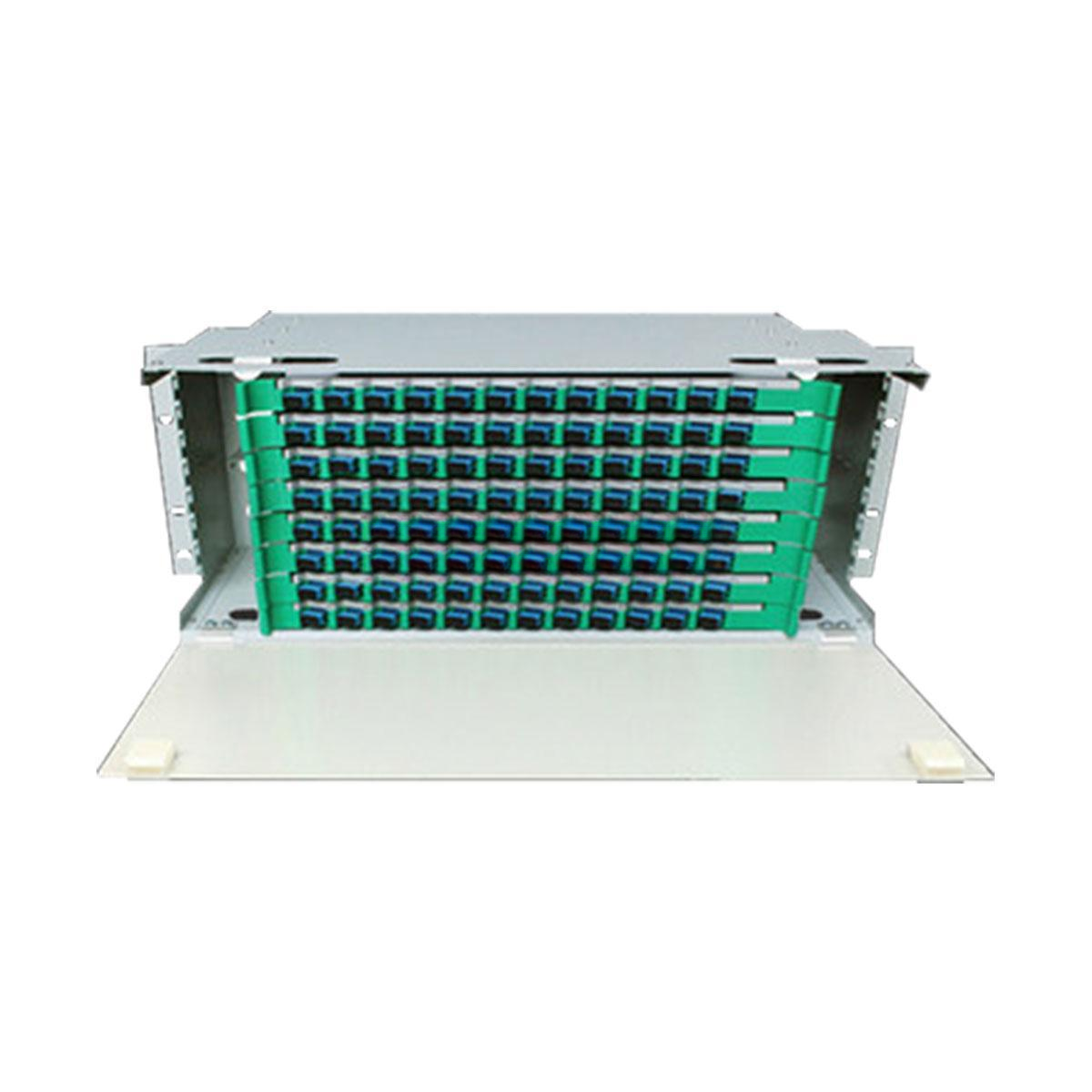

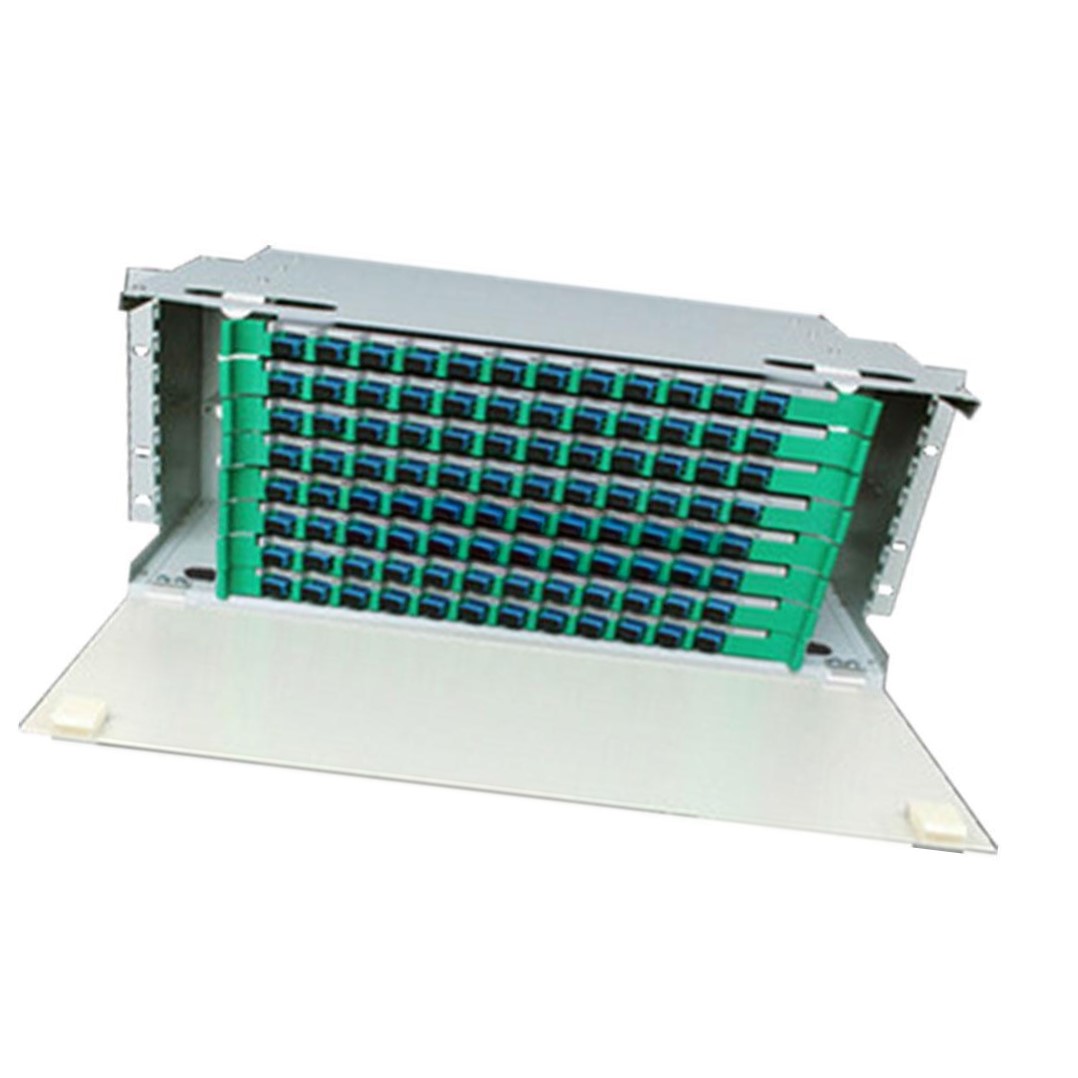

96-SC Fiber ODF Branded Rack Mount Type Distribution Box
Product Overview
The 96-SC Fiber ODF Optic Distribution Frame is a high-density, rack-mountable fiber management solution designed to accommodate up to 96 SC simplex ports in a standard 19-inch telecom or data rack. This branded distribution box is engineered to deliver organized, scalable, and secure fiber termination, ideal for high-performance networks in data centers, FTTH networks, enterprise backbones, and telecom central offices.
With a durable structure and modular design, this rack mount ODF ensures clean fiber routing, minimal signal loss, and convenient access for maintenance or upgrades.
Key Features of 96-SC Fiber ODF
-
Model: 96-SC Fiber ODF – Rack Mount Type
-
Connector Interface: SC Simplex (Also supports LC/SC duplex on request)
-
Capacity: 96 fiber terminations (SC Simplex)
-
Material: Cold-Rolled Steel with Powder Coated Finish
-
Mount Type: 19-inch Standard Rack (2U/3U/4U Configurations Available)
-
Color Options: Standard Black or Light Gray (Custom Colors Available)
-
Branding: OEM Custom Branding Available
-
Cable Entry: Rear and Side Entry with Rubber Grommets
-
Included Accessories: Cable rings, fiber spools, splice trays, adapter plates
-
Door Style: Optional front locking door or transparent cover for added protection
96-SC Fiber ODF Specifications
| Parameter | Specification |
|---|---|
| Fiber Capacity | 96 SC Simplex (or 48 SC Duplex) |
| Adapter Type | SC/UPC or SC/APC |
| Compatibility | Singlemode 9/125µm or Multimode 50/125µm |
| Material | Cold-Rolled Steel |
| Surface Finish | Powder Coated – Anti-Rust & Scratch-Resistant |
| Rack Standard | 19” Rack Mountable (Fixed or Sliding Tray) |
| Cable Management | Integrated cable routing clips & holders |
| Operating Temperature | -40°C to +85°C |
96-SC Fiber ODF Applications
-
FTTH (Fiber to the Home) Distribution Networks
-
Telecom Central Office Fiber Management
-
Data Center Optical Termination
-
ISP Backbone and Metro Access Networks
-
Campus, Enterprise, and Industrial Fiber Networks
Customization Options
We offer full customization and OEM services to align with your infrastructure or branding needs:
-
Adapter Options: SC/UPC, SC/APC, LC, ST, FC (Simplex/Duplex)
-
Pre-Loaded Options: With adapters, pigtails, and fusion splice trays
-
Private Labeling: Custom logo printing and port labeling
-
Color & Material Customization: RAL color codes, aluminum/stainless steel body
-
Locking Systems: Optional security locks or transparent front covers
-
Custom Kit Assembly: Field engineer toolkits or pre-configured patch panels
Let us know your specs — we build ODFs tailored to your network environment.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 96-SC Fiber ODF |
| Dimension (L × W × H) | 483 × 255 × 260 mm |
| Weight | 8 kg |
| Air Pressure | 70 KPa ~ 106 KPa |
| Relative Humidity | ≤ 95% (at +40°C) |
| Operating Temperature | -40°C ~ +60°C |
| Port Capacity | 96 Ports |
| Included Accessories | • 1 unit 96 Fiber Distribution Box • 8 units 12 Fiber Integration Trays • Fully equipped with SC adapters |
Additional Information
| Attribute | Value |
|---|---|
| Weight | 0.0 kg (placeholder) |
| Dimensions | 0.0 × 0.0 × 0.0 cm (placeholder) |
| Connector Type | SC/UPC |
| Port Count | 96 |
Wholesale & Bulk Supply Support
Perfect for telecom integrators, government projects, and fiber infrastructure rollouts, we offer:
-
Factory-Direct Pricing with MOQ & Tiered Discounts
-
Bulk Packaging or Retail Kits
-
Short Lead Times & Fast Production Turnaround
-
Dedicated Project Manager for Large Orders
-
Global Shipping & Export Documentation Support
Request a quote today for bulk orders or project-specific requirements.
Why Choose Our96-SC Fiber ODF ?
-
High-Capacity, Professional-Grade Fiber Termination
-
Reliable Performance with Clean Cable Routing
-
Field-Proven Design for Quick Installation and Maintenance
-
Complies with International Standards (ISO, CE)
-
Custom Branding and Private Labeling Available
Order Now
The 96-SC Rack Mount Fiber ODF Distribution Box is available for immediate order — fully customizable for your project or brand. Perfect for structured cabling systems demanding efficient, scalable, and secure fiber management.
