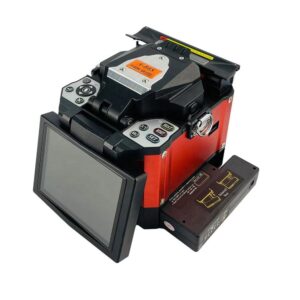

A80S Fiber Fusion Splicer Description:
A80S Fiber Fusion Splicer with high-speed image processing technology and special precision positioning technology, can complete the whole process of fiber fusion splicing automatically in 9 seconds. Characterized by lightweight, easy to carry and convenient to operate, fast splicing speed and low losses, it is especially suitable for optical fiber and cable projects, maintenance scientific research and teaching in telecommunications, radio and television, railway, petrochemical, electric power, military and public security and other communications fields.
This machine is mainly used for the connection of optical fibers, which can be further connected with ordinary optical fiber cables, jumpers and multiple single-mode, multi-mode and dispersion-shifted quartz optical fibers with a cladding diameter of 50 u m-150 u m. Keep it clean and protect it against strong vibrations and shocks.
Features:
- Used for FTTH and ordinary fiber project
- Core to core alignment by PAS technology
- 8 sec splicing time and 30 sec heat time
- With 7200 mAh Ultra-large capacity Li battery
- 350 X or Y view, 280 X and Y view
- Large amplification and clear core
- 5 inch digital high-quality LCD screen, observe X and Y view at same time
- Three in one fixture, splicing single fiber, cable indoor and pig tail
- Built in large capacity lithium battery of 200 times splicing and heating
- Small size and light weight, 1.98KG including battery
- V type high power automatic heater with steel based thick film; high thermal efficiency, fast heating and long life
Specifications of A80S Fiber Fusion Splicer:
| Specification | Details |
|---|---|
| Model No | A80 |
| Splicing Type | SM, MM, DS, NZDS |
| Splicing Loss | 0.02dB(SM), 0.01dB(MM), 0.04dB(DS) |
| Return Loss | >60dB |
| Splicing Mode | Manual, Half Auto, Auto |
| Fiber Alignment | Core to Core Alignment by PAS technology |
| Applicable Fiber | Cable indoor and 0.25mm, 0.9mm fiber, SC connector (option) |
| Splicing Time | ≤9s |
| Heat Time | ≤30s |
| Cleaved Length | 8~16mm |
| Fiber Image/Magnification | 350/280 |
| View Display | 5 inch digital high-quality LCD screen |
| Tension Test | Standard 2N (option) |
| Heat Shrinkable Sleeve | 60mm, 40mm and serial heat Shrinkable Sleeve |
| Battery Capacity | 7200mAh, 3 hours charging time (splicing and charging at same time) |
| Battery Life | Cycling charge 300-500 times, easy to replace battery |
| Electrodes Life | 3000, easy to replace electrodes |
| Power Source | ≤20W |
| Interface | USB Convenient data download and software update |
| Construction Lighting | Built-in high brightness, wide range of lights, easy to operate at night |
| Power Supply | Built-in lithium battery 6800mAh 11.1V; external adapter, input: AC100-240V, output: DC13.5V/4.5A |
| Operating Condition | 0-5000m above sea level, Temperature: -10-60ºC, Humidity: 0~95%RH (No dew) |
| Weight (including battery) | 1.98KG (including battery) |
| Dimension (L x W x H) | 135mm(L) * 158mm(W) * 155mm(H) |
