Product Description

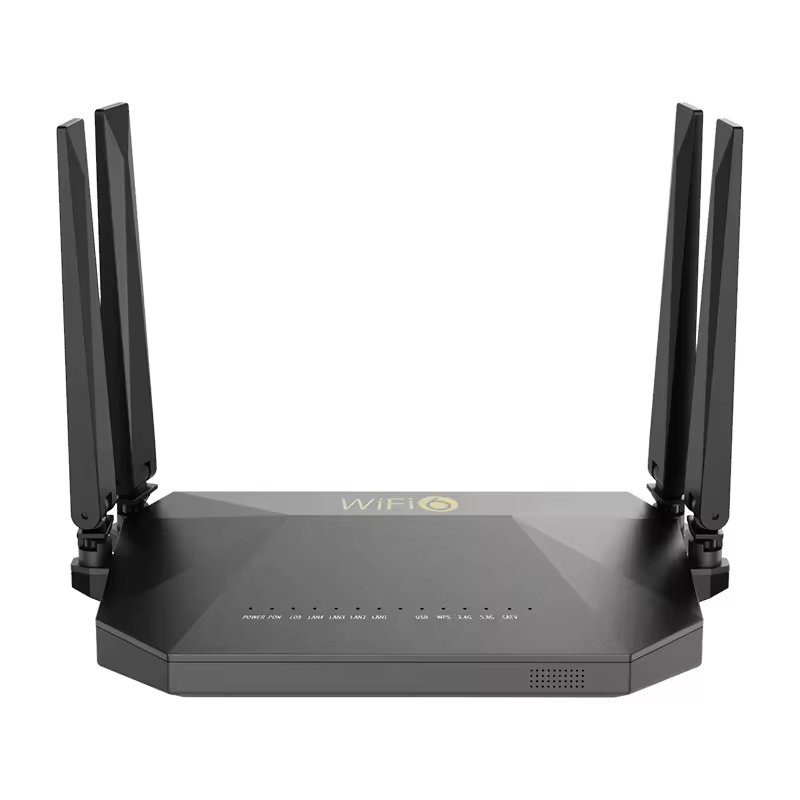

The XPON ONT with AX1800 WiFi6 XPON is a dual-mode GPON/EPON terminal designed for high-speed FTTH deployments. It integrates 4 Gigabit Ethernet ports, 1 POTS (FXS) voice port, 1 CATV RF output, and dual-band AX1800 WiFi6, delivering seamless broadband, voice, and television access in a single unit.
Equipped with four high-gain antennas, it supports enhanced coverage, MU-MIMO, and OFDMA, and ensures a stable WiFi connection for up to 1200 Mbps on 5GHz and 600 Mbps on 2.4GHz. This device is ideal for triple-play residential and small office solutions.
Key Features: AX1800 WiFi6 XPON
-
XPON (GPON/EPON auto-detect)
-
Dual-band WiFi6 (AX1800) – 2.4GHz + 5GHz
-
4 × Gigabit LAN ports
-
1 × RJ11 VoIP port (FXS interface)
-
1 × F-type CATV RF output
-
4 × 5dBi high-gain external antennas
-
MU-MIMO, OFDMA, Beamforming supported
-
IPv4 / IPv6 Dual Stack
-
TR-069, OMCI, Web UI remote management
-
Fully compatible with Huawei, ZTE, FiberHome OLTs
General Specifications: AX1800 WiFi6 XPON
| Feature | Description |
|---|---|
| XPON Mode | GPON / EPON (auto-sensing) |
| Fiber Port | 1 × SC/APC (single-mode, simplex) |
| LAN Ports | 4 × 10/100/1000 Mbps RJ45 |
| Voice Port | 1 × RJ11 FXS (VoIP) |
| CATV Port | 1 × F-type RF Output |
| Wireless Standard | IEEE 802.11ax (WiFi6) |
| WiFi Speed | AX1800: 2.4GHz – 600 Mbps, 5GHz – 1200 Mbps |
| Antennas | 4 × External Omni-directional, 5dBi |
| Fiber Standards | ITU-T G.984.x / IEEE 802.3ah |
| Management | Web, TR-069, OMCI, SNMP |
Technical Specifications
| Parameter | 2.4GHz Band | 5GHz Band |
|---|---|---|
| Frequency | 2.400 – 2.4835 GHz | 5.150 – 5.825 GHz |
| Max Data Rate | Up to 600 Mbps | Up to 1200 Mbps |
| MIMO Configuration | 2 × 2 | 2 × 2 |
| Channel Bandwidth | 20/40 MHz | 20/40/80 MHz |
| Modulation | BPSK to 1024-QAM | BPSK to 1024-QAM |
| Beamforming | Supported | Supported |
Electrical Characteristics: AX1800 WiFi6 XPON
-
Input Voltage: 12V DC / 1.5A
-
Power Consumption: < 18W
-
CATV Operating Voltage: 12V (Active)
-
Surge Protection: 4kV on all ports
-
Power Adapter: Included
Performance and Compliance
-
XPON Compliance: GPON (G.984.x), EPON (IEEE 802.3ah)
-
WiFi6: IEEE 802.11ax certified
-
IPTV Ready: IGMP Snooping and Proxy
-
Voice Support: SIP or H.248 (optional configuration)
-
Security: WPA3/WPA2, MAC filtering, DoS protection
-
Network: NAT, VLAN, Port Forwarding, QoS
-
Remote Management: TR-069, OMCI, Web UI
-
IPv6 Support: IPv4/IPv6 dual stack
Environmental Specifications: AX1800 WiFi6 XPON
| Parameter | Minimum | Maximum | Unit |
|---|---|---|---|
| Operating Temp | 0 | 40 | °C |
| Storage Temp | -40 | 70 | °C |
| Humidity | 5 | 95 | % RH |
| Cooling System | Passive (fanless) |
Physical Characteristics
-
Dimensions: 220 × 135 × 35 mm
-
Weight: < 600g
-
Housing Material: ABS, flame-retardant
-
Mounting: Desktop or wall-mount
-
LED Indicators: Power, LOS, PON, Internet, LAN, WiFi, TEL, CATV
Certifications and Safety: AX1800 WiFi6 XPON
-
CE – European EMC and Safety Standard
-
FCC – U.S. Radio and EMC Certification
-
RoHS – Restriction of Hazardous Substances
-
IEC 60825-1 – Class 1 Laser Safety
-
WiFi6 Certified – IEEE 802.11ax
