- Model Number:ZTE ZXA10 C320
- Type:OLT
- Place of Origin:Guangdong
- Brand Name:ZTE
- Use:FTTx
- Warranty Time:1 year
- Network:None
- Supply Ability1000 Piece/Pieces per Week
- Packaging DetailsCartons
- PortShenzhen
- Picture Example:
- Lead time:Quantity(pieces)1 – 2000>2000Lead time (days)15To be negotiated

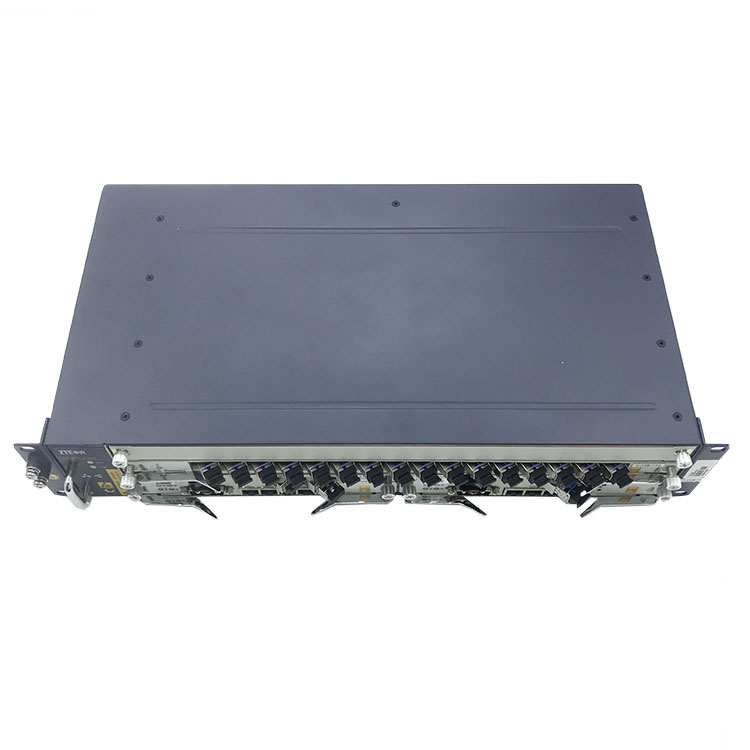

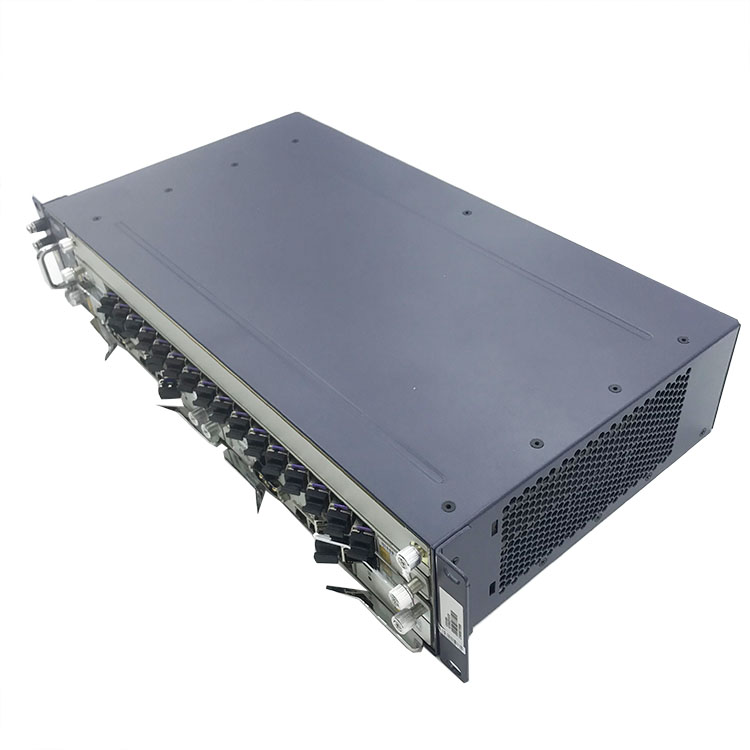

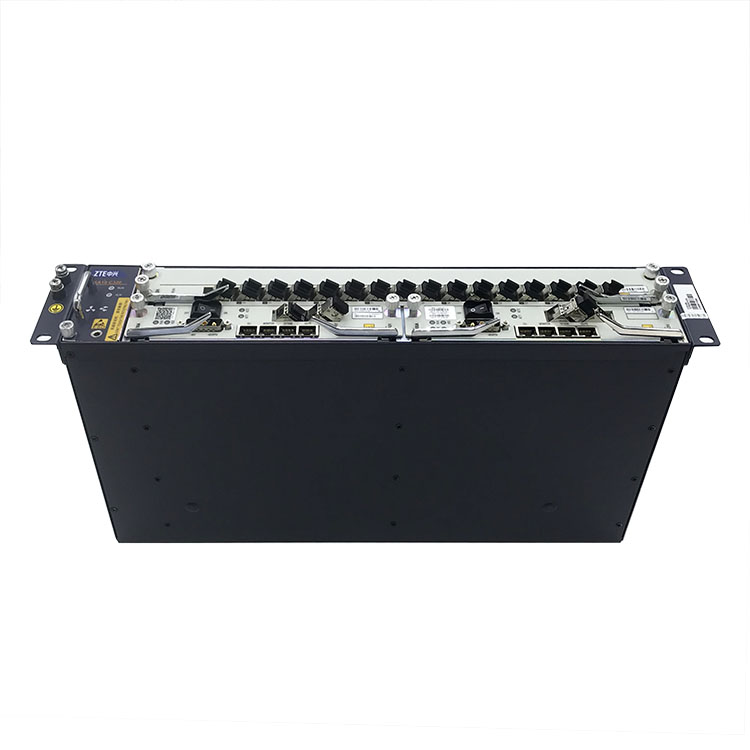

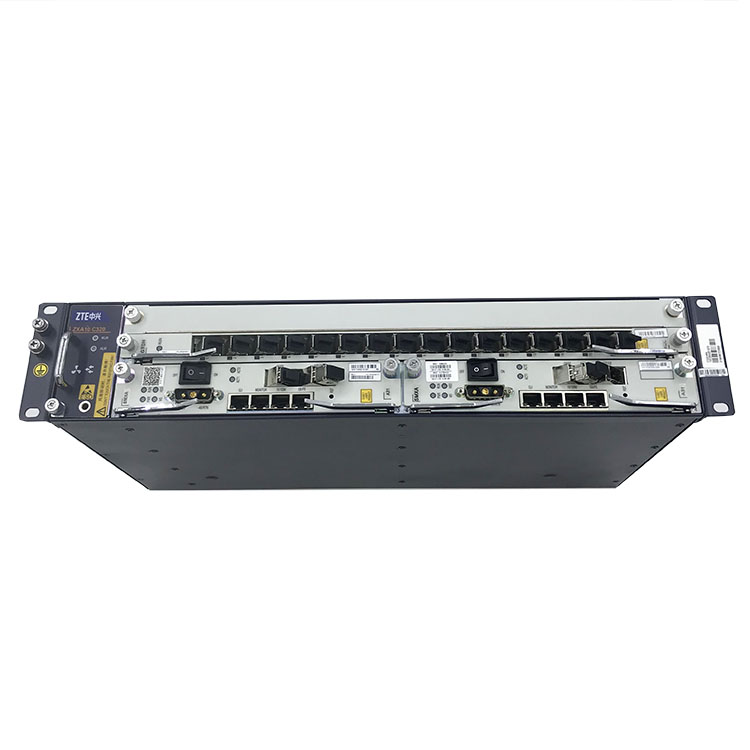

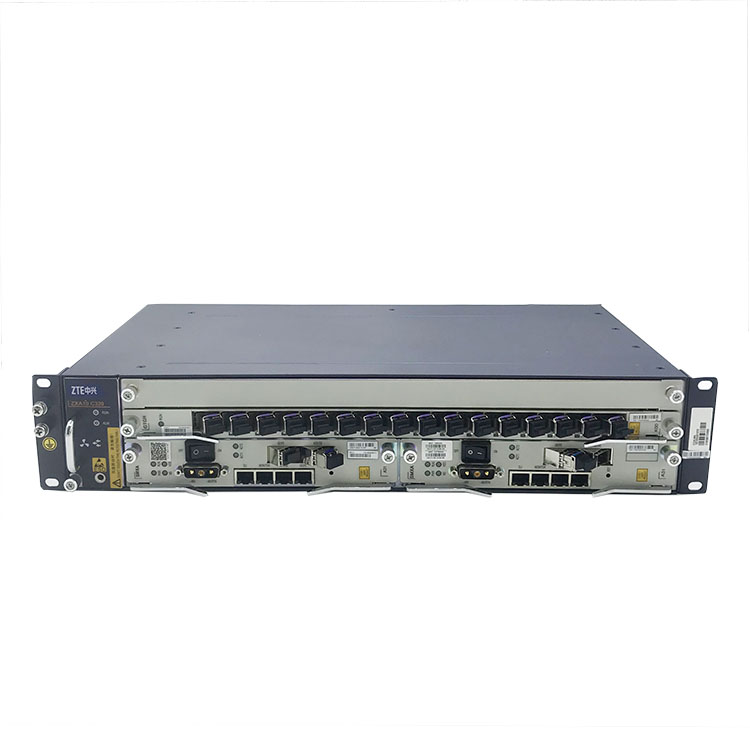

Product Description
![](http://s.alicdn.com/@sc04/kf/Hf00c4ba724214822b57f63207c41bfceE/267594387/Hf00c4ba724214822b57f63207c41bfceE.jpg?quality=close)
![](http://s.alicdn.com/@sc04/kf/H45941605856d41769d0809a8b6fd4feaf/267594387/H45941605856d41769d0809a8b6fd4feaf.jpg?quality=close)
![](http://s.alicdn.com/@sc04/kf/Hbc179e6c5a5d4de183346085452c901ds/267594387/Hbc179e6c5a5d4de183346085452c901ds.jpg?quality=close)
![](http://s.alicdn.com/@sc04/kf/H9ec948f866e14927a02a85697b8b4f25l/267594387/H9ec948f866e14927a02a85697b8b4f25l.jpg?quality=close)
![](http://s.alicdn.com/@sc04/kf/H0bc2c58671484333911ca329e0797355o/267594387/H0bc2c58671484333911ca329e0797355o.jpg?quality=close)
![](http://s.alicdn.com/@sc04/kf/Hf7eaf4f862764364b72578737cc1f40eS/267594387/Hf7eaf4f862764364b72578737cc1f40eS.jpg?quality=close)
![](http://s.alicdn.com/@sc04/kf/Hdced6eae166a44c6b49a0974e2fc04dfJ/267594387/Hdced6eae166a44c6b49a0974e2fc04dfJ.jpg?quality=close)
Specification
Brand
|
ZTE
|
Model
|
ZXA10 C320
|
Backplane capacity
|
420 Gbit/s
|
Switching capacity
|
84 Gbit/s
|
Number of service cards
|
2 (GPON/P2P/XG-PON1)
|
Number of combined control cards
|
2
|
Number of power supply cards
|
1
|
Number of uplink cards
|
1 (10GE/GE/FE/E1/T1)
|
Maximum number of GPON subscribers
|
4096
|
Management Interfaces
|
CLI, SSH, SNMP, telnet
|
Power
|
-48 V (DC), 230V (AC)
|
Working temperature and humidity
|
-25°C – +55°C, 5% – 95%
|
Split Ratio
|
up to 1:128
|
Range
|
20-60 km
|
Maximum attenuation
|
SFP B+ 28 dB, SFP C+ 32 dB
|
Dynamic Bandwidth Allocation
|
NSR-DBA, SR-DBA
|
Support
|
FEC, AES128, SCB, OLS
|
Dimensions
|
86.1 mm (height) x 482.6 mm (width) x 270 mm (depth)
|
Power Supply
|
Dual DC: 48V/60VAC: 100V~240V
|
Cabinet
|
Indoor: 2200mm x 600mm x 300mm standard cabinet Outdoor: EC90EB, EC70E
|

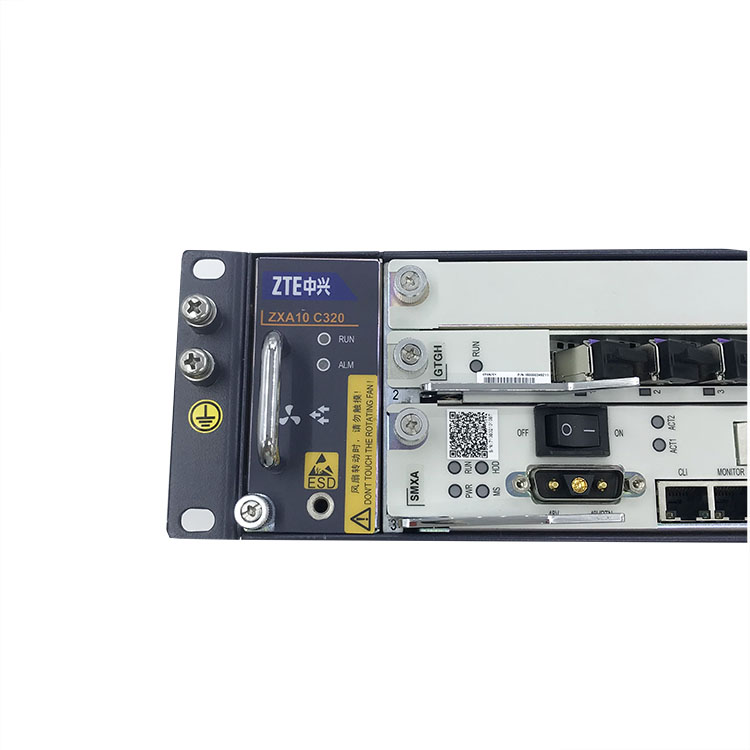

Main-Control Switching Card SMXA
|
Panel interfaces: 1*10GE/GE(optical)+1*GE/FE(Optical)+ 1*GE/FE(electrical) +1*serial port+ 1*management FE+ 1*environment
detecting port Ethernet uplink port: MAX. 2*10GE+4*GE or 6*GE |
Service Card (2 slots)
|
GTGO(8*GPON) /GTGH(16*GPON)/FTGK(48*P2P)/GTXO(8*XG-PON1)
|
ZTE ZXA10 C320 OLT Product Feature
* Flexible networking to adapt to multiple deployment scenarios
Long-distance wide coverage: support OLT sinking, long-distance remote installation, mobile bearer, out-of-band and other
non-dense access scenarios。suitable for optical access of user groups such as parks, communities, enterprises, townships and villages Multiple networking modes: flexible support for P2P. hand-in-hand, cascading, and ring networking, and other network requirements, rapid deployment of network and services
* Powerful performance for refined operations multicast function
ZTE C320 provides SCB and secondary multicast replication mechanism, perfect and fine and reliable user multicast control mechanism; Complete H-QoS control: ZTE C320 supports three-level hierarchical H-QoS control based on service provider, household and service, and meets the requirements of Open Access network; high-precision clock time synchronization: ZTE C320 provides IEEE High-precision time and clock synchronization methods such as 1588V2 and synchronous Ethernet.
* High reliability, providing a carrier-grade system and business security
Board protection: ZXA10 C320 main control switching, power supply and management work in active/standby or redundant mode; Link protection: optical line PON protection and uplink LACP, load sharing, Liu attribution, STP and ring network protection.
* Energy-saving and environmental protection
Energy-saving and low-power design: mining and new–generation chip, intelligent low-power design management in single-board machine, system power consumption monitoring, optical port ALS function, etc., the energy consumption of the same port is lower than that of large OLT 35%|above; Environmentally friendly lead-free materials: European COC, RoHS and other standard specifications and requirements.
* Flexible networking to adapt to multiple deployment scenarios
Long-distance wide coverage: support OLT sinking, long-distance remote installation, mobile bearer, out-of-band and other
non-dense access scenarios。suitable for optical access of user groups such as parks, communities, enterprises, townships and villages Multiple networking modes: flexible support for P2P. hand-in-hand, cascading, and ring networking, and other network requirements, rapid deployment of network and services
* Powerful performance for refined operations multicast function
ZTE C320 provides SCB and secondary multicast replication mechanism, perfect and fine and reliable user multicast control mechanism; Complete H-QoS control: ZTE C320 supports three-level hierarchical H-QoS control based on service provider, household and service, and meets the requirements of Open Access network; high-precision clock time synchronization: ZTE C320 provides IEEE High-precision time and clock synchronization methods such as 1588V2 and synchronous Ethernet.
* High reliability, providing a carrier-grade system and business security
Board protection: ZXA10 C320 main control switching, power supply and management work in active/standby or redundant mode; Link protection: optical line PON protection and uplink LACP, load sharing, Liu attribution, STP and ring network protection.
* Energy-saving and environmental protection
Energy-saving and low-power design: mining and new–generation chip, intelligent low-power design management in single-board machine, system power consumption monitoring, optical port ALS function, etc., the energy consumption of the same port is lower than that of large OLT 35%|above; Environmentally friendly lead-free materials: European COC, RoHS and other standard specifications and requirements.
Packing & Delivery
![](http://s.alicdn.com/@sc04/kf/Ha2a28e19d6de4261b0b1b0b63fc864422/267594387/Ha2a28e19d6de4261b0b1b0b63fc864422.png?quality=close)
![](http://s.alicdn.com/@sc04/kf/H3fbd3704f9ba4cd58d221f25dd576854J/267594387/H3fbd3704f9ba4cd58d221f25dd576854J.png?quality=close)
