- Model Number:ZTE F612 V6.0
- Type:ONU
- Place of Origin:Zhejiang, China, Hangzhou,China
- Brand Name:ZTE
- Use:FTTX
- Warranty Time:1 year
- Network:Wireless Lan, wifi, 4g
- Product name:GPON ONU
- Brand:ZTE
- Model:F612 V6.0
- Color:White
- Package:Box
- Warranty:1year
- Ports:1GE 1FE 1POTS
- Package WITH:1Pcs/Box, with Power Plug
- Compatible:Transition Networks
-
- Supply Ability
- 10000 Piece/Pieces per Month
-
- Packaging Details
box
-
- Port
Hangzhou
- Picture Example:
- Lead time:Quantity(pieces)1 – 1>1Lead time (days)7To be negotiated
Product Description

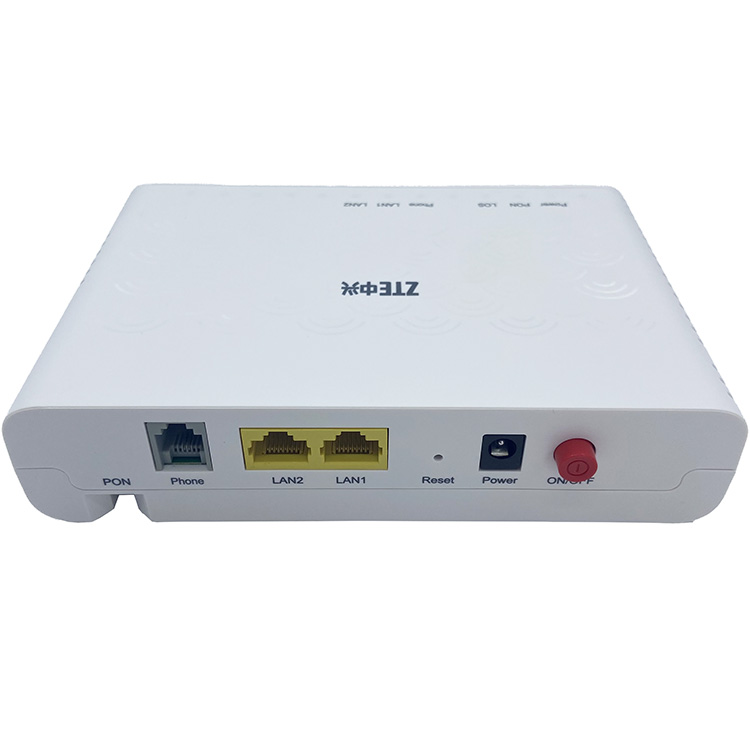

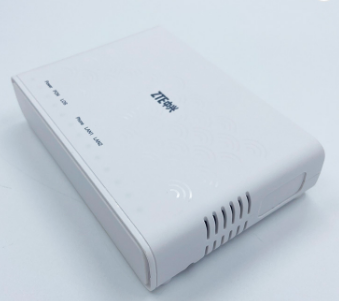

F612 is an GPON Optical Network Terminal designed for SFU (Single Family Unit) used in FTTH scenario. It provides subscriber with rich, colorful, individualized, convenient and comfortable triple-play services including video (IPTV), voice, wireless access,convenient network storage services and high speed internet access. It has a small, smart appearance and green, Energy-saving advantage. Using TR069 and OAM protocol, O&M cost can be reduced effectively by supporting remote service provisioning,intelligent fault diagnosis and performance statistic functions。
Product details
Application
Specification
|
Technical items
|
Descriptions
|
|
Model
|
F612
|
|

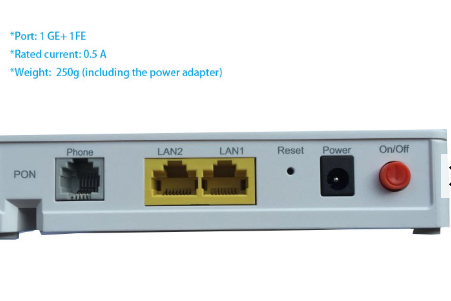

Out Port contains
|
1GE+1FE+1TEL
|
|
WIFI signal
|
NO
|
|
Wireless gain
|
NO
|
|
USB
|
NO
|
|
LAN
|
1*10/100Mbps adaptive Ethernet ports, full/half duplex, RJ45 interface
|
|
TEL
|
H248/Sip Voice protocol
|
|
PPPOE
|
support
|
|
Firmware
|
English
|
|
Dimension/weight
|
135mm*110mm*30mm/170g
|
|
Fiber port
|
1 GPON interface, ingle-fiber, Downstream rate 2.5Gbps, Upstream rate 1.25Gbps
|
|
Wavelength
|
Tx 1310nm, Rx 1490nm
|
|
Fiber interface
|
SC/FC-UPC/APC Dual mode/Singal mode
|
|
RX sensitivity
|
>-28dBm (1490nm)
|
|
DC power
|
12V 1A, external AC-DC power adapter
|
|
Button
|
Reset, power,LIGHT
|
|
Operation
|
Working temperature: -5- +55℃ working humidity:10-90%(non-condensation)
|
|
Storage
|
Storage temperature: -30℃- +60℃ storage humidity: 10-90%(non-condensation)
|
