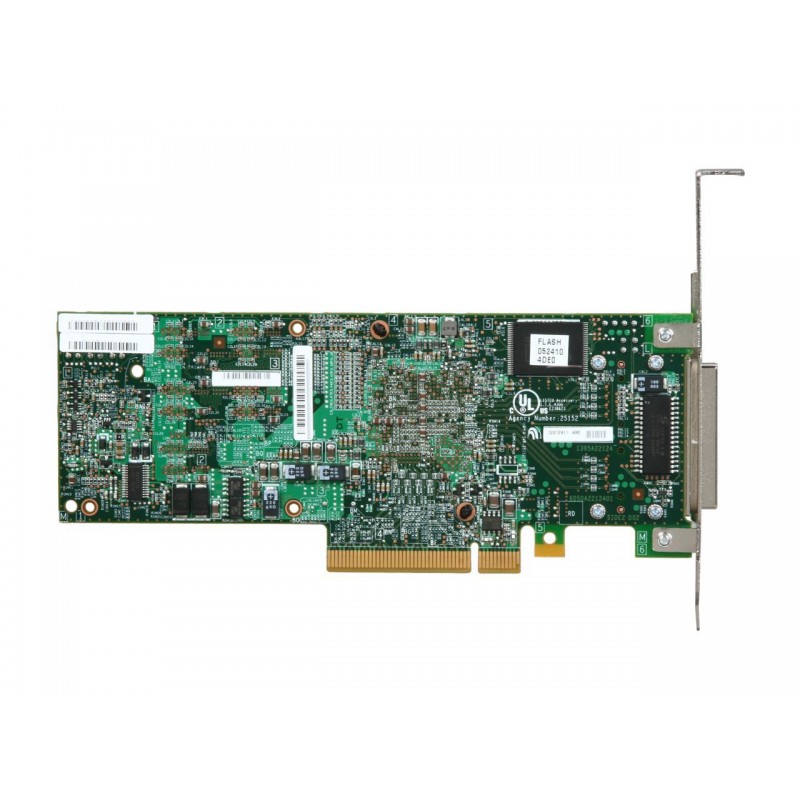

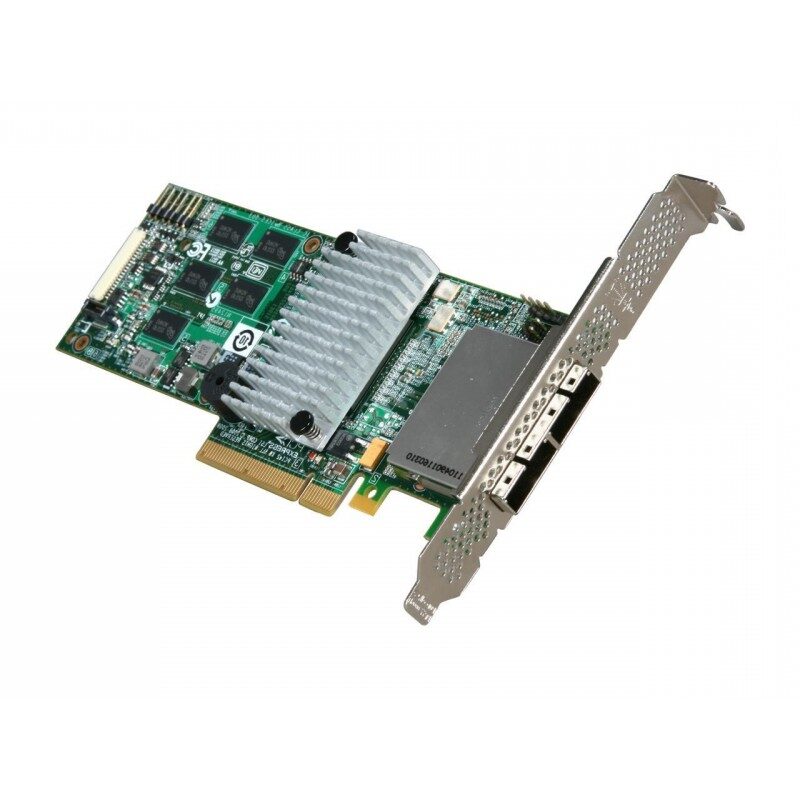

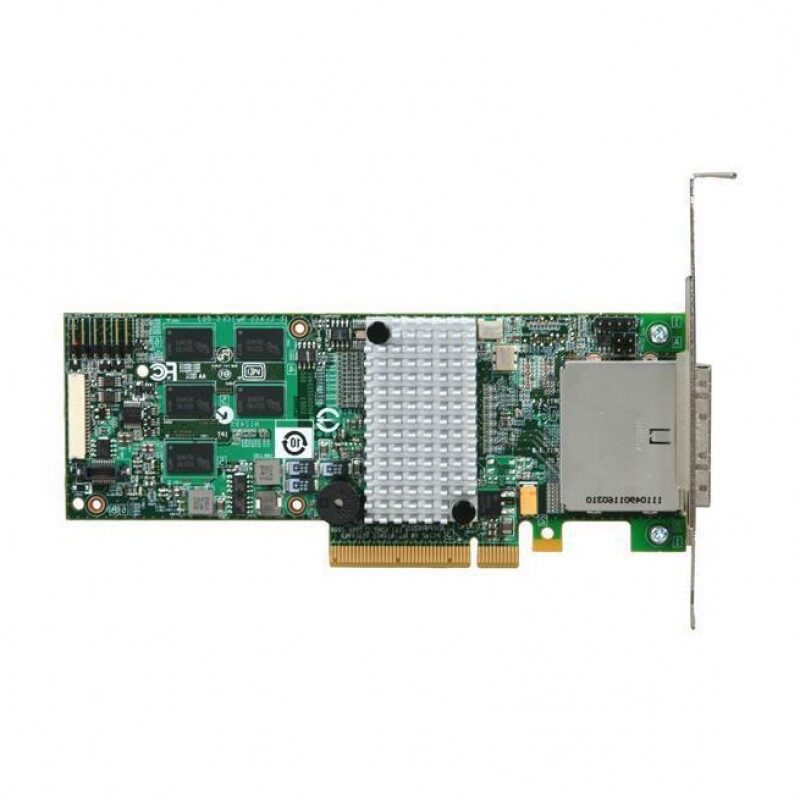

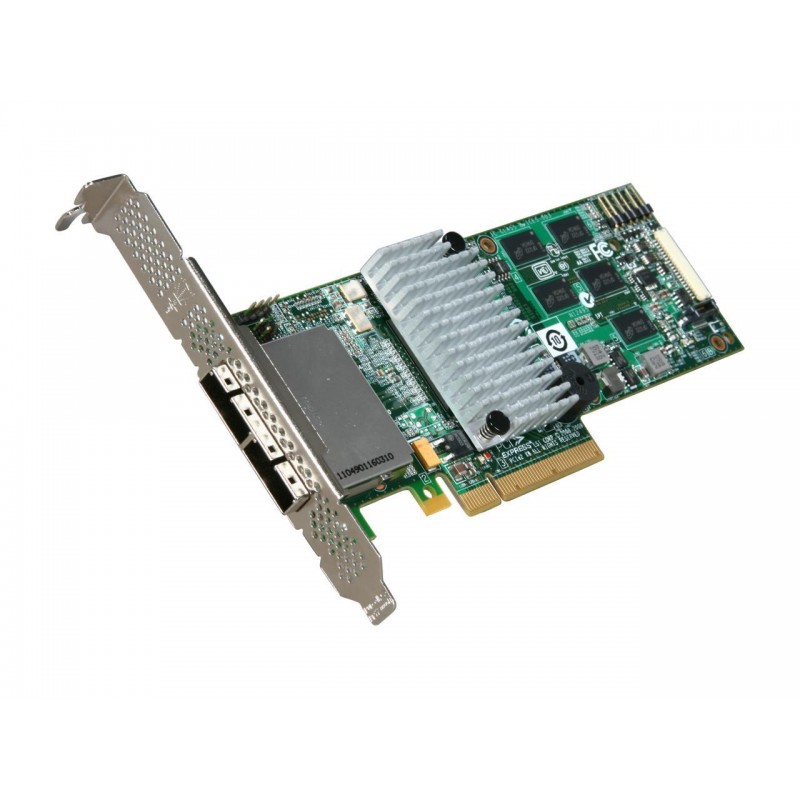

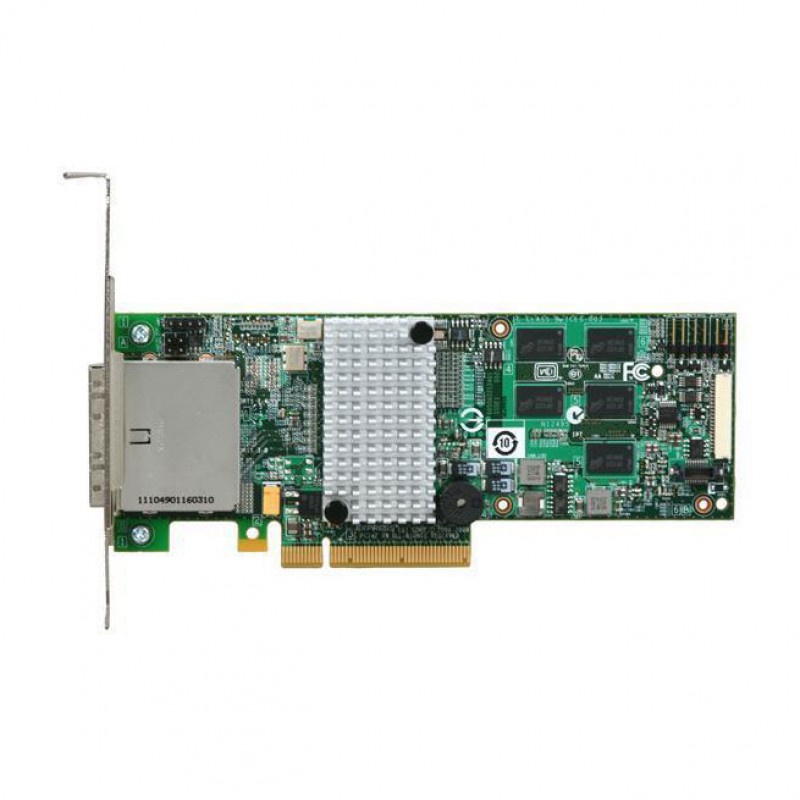

Broadcom 3ware 9750-8e LSI00243 RAID Controller Card
The Broadcom 3ware 9750-8e (Part Number: LSI00243) is an enterprise-class external RAID controller featuring 8 external ports with 6Gb/s SATA and SAS support. Designed for external storage enclosures, this controller delivers robust RAID performance, enterprise reliability, and scalable expansion—ideal for high-performance applications such as video streaming, data centers, and backup systems.
Key Features of Broadcom 3ware 9750-8e
-
• 8 External Ports
Two Mini-SAS SFF-8088 connectors supporting up to 256 SATA/SAS drives via expander -
• PCI Express 2.0 x8 Interface
High-bandwidth interface for reliable, fast throughput -
• 6Gb/s SAS + SATA Support
Compatible with both enterprise SAS and consumer SATA drives -
• RAID Levels 0, 1, 5, 6, 10, 50
Flexible RAID configurations to meet performance and protection needs -
• 512MB DDR2 Onboard Cache
Improves performance for transactional and sequential workloads -
• 3ware StreamFusion+™ Technology
Optimized for video streaming, media storage, and high I/O applications -
• Online RAID Level Migration & Capacity Expansion
Enables non-disruptive upgrades and expansions -
• 3ware Management Tools (3DM2, CLI, SNMP)
Full-featured GUI and command-line management options -
• Optional Battery Backup Unit (BBU)
Protects data in cache during unexpected power loss
Technical Specifications
| Specification | Details |
|---|---|
| Model | 3ware 9750-8e |
| Part Number | LSI00243 |
| Interface | PCIe 2.0 x8 |
| Ports | 8 external (2x Mini-SAS SFF-8088) |
| Drive Support | SATA/SAS 6Gb/s |
| RAID Levels | 0, 1, 5, 6, 10, 50 |
| Cache Memory | 512MB DDR2 onboard |
| Form Factor | Low-profile (includes full and low brackets) |
| Max Drives (via expander) | Up to 256 |
| Operating Systems | Windows, Linux, VMware, FreeBSD |
| Management Software | 3DM2 Web GUI, CLI, SNMP, Email Alerts |
Ideal Use Cases Broadcom 3ware 9750-8e
-
• External JBOD Enclosures
Offers scalable, reliable storage for data growth -
• Backup & Archival Solutions
Ensures data protection and easy expansion for large archives -
• Media Servers & Surveillance Systems
Delivers smooth video performance and multiple stream support -
• Enterprise Data Centers
Reliable, high-speed connectivity for mission-critical storage
Why Choose the 3ware 9750-8e?
The 3ware 9750-8e gives you enterprise-grade performance and flexibility in a compact, powerful RAID controller. With 8 external ports, advanced RAID options, and support for a massive number of drives, it’s the perfect choice for organizations that require high-speed, scalable, and reliable external storage.
