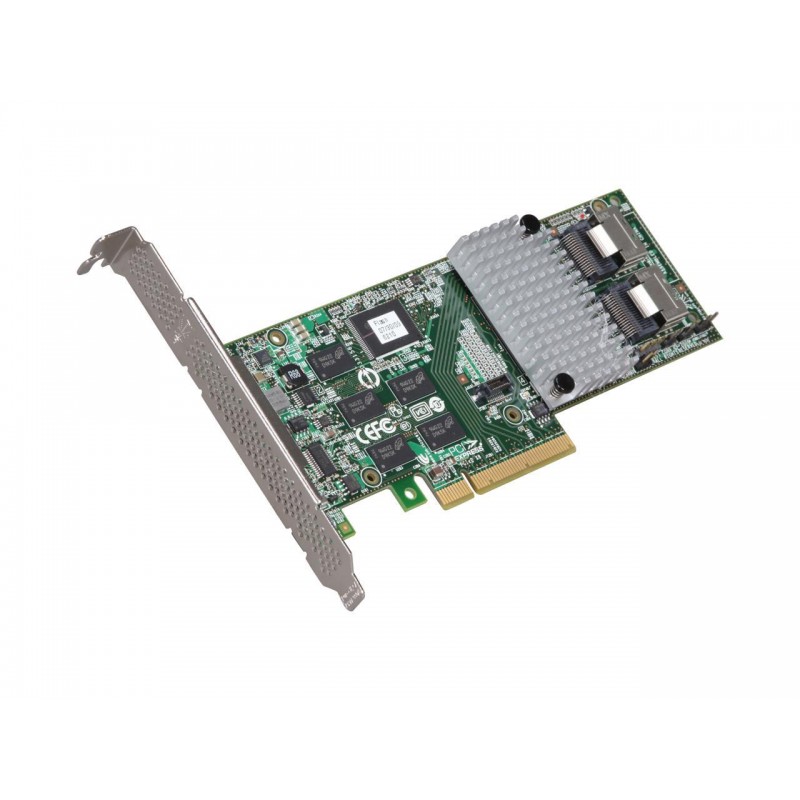

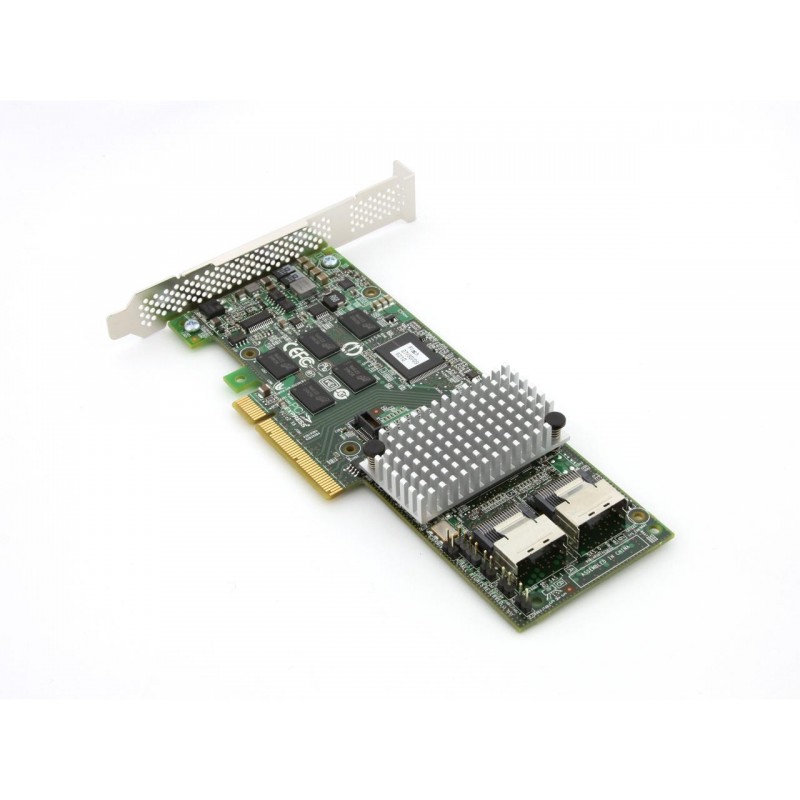

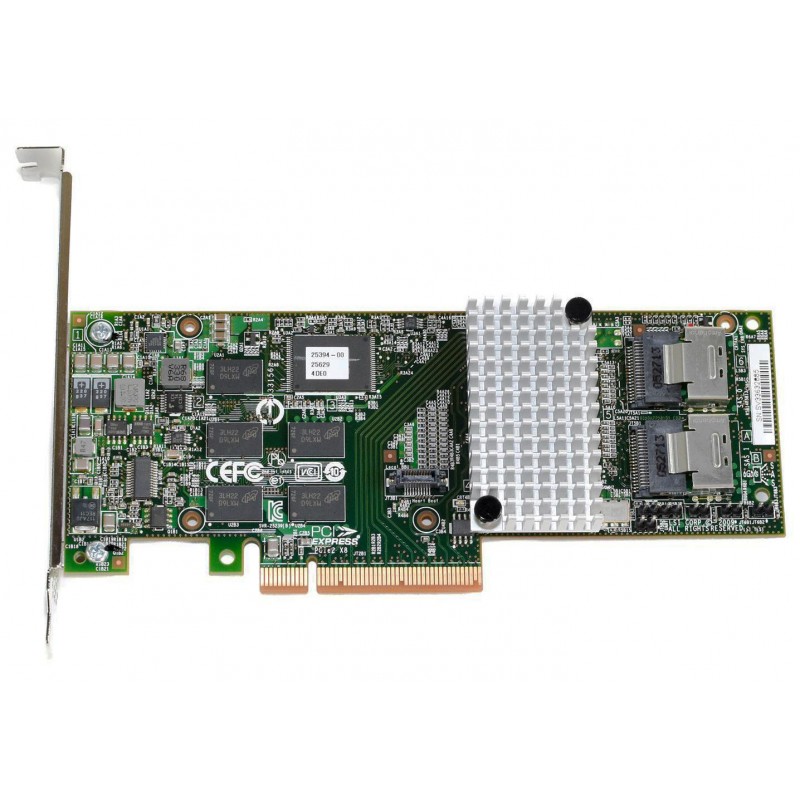

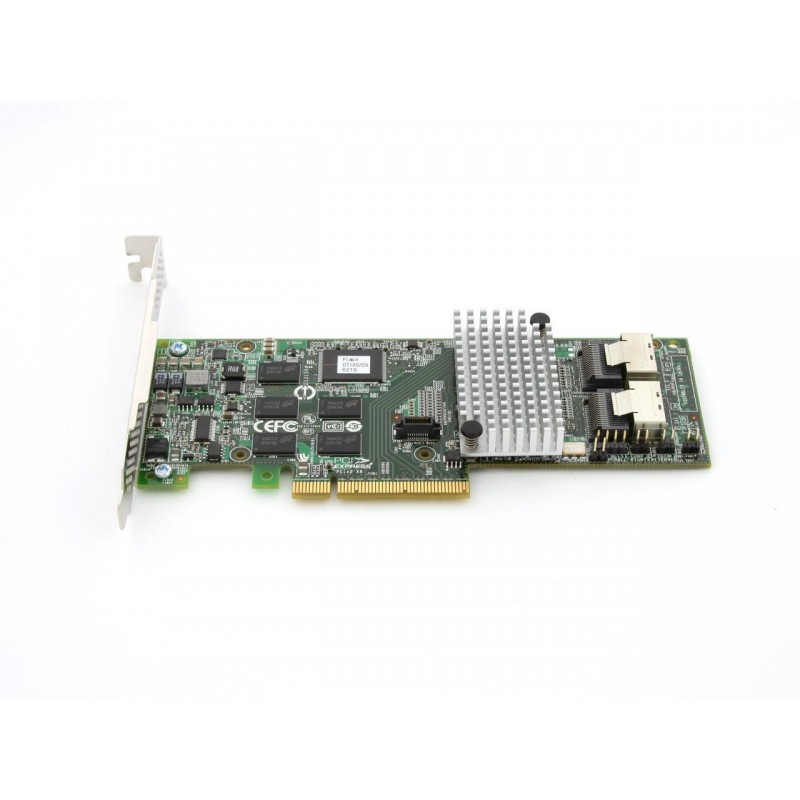

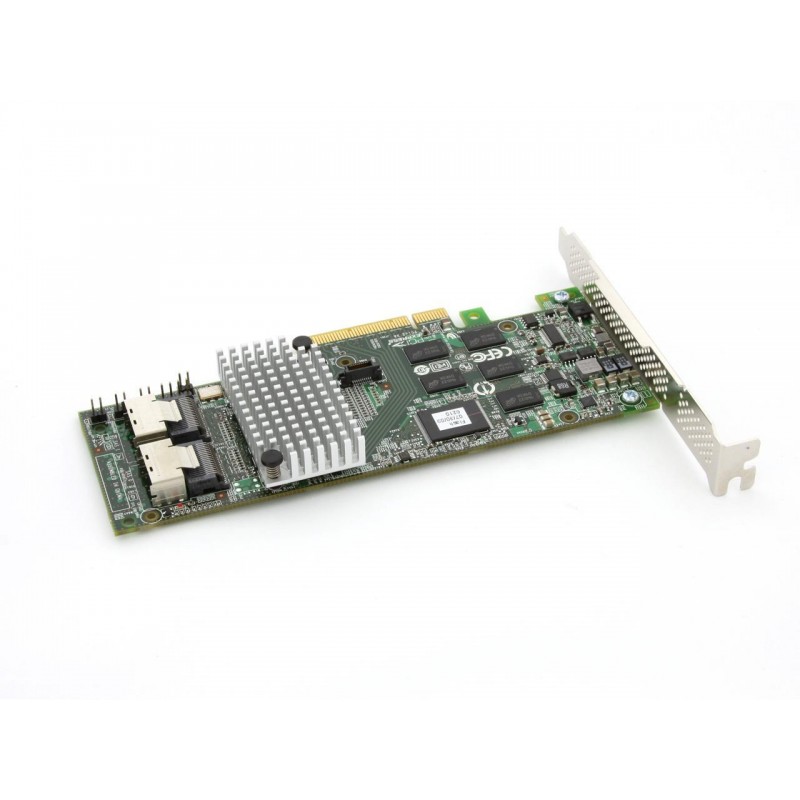

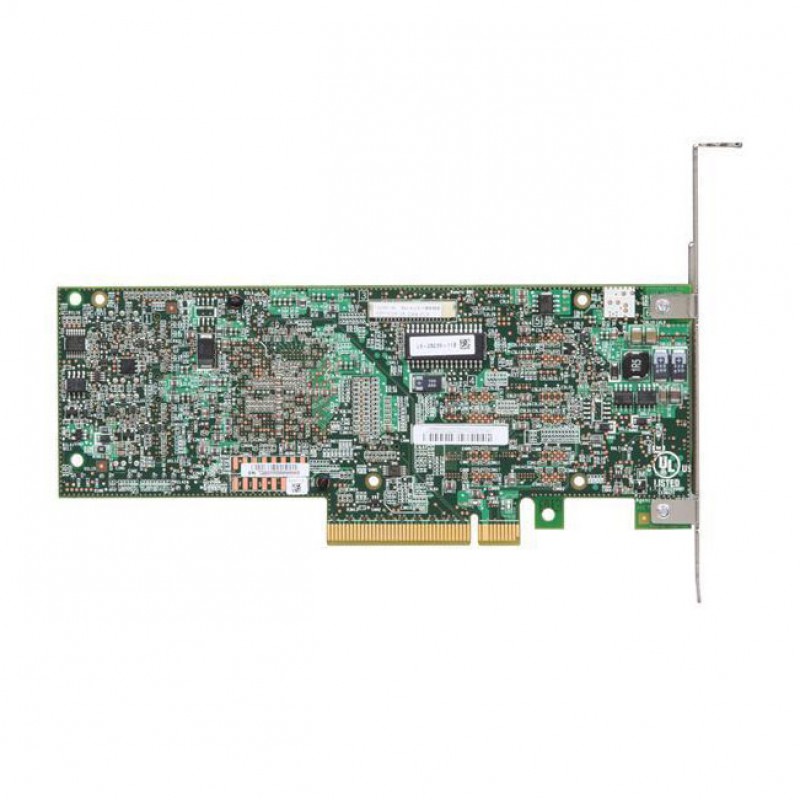

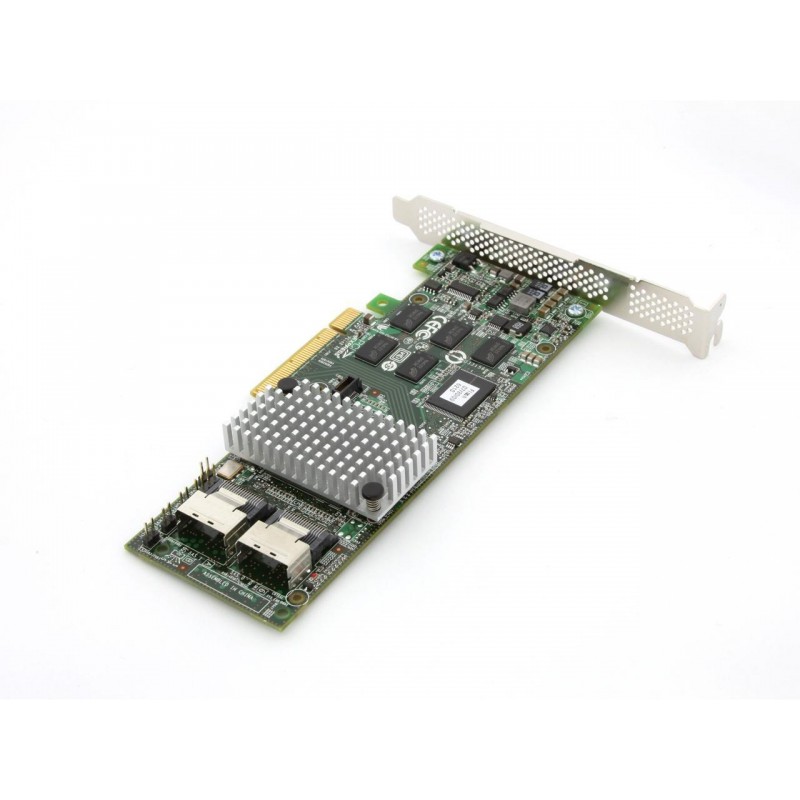

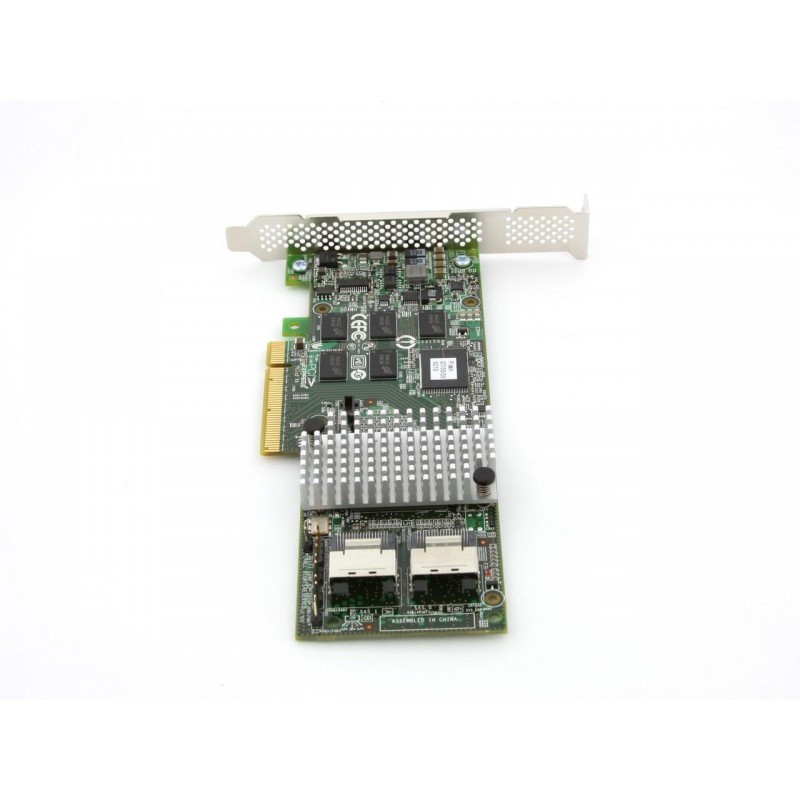

Broadcom 3ware 9750-8i LSI00214 RAID Controller Card
The Broadcom 3ware 9750-8i (Part Number: LSI00214) is a high-performance hardware RAID controller designed for internal direct-attached storage solutions. Featuring 8 internal ports via two Mini-SAS SFF-8087 connectors, this card supports 6Gb/s SATA and SAS drives and offers comprehensive RAID levels to meet demanding data protection and performance needs. Built on Broadcom’s trusted 3ware RAID-on-Chip architecture, it delivers outstanding reliability and scalability for servers, workstations, and storage appliances.
Broadcom 3ware 9750-8i Key Features
-
• 8 Internal Ports
Supports up to eight SATA/SAS drives via 2x Mini-SAS SFF-8087 connectors -
• RAID Levels 0, 1, 5, 6, 10, 50
Offers advanced protection and performance customization -
• PCI Express 2.0 x8 Interface
Ensures fast data throughput and broad platform compatibility -
• 6Gb/s SAS + SATA Interface
Seamless integration with enterprise-grade and consumer drives -
• 512MB Onboard DDR2 Cache
Enhances performance for write-intensive operations -
• StreamFusion+ Technology
Optimized I/O for video streaming, surveillance, and media storage -
• 3ware Storage Management Suite (3SMS)
User-friendly web-based GUI and CLI for setup, monitoring, and management -
• Online RAID Level Migration & Capacity Expansion
Upgrade and grow storage without downtime -
• Optional Battery Backup Unit (BBU)
Protects cached data in case of power failure
Technical Specifications
| Specification | Details |
|---|---|
| Model | 3ware 9750-8i |
| Part Number | LSI00214 |
| Interface | PCIe 2.0 x8 |
| Ports | 8 internal (2x Mini-SAS SFF-8087) |
| Drive Support | SATA/SAS 6Gb/s |
| RAID Levels | 0, 1, 5, 6, 10, 50 |
| Cache Memory | 512MB DDR2 onboard |
| Form Factor | Low-profile (brackets included) |
| Max Drives (Direct Attach) | 8 |
| OS Compatibility | Windows, Linux, VMware, FreeBSD |
| Management Tools | 3DM2 Web GUI, CLI, SNMP, Email Alerts |
Ideal Use Cases
-
• Mid-range Servers
Ensures redundancy and speed for SMB and enterprise data environments -
• High-Capacity NAS and Storage Arrays
Ideal for storage expansion and scalable RAID solutions -
• Media & Surveillance Systems
Optimized for sequential workloads and multiple stream recordings -
• Data Centers
Efficient internal storage management with reliable RAID performance
Why Choose the 3ware 9750-8i?
The 3ware 9750-8i RAID controller balances speed, reliability, and flexibility in a compact design. Supporting a wide range of RAID levels and up to 8 drives, it’s a solid choice for users building robust internal storage with data protection and high availability in mind. Powered by Broadcom’s trusted technology, it’s built to last and scale with your storage needs.
