SFP CR5D0L6XFE70 Huawei

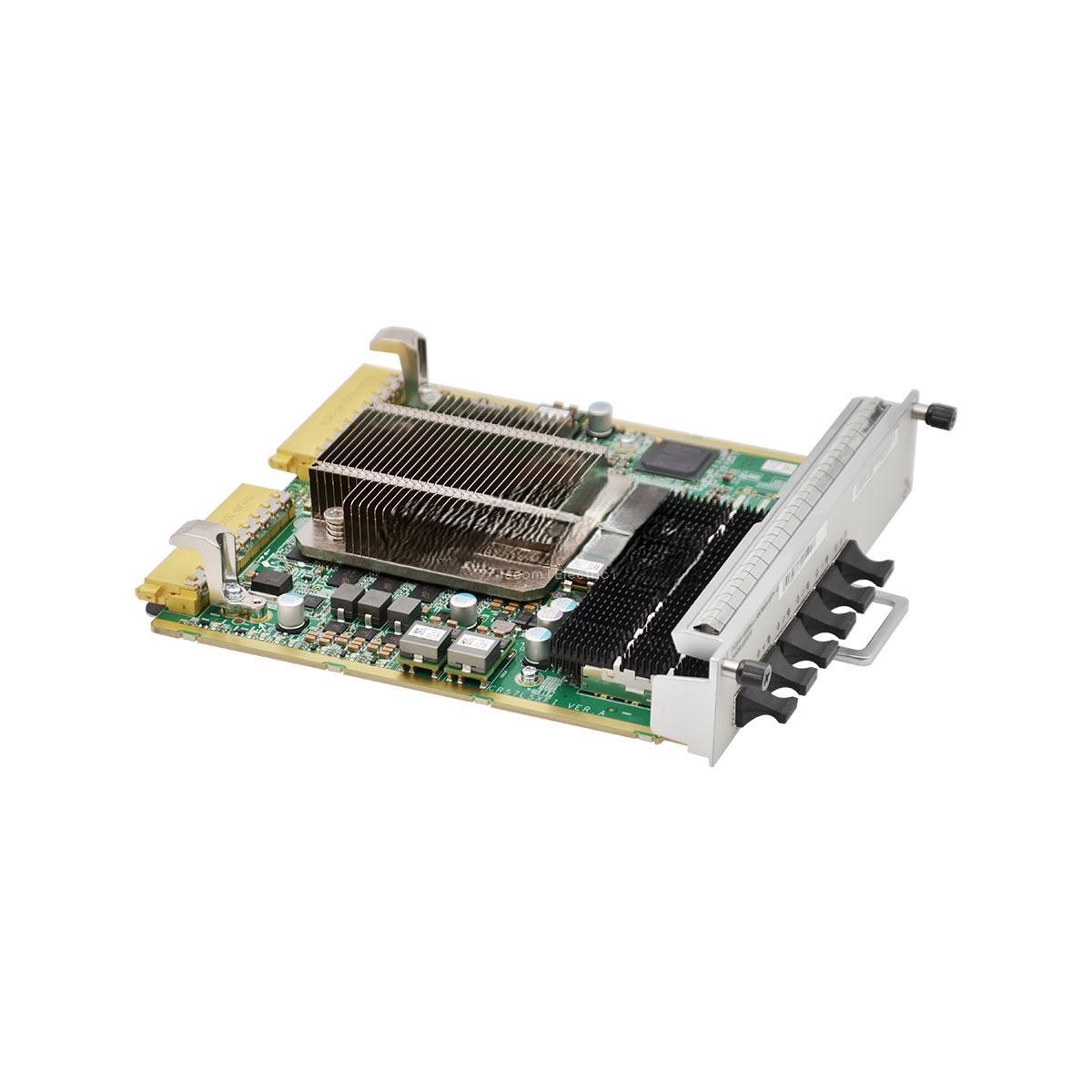

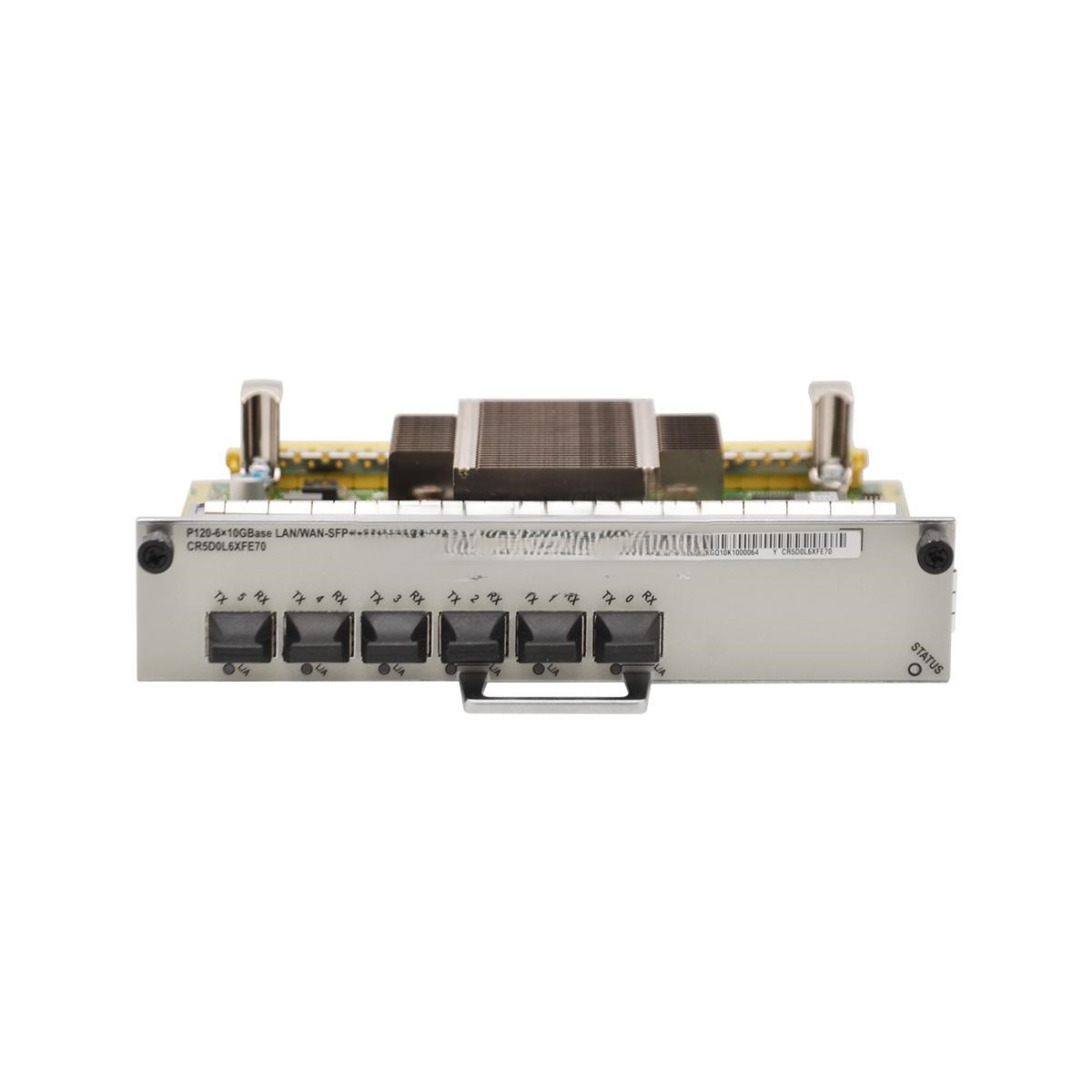

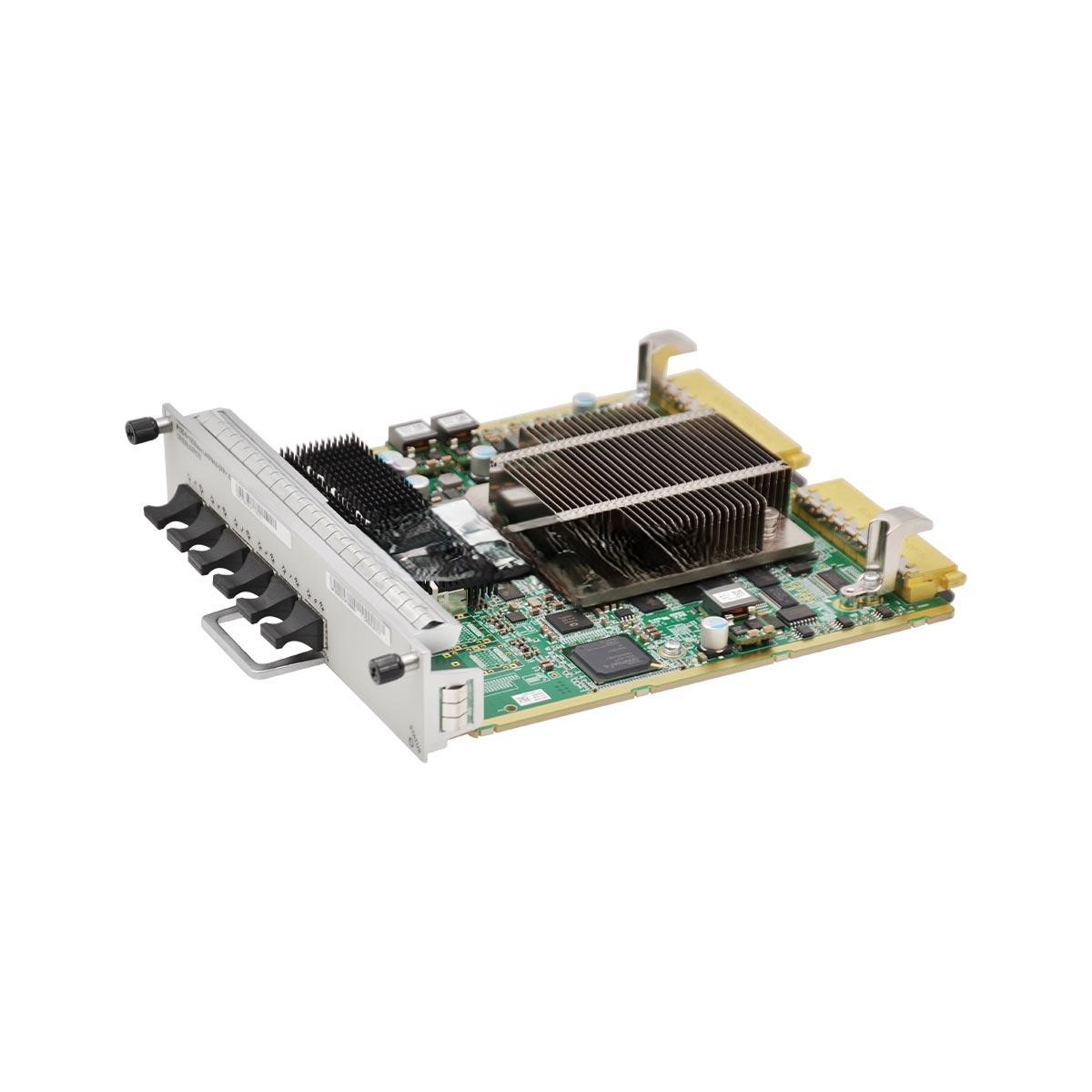

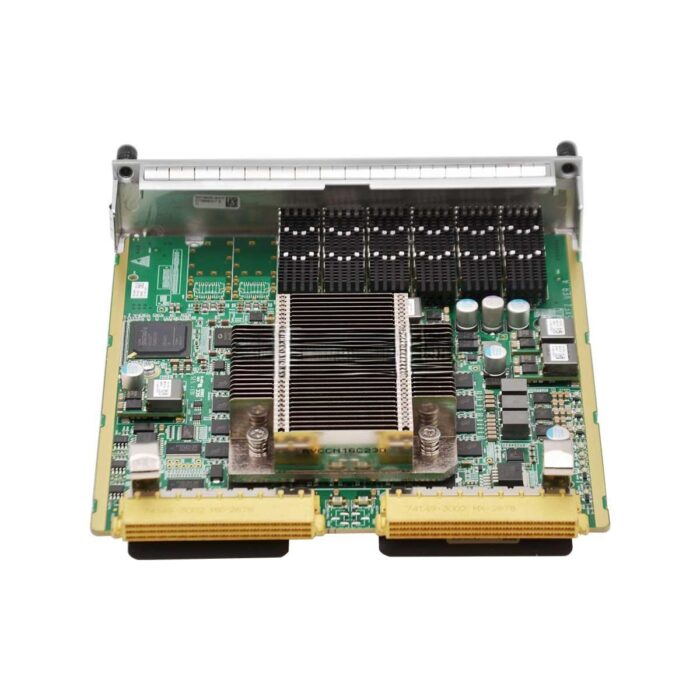

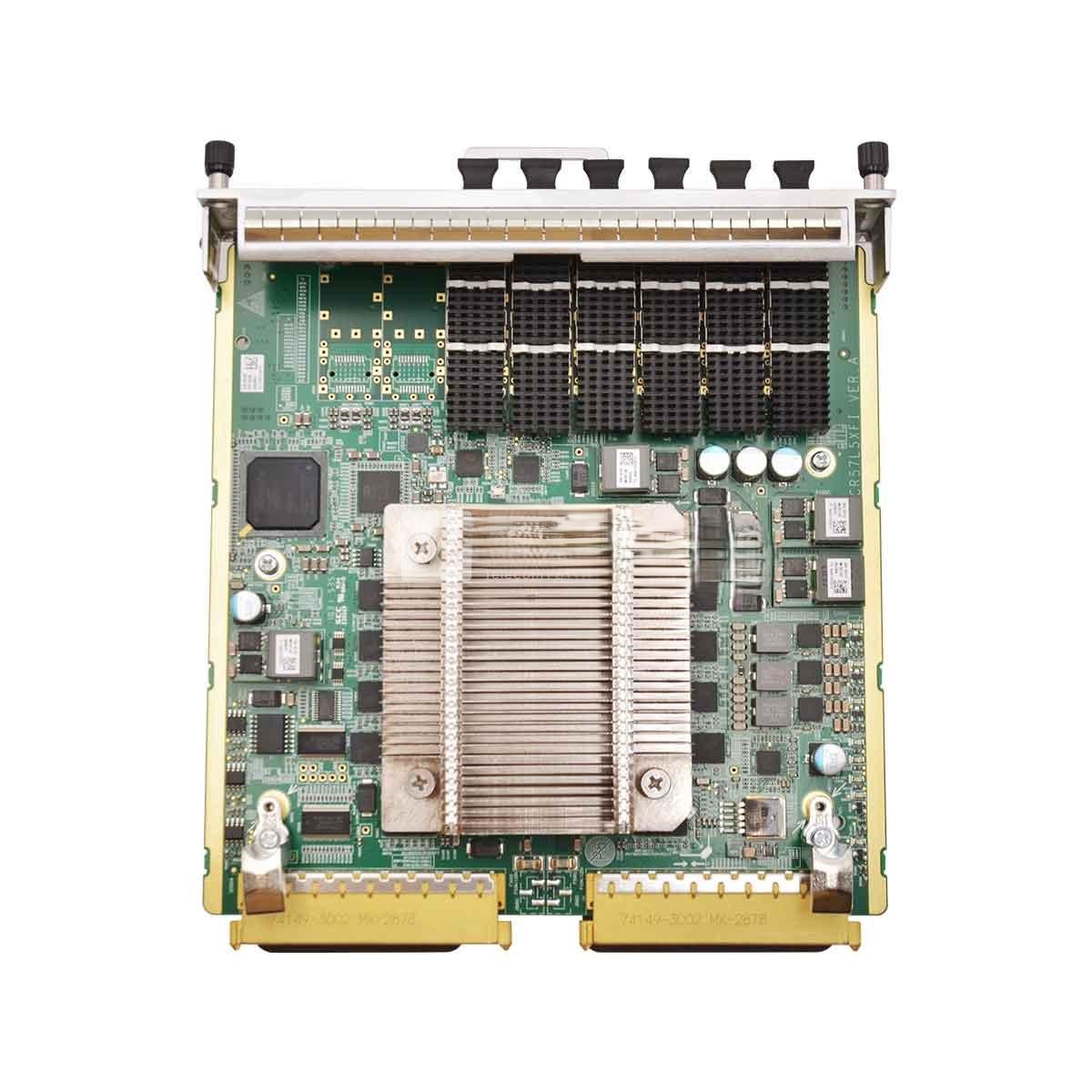

The Huawei CR5D0L6XFE70 is a 6-Port 10GBase LAN/WAN-SFP+ Flexible Card designed for Huawei’s NE40E series routers, offering high-speed connectivity and flexible deployment options.
- 6-Port 10GBase LAN/WAN-SFP+ Flexible Card E(P120-E)
- The ports can be configured to work in LAN or WAN mode.
- Huawei CR5D0L6XFE70, a 6-Port 10GBase LAN/WAN-SFP+ Flexible Card applied to Huawei NE40E, occupies one 1/2-width flexible card slot.
Functional Features
-
Flexible Deployment: Supports both LAN and WAN configurations, providing versatility in network design.
-
High-Speed Connectivity: Enables line-rate transmission and reception at 10 Gbps per port.
-
Hot Swappable: Allows for maintenance without disrupting ongoing operations.
-
Clock Mode Restrictions: In WAN mode, interfaces operate only in master clock mode and do not support slave clock mode.
-
Module Compatibility: Not compatible with 10G DWDM optical modules (BOM number: 02314MED).
-
Breakout and Auto-Sensing: Does not support breakout configurations or auto-sensing of interface rates.
Application Scenarios
-
Enterprise Networks: Ideal for providing high-speed uplinks and interconnects within enterprise infrastructures.
-
Data Centers: Suitable for aggregation and distribution layers, ensuring efficient data flow.
-
Service Providers: Facilitates scalable and reliable connectivity solutions for service providers.
Basic Information
CR5D0L6XFE70 Huawei |
|
| Part Number | 03032KGQ |
| Description | 6-Port 10GBase LAN/WAN-SFP+ Flexible Card E(P120-E) |
| Card type | Flexible Board |
| Level-1 category | P120 |
| Silkscreen | P120-6x10GBase LAN/WAN-SFP+ -E |
| Technical Specifications | |
| Dimensions without packaging (H x W x D) [mm] | 37.2 mm x 178.7 mm x 193.3 mm |
| Weight without packaging [kg] | 1.0 kg |
| Typical power consumption [W] | 67 W |
| Typical heat dissipation [BTU/hour] | 217.2 BTU/hour |
| Long-term operating temperature [°C(°F)] | 0°C to 45°C (32°F to 113°F) |
| Short-term operating temperature [°C(°F)] | –5°C to +55°C (23°F to 131°F) |
| Functions and Features | |
| Basic function | Provides six 10GE interfaces for line-rate transmitting and receiving. |
| Reliability and availability | Hot swappable. |
| Restrictions and remarks | When a 10G interface works in WAN mode, it can work only in master clock mode and does not support the slave clock mode. |
| This board does not support 10G DWDM optical modules (BOM number: 02314MED). | |
| Breakout supported | No |
| Interface rate auto-sensing supported | No |
| FlexE supported | No |
| Weight | 1.1 kg |
|---|---|
| Dimensions | 19.3 × 17.9 × 3.7 cm |
| Port | 1-10 |
