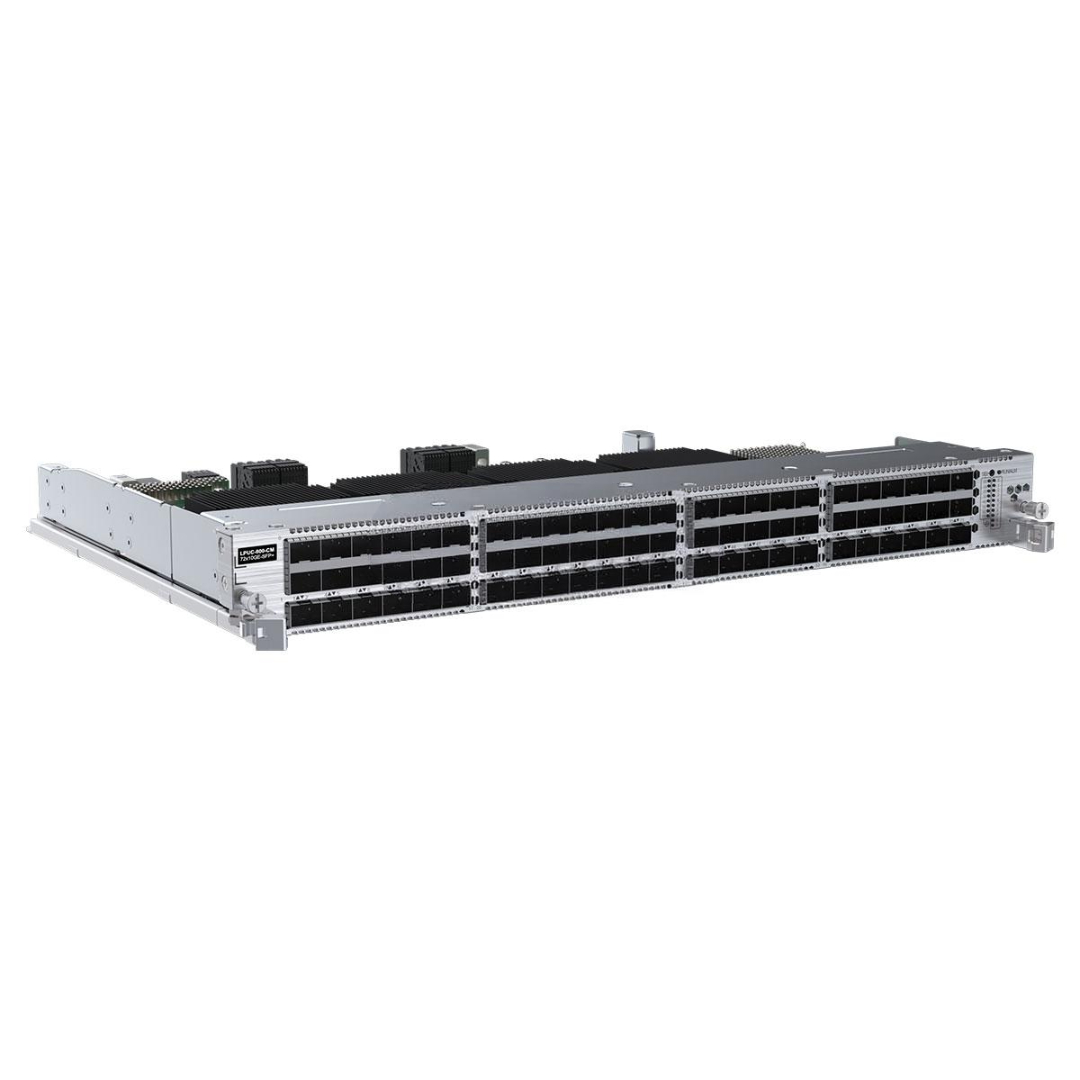

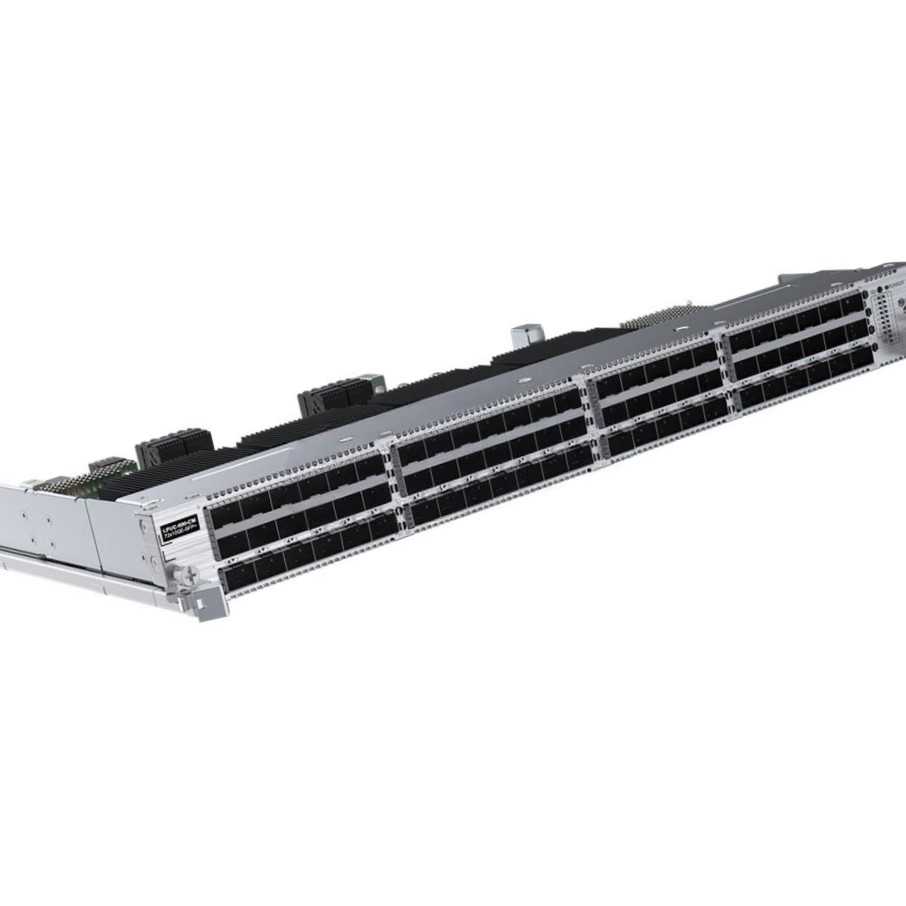

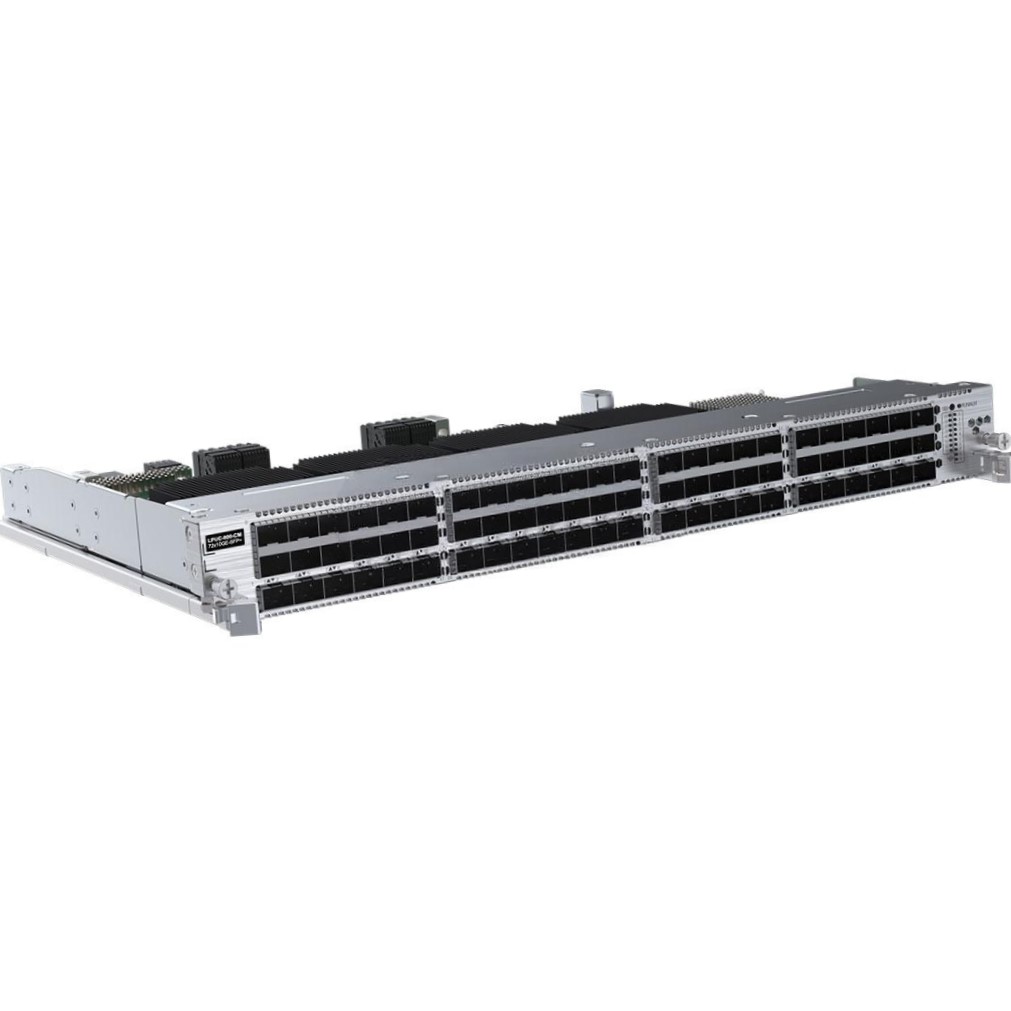

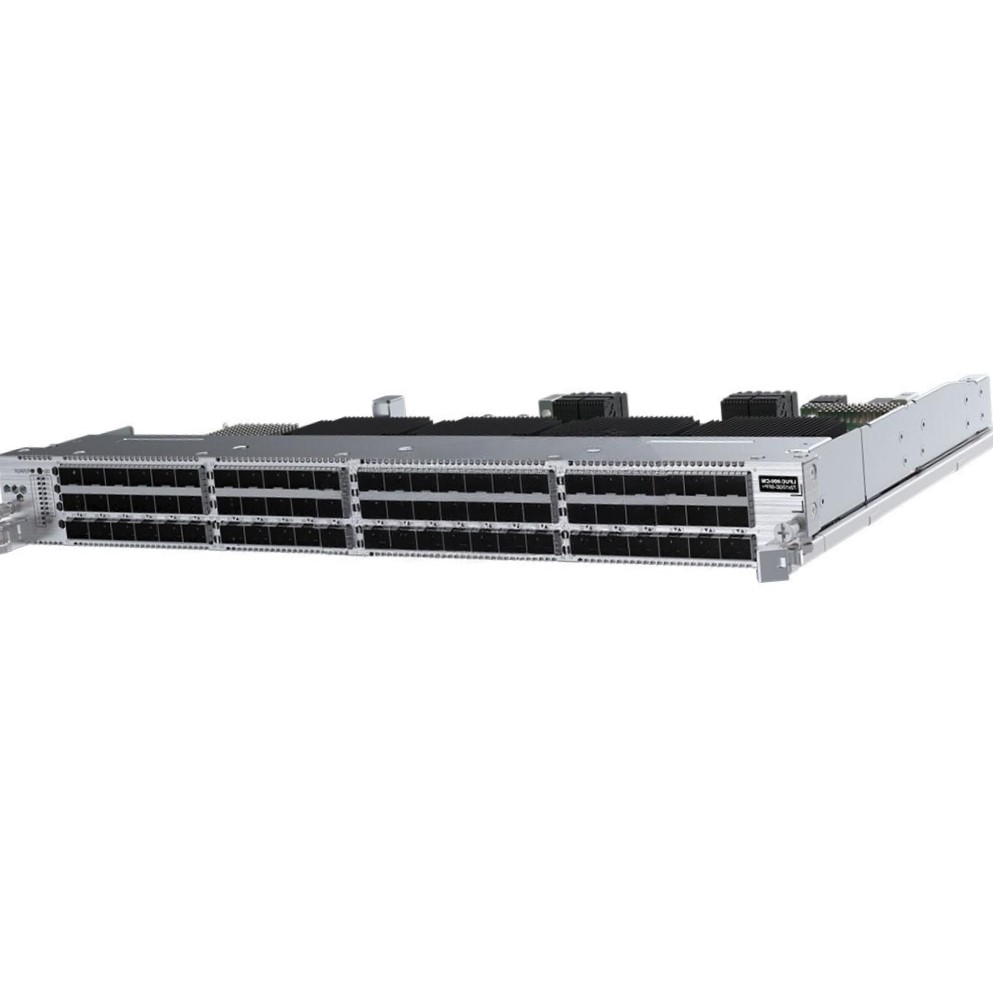

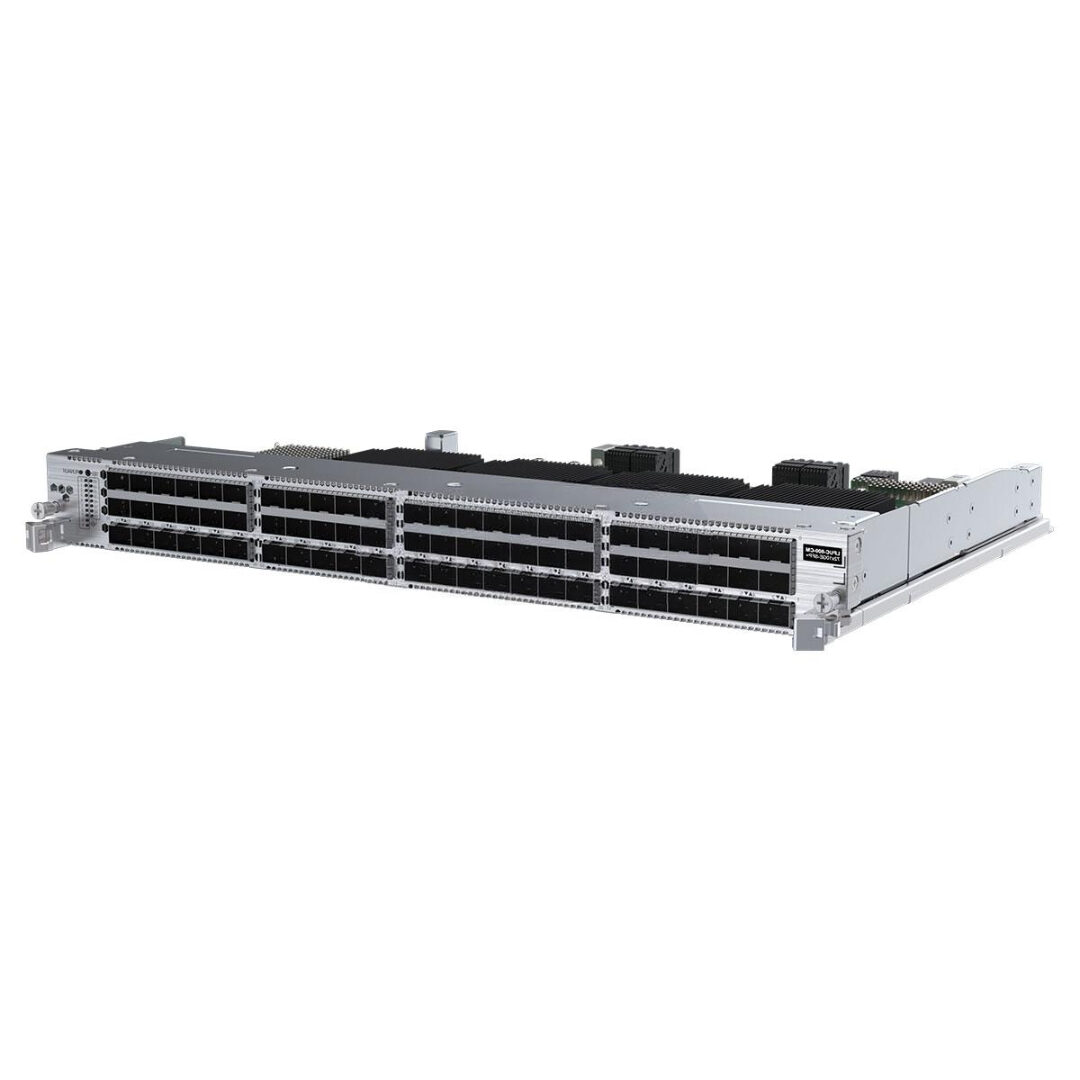

CR8DERXFMSF0 Huawei Description:
The CR8DERXFMSF0 Huawei is a brand new, original Huawei Combined Line Processing Unit, purpose-built for high-performance backbone routers and data center core network equipment. It integrates advanced packet forwarding and processing capabilities, ensuring that large-scale data flows are handled with ultra-low latency and high reliability.
Designed for Huawei’s high-end routing and switching platforms, the CR8DERXFMSF0 delivers superior service processing, line rate forwarding, and intelligent traffic management. It helps carriers, data centers, and large enterprises build scalable, resilient networks ready for modern high-bandwidth services such as cloud interconnection, video streaming, and IoT traffic aggregation.
Key Features:
-
Model: CR8DERXFMSF0
-
Condition: 100% Brand New, Original Huawei
-
Type: Combined Line Processing Unit
-
Functions: Integrates line card and processing capabilities for efficient forwarding
-
Performance: Supports large-scale routing tables and high-bandwidth data forwarding
-
Reliability: Carrier-class design with robust redundancy and failover mechanisms
-
Hot Swappable: Enables service continuity with minimal downtime during upgrades
-
Compatibility: Fully compatible with designated Huawei routing & switching series
-
Flexibility: Supports a variety of service interfaces and protocols for complex deployments
Tech Specs:
| Item | Details |
|---|---|
| Basic function | The line side of the card provides 72 10GE/GE interfaces for line-rate transmitting and receiving, and the interfaces support SFP+/SFP optical modules. Supports MACsec. |
| Reliability and availability | Hot swappable |
| Restrictions and remarks | 1. Only one row of ports supports electrical modules. For example, if you install an electrical module on port 1, you are advised not to use port 0/2 in the same row. Otherwise, interference in removing and inserting modules may occur. 2. Ports starting from port 0 are divided into five groups. The first four groups each contain 15 ports, and the fifth group contains 12 ports. Each group can be divided into four sub-groups (the number of ports in each sub-group of the first four groups is 4, 4, 4, and 3, and that in the fifth group is 4, 4, and 4. That is, the ports are like this: 4/4/4/3/4/4/4/3/4/4/4/3/4/4/4/3/4/4/4. Ports in each sub-group need to switch their LAN/WAN mode at the same time. 3. A fiber extractor is required to remove and insert optical fibers. |
| Breakout supported | No |
| Interface rate auto-sensing | Supports GE/10GE auto-sensing. |
| FlexE supported | No |
Physical Specifications
| Item | Details |
|---|---|
| Dimensions (H×W×D) | 190 mm × 590 mm × 470 mm |
| Weight with packaging | 7.1 kg |
| Typical power consumption | 236 W |
| Typical heat dissipation | 765.6 BTU/hour |
| Long-term operating temperature | 0°C to 45°C (32°F to 113°F) |
| Short-term operating temperature | –5°C to +55°C (23°F to 131°F) |
CR8DERXFMSF0 Huawei Applications:
The CR8DERXFMSF0 is ideal for:
-
Backbone routers in carrier-grade core networks
-
High-capacity data center interconnections
-
Large enterprise or campus core and aggregation layers
-
Multi-service edge routing scenarios
-
ISP and telecom network expansions and upgrades
Customization & OEM Services:
We provide tailored solutions and OEM support for partners and large-scale projects:
-
Pre-configuration to your specific network architecture
-
OEM branding and labeling for integrators and resellers
-
Custom packaging to meet deployment needs and reduce logistics costs
-
Additional burn-in and stress testing for mission-critical environments
-
Technical consulting and integration support for smooth rollout
CR8DERXFMSF0 Huawei Wholesale & Bulk Orders:
Leverage our bulk supply capabilities and wholesale pricing:
-
Factory-direct pricing with attractive discounts on volume orders
-
Reliable stock and on-time delivery for project deadlines
-
Export-compliant, secure packaging for global shipping
-
Dedicated account managers for smooth procurement
-
Full warranty and after-sales technical support for peace of mind
Why Choose Us:
-
100% genuine Huawei hardware with factory certification
-
Flexible supply options to match your unique network needs
-
Competitive pricing and efficient worldwide logistics
-
Safe, secure packaging for high-value equipment
-
Expert technical support from pre-sales through post-deployment
Contact Us for a Quote:
Upgrade your network infrastructure with the CR8DERXFMSF0 Huawei Brand New Combined Line Processing Unit. Contact us now for detailed specifications, customization services, and competitive wholesale pricing.
We’re ready to help you build a powerful, reliable network with trusted Huawei solutions.
