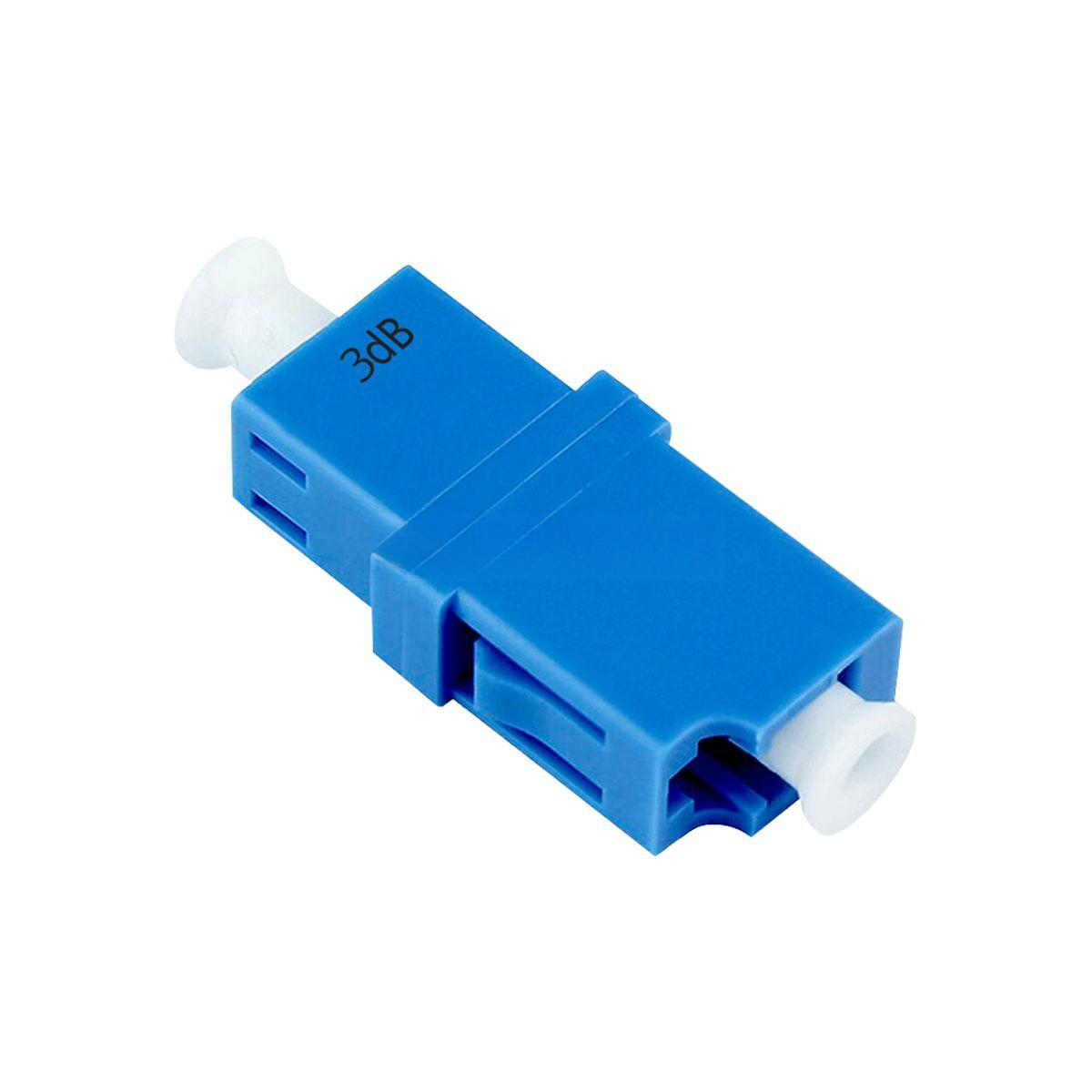

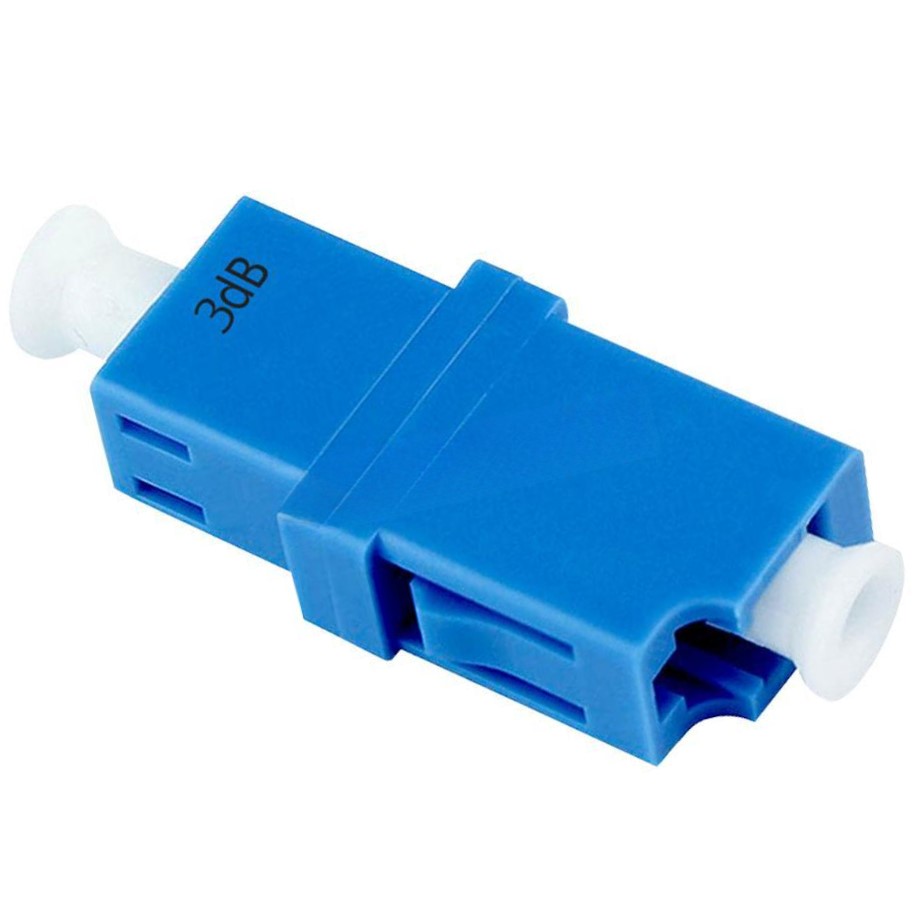

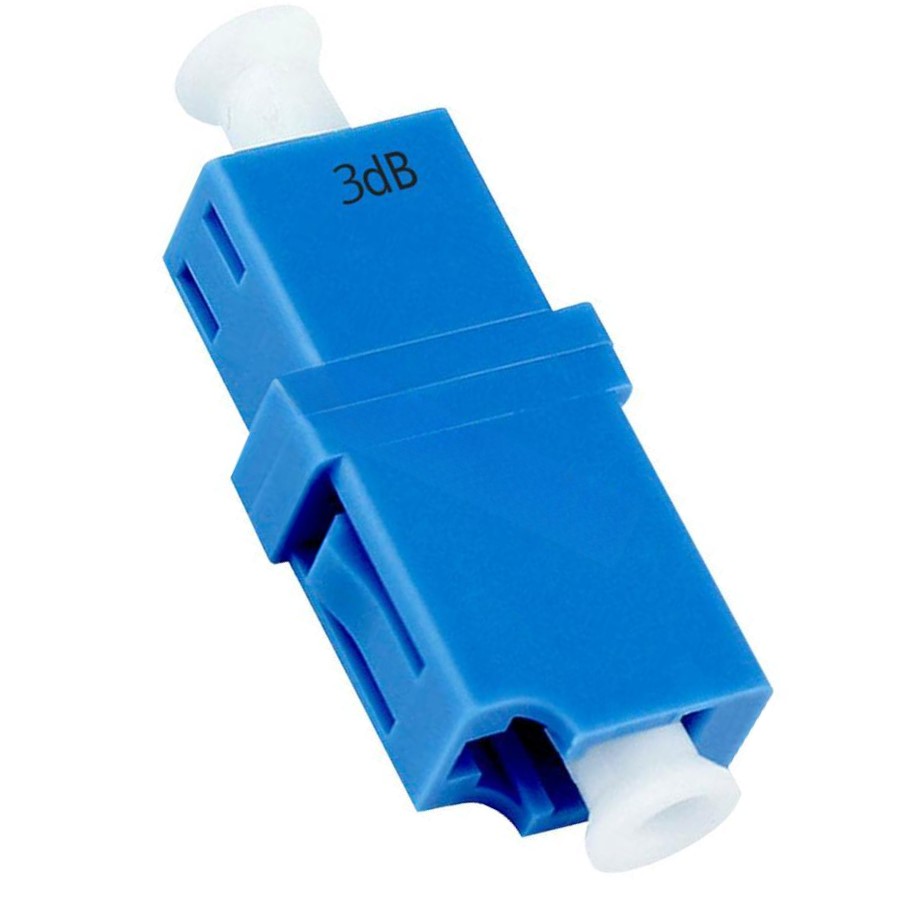

LC/UPC 3dB Fixed Fiber Optical Attenuator – Female-to-Female | Branded New
Product Overview
The LC/UPC 3dB Female Fixed Fiber Optical Attenuator is a precision passive optical component used to reduce signal strength by a fixed value of 3 decibels (dB) in single mode fiber optic networks. Designed with LC/UPC female-to-female connectors, this attenuator ensures excellent return loss and low insertion loss, making it ideal for high-performance systems that require controlled signal attenuation.
This branded, high-quality device is widely used in FTTx, CATV, telecommunication backbones, data centers, and test environments where exact optical signal calibration is essential.
Key Features of LC/UPC 3dB Female
-
✅ Attenuation Level: 3dB ± 0.5dB accuracy
-
✅ Connector Type: LC/UPC Female-to-Female
-
✅ Fiber Type: Singlemode (SM) 9/125μm
-
✅ Polish Type: UPC (Ultra Physical Contact)
-
✅ Operating Wavelength: 1260nm – 1650nm
-
✅ Low Insertion Loss: ≤ 0.4dB
-
✅ High Return Loss: ≥ 50dB
-
✅ Material: Durable metal alloy with corrosion-resistant finish
-
✅ Condition: 100% Brand New, Branded Packaging
LC/UPC 3dB Female Technical Specifications
| Specification | Details |
|---|---|
| Attenuation Value | 3dB ± 0.5dB |
| Connector Type | LC/UPC (Female-to-Female) |
| Fiber Mode | Singlemode (9/125µm) |
| Operating Wavelength | 1260nm to 1650nm |
| Return Loss | ≥ 50dB |
| Insertion Loss | ≤ 0.4dB |
| Operating Temperature | -40°C to +85°C |
| Durability | > 1000 mating cycles |
| Compliance | RoHS, CE, ISO9001 Certified |
LC/UPC 3dB Female Applications
-
🔧 Optical Signal Balancing in Telecom Networks
-
🧪 Lab Testing & Instrument Calibration
-
🌐 FTTH and FTTx Infrastructure
-
📡 DWDM/CWDM Networks
-
🏢 Enterprise LAN and Backbone Systems
-
📺 CATV System Signal Conditioning
Customization Options
We offer flexible solutions to meet specific project or OEM requirements:
-
Available Attenuation Levels: 1dB to 30dB
-
Connector Types: SC/APC, SC/UPC, LC/APC, LC/UPC, FC/APC, FC/UPC
-
Color Coding: Custom color sleeves for easy identification
-
Logo Branding: OEM label, laser engraving, or barcode tagging
-
Field Packs: Installer kits with multiple attenuation levels
-
Packaging: Blister packs, zip bags, or bulk trays per request
Let us know your specific needs — we provide tailor-made options for OEM and network partners.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | LC/UPC 3dB Female-Female Fixed Fiber Optical Attenuator |
| Fiber Connector | LC/UPC |
| Connector Gender | Female-Female |
| Transfer Mode | Singlemode |
| Material | Ceramic |
| Operating Wavelength | 1200 nm – 1600 nm |
| Attenuation | 3 dB |
| Attenuation Accuracy | ±10% dB |
| Return Loss | > 20 dB |
| Interchangeability | ≤ 0.20 dB |
| Repeatability | ≤ 0.10 dB |
| Reliability | > 1000 plug cycles |
| Operating Temperature Range | -40°C ~ +80°C |
| Storage Temperature Range | -40°C ~ +85°C |
| Vibration | Amplitude: 1.52 mm Frequency: 10 Hz – 55 Hz |
Additional Information
| Attribute | Value |
|---|---|
| Weight | 0.0 kg (placeholder) |
| Dimensions | 0.0 × 0.0 × 0.0 cm (placeholder) |
| Connector Type | LC |
| Attenuation | 3 dB |
Wholesale & Bulk Supply Benefits
Perfect for ISPs, system integrators, distributors, and telecom vendors, we support:
-
📦 Factory Pricing & Tiered Discounts for Volume Orders
-
📦 MOQ Flexibility & Fast Turnaround
-
📦 Global Shipping with Export Documentation
-
📦 Pre-Bundled Kits for Project Rollouts
-
📦 Dedicated B2B Sales Support for Tenders and Long-Term Contracts
Why Choose Our LC/UPC 3dB Female?
-
✔️ Precision Attenuation – Guaranteed Accuracy
-
✔️ Stable Performance Across All Standard Wavelengths
-
✔️ High Reliability and Long Service Life
-
✔️ Fully Compatible with All Standard LC/UPC Interfaces
-
✔️ Tested and Certified to International Standards
Order Now
Enhance your fiber network with our LC/UPC 3dB Fixed Fiber Optical Attenuator — designed for reliable signal control, professional calibration, and durable field performance. Available now with OEM branding, custom packaging, and bulk supply options.
