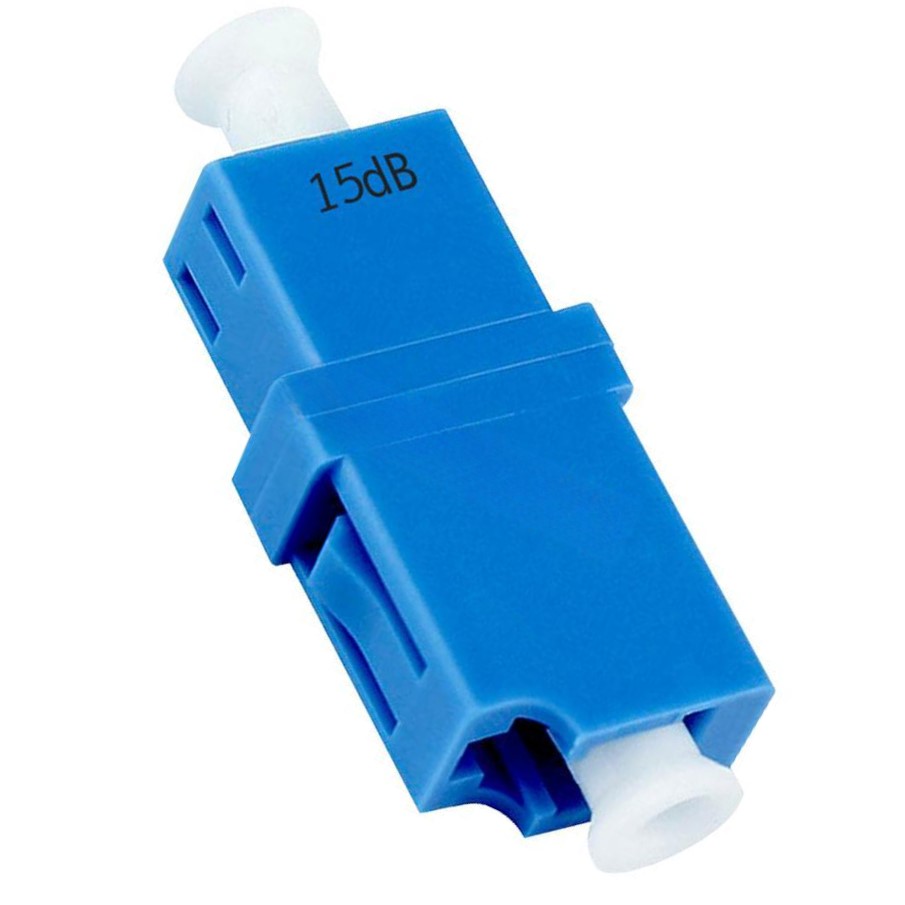

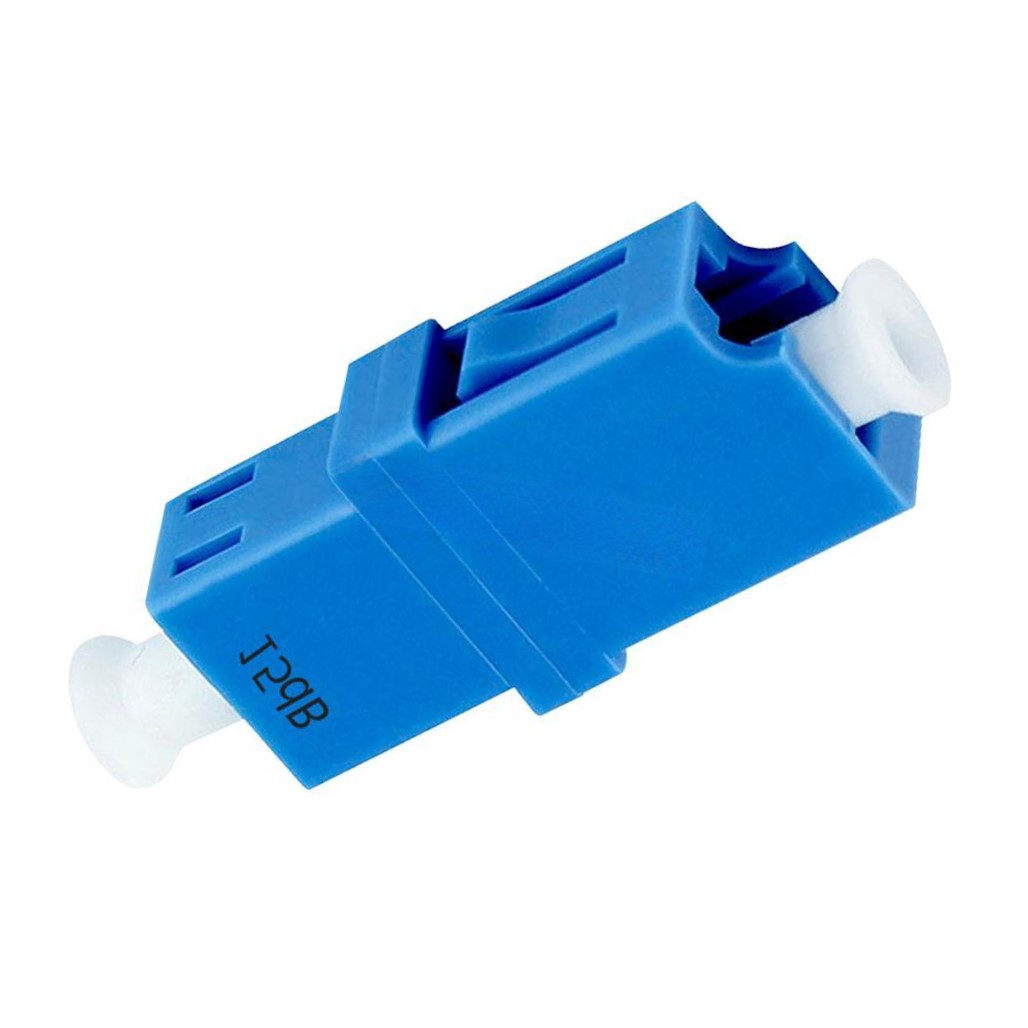

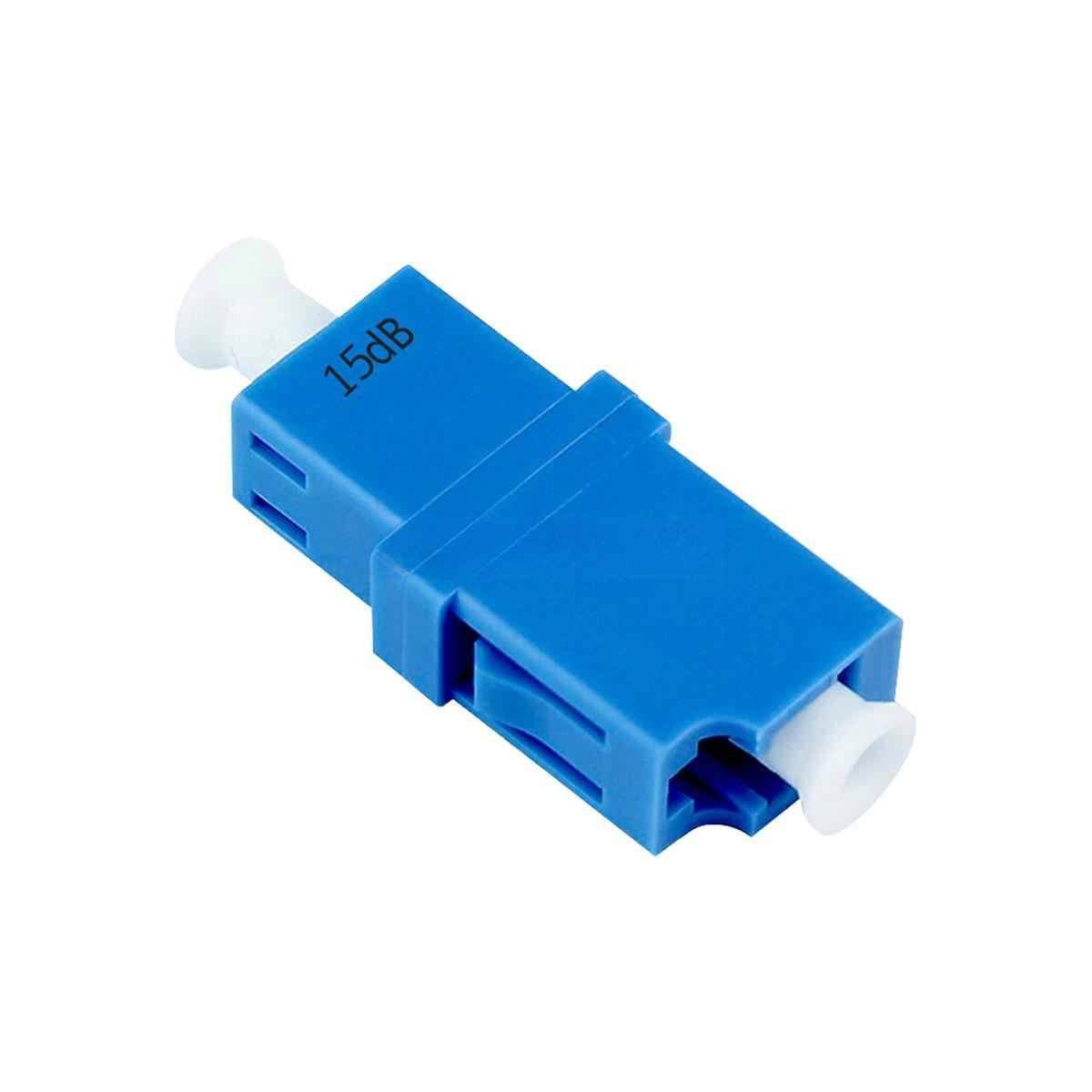

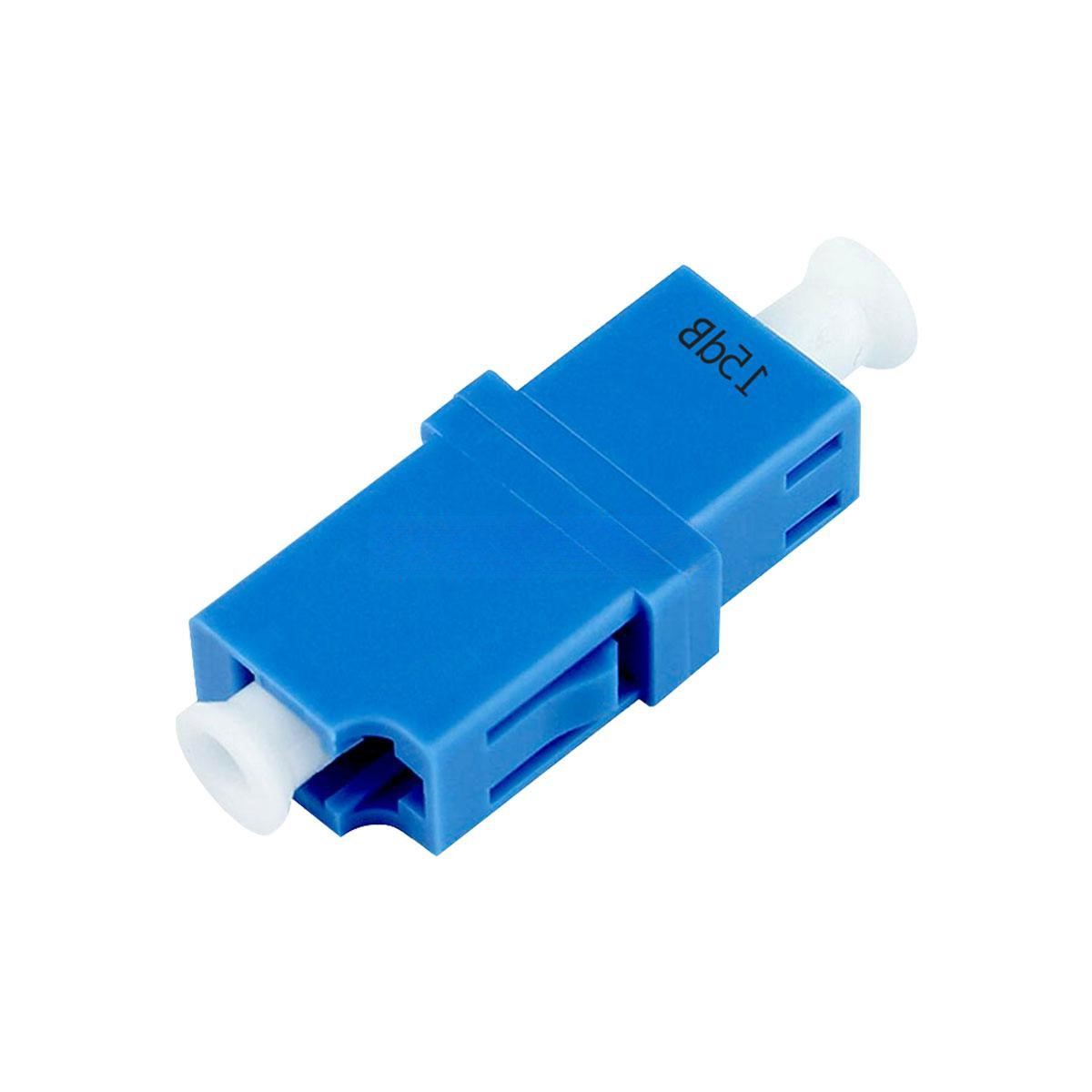

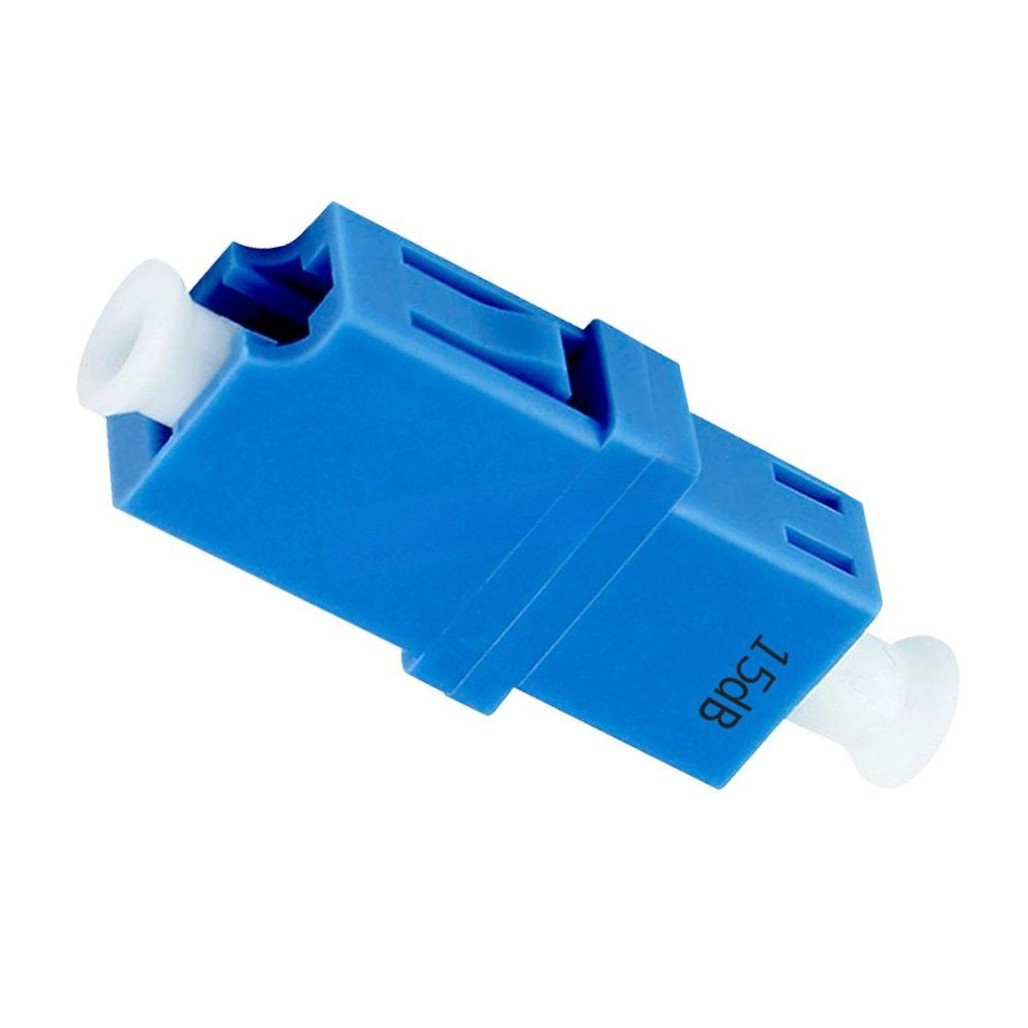

LC/UPC 15dB Fixed Fiber Optical Attenuator – Female-to-Female | Branded New
Product Overview
The LC/UPC 15dB Female Fixed Fiber Optical Attenuator is a high-precision passive optical device designed to reduce optical signal strength by 15 decibels (dB) in single mode fiber networks. Featuring LC/UPC female-to-female connectors, it is engineered for applications where strong optical signals need to be attenuated to protect sensitive equipment, ensure signal integrity, or simulate long-distance fiber paths.
Ideal for telecommunications, data centers, CATV, DWDM/CWDM systems, and lab testing environments, this branded attenuator offers stable attenuation, low insertion loss, and high return loss, ensuring optimal network performance even in demanding scenarios.
Key Features of LC/UPC 15dB Female Fiber
-
🔧 Attenuation Value: Fixed 15dB (±0.5dB precision)
-
🔧 Connector Interface: LC/UPC Female-to-Female
-
🔧 Fiber Type: Singlemode (9/125μm)
-
🔧 Operating Wavelength Range: 1260nm – 1650nm
-
🔧 Low Insertion Loss: ≤ 0.6dB
-
🔧 High Return Loss: ≥ 50dB (UPC polish)
-
🔧 Durability: Over 1000 mating cycles
-
🔧 Condition: Brand New, High-Quality Branded Build
LC/UPC 15dB Female Fiber Technical Specifications
| Specification | Details |
|---|---|
| Attenuation Level | 15dB ± 0.5dB |
| Connector Type | LC/UPC Female-to-Female |
| Fiber Compatibility | Singlemode 9/125μm |
| Operating Wavelength | 1260nm – 1650nm |
| Return Loss | ≥ 50dB (UPC Polish) |
| Insertion Loss | ≤ 0.6dB |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +85°C |
| Housing Material | Precision Metal Alloy |
| Compliance | RoHS, CE, ISO9001 Certified |
LC/UPC 15dB Female Fiber Applications
-
🔹 Optical power control in long-haul or amplified links
-
🔹 Simulation of fiber loss in system testing environments
-
🔹 Equipment protection in high-output optical systems
-
🔹 Balancing signal levels in DWDM/CWDM systems
-
🔹 Optical transceiver calibration and monitoring setups
-
🔹 FTTH, enterprise networks, and data center connectivity
Customization Options
We offer full customization to support OEM, project-specific, or brand-aligned requirements:
-
Available Attenuation Levels: 1dB to 30dB
-
Connector Variants: SC/APC, SC/UPC, LC/APC, LC/UPC, FC/APC, FC/UPC
-
Logo & Branding: Laser engraving, custom labels, OEM codes
-
Color Options: Color-coded sleeves by attenuation value
-
Kit Packaging: Mixed-value attenuator kits for field engineers
-
Pre-Sorting: Bundles for telecom site deployment or resale
Let us know your technical needs — we’ll configure the product accordingly.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | LC/UPC 15dB Female-Female Fixed Fiber Optical Attenuator |
| Fiber Connector | LC/UPC |
| Connector Gender | Female-Female |
| Transfer Mode | Singlemode |
| Material | Ceramic |
| Operating Wavelength | 1200 nm – 1600 nm |
| Attenuation | 15 dB |
| Attenuation Accuracy | ±10% dB |
| Return Loss | > 20 dB |
| Interchangeability | ≤ 0.20 dB |
| Repeatability | ≤ 0.10 dB |
| Reliability | > 1000 plug cycles |
| Operating Temperature Range | -40°C ~ +80°C |
| Storage Temperature Range | -40°C ~ +85°C |
| Vibration | Amplitude: 1.52 mm Frequency: 10 Hz – 55 Hz |
Additional Information
| Attribute | Value |
|---|---|
| Weight | 0.0 kg (placeholder) |
| Dimensions | 0.0 × 0.0 × 0.0 cm (placeholder) |
| Connector Type | LC |
| Attenuation | 15 dB |
Wholesale & Bulk Procurement Benefits
We support high-volume telecom rollouts, lab resupply, and distribution with:
-
📦 Factory Pricing & Bulk Discounts
-
📦 MOQ Flexibility for OEM/ODM Projects
-
📦 Quick Lead Time & Global Delivery Support
-
📦 Custom Barcoding, Packaging, and Documentation
-
📦 Project-Based Quotes & Dedicated Sales Team
Request your quotation today for long-term procurement or tender fulfillment.
Why Choose Our LC/UPC 15dB Female Attenuator?
-
✅ Precision Manufacturing for Accurate Signal Control
-
✅ Stable Attenuation Over Full Wavelength Range
-
✅ Tested and Certified to Global Telecom Standards
-
✅ Reliable Performance in Harsh Operating Conditions
-
✅ Fully Compatible with All LC/UPC Interfaces and Systems
Order Now
Ensure the stability and safety of your high-power optical network with the LC/UPC 15dB Fixed Fiber Optical Attenuator — the trusted solution for signal calibration, protection, and long-term performance. Available for OEM customization, branded packaging, and wholesale supply.
