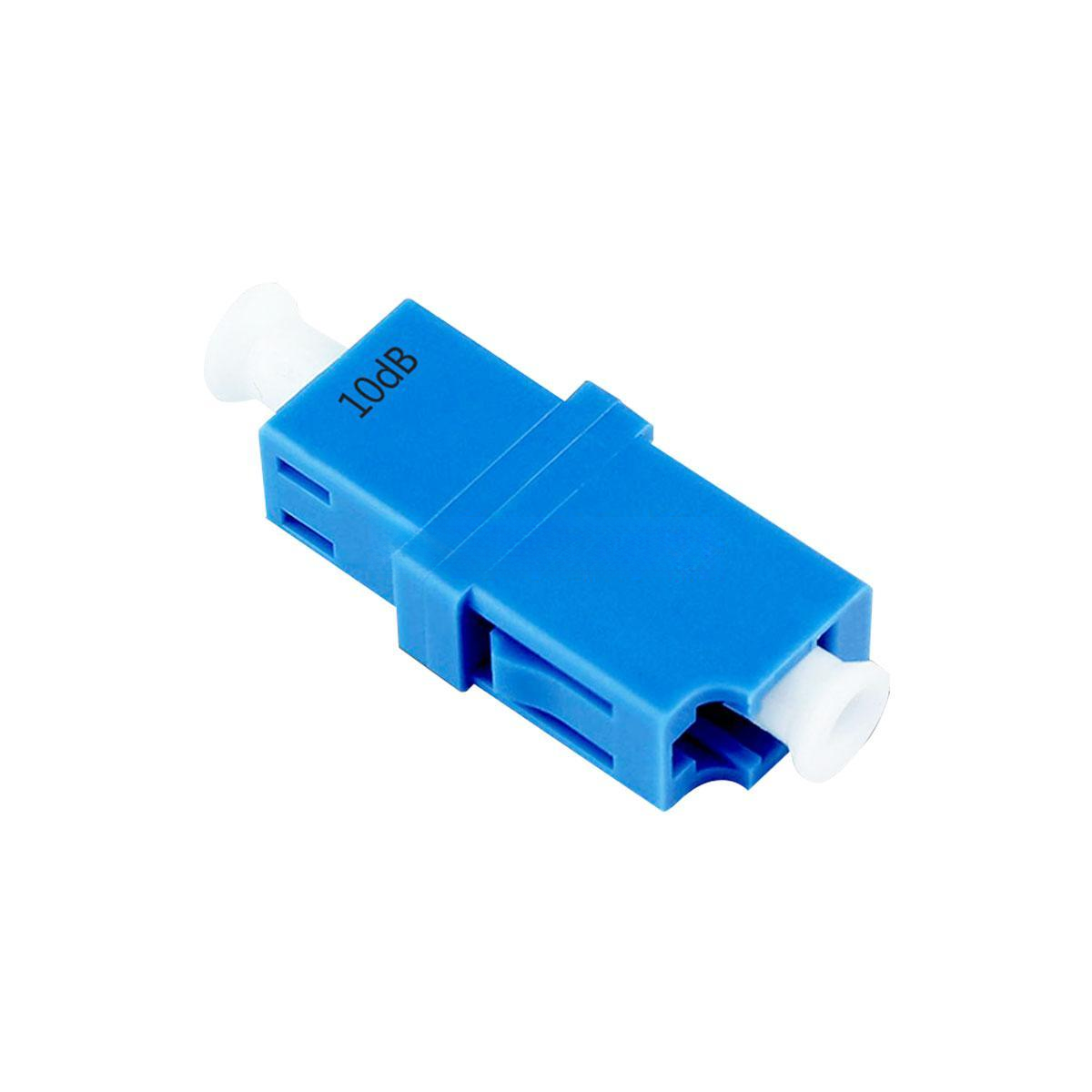

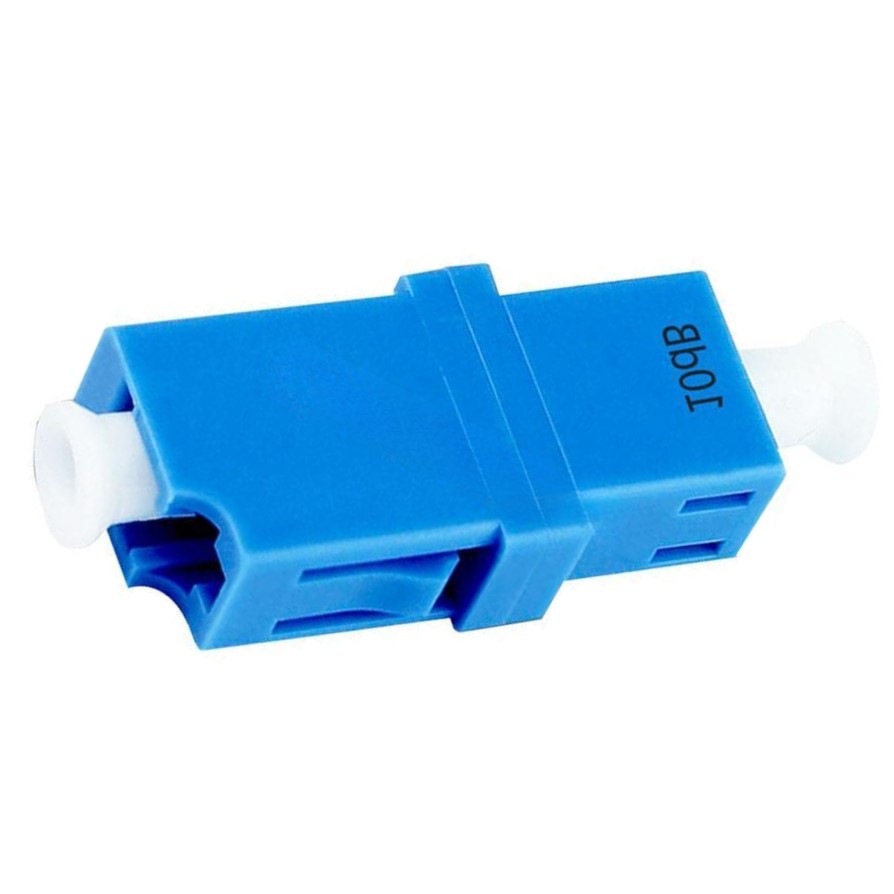

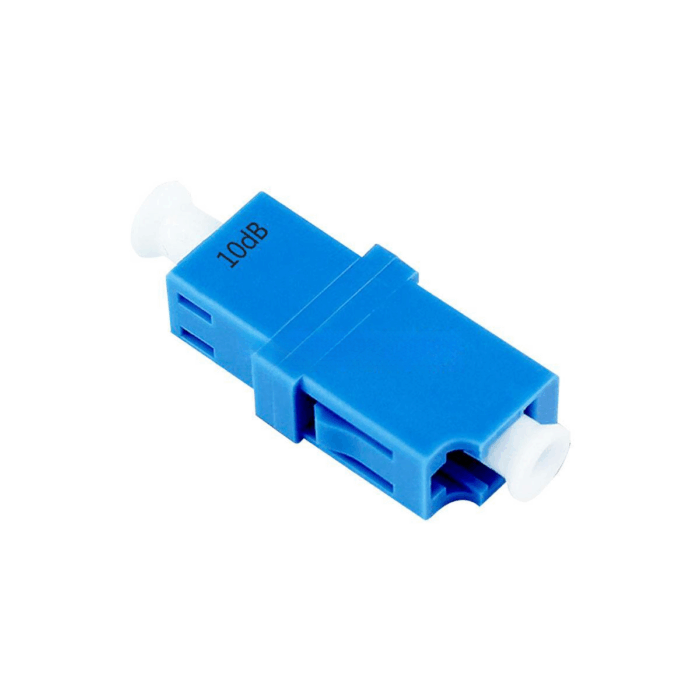

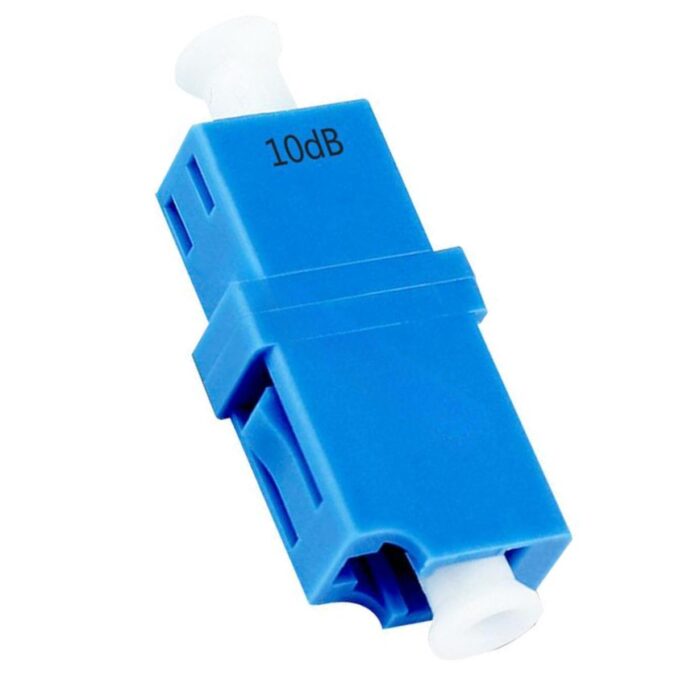

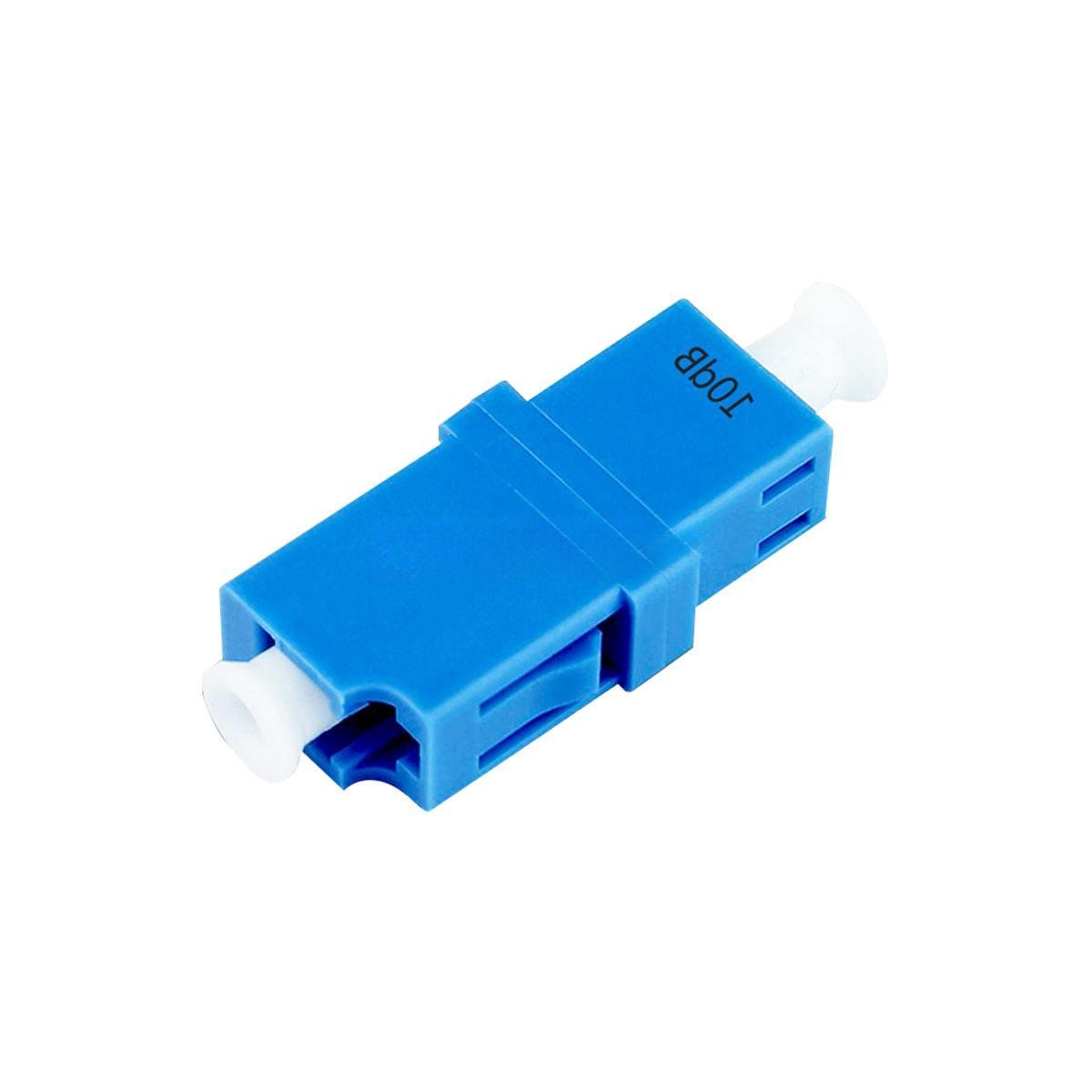

LC/UPC 10dB Fixed Fiber Optical Attenuator – Female-to-Female | Branded New
Product Overview
The LC/UPC 10dB Female Fixed Fiber Optical Attenuator is a precision passive fiber component used to reduce optical signal strength by 10 decibels (dB) in singlemode fiber networks. Engineered with LC/UPC female-to-female connectors, this attenuator is designed for accurate optical power balancing and signal conditioning in high-performance environments.
Ideal for telecommunications, FTTH, DWDM/CWDM systems, data centers, and lab testing applications, this branded attenuator offers stable attenuation, high return loss, and low insertion loss, ensuring signal reliability without degrading transmission quality.
LC/UPC 10dB Female Fiber Key Features
-
✅ Attenuation Value: 10dB ± 0.5dB
-
✅ Connector Type: LC/UPC Female-to-Female
-
✅ Fiber Type: Singlemode (9/125μm)
-
✅ Polish Type: UPC (Ultra Physical Contact)
-
✅ Operating Wavelength: 1260nm – 1650nm
-
✅ Low Insertion Loss: ≤ 0.5dB
-
✅ High Return Loss: ≥ 50dB
-
✅ Build Quality: Metal alloy housing with branded finish
-
✅ Condition: Brand New – Industry-Grade Quality
LC/UPC 10dB Female Fiber Technical Specifications
| Specification | Details |
|---|---|
| Attenuation Level | 10dB ± 0.5dB |
| Connector Type | LC/UPC (Female-to-Female) |
| Fiber Mode | Singlemode 9/125μm |
| Operating Wavelength | 1260nm – 1650nm |
| Return Loss | ≥ 50dB (UPC Polish) |
| Insertion Loss | ≤ 0.5dB |
| Durability | ≥ 1000 mating cycles |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +85°C |
| Certifications | CE, RoHS, ISO9001 |
LC/UPC 10dB Female Fiber Applications
-
🌐 Optical signal balancing in long-haul and metro fiber networks
-
📡 DWDM/CWDM power level adjustment
-
🧪 Lab testing and fiber calibration setups
-
🏢 Enterprise and data center fiber backbone systems
-
📶 FTTH and broadband network deployment
-
🔧 Receiver overload protection in high-output systems
Customization Options
Support for OEMs, installers, and system integrators:
-
Attenuation Range: 1dB to 30dB available
-
Connector Types: LC/APC, SC/UPC, SC/APC, FC/UPC, FC/APC, ST/UPC
-
Branding: Private label/logo engraving, serial barcoding
-
Color-Coded Sleeves: By dB level for easy identification
-
Kit Options: Multi-dB attenuator sets in boxed or pouch packaging
-
Packaging Styles: Retail, bulk, or technician field kits
Provide your custom specs — we’ll build to your exact needs.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | LC/UPC 10dB Female-Female Fixed Fiber Optical Attenuator |
| Fiber Connector | LC/UPC |
| Connector Gender | Female-Female |
| Transfer Mode | Singlemode |
| Material | Ceramic |
| Operating Wavelength | 1200 nm – 1600 nm |
| Attenuation | 10 dB |
| Attenuation Accuracy | ±10% dB |
| Return Loss | > 20 dB |
| Interchangeability | ≤ 0.20 dB |
| Repeatability | ≤ 0.10 dB |
| Reliability | > 1000 plug cycles |
| Operating Temperature Range | -40°C to +80°C |
| Storage Temperature Range | -40°C to +85°C |
| Vibration | Amplitude: 1.52 mm Frequency: 10 Hz – 55 Hz |
Additional Information
| Attribute | Value |
|---|---|
| Weight | 0.0 kg (placeholder) |
| Dimensions | 0.0 × 0.0 × 0.0 cm (placeholder) |
| Connector Type | LC |
| Attenuation | 10 dB |
Wholesale & Bulk Supply Advantages
Perfect for distributors, telecom contractors, ISPs, and OEM partners:
-
📦 Competitive Factory Pricing & Tiered Discounts
-
📦 Flexible MOQs for Projects & Resale
-
📦 Fast Lead Times & International Logistics Support
-
📦 Documentation: Export certifications, test reports, and COO
-
📦 Dedicated B2B Sales Team for Tender Support
Why Choose Our LC/UPC 10dB Female Attenuator?
-
✔️ Precise & Reliable Attenuation Control
-
✔️ Stable Performance Across Wavelengths
-
✔️ Premium Build Quality for Long-Term Use
-
✔️ Fully Compatible with LC/UPC Interface Devices
-
✔️ Certified for Telecom & Lab Standards
