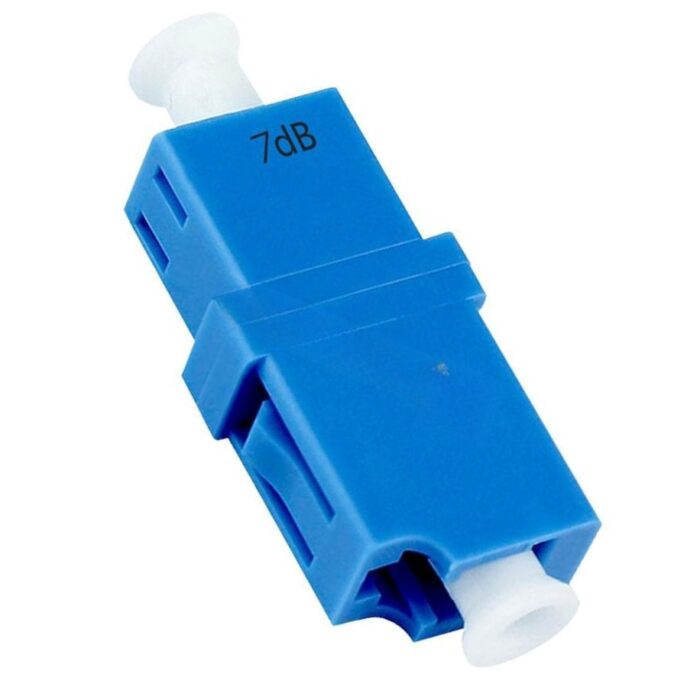

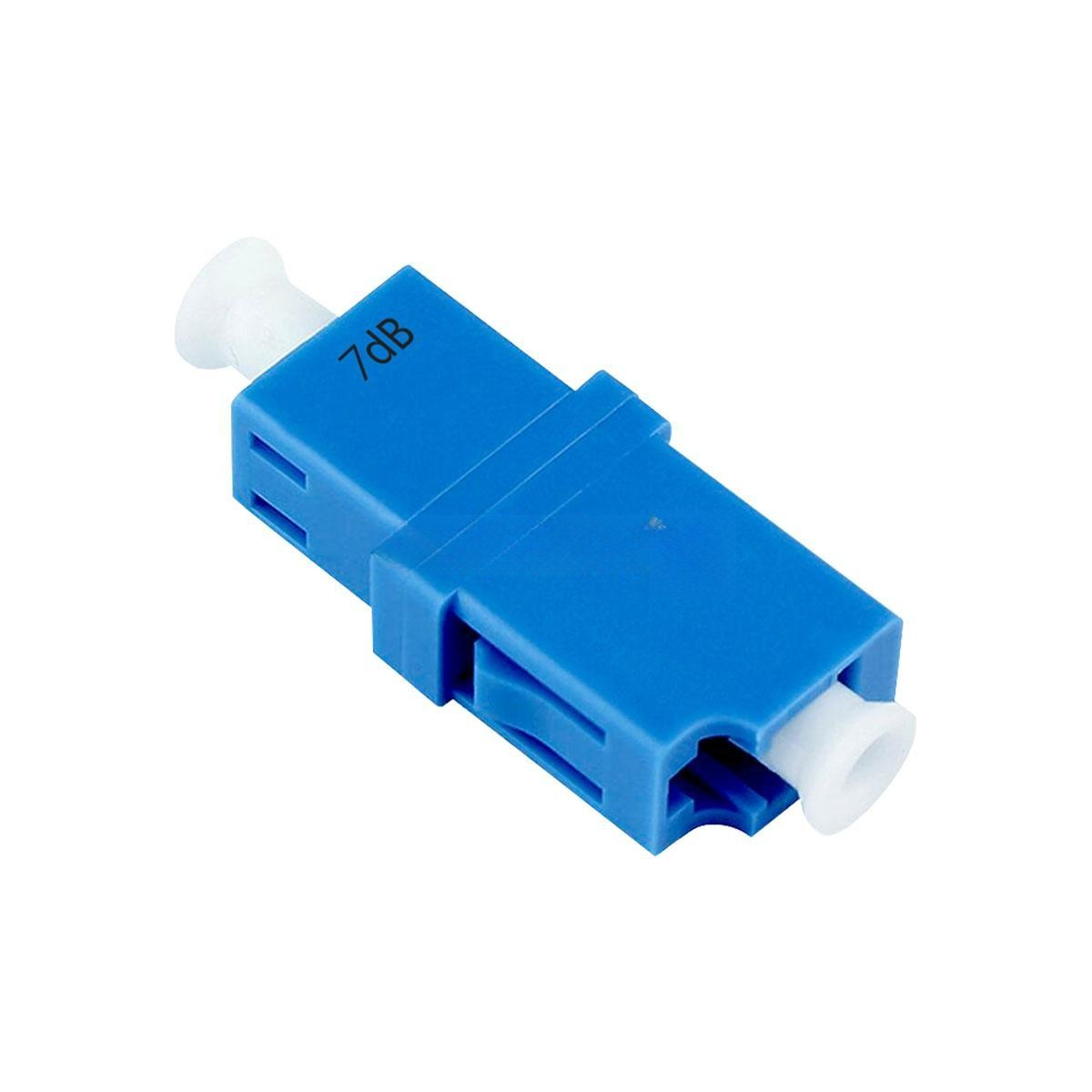

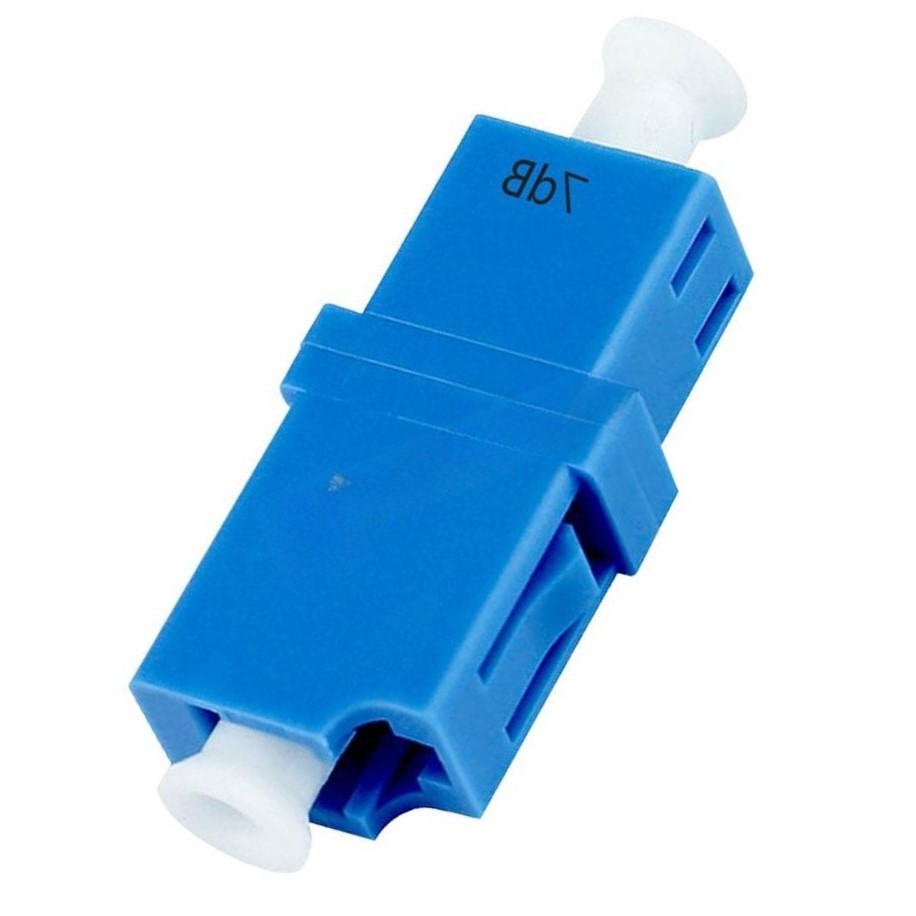

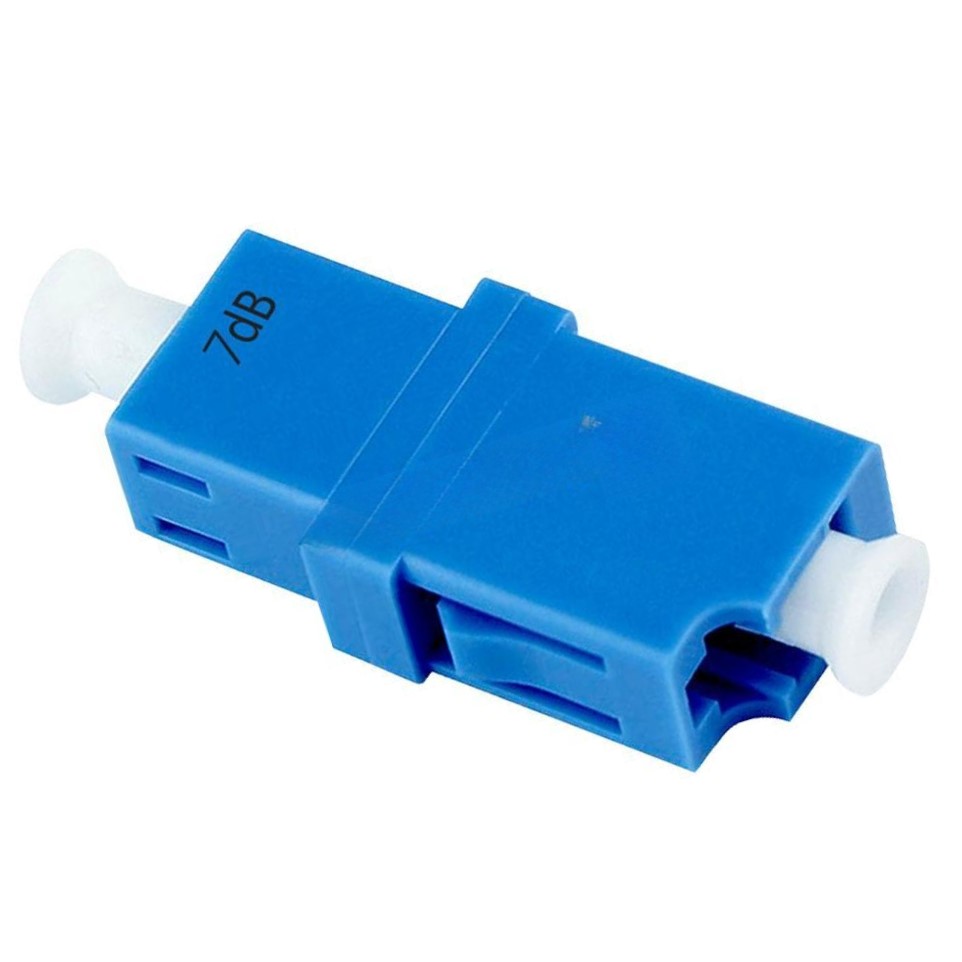

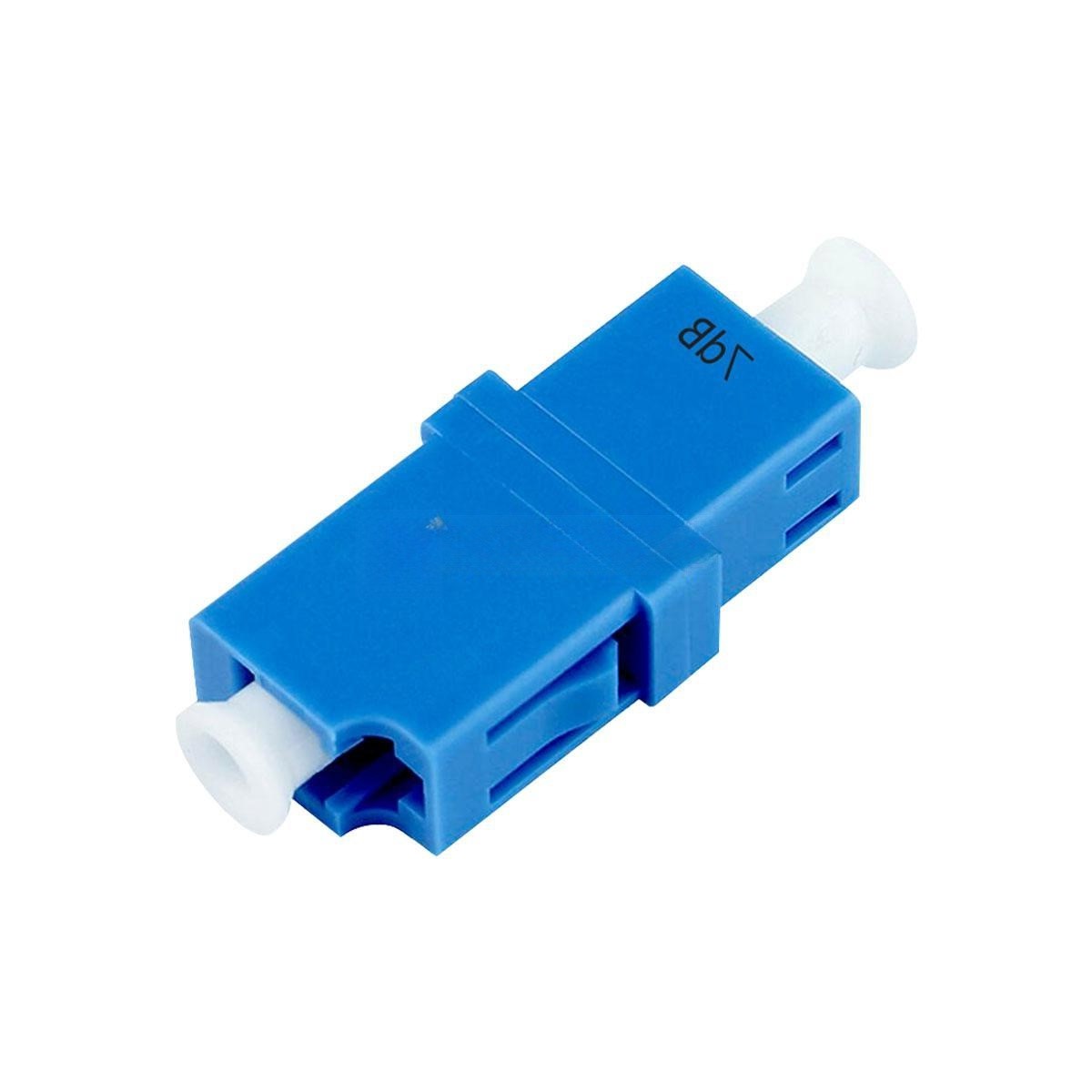

LC/UPC 7dB Fixed Fiber Optical Attenuator – Female-to-Female | Branded New
Product Overview
The LC/UPC 7dB Female Fixed Fiber Optical Attenuator is a high-precision passive optical component used to reduce the power level of an optical signal by a fixed value of 7 decibels (dB). Designed with LC/UPC female-to-female connectors, this attenuator is ideal for applications requiring controlled optical signal management without introducing signal distortion or performance loss.
Perfect for FTTH, telecom, CATV, data centers, DWDM/CWDM systems, and optical test labs, this branded attenuator features low insertion loss, high return loss, and consistent broadband attenuation across a wide wavelength range.
LC/UPC 7dB Female Fiber Key Features
-
✅ Attenuation Value: 7dB (±0.5dB)
-
✅ Connector Type: LC/UPC Female-to-Female
-
✅ Fiber Compatibility: Singlemode (9/125μm)
-
✅ Operating Wavelength: 1260nm – 1650nm
-
✅ Return Loss: ≥ 50dB (UPC Polish)
-
✅ Insertion Loss: ≤ 0.4dB
-
✅ Build Quality: Corrosion-resistant metal housing
-
✅ Condition: Brand New – Professionally Branded Packaging
LC/UPC 7dB Female Fiber Technical Specifications
| Specification | Details |
|---|---|
| Attenuation Level | 7dB ± 0.5dB |
| Connector Interface | LC/UPC (Female-to-Female) |
| Fiber Type | Singlemode 9/125μm |
| Operating Wavelength | 1260nm – 1650nm |
| Insertion Loss | ≤ 0.4dB |
| Return Loss | ≥ 50dB |
| Operating Temperature | -40°C to +85°C |
| Mating Durability | > 1000 cycles |
| Compliance | CE, RoHS, ISO9001 Certified |
LC/UPC 7dB Female Fiber Applications
-
🌐 Optical signal power balancing in telecom networks
-
🧪 Calibration and testing in laboratory setups
-
📡 DWDM/CWDM channel equalization
-
📶 Preventing optical receiver overdrive
-
🏢 Enterprise and data center optical routing
-
🚧 Simulating fiber path loss in test environments
Customization Options
Tailored for OEMs, distributors, and project-based integrations:
-
🔧 Available Attenuation Values: 1dB to 30dB
-
🔧 Connector Options: LC/APC, SC/APC, SC/UPC, FC/UPC, FC/APC
-
🔧 Logo & OEM Branding: Private label printing or laser engraving
-
🔧 Color Coding: Sleeves differentiated by attenuation level
-
🔧 Field Technician Kits: Multi-value sets for installers and labs
-
🔧 Packaging: Retail box, bulk zip lock, or foam tray packaging
Let us know your desired spec or quantity — we offer full customization support.
Wholesale & Bulk Supply Benefits
Trusted by ISPs, telecom integrators, and optical distributors globally:
-
📦 Factory Direct Pricing & Discount Tiers
-
📦 MOQ Flexibility for Projects & Resellers
-
📦 Global Delivery with Fast Lead Times
-
📦 Export Documents (CE, RoHS, COO)
-
📦 Dedicated Account Manager for Volume Orders & Tenders
Why Choose Our LC/UPC 7dB Female Attenuator?
-
✔️ Accurate Fixed Attenuation with High Stability
-
✔️ Excellent Optical Performance Across Wavelengths
-
✔️ Long-Term Durability and Reusability
-
✔️ Fully Compatible with LC/UPC Patch Panels & Equipment
-
✔️ Certified and Tested for Carrier-Grade Environments
Order Now
Enhance your fiber infrastructure with the LC/UPC 7dB Fixed Fiber Optical Attenuator — a trusted solution for signal control, optical calibration, and receiver protection. Available now with OEM branding, custom packaging, and bulk supply options.
