Product Description

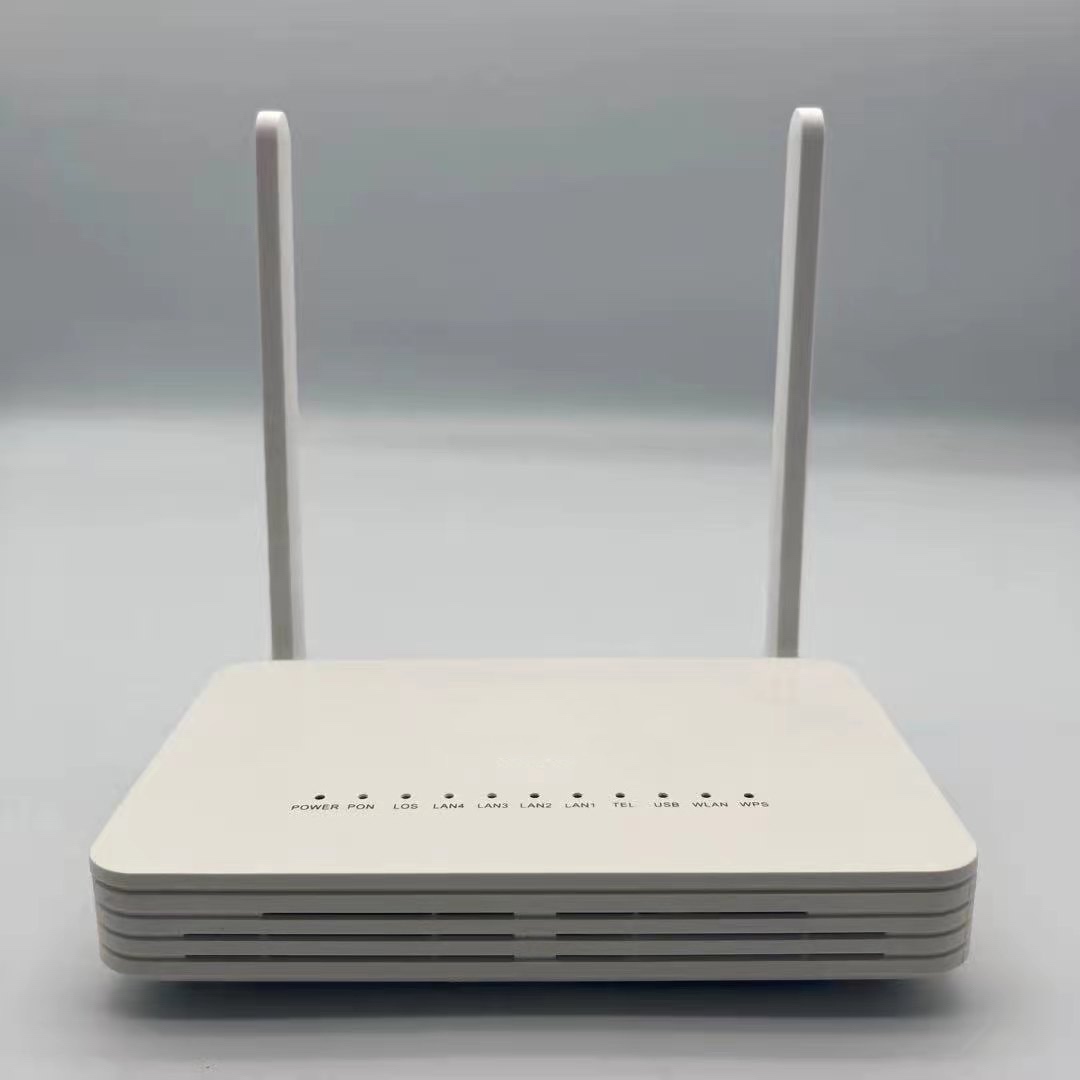

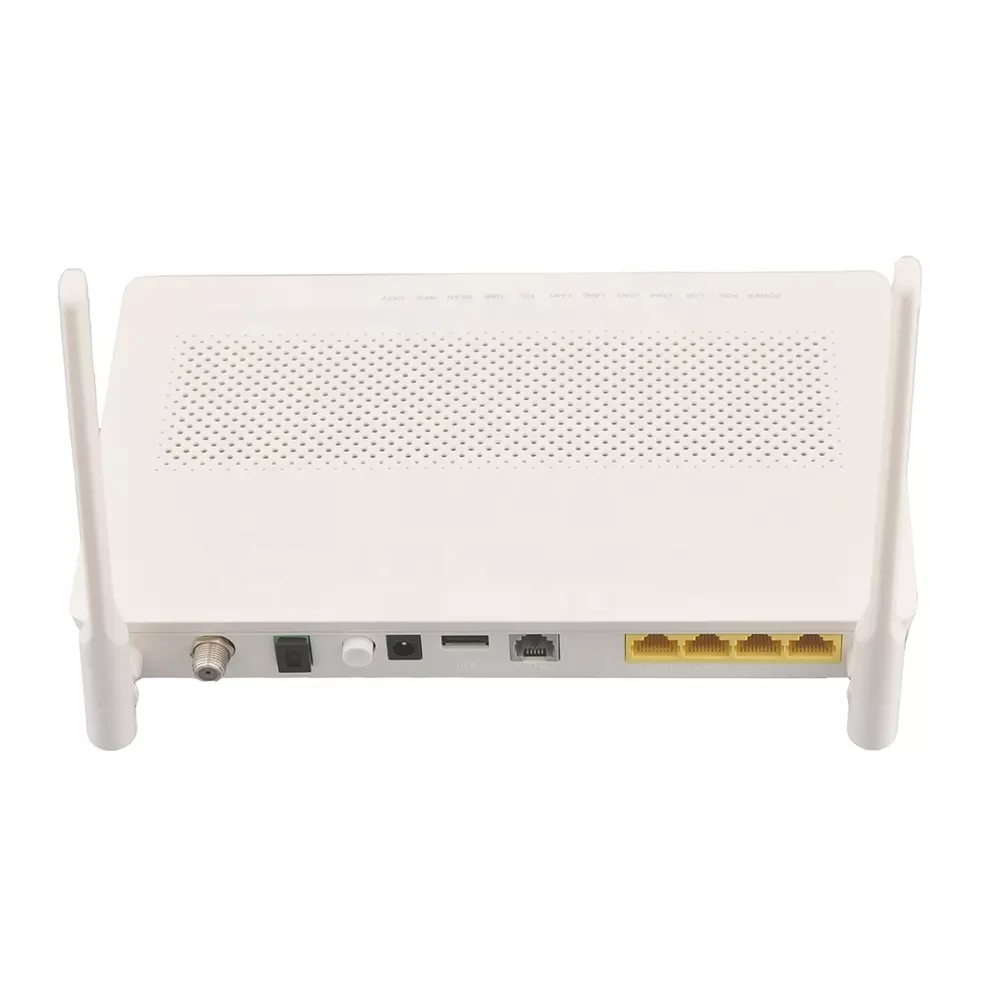

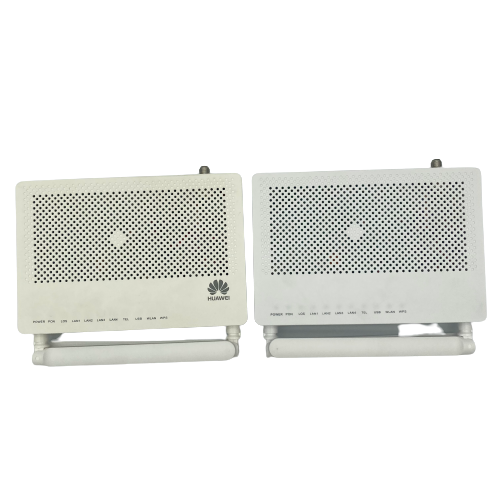

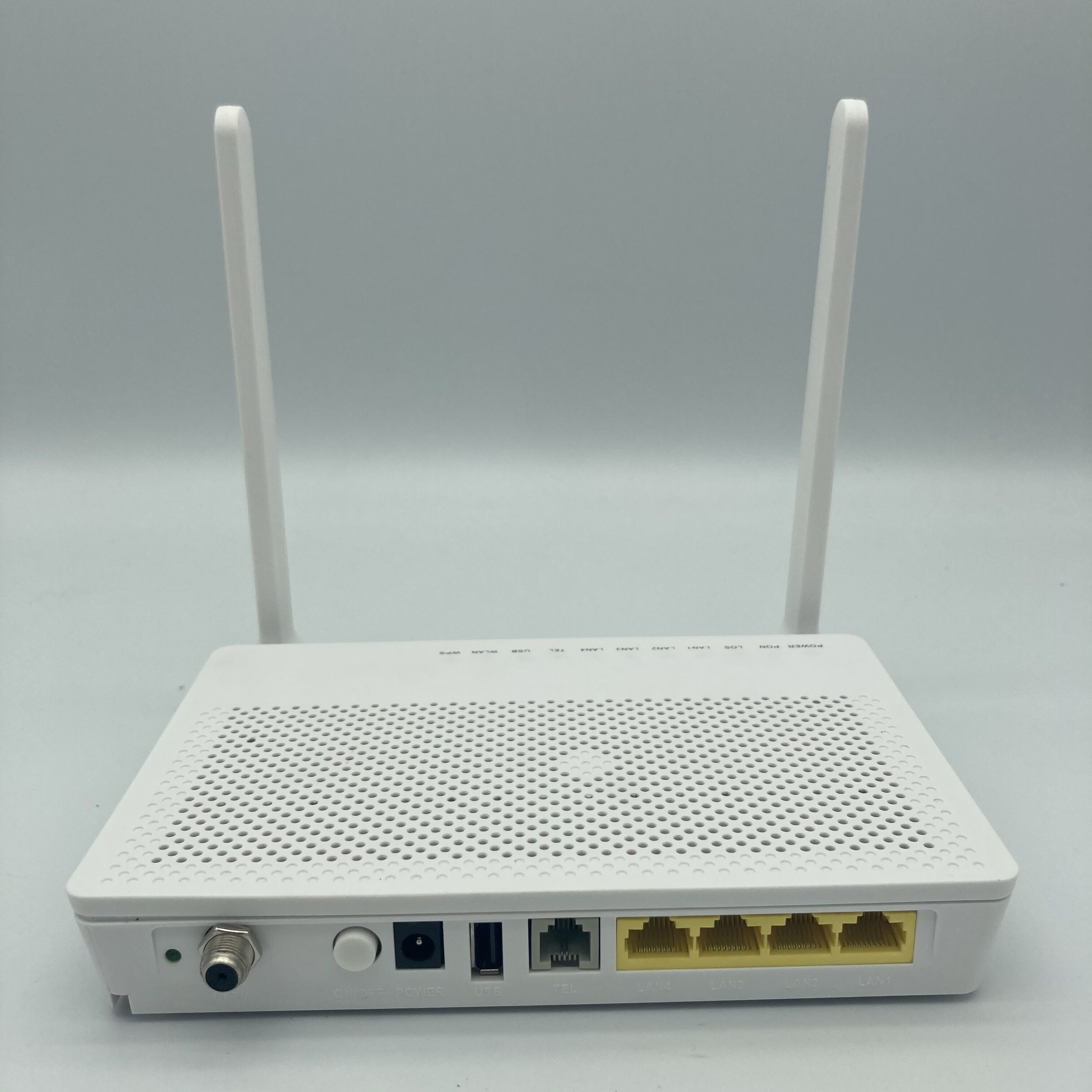

2022 Brand New FTTH EPON GPON ONU EG8247H5 4GE+2POTS+1USB+CATV+WIFI ftth ONT Modem 8247H5 with factory price
The EchoLife EG8247H5 provides four GE ports, two POTS ports, one CATV port, one USB port, and supports 2.4G Wi-Fi. The ONT
features high-performance forwarding capabilities to ensure an excellent experience with VoIP, Internet, and HD video services.
These features make the EG8247H5 a perfect option for broadband access.
features high-performance forwarding capabilities to ensure an excellent experience with VoIP, Internet, and HD video services.
These features make the EG8247H5 a perfect option for broadband access.
Firmware version:
Specification
|
Model
|
EG8247H5 English Firmware
|
|
Dimensions (H x W x D)
|
175 mm * 115 mm * 34 mm
|
|
Weight
|
255g / 420g (Include Package)
|
|
Operating Temperature
|
0°C to 40°C
|
|
Operating Humidity
|
5% RH to 95% RH (non-condensing)
|
|
Power Adapter Input
|
100~240 V AC, 50/60 Hz
|
|
System Power Supply
|
11 V to 14 V DC, 1.5A
|
|
Ports
|
1*GE + 3*FE + 1*POTS + 2.4G WiFi + 1*CATV
|
|
Optical Connector
|
Connector: SC/APC
Class B+ Receiver sensitivity: –27 dBm Overload optical power: –8 dBm Type B single-homing Type B dual-homing (supported in Layer 2 forwarding) |
|
Indicators
|
POWER/PON/LOS/LAN1~LAN4/TEL/USB/WLAN/CATV
|
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
